Lexus GS430 2006 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2006 PROD. OWNER'S MANUAL (OM30786U)

SECTION 4
467
IN CASE OF AN EMERGENCY
In case of an emergency
If your engine stalls while driving468
. . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle will not start 468
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase engine speed 473
. . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 473
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire (vehicles with run −flat tires) 474
. . . . . . . . . . . . .
If you have a flat tire (vehicles with standard tires) 476
. . . . . . . . . . . .
If your vehicle becomes stuck 487
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 488
. . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift automatic transmission
selector lever 496
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
If you lose your keys or lock yourself out 497
. . . . . . . . . . . . . . . . . . . .

IN CASE OF AN EMERGENCY
468
IF YOUR ENGINE STALLS WHILEDRIVING
If your engine stalls while driving . . .
1. Reduce your speed gradually, keeping a straight line. Move
cautiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Turn the engine switch off, and try starting the engine again.
If the engine will not start, see ”If your vehicle will not start”\
.
CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work, so steering and
braking will be much harder than usual.
IF YOUR VEHICLE WILL NOT START
(a) Simple checks
Before making these checks, make sure you have followed the
correct starting procedure instructions in ”Operating the
engine switch” on page 348 and that you have sufficient fuel.
Since your vehicle is equipped with the engine immobilizer,
also check whether the other keys will start the engine. If they
work, your electronic key may be broken. Have the key
checked at your Lexus dealer. If none of your keys work, there
may be a malfunction in the engine immobilizer. Call your
Lexus dealer. See ”Keys” on page 8.
If the engine is not turning over or is turning over too
slowly
1. Check that the battery terminals are tight and clean.
2. If the battery terminals are O.K., switch on the interior light.
3. If the light is out, dim or goes out when the starter is cranked,
the battery is discharged. You may try jump starting. See ”(c)
Jump starting” for further instruction.
4. If the engine does not start even after the battery has been
recharged or replaced, see “(d) Starting the engine after a
battery discharge” on page 472.
If the light is O.K., but the engine still will not start, it needs
adjustment or repair. Call a Lexus dealer, Roadside
Assistance or Customer Service Assistance. (See
”Foreword”.)

IN CASE OF AN EMERGENCY
469
NOTICE
Do not pull or pushstart the vehicle. It may damage
the vehicle or cause a collision when the engine starts.
Also the threeway catalytic converter may overheat
and become a fire hazard.
If the engine turns over at its normal speed but will not
start
1. The engine may be flooded because of repeated cranking.
See ”(b) Starting a flooded engine” for further instructions.
2. If the engine still will not start, it needs adjustment or repair.
Call a Lexus dealer, Roadside Assistance or Customer
Service Assistance. (See ”Foreword”.)
(b) Starting a flooded engine
If the engine will not start, your engine may be flooded
because of repeated cranking.
If this happens, push the engine switch while the brake pedal
is depressed with your left foot and the accelerator pedal is
depressed with your right foot. Then the cranking hold function
stops automatically, and you can try starting the engine with
your foot off the accelerator pedal.
If the engine does not start, wait a few minutes and try again.
If the engine still will not start, it needs adjustment or repair.
Call a Lexus dealer, Roadside Assistance or Customer
Service Assistance. (See ”Foreword”.)
(c) Jump starting
To avoid serious personal injury and damage to your
vehicle which might result from battery explosion, acid
burns, electrical burns, or damaged electronic
components, these instructions must be followed
precisely.
If you are unsure about how to follow this procedure, we
strongly recommend that you seek help from your Lexus
dealer, Roadside Assistance or Customer Service Assistance.
(See ”Foreword”.)
CAUTION
 Batteries contain sulfuric acid which is poisonous
and corrosive. Wear protective safety glasses when
jump starting, and avoid spilling acid on your skin,
clothing, or vehicle.
 If you should accidentally get acid on yourself or in
your eyes, remove any contaminated clothing and
flush the affected area with water immediately. Then
get immediate medical attention. If possible,
continue to apply water with a sponge or cloth while
en route to the medical office.
 The gas normally produced by a battery will explode
if a flame or spark is brought near. Use only
standardized jumper cables and do not smoke or
light a match while jump starting.

IN CASE OF AN EMERGENCY
470
NOTICE
The battery used for boosting must be 12 V. Do not jump
start unless you are sure that the booster battery is
correct.
G40026
 GS430 5
Discharged battery 6Booster battery

IN CASE OF AN EMERGENCY
471

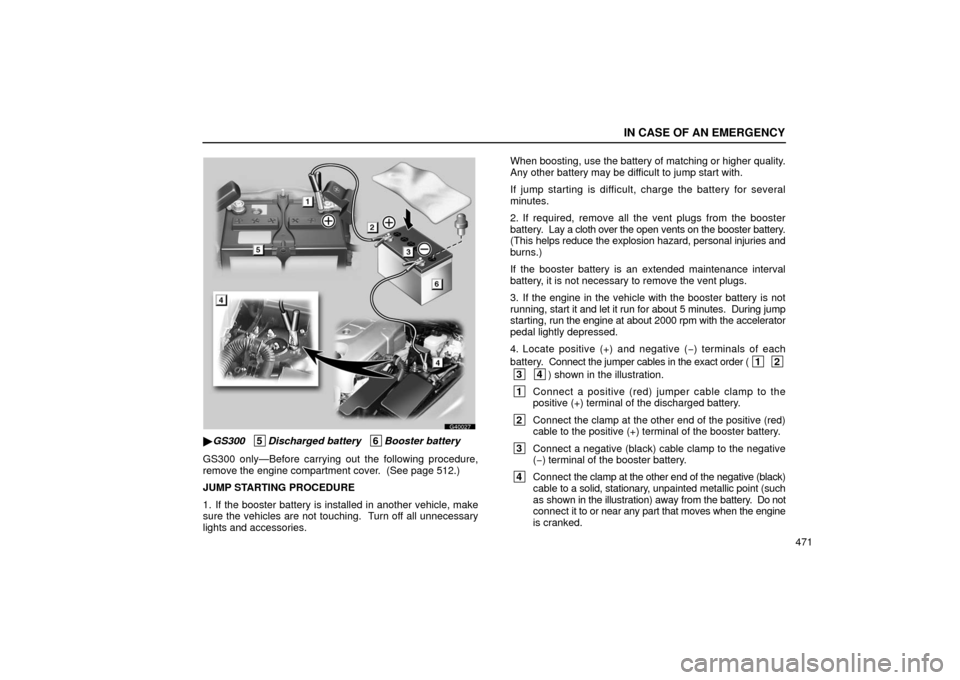

G40027
GS300 5
Discharged battery 6Booster battery
GS300 only—Before carrying out the following procedure,
remove the engine compartment cover. (See page 512.)
JUMP STARTING PROCEDURE
1. If the booster battery is installed in another vehicle, make
sure the vehicles are not touching. Turn off all unnecessary
lights and accessories. When boosting, use the battery of matching or higher quality.
Any other battery may be difficult to jump start with.
If jump starting is difficult, charge the battery for several
minutes.
2. If required, remove all the vent plugs from the booster
battery. Lay a cloth over
the open vents on the booster battery.
(This helps reduce the explosion hazard, personal injuries and
burns.)
If the booster battery is an extended maintenance interval
battery, it is not necessary to remove the vent plugs.
3. If the engine in the vehicle with the booster battery is not
running, start it and let it run for about 5 minutes. During jump
starting, run the engine at about 2000 rpm with the accelerator
pedal lightly depressed.
4. Locate positive (+) and negative ( −) terminals of each
battery. Connect the jumper cables in the exact order (
1 2
3 4) shown in the illustration.
1 Connect a positive (red) jumper cable clamp to the
positive (+) terminal of the discharged battery.
2Connect the clamp at the other end of the positive (red)
cable to the positive (+) terminal of the booster battery.
3Connect a negative (black) cable clamp to the negative
(−) terminal of the booster battery.
4Connect the clamp at the other end of the negative (black)
cable to a solid, stationary, unpainted metallic point (such
as shown in the illustration) away from the battery. Do not
connect it to or near any part that moves when the engine
is cranked.

IN CASE OF AN EMERGENCY
472
CAUTION
When making the connections, to avoid serious injury,
do not lean over the battery or accidentally let the
jumper cables or clamps touch anything except the
correct battery terminals or the ground.
5. Charge the discharged battery with the jumper cables
connected for approximately 5 minutes. At this time, run the
engine in the vehicle with the booster battery at about 2000
rpm with the accelerator pedal lightly depressed.
6. Start your engine in the normal way. After starting, run it at
about 2000 rpm for several minutes with the accelerator pedal
lightly depressed.
7. Carefully disconnect the cables in the exact reverse order:
the negative cable and then the positive cable.
8. Carefully dispose of the battery cover cloths which may now
contain sulfuric acid.
9. If removed, replace all the battery vent plugs.
The engine may not restart even after battery charging or
replacement. If this happens, see “(d) Starting the engine after
a battery discharge”.
If the cause of your battery discharging is not apparent (for
example, lights left on), you should have it checked at your
Lexus dealer. If the first start attempt is not successful...
Check
that the clamp on the jumper cables are tight. Recharge
the discharged battery with the jumper cables connected for
several minutes and restart your engine in the normal way.
If another attempt is not successful, the battery may be
depleted. Have it checked at your Lexus dealer.(d) Starting the engine after a battery discharge
In the event that the battery is discharged, the engine may
not restart even after the battery is recharged or replaced.
For safety reasons, the engine may be disabled when
battery voltage is extremely low. If the engine is disabled,
the start system must be normalized.
To normalized the start system:
1. Shift the transmission to the “P” position and set the engine
switch off.
2. Open and close any of the doors.
3. Start the engine.

IN CASE OF AN EMERGENCY
473
IF YOU CANNOT INCREASEENGINE SPEED
If engine speed does not increase when the accelerator
pedal is depressed, there may be a problem somewhere
in the electronic throttle control system. Move the vehicle
to a safe place by means of creeping and call a Lexus
dealer for assistance:
1. Depress the brake pedal and shift to the “D” position.
2. Gradually release the brake pedal, and the vehicle starts to
move by creeping. After arriving at a safe place, stop the
vehicle and call a Lexus dealer for assistance.
CAUTION
 The above method of moving the vehicle is for
emergency. Use it only for moving minimum
distances to a safe place.
 Be especially careful to prevent erroneous pedal
operation.
IF YOUR VEHICLE OVERHEATS
If your engine coolant temperature gauge indicates
overheating, if you experience a loss of power, or if you
hear a loud knocking or pinging noise, the engine has
probably overheated.
When the engine overheats
Pull safely off the road, stop the vehicle and turn on your
emergency flashers. Put the transmission in ”P” and apply the
parking brake.
A: If steam is coming from your engine:
Turn off the engine. Leave the hood closed until there is no sign
of steam or coolant. Your engine could have been seriously
damaged already. Call your Lexus dealer for assistance.
CAUTION
To help avoid personal injury, keep the hood closed until
there is no steam. Escaping steam or coolant is sign of
very high pressure.

IN CASE OF AN EMERGENCY
474B: If no steam is coming from your engine:
Leave the engine running and turn off the air conditioning.
Check the following.

Is the cooling fan operating?
 Is the coolant in the acceptable range?
 Is the engine drive belt O.K.?
CAUTION
When the engine is running, keep hands and clothing
away from the moving fan and engine drive belt.
 Do not attempt to remove the radiator cap when the
engine and radiator are hot. Serious injury could
result from scalding hot fluid and steam blown out
under pressure.
If the cooling fan is not operating or the coolant is not in the
acceptable range, turn off the engine and call your Lexus
dealer.
If both conditions are O.K., after the engine coolant
temperature has cooled to normal, continue driving your
vehicle.
If the engine coolant temperature does not cool down, or your
vehicle overheats again, have it checked as soon as possible
by your Lexus dealer.
IF YOU HAVE A FLAT TIRE
(Vehicles with runflat tires)
G63004
You may continue driving a vehicle with runflat
tires even if any tire goes flat. It may be able to run
for a maximum of 160 km (100 miles) at a speed
below 90 km/h (55 mph) after the tire pressure
warning light comes on. When you drive your
vehicle after the tire pressure warning light comes
on, the tire must be replaced. Do not use the
repaired tire.
Observe the following precautions and take your vehicle
to the nearest Lexus dealer or authorized tire dealer.

IN CASE OF AN EMERGENCY
475

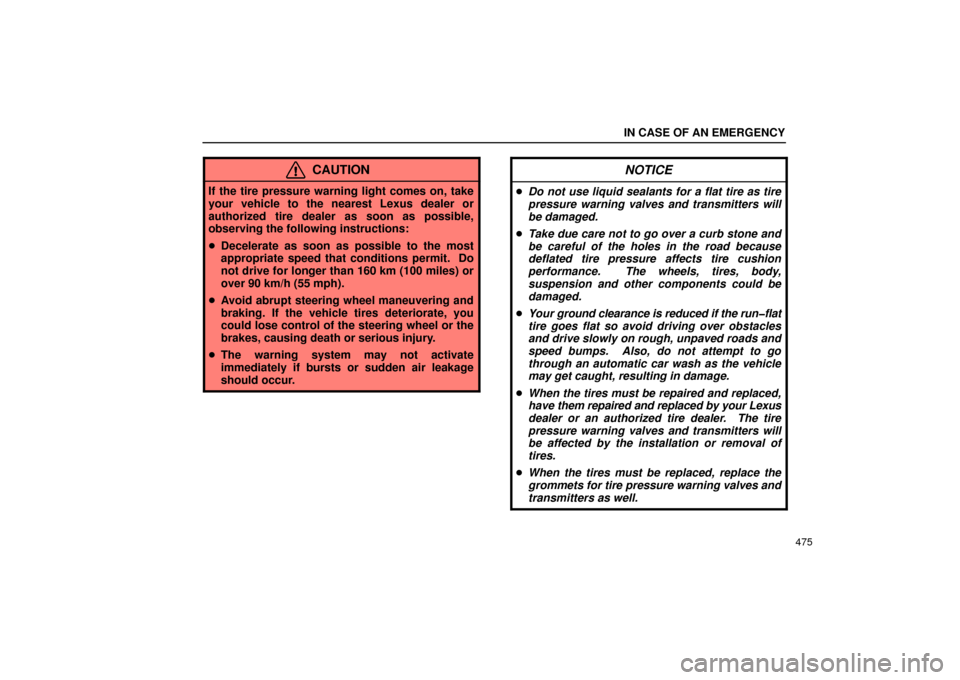

CAUTION
If the tire pressure warning light comes on, take
your vehicle to the nearest Lexus dealer or
authorized tire dealer as soon as possible,
observing the following instructions:
Decelerate as soon as possible to the most
appropriate speed that conditions permit. Do
not drive for longer than 160 km (100 miles) or
over 90 km/h (55 mph).
 Avoid abrupt steering wheel maneuvering and
braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the
brakes, causing death or serious injury.
 The warning system may not activate
immediately if bursts or sudden air leakage
should occur.
NOTICE
Do not use liquid sealants for a flat tire as tire
pressure warning valves and transmitters will
be damaged.
 Take due care not to go over a curb stone and
be careful of the holes in the road because
deflated tire pressure affects tire cushion
performance. The wheels, tires, body,
suspension and other components could be
damaged.
 Your ground clearance is reduced if the runflat
tire goes flat so avoid driving over obstacles
and drive slowly on rough, unpaved roads and
speed bumps. Also, do not attempt to go
through an automatic car wash as the vehicle
may get caught, resulting in damage.
 When the tires must be repaired and replaced,
have them repaired and replaced by your Lexus
dealer or an authorized tire dealer. The tire
pressure warning valves and transmitters will
be affected by the installation or removal of
tires.
 When the tires must be replaced, replace the
grommets for tire pressure warning valves and
transmitters as well.

IN CASE OF AN EMERGENCY
476
IF YOU HAVE A FLAT TIRE
(Vehicles with standard tires)

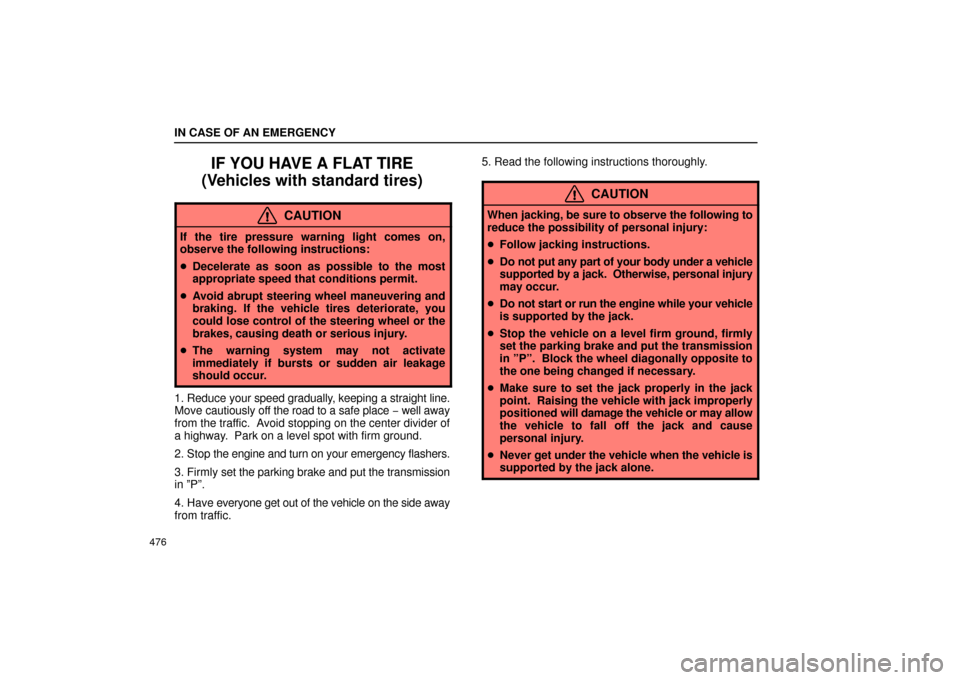

CAUTION
If the tire pressure warning light comes on,
observe the following instructions:
 Decelerate as soon as possible to the most
appropriate speed that conditions permit.
 Avoid abrupt steering wheel maneuvering and
braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the
brakes, causing death or serious injury.
 The warning system may not activate
immediately if bursts or sudden air leakage
should occur.
1. Reduce your speed gradually, keeping a straight line.
Move cautiously off the road to a safe place − well away
from the traffic. Avoid stopping on the center divider of
a highway. Park on a level spot with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission
in ”P”.
4. Have everyone get out of the vehicle on the side away
from traffic. 5. Read the following instructions thoroughly.
CAUTION
When jacking, be
sure to observe the following to
reduce the possibility of personal injury:
 Follow jacking instructions.
 Do not put any part of your body under a vehicle
supported by a jack. Otherwise, personal injury
may occur.
 Do not start or run the engine while your vehicle
is supported by the jack.
 Stop the vehicle on a level firm ground, firmly
set the parking brake and put the transmission
in ”P”. Block the wheel diagonally opposite to
the one being changed if necessary.
 Make sure to set the jack properly in the jack
point. Raising the vehicle with jack improperly
positioned will damage the vehicle or may allow
the vehicle to fall off the jack and cause
personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone.
