warning light Lexus GS430 2006 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2006 PROD. OWNER'S MANUAL (OM30786U)

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
iiPage
1
Power window switches 38, 59
. . . . . . . . . . . . . . . . . . .
2 Driving position memory switches 202
. . . . . . . . . . .
3 Window lock switch 60
. . . . . . . . . . . . . . . . . . . . . . . . . .
4 Door lock switch 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Side vents 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Engine switch 348
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Automatic air conditioning controls 258
. . . . . . . . . .
8 Audio system 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Clock 106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
10 Center vents 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Outside temperature display 109
. . . . . . . . . . . . . . . . .
12 Touch screen 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Navigation system display (See the separate
“Navigation System Owner’s Manual”)
13 Security indicator light 41
. . . . . . . . . . . . . . . . . . . . . . .
14 Rear window and outside rear view
mirror defogger switch 58 . . . . . . . . . . . . . . . . . . . . . . .
15 Front passenger’s seat belt reminder light 78 . . . . .
16 Emergency flasher switch 62
. . . . . . . . . . . . . . . . . . . . Page
17 Glove box
113
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Trunk lid opener main switch 130
. . . . . . . . . . . . . . . .
19 Tire pressure warning select switch 448
. . . . . . . . . .
20 Cigarette lighter 110
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
21 Cupholders 118
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Seat heater switches or Seat ventilator/heater
switches 63, 65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Traction control system off switch
(Twowheel drive models only) 425 . . . . . . . . . . . . . .
24 Driving pattern selector switch 359
. . . . . . . . . . . . . . .
25 Damping mode select switch
(GS430 only) 424 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26 Coin box 119
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Ashtray 110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
28 Automatic transmission selector lever 359 . . . . . . .
29 Tire pressure warning reset switch 446
. . . . . . . . . . .
30 Hood lock release lever 128
. . . . . . . . . . . . . . . . . . . . .
31 Parking brake pedal 358
. . . . . . . . . . . . . . . . . . . . . . . . .
32 Switch box xi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
ivPage
1
Power window switches 38, 59
. . . . . . . . . . . . . . . . . . .
2 Driving position memory switches 202
. . . . . . . . . . .
3 Window lock switch 60
. . . . . . . . . . . . . . . . . . . . . . . . . .
4 Door lock switch 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Side vents 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Engine switch 348
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Automatic air conditioning controls 258
. . . . . . . . . .
8 Audio system 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Clock 106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
10 Center vents 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Outside temperature display 109
. . . . . . . . . . . . . . . . .
12 Touch screen 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 Security indicator light 41
. . . . . . . . . . . . . . . . . . . . . . .
14 Rear window and outside rear view
mirror defogger switch 58 . . . . . . . . . . . . . . . . . . . . . . .
15 Front passenger’s seat belt reminder light 78 . . . . .
16 Emergency flasher switch 62
. . . . . . . . . . . . . . . . . . . . Page
17 Glove box
113
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Trunk lid opener main switch 130
. . . . . . . . . . . . . . . .
19 Tire pressure warning select switch 448
. . . . . . . . . .
20 Cigarette lighter 110
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
21 Cupholders 118
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Seat heater switches or Seat ventilator/heater
switches 63, 65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Traction control system off switch
(Twowheel drive models only) 425 . . . . . . . . . . . . . .
24 Driving pattern selector switch 359
. . . . . . . . . . . . . . .
25 Damping mode select switch
(GS430 only) 424 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26 Coin box 119
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Ashtray 110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
28 Automatic transmission selector lever 359 . . . . . . .
29 Tire pressure warning reset switch 446
. . . . . . . . . . .
30 Hood lock release lever 128
. . . . . . . . . . . . . . . . . . . . .
31 Parking brake pedal 358
. . . . . . . . . . . . . . . . . . . . . . . . .
32 Switch box xi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
viPage
1
Tachometer 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Headlight high beam indicator light 49
. . . . . . . . . . .
3 Turn signal indicator light 49
. . . . . . . . . . . . . . . . . . . .
4 Headlight indicator light 46
. . . . . . . . . . . . . . . . . . . . . .
5 Slip indicator light 425, 428, 429
. . . . . . . . . . . . . . . . . .
6 Fog light indicator light 50
. . . . . . . . . . . . . . . . . . . . . . .
7 Driver’s seat belt reminder light 77
. . . . . . . . . . . . . . .
8 SRS warning light 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Open door warning light 81
. . . . . . . . . . . . . . . . . . . . . .
10 Automatic transmission indicator lights 359 . . . . . .
11 Fuel gauge 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 Fuel filler door indicator 132
. . . . . . . . . . . . . . . . . . . . .
13 Low fuel level warning light 82
. . . . . . . . . . . . . . . . . . .
14 Engine coolant temperature gauge 70
. . . . . . . . . . . .
15 Charging system warning light 79
. . . . . . . . . . . . . . . .
16 Brake system warning light (yellow) 77
. . . . . . . . . . . Page
17 Malfunction indicator lamp
79
. . . . . . . . . . . . . . . . . . .
18 Adaptive frontlighting system off
indicator light 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Antilock brake system warning light 80
. . . . . . . . . .
20 Precollision system warning light 82
. . . . . . . . . . . .
21 Brake system warning light (red) 76
. . . . . . . . . . . . . .
22 Master warning light 80
. . . . . . . . . . . . . . . . . . . . . . . . .
23 Electric power steering system warning light 82 . .
24 Multiinformation display 84
. . . . . . . . . . . . . . . . . . . . .
25 Odometer and trip meter 72
. . . . . . . . . . . . . . . . . . . . .
26 Tire pressure warning light 81
. . . . . . . . . . . . . . . . . . .
27 Intuitive parking assist indicator light 373
. . . . . . . .
28 Snow mode indicator light 371
. . . . . . . . . . . . . . . . . . .
29 Cruise control indicator light 398
. . . . . . . . . . . . . . . .
30 Power mode indicator light 371
. . . . . . . . . . . . . . . . . .
31 Damping mode indicator light 424
. . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
viiiPage
1
Tachometer 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Headlight high beam indicator light 49
. . . . . . . . . . .
3 Turn signal indicator light 49
. . . . . . . . . . . . . . . . . . . .
4 Tail light indicator light 46
. . . . . . . . . . . . . . . . . . . . . . .
5 Slip indicator light 425, 428, 429
. . . . . . . . . . . . . . . . . .
6 Fog light indicator light 50
. . . . . . . . . . . . . . . . . . . . . . .
7 Driver’s seat belt reminder light 77
. . . . . . . . . . . . . . .
8 SRS warning light 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Open door warning light 81
. . . . . . . . . . . . . . . . . . . . . .
10 Automatic transmission indicator lights 359 . . . . . .
11 Fuel gauge 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 Fuel filler door indicator 132
. . . . . . . . . . . . . . . . . . . . .
13 Low fuel level warning light 82
. . . . . . . . . . . . . . . . . . .
14 Engine coolant temperature gauge 70
. . . . . . . . . . . .
15 Charging system warning light 79
. . . . . . . . . . . . . . . .
16 Brake system warning light (yellow) 77
. . . . . . . . . . . Page
17 Malfunction indicator lamp
79
. . . . . . . . . . . . . . . . . . .
18 Adaptive frontlighting system off
indicator light 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Antilock brake system warning light 80
. . . . . . . . . .
20 Precollision system warning light 82
. . . . . . . . . . . .
21 Brake system warning light (red) 76
. . . . . . . . . . . . . .
22 Master warning light 80
. . . . . . . . . . . . . . . . . . . . . . . . .
23 Electric power steering system warning light 82 . .
24 Multiinformation display 84
. . . . . . . . . . . . . . . . . . . . .
25 Odometer and trip meter 72
. . . . . . . . . . . . . . . . . . . . .
26 Tire pressure warning light 81
. . . . . . . . . . . . . . . . . . .
27 Intuitive parking assist indicator light 373
. . . . . . . .
28 Snow mode indicator light 371
. . . . . . . . . . . . . . . . . . .
29 Cruise control indicator light 398
. . . . . . . . . . . . . . . .
30 Power mode indicator light 371
. . . . . . . . . . . . . . . . . .
31 Damping mode indicator light 424
. . . . . . . . . . . . . . . .

KEYS AND DOORS
16
If you do not drive your vehicle, store the electronic
key, keeping it at least 5 m (15 ft.) away from the
vehicle.
ALARMS AND WARNING MESSAGES
Your Lexus is equipped with alarms inside and outside, as
well as warning messages in the multiinformation
display, that remind you if there is a problem involving the
entry function.
Cases which are expected to happen frequently are
shown in the illustrations and the other cases are
described in the table. If an alarm or warning message
comes on, check to see what the problem is referring to
the illustrations and table, and take the appropriate
measure.
If a warning message appears, the master warning light
will blink.

SWITCHES
48
Automatic headlight leveling system
The headlight beam level is always maintained automatically
at the proper level in all loading conditions so that your
headlights do not dazzle other road users.
If there is a problem somewhere in this system, the message
“CHECK HEADLIGHT” appears on the multi−information
display. At this time, the master warning light comes on and a
warning tone sounds. If the warning message appears, have
your vehicle checked by your Lexus dealer as soon as
possible.
Adaptive Front Lighting System (AFS)
Adaptive Front Lighting System (AFS) provides the proper
headlight beam level according to the current driving
conditions. T his system moves the headlight beam left or right
according to the turning angle of the tires. The synergy of this
system and the automatic headlight leveling system improves
visibility at the intersections and curves.
The system operates when the vehicle speed increases above
10 km/h (6 mph), and stops when the vehicle speed drops
below 10 km/h (6 mph).
The system can operate within the limited range of the tires
turning angle. If you do not want to activate the system, you can cancel
the system.
Adaptive Front Lighting System cancel switch is located in the
switch box.
G12017
Push the button to use the switch box. To cancel the
system, push the “AFS OFF” switch. To turn it on, push
it again.
When the system is canceled, the “AFS OFF” indicator lights
up in the instrument cluster.
If the system fails, the indicator light in the instrument cluster
will flash. If this occurs, have your vehicle checked by your
Lexus dealer.
After operation, be sure to close the switch box to its original
position.

SWITCHES
54
CAUTION
Be careful not to get your fingers caught between the
wipers and windshield.
When the wiper lever is in the “AUTO” position with the
engine switch on, the wipers could operate
automatically in the following cases:
 If you touch the upper center of the windshield
adjacent to the sensor.
 If you wipe the upper center of the windshield
(adjacent to which the sensor is located) with a towel.
 If the windshield vibrates.
 If you touch the sensor.
For mist wiper operations (a single wipe), pull the lever up
and release it.
To make the washer squirt, pull the lever toward you and
release it.
If the wiper lever is in the “OFF” position, the wipers will
automatically make 3 wipes and then a single wipe later to
sweep the windshield completely.* The interval between the
3 wipes and the last wipe will depend on the vehicle speed.
The last sweep does not happen if the vehicle speed exceeds
about 170 km/h (106 mph).
NOTE:
*This function can be changed as follows: The time before the last single wipe can be set for
about 3 seconds.
 The last single wipe can be deactivated.
Ask your Lexus dealer for details.
The warning message “LOW WASHER FLUID” is displayed in
the multi−information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
“Adding washer fluid” on page 589.
When the headlights are on and the washers are activated by
pushing the windshield washer switch, the headlight cleaner
operates once automatically.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
The rear window and outside rear view mirror defogger
automatically turns on when you operate the wipers.

SWITCHES
57
HEADLIGHT CLEANER SWITCH
The headlight cleaner switch is located in the switch box.
G12010
Push the button to use the switch box. To spray fluid on
the headlights, push the switch with the headlights on.
The engine switch must be selected in “IG−ON” mode.
The warning message “LOW WASHER FLUID” is displayed in
the multi−information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
“Adding washer fluid” on page 589.
After operation, be sure to close the switch box to its original
position.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, keep the switch box closed when not in
use while driving.
NOTICE
Do not turn the headlight cleaner on with the washer
fluid tank empty. It may cause the cleaner motor to
overheat.

SECTION 1 – 3
69
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Engine coolant temperature gauge 70
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light sensitive optitron meter 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 74
. . . . . . . . . . . . . .
Multi−information display 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
70

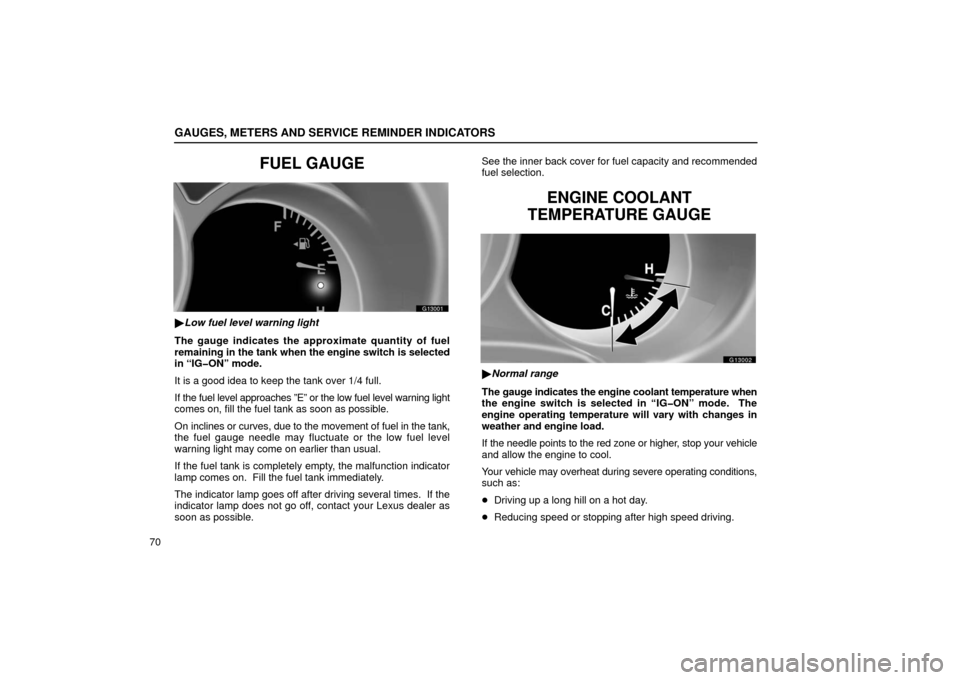

FUEL GAUGE
G13001
Low fuel level warning light
The gauge indicates the approximate quantity of fuel
remaining in the tank when the engine switch is selected
in “IGON” mode.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches ”E” or the low fuel level warning light\
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible. See the inner back cover for fuel capacity and recommended
fuel selection.
ENGINE COOLANT
TEMPERATURE GAUGE
G13002
 Normal range
The gauge indicates the engine coolant temperature when
the engine switch is selected in “IGON” mode. The
engine operating temperature will vary with changes in
weather and engine load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe operating conditions,
such as:
 Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.
