xi

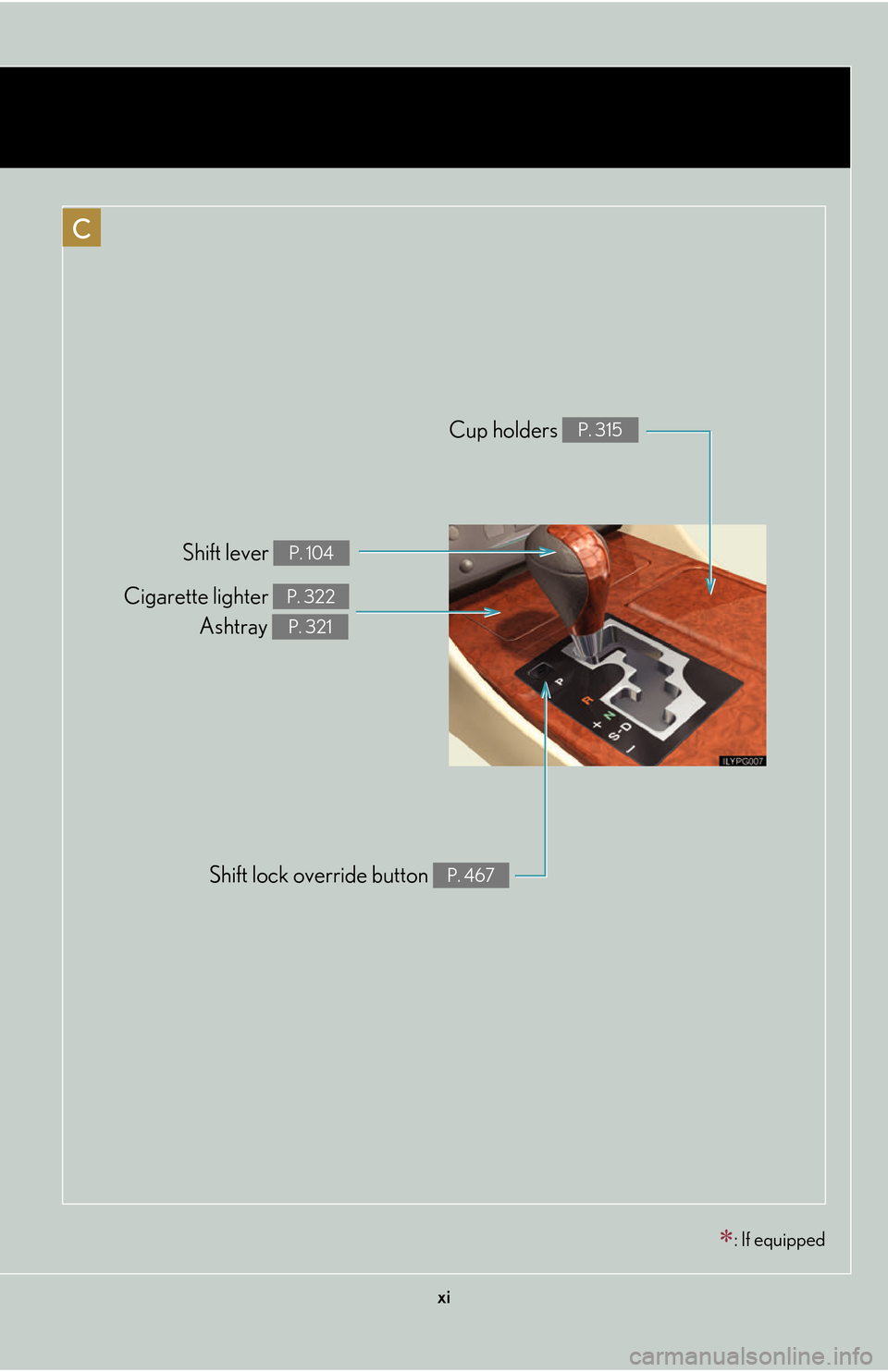

Shift lever P. 104
Cigarette lighter P. 322
Ashtray P. 321
Shift lock override button P. 467
Cup holders P. 315
C
: If equipped

xii

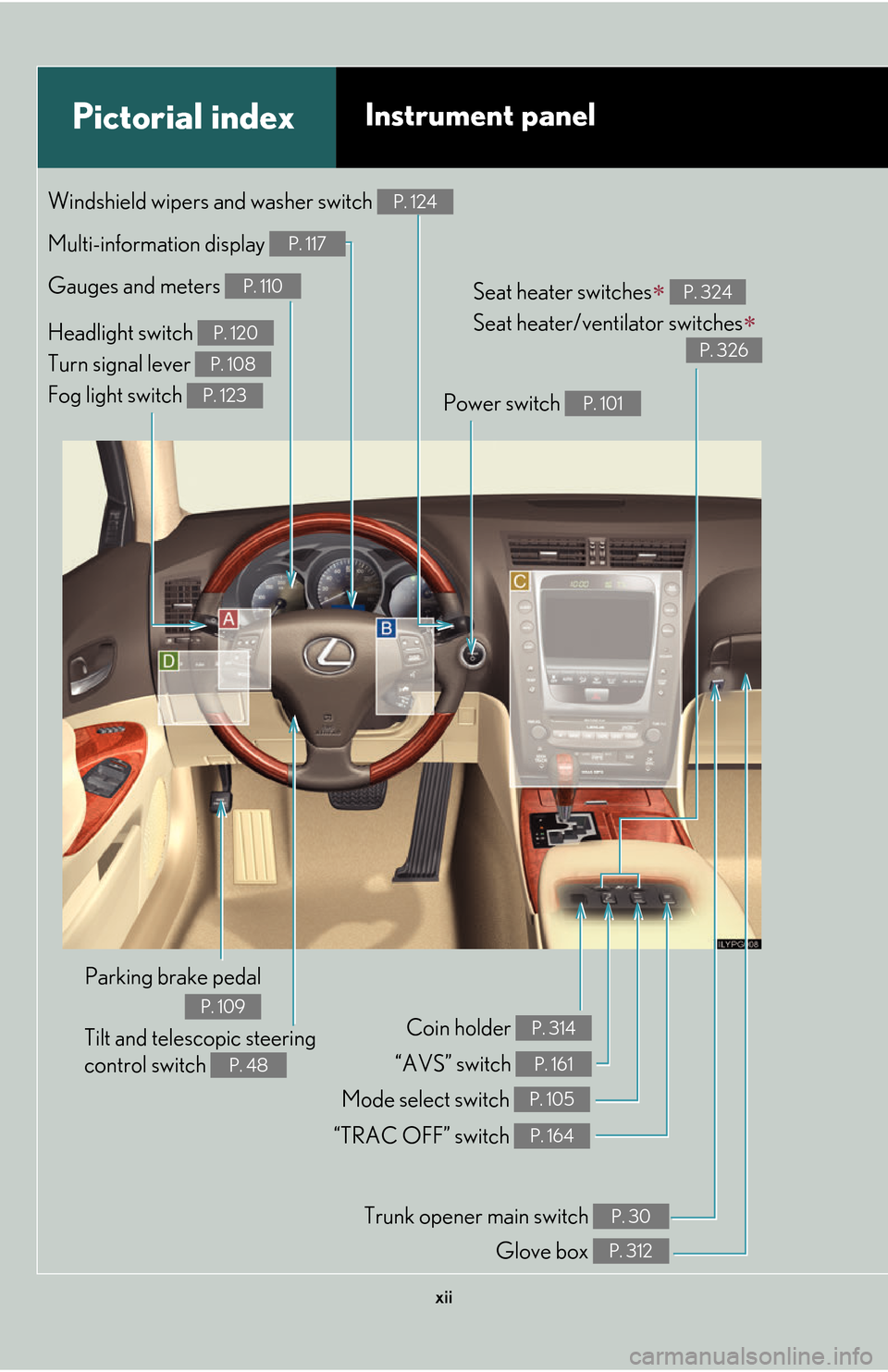

Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 120
P. 108
P. 123
Gauges and meters P. 110
Multi-information display P. 117
Windshield wipers and washer switch P. 124
Power switch P. 101
Trunk opener main switch P. 30
Glove box P. 312
Seat heater switches
Seat heater/ventilator switches

P. 324
P. 326
Tilt and telescopic steering 
control switch
P. 48
Parking brake pedal
P. 109
“TRAC OFF” switch P. 164
Coin holder P. 314
Mode select switch P. 105
“AVS” switch P. 161

xiii

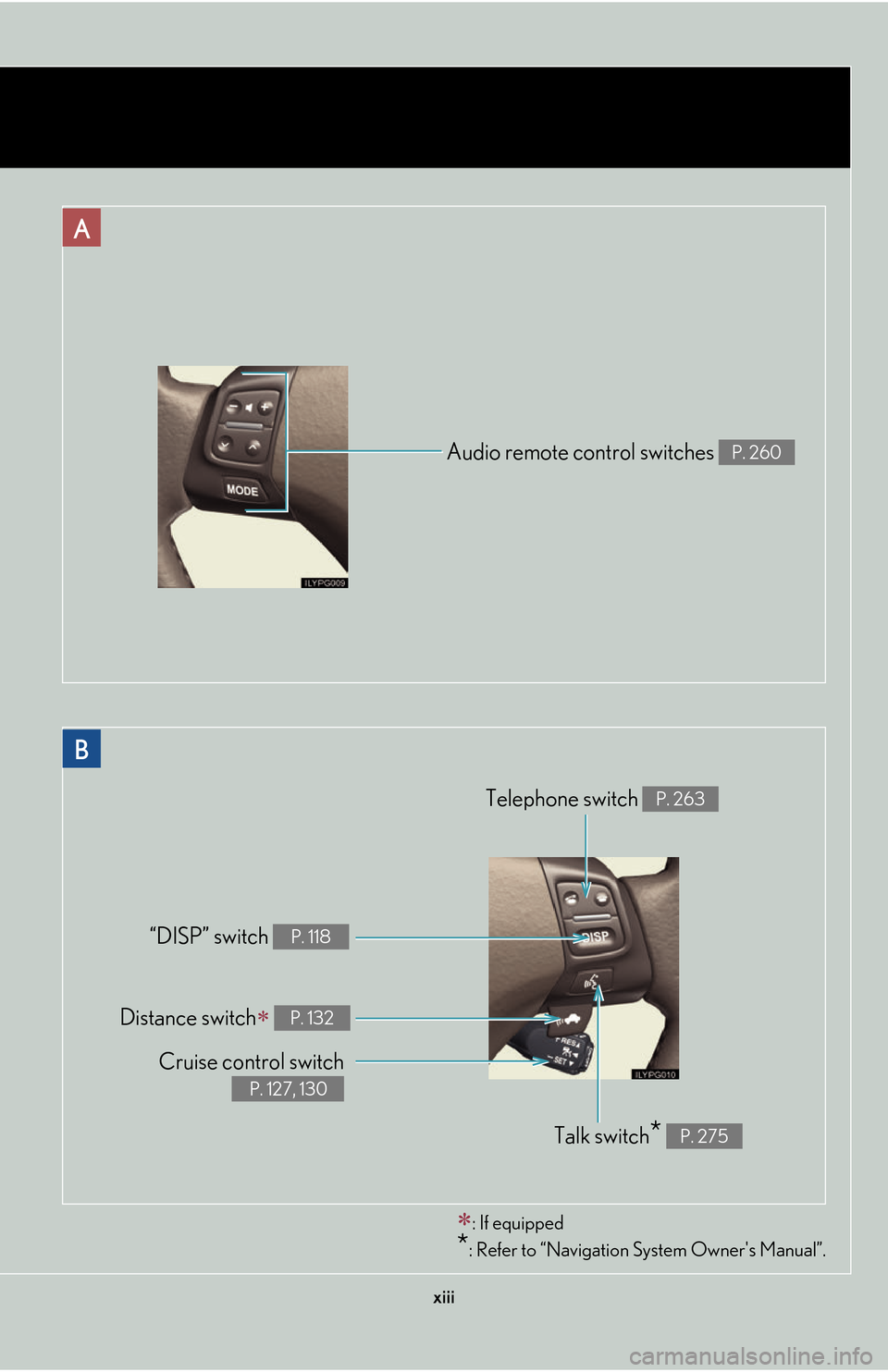

Audio remote control switches P. 260
Cruise control switch
P. 127, 130
Telephone switch P. 263
“DISP” switch P. 118
Distance switch P. 132
Talk switch* P. 275
: If equipped
*: Refer to “Navigation System Owner's Manual”.
A
B

xiv
C
Pictorial indexInstrument panel
Security indicator P. 62, 64
Rear window and outside 
rear view mirror defoggers 
P. 199
Emergency flashers
Clock
P. 319Outside temper
ature display P. 320
Air conditioning 
system
P. 191
Audio system
P. 200
Navigation system*

xv
“AFS OFF” switch P. 121
Rear sunshade switch P. 329
Headlight cleaner switch P. 126
Intuitive parking assist switch P. 139
Odometer/trip meter and trip meter 
reset button
P. 111
Instrument panel light control P. 111
Fuel filler door opener P. 58
Trunk opener P. 30
Outside rear view mirror switches P. 50
D
: If equipped
*: Refer to “Navigation System Owner's Manual”.

xvi

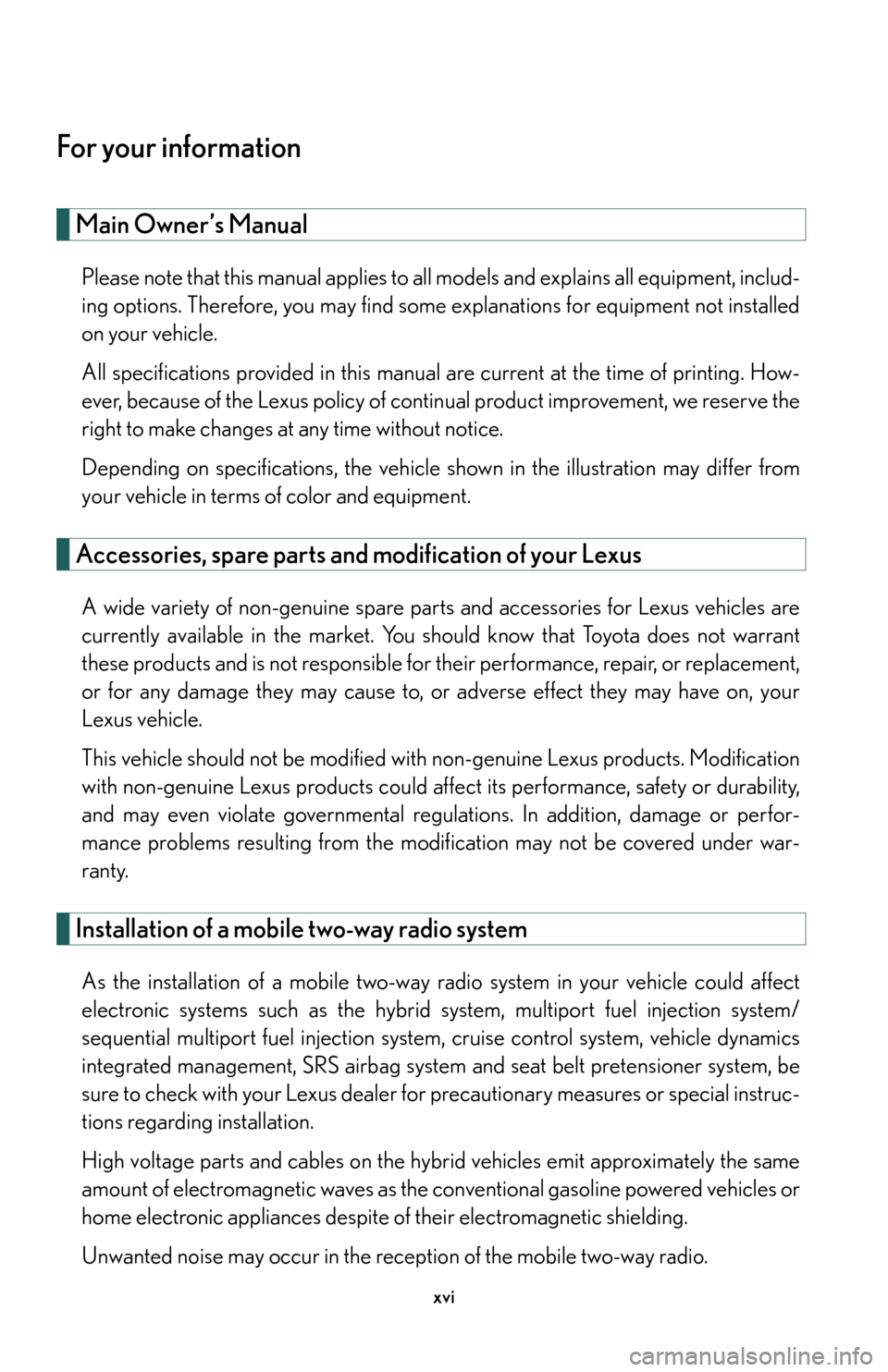

For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on y
our vehicle.
All specifications provided in this manual are current at the time of printing. How -
ever, because of the Lexus policy of contin ua
l product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle show n in
the illustration may differ from
your vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with

non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regula tions. In addition, damage or perfor-
mance problems resulting from the modi fication may not be
covered under war-
ranty.
Installation of a mobile two-way radio system
As the installation of a mobile two-way ra dio system in your vehicle could affect
electronic systems such as the hybrid system, multiport fuel injection system/
sequential multiport fuel injection system , cruise control system, vehicle dynamics
integrated management, SRS airbag system and seat belt pretensioner system, be
sure to check with your Lexus dealer for precautionary measures or special instruc -
tions regarding installation.
High voltage parts and cables on the hybr i
d vehicles emit approximately the same
amount of electromagnetic waves as the conventional gasoline powered vehicles or
home electronic appliances despite of their electromagnetic shielding.
Unwanted noise may occur in the reception of the mobile two-way radio.

xvii

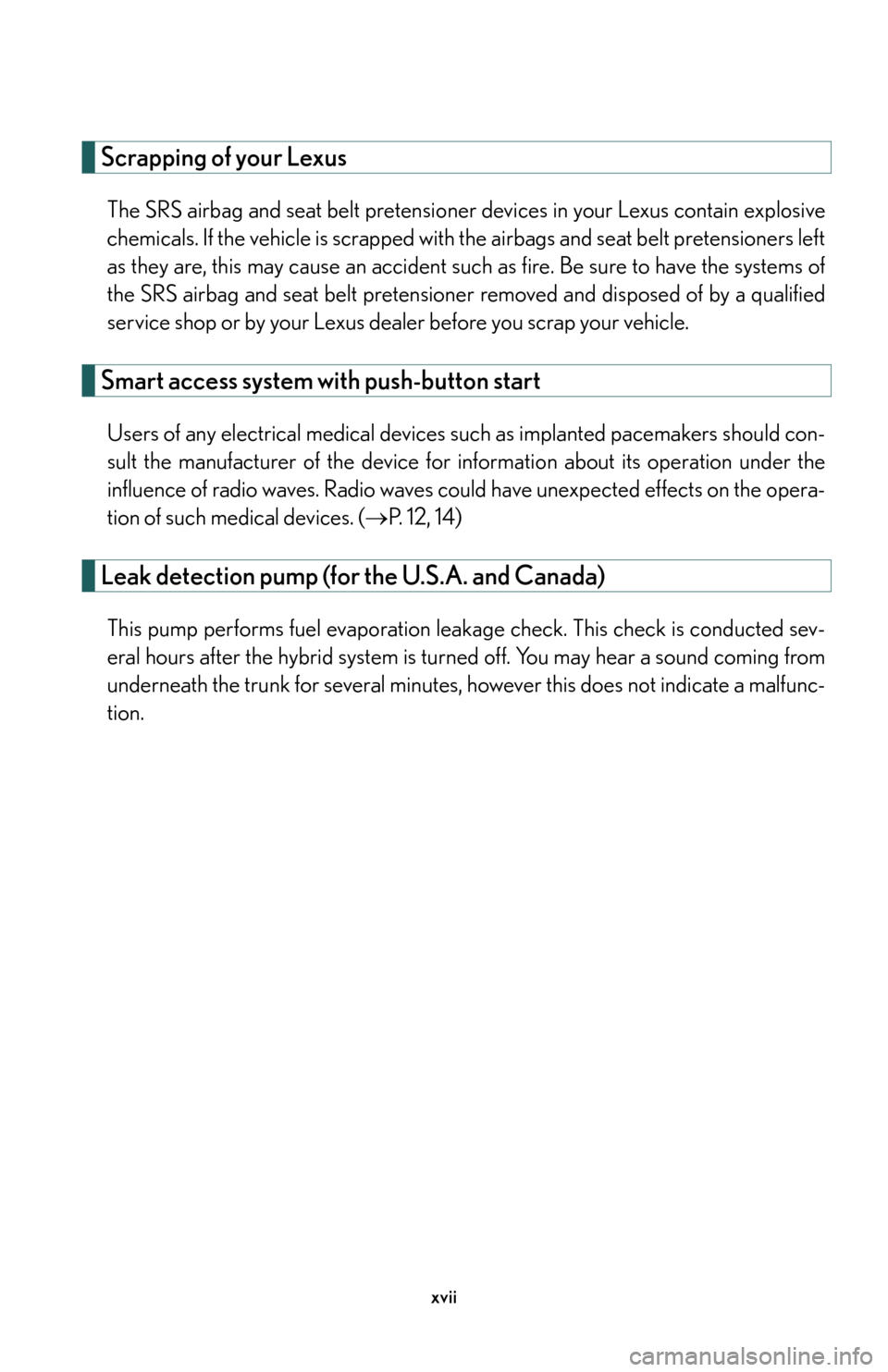

Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus deal er before you scrap your vehicle.
Smart access system with push-button start
Users of any electrical medical devices such as implanted pacemakers should con -
sult the manufacturer of the device for information about its operation under the
influence
of radio waves. Radio waves could have unexpected effects on the opera -
tion of such me dical de
vices. (P. 1 2 , 14 )
Leak detection pump (for the U.S.A. and Canada)
This pump performs fuel evaporation leakage check. This check is conducted sev -
eral hours after the hybrid system is turn ed of
f. You may hear a sound coming from
underneath the trunk for several minutes, however this does not indicate a malfunc-
tion.

xviii

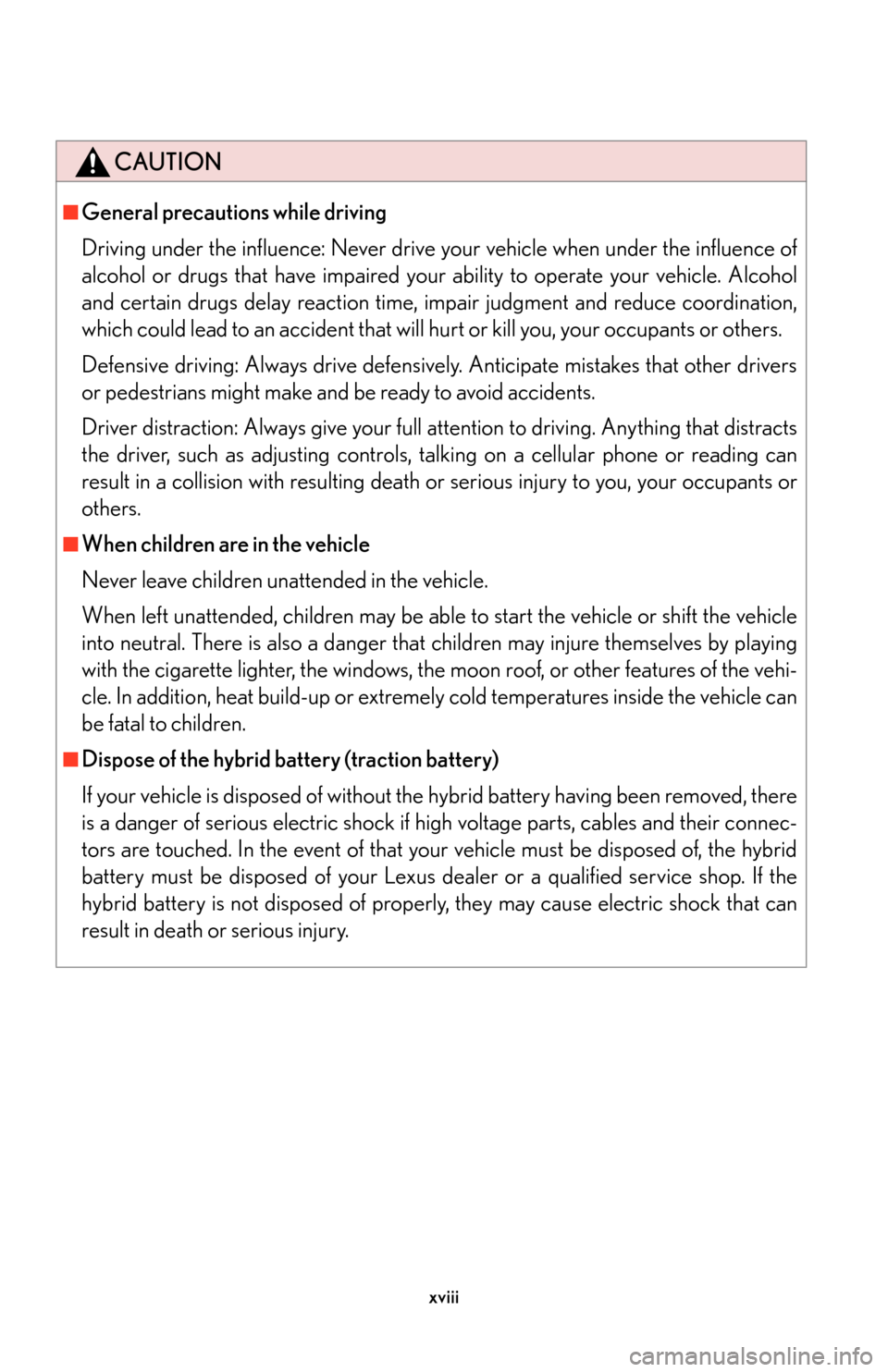

CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, im pair judgment and reduce coordination,
which could lead to an accident that will hurt or kill you, your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full at tention to driving. Anything that distracts
the driver, such as adjusting controls, ta lking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■When children are in the vehicle
Never leave children unattended in the vehicle.
When left unattended, children may be able to start the vehicle or shift the vehicle
into neutral. There is also a danger that children may injure themselves by playing
with the cigarette lighter, the windows, the moon roof, or other features of the vehi-
cle. In addition, heat build-up or extremel y cold temperatures inside the vehicle can
be fatal to children.
■Dispose of the hybrid battery (traction battery)
If your vehicle is disposed of without the hybrid battery having been removed, there
is a danger of serious electric shock if high voltage parts, cables and their connec-
tors are touched. In the event of that your vehicle must be disposed of, the hybrid
battery must be disposed of your Lexus dealer or a qualified service shop. If the
hybrid battery is not disposed of properly , they may cause electric shock that can
result in death or serious injury.

xix

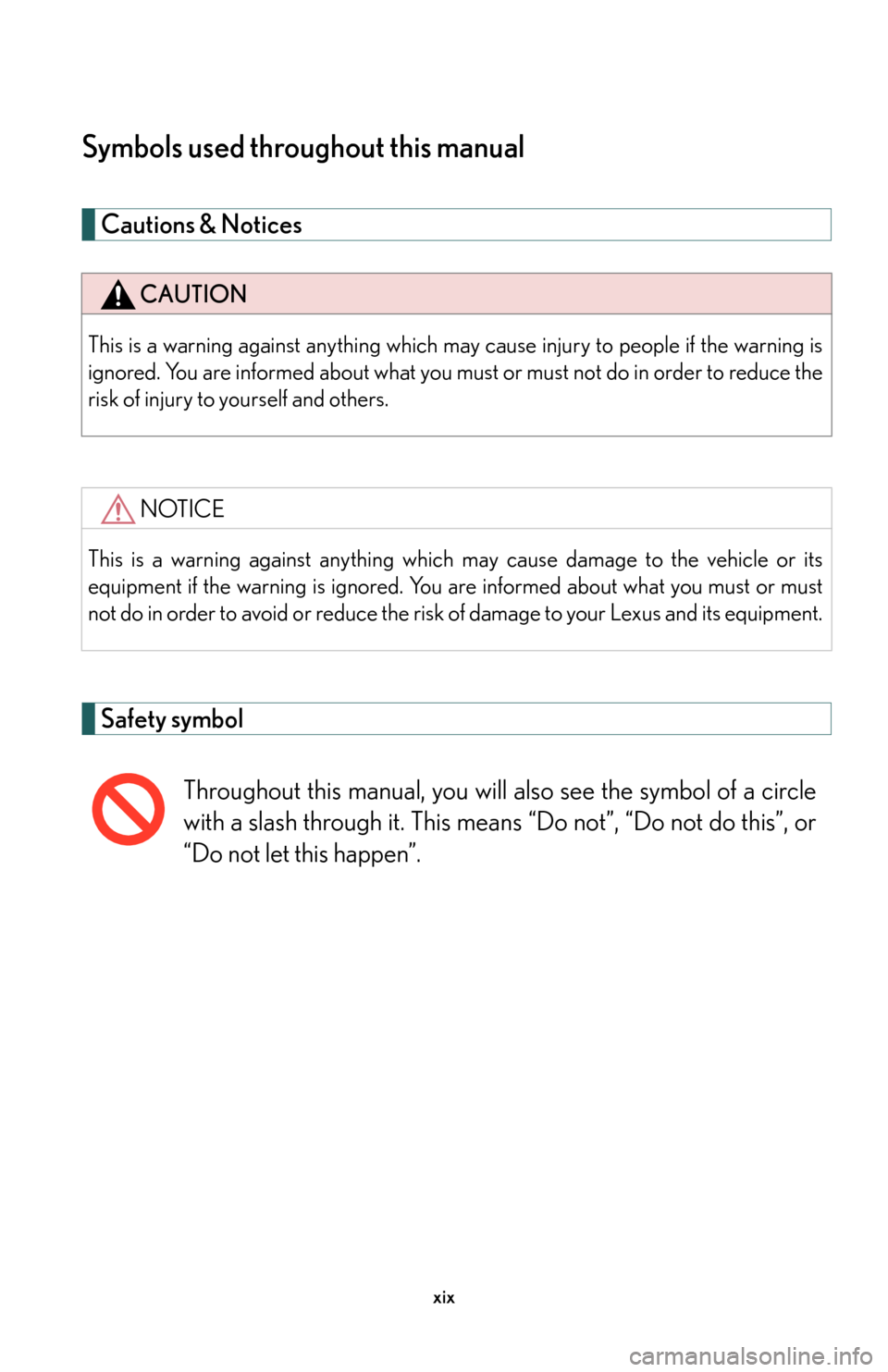

Symbols used throughout this manual
Cautions & Notices
Safety symbol
CAUTION
This is a warning against anything which may cause injury to people if the warning is
ignored. You are informed about what you must or must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or its
equipment if the warning is ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.
Throughout this manual, you will also see the symbol of a circle
with a slash through it. This mea ns “Do not”, “Do not do this”, or
“Do not let this happen”.
