turn signal Lexus GS450h 2007 Driving Comfort TOC / LEXUS 2007 GS450H THROUGH JUNE 2006 PROD. OWNER'S MANUAL (OM30727U)

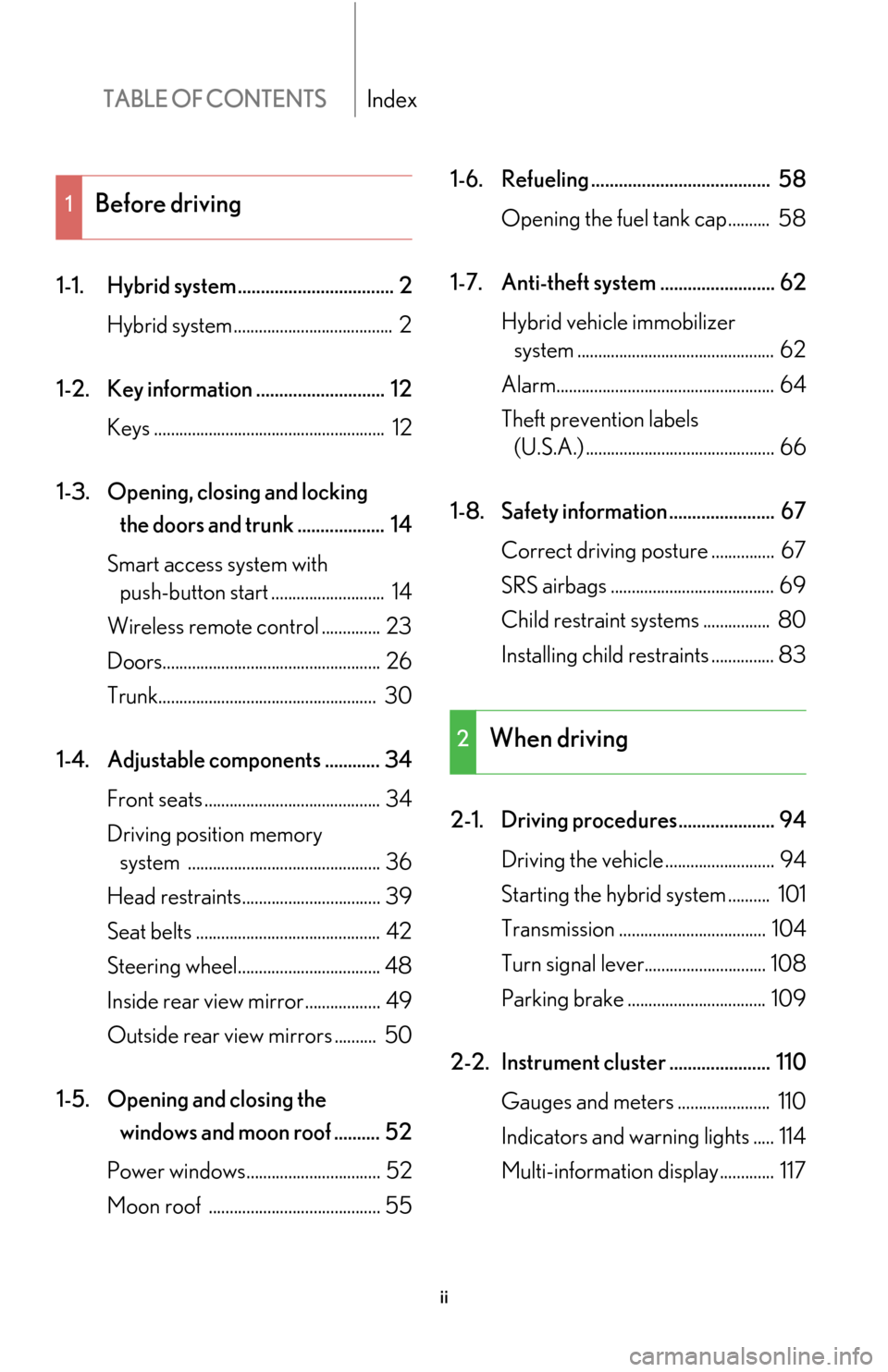

TABLE OF CONTENTSIndex
ii
1-1. Hybrid system .................................. 2Hybrid system ...................................... 2
1-2. Key information ............................ 12 Keys ....................................................... 12
1-3. Opening, closing and locking 
the doors and trunk ................... 14
Smart access system with  push-button start ........................... 14
Wireless remote control .............. 23
Doors.................................................... 26
Trunk.................................................... 30
1-4. Adjustable components ............ 34 Front seats .......................................... 34
Driving position memory 
system .............................................. 36
Head restraints................................. 39
Seat belts ............................................ 42
Steering wheel.................................. 48
Inside rear view mirror.................. 49
Outside rear view mirrors .......... 50
1-5. Opening and closing the 
windows and moon roof .......... 52
Power windows................................ 52
Moon roof ......................................... 55 1-6. Refueling ....................................... 58
Opening the fuel tank cap.......... 58
1-7. Anti-theft system ......................... 62 Hybrid vehicle immobilizer 
system ............................................... 62
Alarm.................................................... 64
Theft prevention labels 
(U.S.A.) ............................................. 66
1-8. Safety information ....................... 67 Correct driving posture ............... 67
SRS airbags ....................................... 69
Child restraint sy stems ................ 80
Installing child restraints ............... 83
2-1. Driving procedures..................... 94 Driving the vehicle .......................... 94
Starting the hybrid system .......... 101
Transmission ................................... 104
Turn signal lever............................. 108
Parking brake ................................. 109
2-2. Instrument cluster ...................... 110 Gauges and meters ...................... 110
Indicators and warning lights ..... 114
Multi-information display............. 117
1Before driving
2When driving

vi
Headlight (high beam) P. 120
Pictorial indexExterior
Turn signal light P. 108
Fog light P. 123
Side marker light P. 120
Headlight (low beam)
P. 120
Hood P. 358
Parking light P. 120
Windshield wipers P. 124
Moon roof  P. 55
Outside rear view mirror
P. 50

vii
Tire
●Rotation
● Replacement
● Inflation pressure
● Information
P. 375
P. 456
P. 487
P. 492
Tail lights P. 120
Side marker light P. 120
Trunk P. 30
Rear window defogger P. 199
Door P. 26
Fuel filler door P. 58
Turn signal light P. 108
: If equipped

xii
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 120
P. 108
P. 123
Gauges and meters P. 110
Multi-information display P. 117
Windshield wipers and washer switch P. 124
Power switch P. 101
Trunk opener main switch P. 30
Glove box P. 312
Seat heater switches
Seat heater/ventilator switches

P. 324
P. 326
Tilt and telescopic steering 
control switch
P. 48
Parking brake pedal
P. 109
“TRAC OFF” switch P. 164
Coin holder P. 314
Mode select switch P. 105
“AVS” switch P. 161

When driving2
93
2-1. Driving procedures .................. 94Driving the vehicle ....................... 94
Starting the hybrid system ....... 101
Transmission ................................. 104
Turn signal lever .......................... 108
Parking brake ............................... 109
2-2. Instrument cluster.................... 110 Gauges and meters ................... 110
Indicators and warning 
lights................................................ 114
Multi-information display.......... 117
2-3. Operating the lights and 
windshield wipers ................. 120
Headlight switch ......................... 120
Fog light switch............................ 123
Windshield wipers and 
washer........................................... 124
Headlight cleaner switch ........ 126 2-4. Using other driving

systems .................................... 127
Cruise control .............................. 127
Dynamic radar cruise 
control ........................................ 130
Intuitive parking assist ............. 139
Rear view monitor system ...... 158
AVS (Adaptive Variable 
Suspension System) ................. 161
Driving assist systems................ 162
PCS (Pre-Collision 
System) ........................................ 167
2-5. Driving information................ 170 Cargo and luggage.................... 170
Vehicle load limits ....................... 173
Winter driving tips ...................... 174
Trailer towing................................. 179
Dinghy towing ............................. 180

108
2-1. Driving procedures
Turn signal lever
■Turn signals can be operated when
The power switch is in “IG-ON” mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear
turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever part -
way to signal a lane change
The right hand signal will flash
until you release the lever.

115
2-2. Instrument cluster
2
When driving
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator 
( P. 1 0 8 )“Hybrid PWR” indicator 
(  P. 1 0 5 )
Headlight high beam indi-
cator ( P. 1 2 0 )Cruise control indicator 
(  P. 1 2 7 )
(U.S.A.)
Headlight indicator 
(  P. 1 2 0 )Damping mode indicator 
( P. 161)
(Canada)
Tail light indicator 
( P. 1 2 0 ) “AFS OFF” indicator 
( P. 121)
Fog light indicator 
( P. 1 2 3 )
(if equipped)
Intuitive parking assist
indicator ( P. 1 4 0 )
Shift position and shift
range indicators 
( P. 1 0 6 )
Slip indicator ( P. 1 6 3 )
“Hybrid SNOW” indica-
tor 
(  P. 1 0 5 ) Driving ready indicator
( P. 1 0 1 )
*
*

210
3-3. Using the audio system
■If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the screen. Refer
to the table below to identify the problem, and take the suggested corrective action.
ANTENNA
The XM® antenna is not connected. Check whether
the XM® antenna cable is attached securely.
There is a short-circuit in the antenna or the surround-
ing antenna cable. See a Lexus certified dealer.
UPDATING
You have not subscribed to XM® satellite radio. The
radio is being updated with the latest encryption code.
Contact XM
® satellite radio for subscription informa-
tion. When a contract is canceled, you can choose
“CH000” and all free-to-air channels.
The premium channel you selected is not authorized.
Wait for about 2 seconds until the radio returns to the
previous channel or “CH001”. If it does not change
automatically, select another channel. If you want to lis-
ten to the premium channel, contact XM
® satellite
radio.
NO SIGNAL
The XM® signal is too weak at the current location.
Wait until your vehicle reaches a location with a stron-
ger signal.
LOADIN GThe unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any pro-
gramming. Select another channel.
-----
There is no song/program title or artist name/feature
associated with the channel at that time. No action
needed.

337
3-7. Other interior features
3
Interior features
Test the operation of the HomeLink by pressing the newly pro-
grammed button. Check to see if the gate/
device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
 buttons.
■ P
rogramming other devices
To program other devices such as home security s
ystems, home door
locks or lighting, contact your auth orized Lexus dealer for assistance.
■ R
eprogramming a button
The individual HomeLink
 buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Basic program -
ming” instructions.
Operating the HomeLink
Press the appropriate HomeLink button. The HomeLink indicator
light on the HomeLink transceiver should turn on.
The HomeLink continues to send a signal for up to 20 seconds as long as
the button is pressed.
Erasing the entire HomeLink memory (all three programs)
Press and hold down the 2 outside
buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
 memory.
STEP5
STEP6

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
39RR J/B80STOP LP R, STOP LP L, RR TAIL,
PSB, RR FOG, RR-IG1
40OIL PUMP60Tr a n s m i s s i o n
41EPS80EPS
42P/ I - B 160EFI, F/PMP, INJ
43E/G-B30EM-VLV, FR CTRL-B, ETCS
44MAIN30H-LP R LWR, H-LP L LWR
45VGRS40VGRS
46ABS150ABS MOTOR, ABS MAIN1, 
ABS MAIN2
47P/ I - B 260A/F, BATT FAN, IGCT, INV W/P
48BATT FAN20Electric cooling fans
49RAD No.130Audio system
50RAD No.230Audio system
51IG2 MAIN20IG2, GAUGE, IGN
52TURN-HAZ15Front turn signal lights, rear turn 
signal lights
53ABS MAIN310Electronically controlled brake sys-
tem
54ECU-B10VGRS, EPS
