4-2. Maintenance
4
Maintenance and care
Vehicle exterior
ItemsCheck points
Doors/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Tires rotated according to the
maintenance schedule?
• Wheel nuts are not loose?
CAUTION
■If the hybrid system is running
Turn off the hybrid system and ensure that there is adequate ventilation before per-
forming maintenance checks.

362

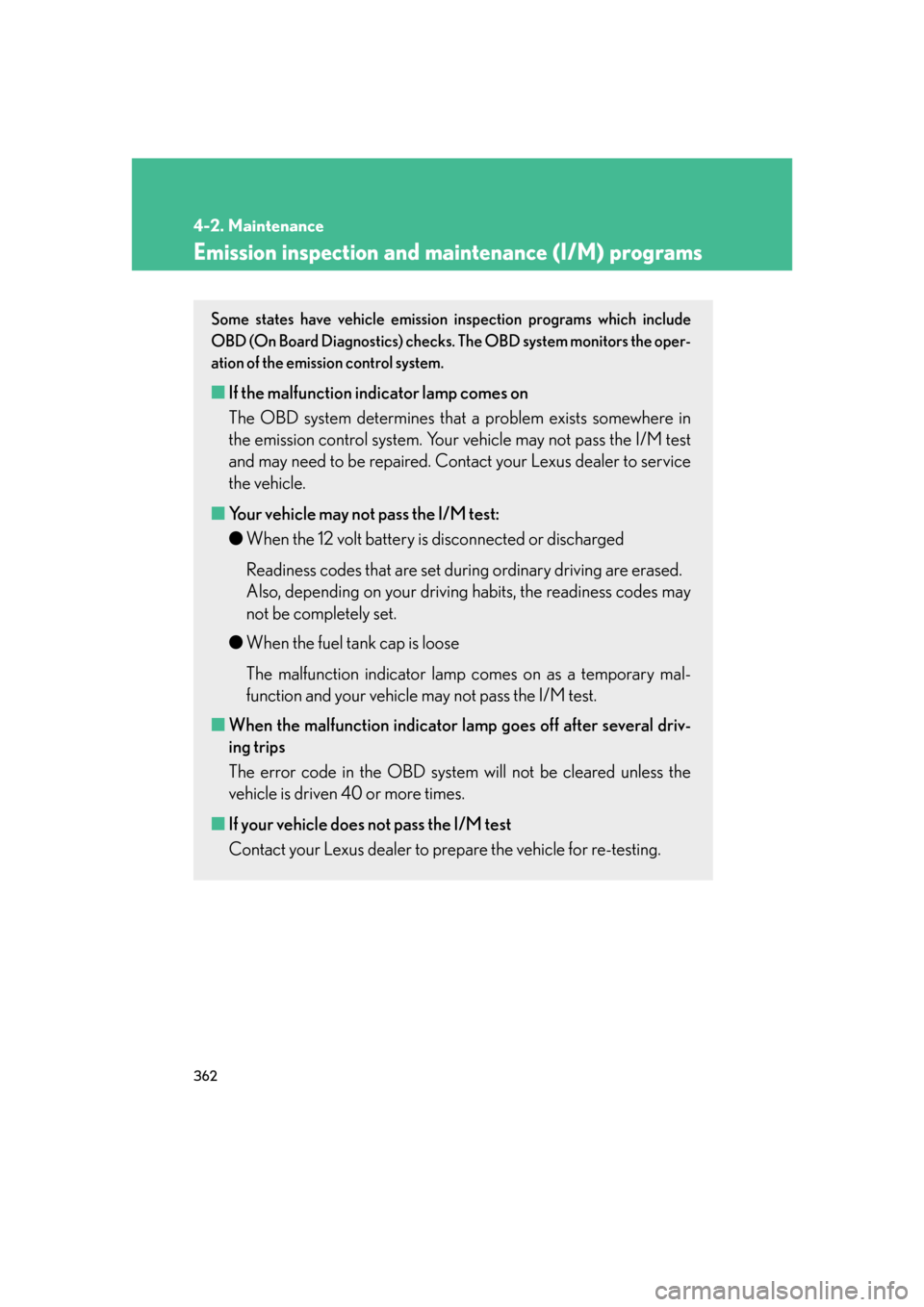

4-2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■ If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Contact your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test:
●When the 12 volt battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased. 
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator la mp goes off after several driv-
ing trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prep are the vehicle for re-testing.

363
4
Maintenance and care
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct proce-
dure given in these sections.
ItemsPa r t s a n d t o o l s
12 volt battery condition (P. 3 7 9)
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( P. 3 7 8 )
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/inverter coolant level 
( P. 3 76 )
• “Toyota Super Long Life Coolant”
or similar high quality ethylene gly-
col based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.: 
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada: 
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding cool- ant)

364
4-3. Do-it-yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, inverter, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily , such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
ItemsPa r t s a n d t o o l s
Engine oil level ( P. 3 7 1 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses ( P. 4 0 3 )• Fuse with same amperage rating as
original
Headlight aim ( P. 4 1 9 )• Phillips-head screwdriver
Radiator and condenser (P. 377)
Tire inflation pressure ( P. 393)• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 3 8 2 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

365
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■When working near the electric cooling fan or radiator grille
Be sure the power switch is “OFF”.
With the power switch in “IG-ON” mode, the electric cooling fan may automati-
cally start to run if the air conditioning is on and/or the coolant temperature is high. 
(  P. 377)
■Safety glasses
Wear safety glasses to prevent flying or fall ing material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.

366
4-3. Do-it-yourself maintenance
Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked. 
If the hood is not locked properly it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
STEP1
STEP2

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
Positioning the jack
When raising your vehicle with the jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
Front
Rear

368
4-3. Do-it-yourself maintenance
CAUTION
■When raising your vehicle
Make sure to observe the following to reduce the possibility of death or serious
injury.
●Do not put any part of your body or get underneath the vehicle supported only by
the jack.
Always use automotive jack stands or a solid, level, surface.
●Do not start the hybrid system while the vehicle is supported by the jack.
●Stop the vehicle on level firm ground, firmly set the parking brake and put the shift
lever in “P”.
●Make sure to set the jack properly at the jack point.
Raising the vehicle with an improperly positioned jack will damage the vehicle
and may cause the vehicle to fall off the jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any objects on top of or underneath the
jack.

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
■12 volt battery
P. 3 7 9
Engine oil level dipstick 
( P. 371)
Engine oil filler cap 
( P. 3 7 2 )
Brake fluid reservoir (P. 3 7 8 )
Fuse box ( P. 403)Washer fluid tank 
( P. 382)
Gasoline engine/inverter 
coolant reservoir ( P. 3 76 )
Electric cooling fans
Condenser ( P. 377)
Radiator ( P. 377)

370
4-3. Do-it-yourself maintenance
Engine compartment cover■ Removing the cover
Front
Right-hand side
Left-hand side
