transmission oil Lexus GS450h 2007 Hybrid system / LEXUS 2007 GS450H FROM JULY 2006 PROD. OWNER'S MANUAL (OM30A05U)

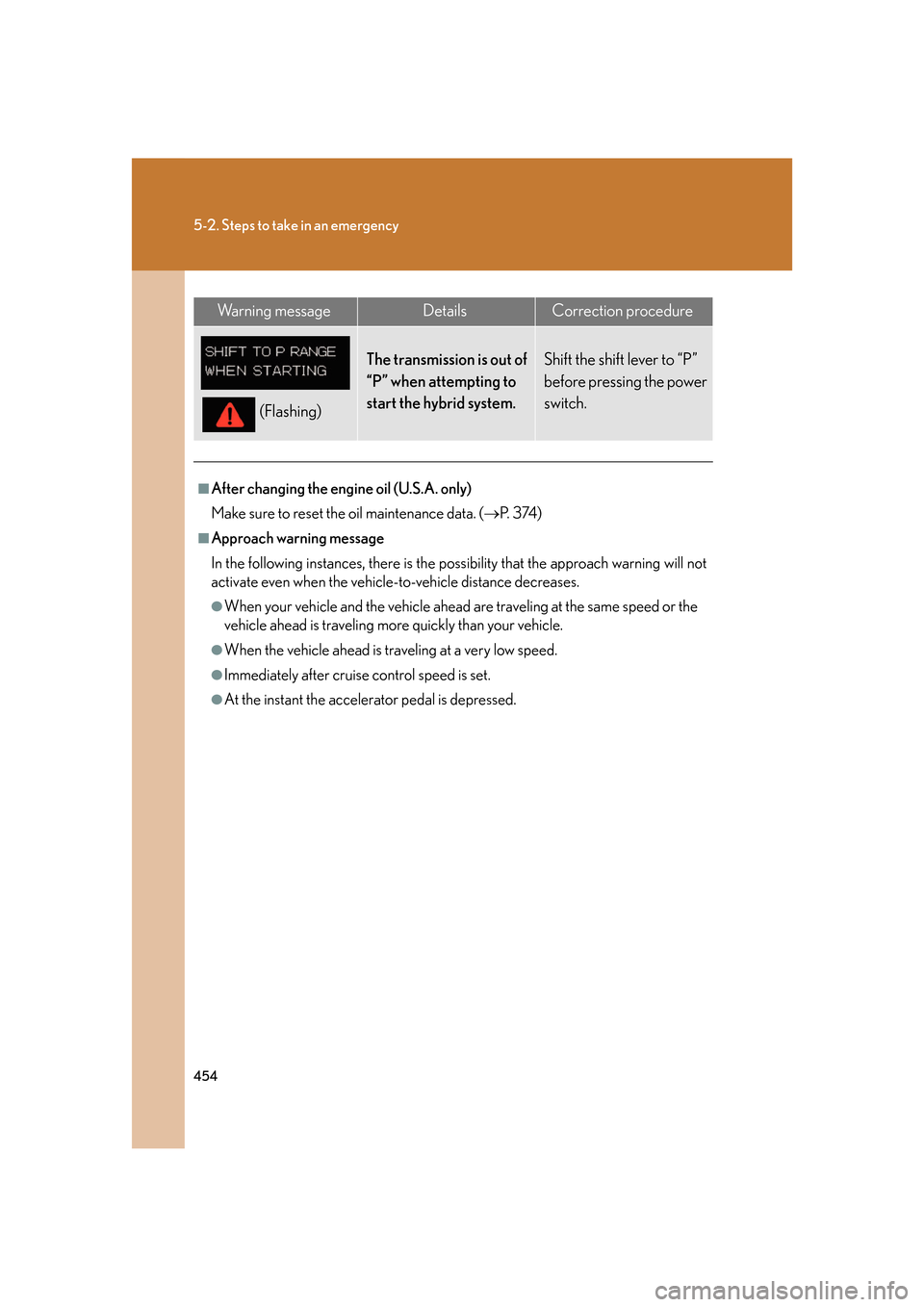

454
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashing)
The transmission is out of
“P” when attempting to
start the hybrid system.Shift the shift lever to “P”
before pressing the power
switch.
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. (P. 3 74 )
■Approach warning message
In the following instances, there is the poss ibility that the approach warning will not
activate even when the vehicle-to-vehicle distance decreases.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle.
●When the vehicle ahead is traveling at a very low speed.
●Immediately after cruise control speed is set.
●At the instant the accelerator pedal is depressed.

491
6-1. Specifications
6
Vehicle specifications
Electrical system
Differential
Transmission
12 volt battery
Open voltage at
68F (20 C):12.6  12.8V Fully charged 
12.2  12.4V Half charged 
11.8  12.0V Discharged 
(Voltage is checked 20 minutes after
the hybrid system and all lights are
turned off.)
Charging rates5A max.
Oil capacity1.42 qt. (1.35 L, 1.19 lmp.qt.)
Oil type and
viscosityToyota Genuine Differential gear oil LT
75W-85
Fluid capacity
Drain and refill
5.7 qt. (5.4 L, 4.8 lmp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration, and
ultimately damage the transmission of your vehicle.

503
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excess ive loading, either separately or in
combination, can cause heat build up and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of transmission, power
steering, power brakes, power windows, power seats,
radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of: 
(a) Curb weight 
(b) Accessory weight 
(c) Vehicle capacity weight 
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
