display Lexus GS450h 2007 Hybrid system / LEXUS 2007 GS450H THROUGH JUNE 2006 PROD. OWNER'S MANUAL (OM30727U)

TABLE OF CONTENTSIndex
ii
1-1. Hybrid system .................................. 2Hybrid system ...................................... 2
1-2. Key information ............................ 12 Keys ....................................................... 12
1-3. Opening, closing and locking 
the doors and trunk ................... 14
Smart access system with  push-button start ........................... 14
Wireless remote control .............. 23
Doors.................................................... 26
Trunk.................................................... 30
1-4. Adjustable components ............ 34 Front seats .......................................... 34
Driving position memory 
system .............................................. 36
Head restraints................................. 39
Seat belts ............................................ 42
Steering wheel.................................. 48
Inside rear view mirror.................. 49
Outside rear view mirrors .......... 50
1-5. Opening and closing the 
windows and moon roof .......... 52
Power windows................................ 52
Moon roof ......................................... 55 1-6. Refueling ....................................... 58
Opening the fuel tank cap.......... 58
1-7. Anti-theft system ......................... 62 Hybrid vehicle immobilizer 
system ............................................... 62
Alarm.................................................... 64
Theft prevention labels 
(U.S.A.) ............................................. 66
1-8. Safety information ....................... 67 Correct driving posture ............... 67
SRS airbags ....................................... 69
Child restraint sy stems ................ 80
Installing child restraints ............... 83
2-1. Driving procedures..................... 94 Driving the vehicle .......................... 94
Starting the hybrid system .......... 101
Transmission ................................... 104
Turn signal lever............................. 108
Parking brake ................................. 109
2-2. Instrument cluster ...................... 110 Gauges and meters ...................... 110
Indicators and warning lights ..... 114
Multi-information display............. 117
1Before driving
2When driving

TABLE OF CONTENTSIndex
iv
3-4. Using the hands-free 
system........................................ 263
Hands-free system ...................... 263
Using the Bluetooth
® 
phone ............................................ 268
Setting the hands-free 
system ............................................. 281
3-5. Using the interior lights .......... 307 Interior lights list............................ 307
3-6. Using the storage features ...... 311 List of storage fe atures.................. 311
3-7. Other interior features............ 317 Sun visors.......................................... 317
Vanity mirror ................................... 318
Clock .................................................. 319
Outside temperature 
display ........................................... 320
Ashtrays ............................................ 321
Cigarette lighter ........................... 322
Power outlet ................................... 323
Seat heaters ................................... 324
Seat heaters and 
ventilators .................................... 326
Armrest ........................................... 328
Rear sunshade ............................... 329
Floor mats......................................... 331
Trunk features................................ 332
Garage door opener .................. 334
Compass.......................................... 339 4-1. Maintenance and care............ 344
Cleaning and protecting the 
vehicle exterior .......................... 344
Cleaning and protecting the 
vehicle interior............................ 346
4-2. Maintenance.............................. 349 Maintenance requirements ..... 349
General maintenance ................. 351
Emission inspection and 
maintenance (I/M) 
programs ...................................... 354
4-3. Do-it-yourself 
maintenance............................ 355
Do-it-yourself service 
precautions ................................. 355
Hood................................................. 358
Positioning the jack .................... 359
Engine compartment................... 361
Tires ................................................... 375
Tire inflation pressure................ 385
Wheels............................................. 389
Air conditioning filter................... 391
Electronic key battery ................ 393
Checking and replacing 
fuses ............................................... 395
Headlight aim.................................... 411
Light bulbs ........................................ 413
4Maintenance and care

1
2
3
4
5
6
7
v
5-1. Essential information .............. 420If your vehicle needs to be 
towed.............................................. 420
If you think something is 
wrong ............................................. 427
Event data recorder .................... 428
5-2. Steps to take in an 
emergency .............................. 430
If a warning light turns on or a 
warning buzzer sounds............... 430
If a warning message is 
displayed ....................................... 436
If you have a flat tire 
(Vehicles with run-flat 
tires) ................................................ 455
If you have a flat tire 
(Vehicles with standard 
tires) ................................................ 456
If the hybrid system will not 
start ................................................. 466
If the shift lever cannot be 
shifted from P .............................. 467
If you lose your keys ................... 468
When the electronic key  battery is discharged ............... 469
If the 12 volt battery is 
discharged .................................... 471
If your vehicle overheats ........... 475
If the vehicle becomes 
stuck................................................ 478 6-1. Specifications ............................ 480
Maintenance data ....................... 480
Fuel information ........................... 489
Tire information ............................ 492
6-2. Customization .......................... 500 Customizable features ............. 500
6-3. Initialization ............................... 505 Items to initialize .......................... 505
Reporting safety defects for 
U.S.A. owners............................ 508
Alphabetical index............................... 510
What to do if... ........................................ 518
5When trouble arises6Vehicle specifications
7For US owners
Index

xii
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 120
P. 108
P. 123
Gauges and meters P. 110
Multi-information display P. 117
Windshield wipers and washer switch P. 124
Power switch P. 101
Trunk opener main switch P. 30
Glove box P. 312
Seat heater switches
Seat heater/ventilator switches

P. 324
P. 326
Tilt and telescopic steering 
control switch
P. 48
Parking brake pedal
P. 109
“TRAC OFF” switch P. 164
Coin holder P. 314
Mode select switch P. 105
“AVS” switch P. 161

xiv
C
Pictorial indexInstrument panel
Security indicator P. 62, 64
Rear window and outside 
rear view mirror defoggers 
P. 199
Emergency flashers
Clock
P. 319Outside temper
ature display P. 320
Air conditioning 
system
P. 191
Audio system
P. 200
Navigation system*

6
1-1. Hybrid system
■Hybrid battery air vent
Hybrid battery air vent
There is an air intake vent on the
package tray for the purpose of
cooling the hybrid battery (trac-
tion battery). If the vent becomes
block
ed, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
Emergency shut off system
The emergency shut off system blocks off the high voltage current and
stops the fuel pump to minimize the risk of el ectrocution and fuel leakage
when a certain level of impact is detected by the impact sensor. If the
emergency shut off system activates, yo ur vehicle will not restart. To
restart the hybrid system, contact your Lexus dealer.
Energy monitor/consumption screen
You can view the status of your h ybrid system on the multi-information
display ( P. 117) and the touch screen( P. 1 8 2 ). The following images
are examples only, and may vary slightly from actual conditions.
■ Ener
gy monitor
●Ho
w to display on the touch screen:
Press .
To u c h on the “Information” screen.
If the “Consumption” screen is displayed, touch .
●How to display on the multi-information display:
Push the button several times to select the energy moni -
tor display.
STEP1
STEP2
STEP1

7
1-1. Hybrid system
1
Before driving
To u c h s c r e e nMulti-information display
When the vehicle is
powered by the elec-
tric motor (traction
motor)
When the vehicle is
powered by both the
gasoline engine and the
electric motor (traction
motor)
When the vehicle is
powered by the 
gasoline engine
When the vehicle is
charging the hybrid 
battery (traction 
battery)
When there is no
energy flow
Hybrid battery 
(traction battery) statusLowFullLowFull

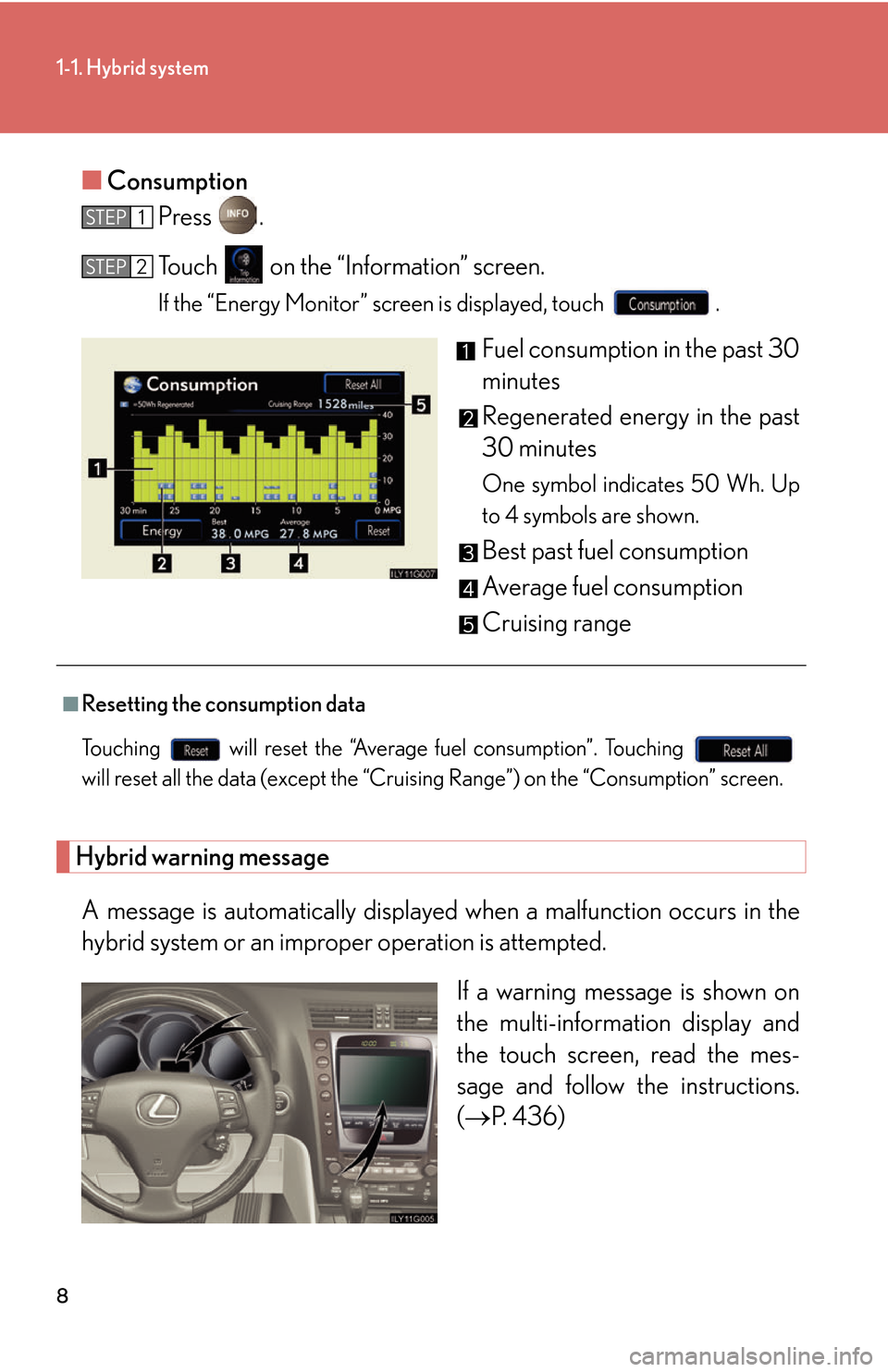

8
1-1. Hybrid system
■Consumption
Press .
To u c h on the “Information” screen.
If the “Energy Monitor” screen is displayed, touch .
Fuel consumption in the past 30
minutes
Regenerated energy in the past
30 minutes
One symbol indicates 50 Wh. Up
to 4 symbols are shown.
Best past fuel consumption
Average fuel consumption
Cruising range
Hybrid warning message
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display and
the touch scr

een, read the mes -
sage and follow the instructions.
( P. 4 3 6 )
STEP1
STEP2
■Resetting the consumption data
To u c h i n g will reset the “Average fuel consumption”. Touching
will reset all the data (except the “Cruis ing
Range”) on the “Consumption” screen.

9
1-1. Hybrid system
1
Before driving
■If a warning light comes on or a warning message is displayed, or the 12 volt bat-
tery is disconnected
The hybrid system may not start. In that case, try to start the sy stem again. If the
“READY” light does not come on, contact your Lexus dealer.
CAUTION
■High voltage precautions
The vehicle has high voltage DC and AC systems as well as a 12 volt system. DC
and AC high voltage is very dangerous and can cause severe burns and electric
shock that may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables and
their connectors.
●The hybrid system will become hot after starting as the system uses high voltage.
Be careful of both the high voltage and the high temperature, and always obey
the caution labels attached to the vehicle.
●Never try to open the service plug acce ss hole located in the luggage compart-
ment. The service plug is used only when the vehicle is serviced and is subject to
high voltage.

17
1-3. Opening, closing and locking the doors and trunk
1
Before driving
■Switching the door unlock function
It is possible to set which doors the entry function unlocks. Turn the power switch “OFF”.
When the indicator on the key surface is turned off, push and
hold , , or for approximately 5 seconds while pushing the
button on the key.
The setting changes each time an operation is performed, as shown below. (Wait for
at least 5 seconds after each oper ation to continue an operation.)
STEP1
STEP2
Multi-information
displayUnlocking doorsBeep
Hold the driver’s door handle
to unlock only the driver’s
door
Exterior: Beeps 3 times
Interior: Rings once
Hold a passenger’s door han-
dle to unlock all the doors
Hold the door handle to
unlock the front and rear
doors on your sideExterior: Beeps 4 times
Interior: Rings once
Hold the door handle to
unlock the doorExterior: Beeps once
Interior: Rings once
Hold a door handle to unlock
all doorsExterior: Beeps twice
Interior: Rings once
