When trouble arises
447
5-2. Steps to take in an emergency
■If the tire pressure warning system is inoperative
The system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●If the tire inflation pressure is more than 73 psi (500 kPa, 5.1 kgf/cm2 or bar).
The system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If the tire pressure warning select switch is set to a different tire setting.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used.
●If tire chains are used.
■If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on after blinking for 1 minute frequently
when the power switch is turned to “IG-ON” mode, have it checked by your Lexus
dealer.
NOTICE
■Precaution when insta lling a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

5
When trouble arises

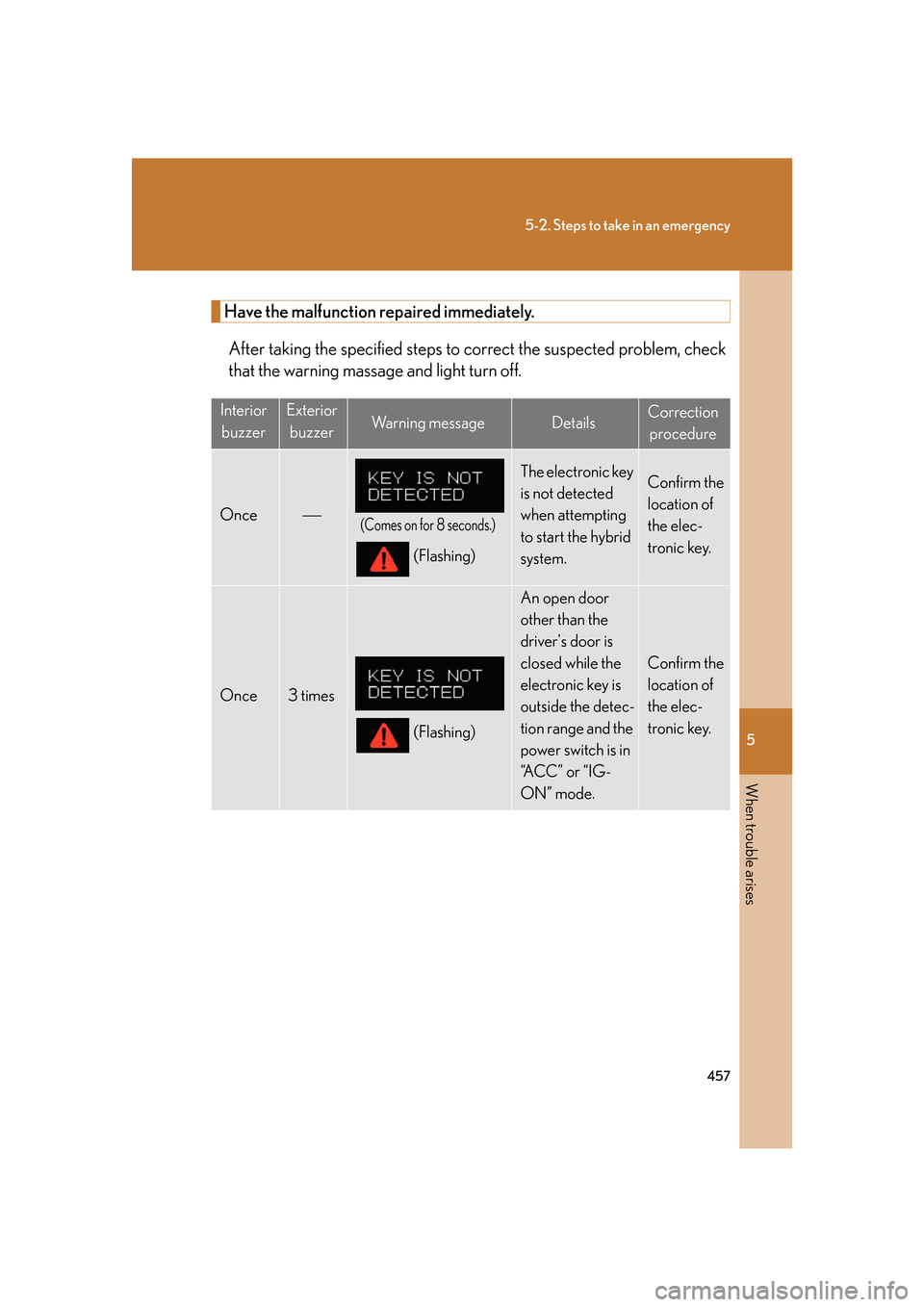

457
5-2. Steps to take in an emergency
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning massage and light turn off.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once(Comes on for 8 seconds.)
(Flashing)
The electronic key
is not detected
when attempting
to start the hybrid
system.Confirm the
location of
the elec-
tronic key.
Once3 times
(Flashing)
An open door
other than the
driver's door is
closed while the
electronic key is
outside the detec-
tion range and the
power switch is in
“ACC” or “IG-
ON” mode.
Confirm the
location of
the elec-
tronic key.

5
When trouble arises
459
5-2. Steps to take in an emergency
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

An open door has
been closed and
the power switch
has been turned
twice to the
“A C C ” m o d e f r o m
“OFF” mode.
Press the
power
switch while
applying the
brakes.

(Flashing)
The steering lock
has not released
within 3 seconds
of pressing the
power switch. The
power switch indi-
cator will flash
green for 15 sec-
onds.Press the
power
switch again
while turn-
ing the
steering
wheel with
the brake
pedal
depressed.

506
6-1. Specifications
Tire related termMeaning
InnerlinerThe layer(s) forming the inside surface of a tubeless
tire that contains the inflating medium within the tire
Innerliner separationThe parting of the innerliner from cord material in the
carcass
Intended outboard side-
wall
(a) The sidewall that contains a whitewall, bears white lettering, or bear s manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other side-
wall of the tire, or
(b) The outward facing sidewall of asymmetrical tire
that has a particular side that must always face
outward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipur-
pose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a
given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a tire
may be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to
labeling, decorations, or protective bands or ribs

523
Alphabetical index
Cleaning and maintaining 
the seat belts..................................... 355
Emergency Locking Retractor  (ELR) ........................................................ 42
How to wear your seat belt............. 40
How your child should wear 
the seat belt...........................................43
Pre-collision seat belts........................ 42
Pregnant women, 
proper seat belt use.......................... 42
Reminder light..................................... 440
Seat belt extenders ...............................43
Seat belt pretensioners........................ 41
Seat heaters.................................... 319, 321
Seat ventilators........................................ 321
Seating capacity ..................................... 175
Seats Child seats/child restraint 
system installation ............................. 85
Cleaning ................................................ 354
Driving position memory ................. 35
Head restraint ........................................ 38
Properly sitting in the seat.................64
Seat adjustment ......................................33
Seat adjustment precautions ...........33
Seat heaters..................................319, 321
Ventilated seats .................................... 321
Service reminder indicators ...............117
Shift lever If the shift lever cannot be 
shifted from P .................................... 472
Transmission ..........................................106
Shift lock system .................................... 472
Shopping bag hooks ............................327
Side airbags ................................................66
Side marker lights Switch ........................................................ 122 Side mirror
Adjusting and folding..........................48
Driving position memory ..................35
Smart access system with 
push-button start Antenna location .....................................15
Entry function ............................................13
Starting the hybrid system .............. 103
Spare tire Inflation pressure ................................493
Spare tire ................................................ 462
Spark plug................................................490
Specifications .........................................486
Speedometer ............................................ 112
Steering wheel Adjustment ............................................... 46
Audio switches....................................259
Driving position memory ..................35
Storage compartment ........................309
Storage feature......................................306
Stuck If your vehicle becomes stuck .... 483
Sun visors .................................................. 312
Switch Fog light switch .................................... 125
Light switches ........................................ 122
Mode select switch ............................ 107
Power door lock switch .................... 25
Power switch......................................... 103
Power window switch ....................... 50
Window lock switch........................... 50
Wipers and washer switch .............126
