4-3. Do-it-yourself maintenance
■Luggage compartment
FuseAmpereCircuit
1RR TAIL10Tail lights, license plate lights
2STOP LP R10High mounted stoplights, stoplights
3STOP LP L10Stoplights, back-up light
4RR FOG7. 5
5RR-B10Trunk light
6RR-IG110Pre-collision seat belt, seat belt pre-
tensioners
7RR-IG210
8PSB30Pre-collision seat belt
9RR S/SHADE7. 5Rear sunshade
10RH J/B-B30FR DOOR RH, RR DOOR RH,
AM2
11LH J/B-B30FR DOOR LH, RR DOOR LH, 
RAD No.3
12R/B-B15D/C cut

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up light
Open the trunk lid. Remove the
trunk handle and panel cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
STEP1
STEP2
STEP1
STEP2

424
4-3. Do-it-yourself maintenance
Remove the light bulb.
■ Rear turn signal light
Open the trunk lid and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3

440
5-2. Steps to take in an emergency
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light 
(warning buzzer)
*2
A door or the trunk is not
fully closed.
Check that all doors and the
trunk are closed.
Low fuel level warning light Remaining fuel 
(Approximately 2.6 gal. [10
L, 2.2 Imp.gal.] or less)
Refuel the vehicle.
Driver’s seat belt reminder
light (warning buzzer)
*3
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
Front passenger’s seat belt
reminder light
(warning buzzer)
*3
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
Tire pressure warning light
When the light comes on:
Low tire inflation pressure.Adjust the tire inflation pres-
sure.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system.
Have the system checked by
your Lexus dealer.

450
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure
The trunk is not fully
closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
The moon roof is not fully
closed (with the power
switch “OFF” and the
driver’s door opened).
Close the moon roof.
(Flashing)
The parking brake is still
engaged (with the vehicle
having reached a speed
of more than 3 mph [5
km/h]).
Release the parking
brake.
The washer fluid level is
low.Add washer fluid.
The hybrid system has
overheated.Stop and check. 
( P. 4 8 0 )

5
When trouble arises
463
5-2. Steps to take in an emergency

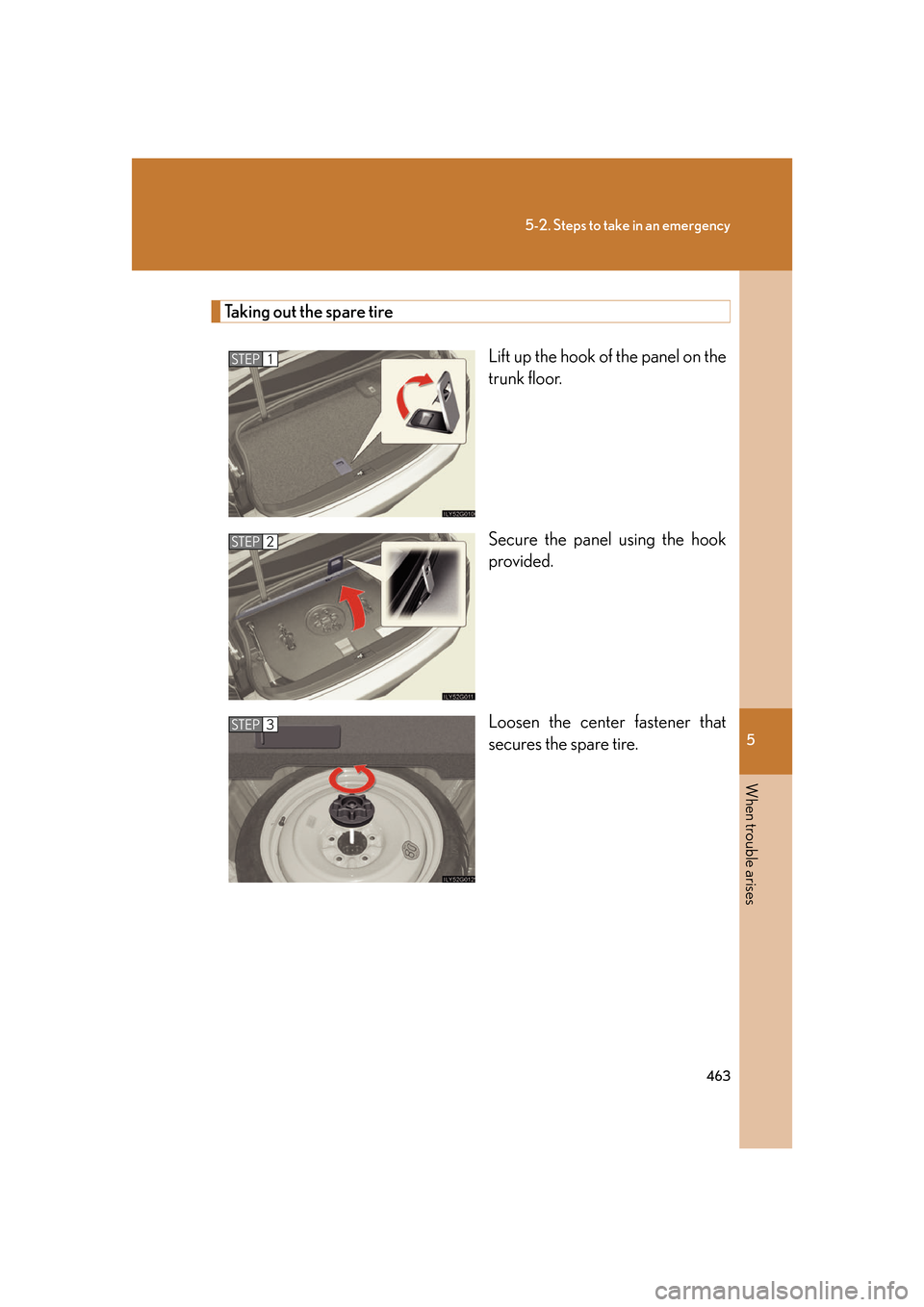

Taking out the spare tireLift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided.
Loosen the center fastener that
secures the spare tire.
STEP1
STEP2
STEP3

474
5-2. Steps to take in an emergency
When the electronic key battery is discharged
Locking and unlocking the doors, unlocking the trunk and key linked functions
DoorsUsing the mechanical key in order
to perform the following opera-
tions:
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
Tr u n k
Turn the mechanical key clock-
wise to open.
If the electronic key battery is di scharged, the doors and trunk can be
opened by the mechanical key. The hybrid system can be still started by fol-
lowing the procedure.

476
5-2. Steps to take in an emergency
If the 12 volt battery is discharged
The following procedures may be used to start the hybrid system if the 12
volt battery is discharged.
You can call your Lexus dealer, Roadside Assistance or Lexus Customer
Service.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12 volt battery, you can jump start your Lexus following the steps
below.
Open the trunk using the mechanical key. ( P. 4 74 )
Connecting the jumper cables. If required, remove all vent pl ugs from the booster battery. Lay a
cloth over the open vents on the booster battery. (This helps reduce
the explosion hazard, personal injuries and burns.)
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Negative (-) battery terminal on your vehicle.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the 12 volt battery of your vehicle.
Open and close any of the door s with the power switch “OFF”.
STEP1
STEP2
STEP3
STEP4

494
6-1. Specifications
Light bulbs
A: D4S high-intensity discharge bulbs
B: HB3 halogen bulbs 
C: Wedge base bulbs (amber) 
D: Wedge base bulbs (clear) 
E: HB4 halogen bulbs 
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights (low beam)D4S35A
Headlights (high beam)HB360B
Front turn signal lights21C
Parking lights5D
Fog lightsHB451E
Front side marker light1945D
Rear turn signal lights21C
Back-up lights92116D
Trunk light5F
InteriorVanity lights8D

511
6-2. Customization
6
Vehicle specifications

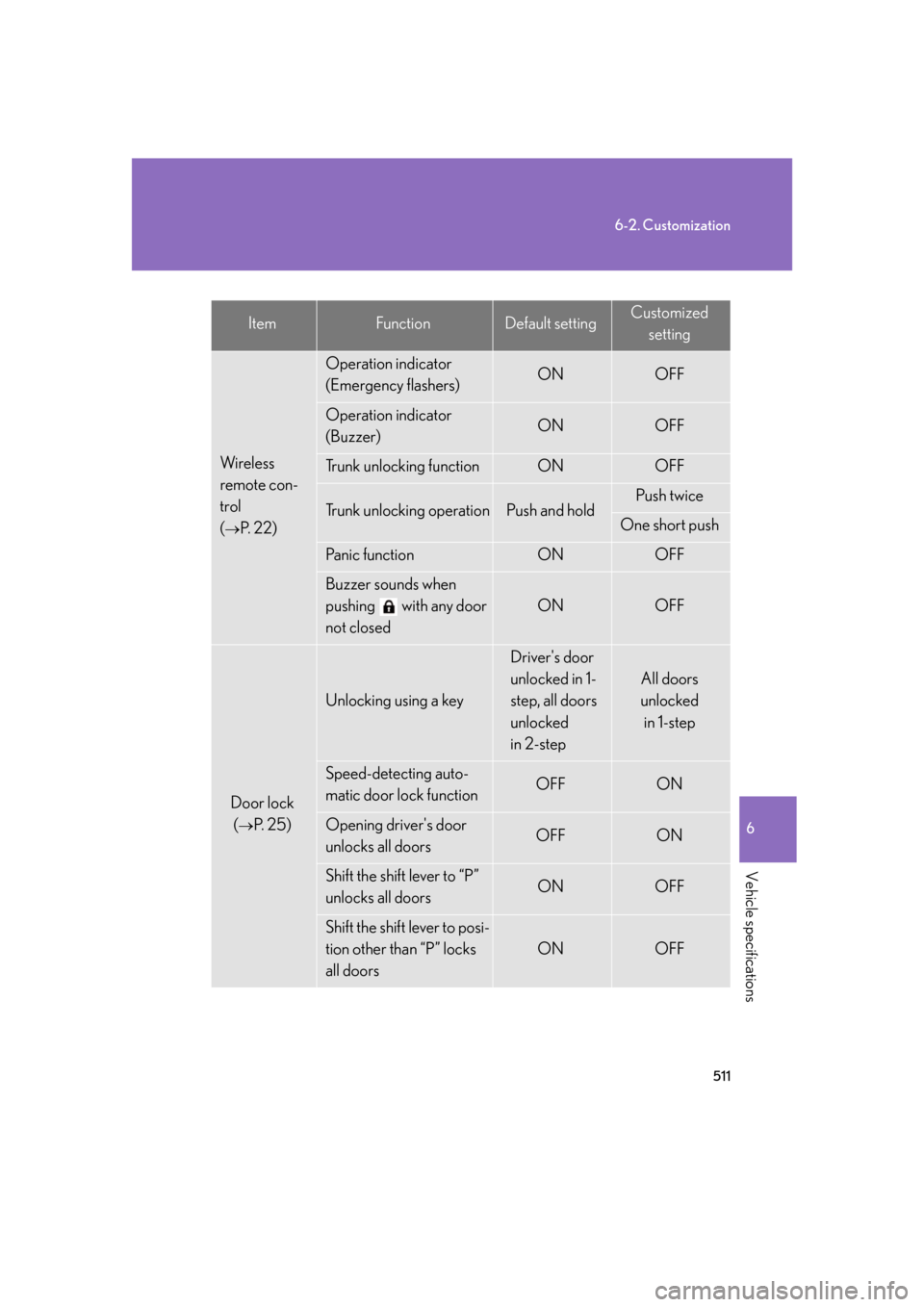

ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol 
(
P. 22)
Operation indicator 
(Emergency flashers)ONOFF
Operation indicator
(Buzzer) ONOFF
Tr u n k u n l o c k i n g f u n c t i o nONOFF
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionONOFF
Buzzer sounds when
pushing with any door
not closed
ONOFF
Door lock (
P. 2 5 )
Unlocking using a key
Driver's door
unlocked in 1-
step, all doors
unlocked 
in 2-step
All doors
unlocked in 1-step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doors OFFON
Shift the shift lever to “P”
unlocks all doorsONOFF
Shift the shift lever to posi-
tion other than “P” locks
all doors
ONOFF
