TABLE OF CONTENTSIndex
ii
1-1. Hybrid system .................................. 2Hybrid system ...................................... 2
1-2. Key information ............................ 12 Keys ....................................................... 12
1-3. Opening, closing and locking
the doors and trunk ................... 14
Smart access system with push-button start ........................... 14
Wireless remote control .............. 23
Doors.................................................... 26
Trunk.................................................... 30
1-4. Adjustable components ............ 34 Front seats .......................................... 34
Driving position memory
system .............................................. 36
Head restraints................................. 39
Seat belts ............................................ 42
Steering wheel.................................. 48
Inside rear view mirror.................. 49
Outside rear view mirrors .......... 50
1-5. Opening and closing the
windows and moon roof .......... 52
Power windows................................ 52
Moon roof ......................................... 55 1-6. Refueling ....................................... 58
Opening the fuel tank cap.......... 58
1-7. Anti-theft system ......................... 62 Hybrid vehicle immobilizer
system ............................................... 62
Alarm.................................................... 64
Theft prevention labels
(U.S.A.) ............................................. 66
1-8. Safety information ....................... 67 Correct driving posture ............... 67
SRS airbags ....................................... 69
Child restraint sy stems ................ 80
Installing child restraints ............... 83
2-1. Driving procedures..................... 94 Driving the vehicle .......................... 94
Starting the hybrid system .......... 101
Transmission ................................... 104
Turn signal lever............................. 108
Parking brake ................................. 109
2-2. Instrument cluster ...................... 110 Gauges and meters ...................... 110
Indicators and warning lights ..... 114
Multi-information display............. 117
1Before driving
2When driving
Page 12 of 540
xii

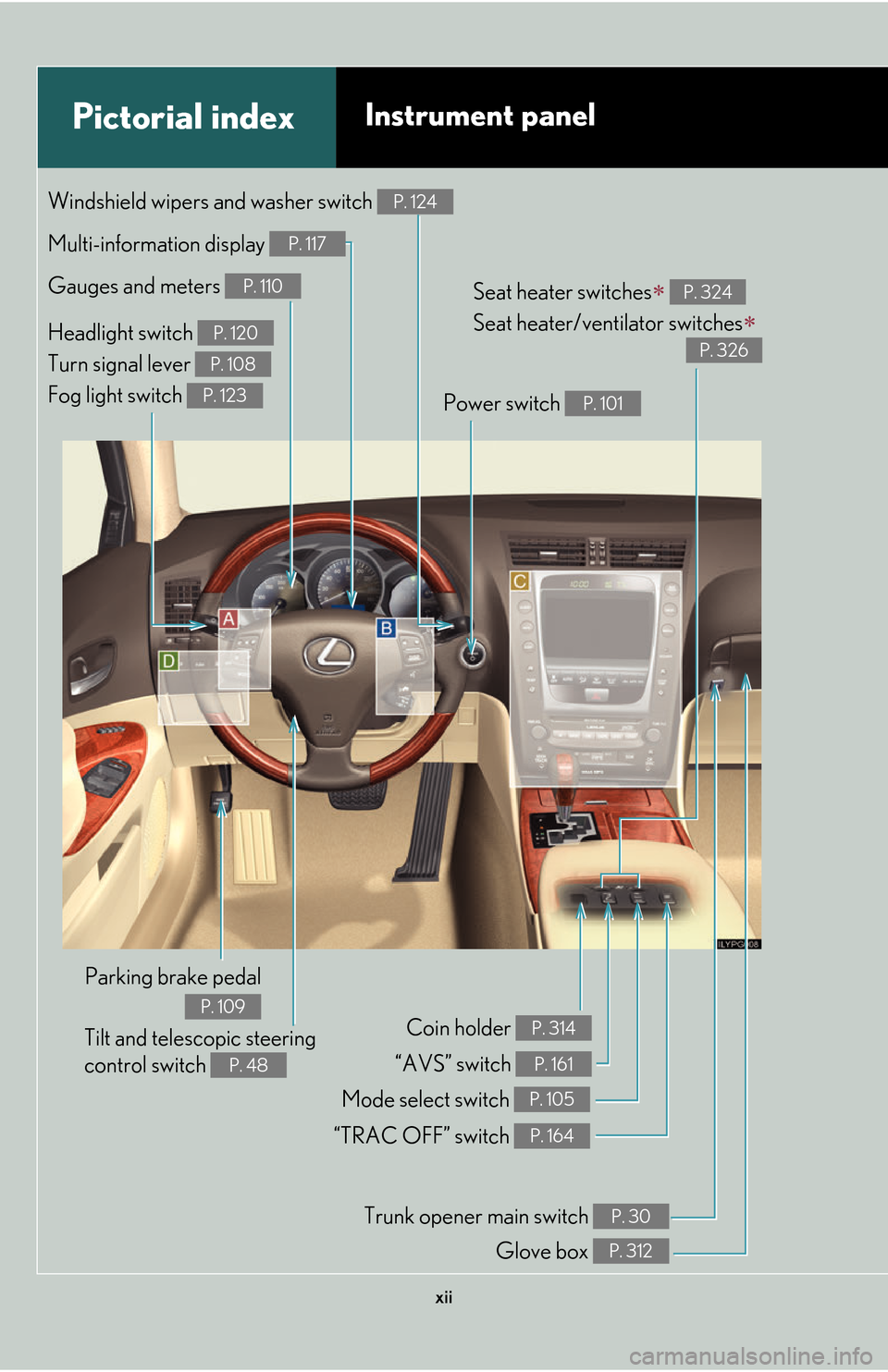

Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 120
P. 108
P. 123
Gauges and meters P. 110
Multi-information display P. 117
Windshield wipers and washer switch P. 124
Power switch P. 101
Trunk opener main switch P. 30
Glove box P. 312
Seat heater switches
Seat heater/ventilator switches
P. 324
P. 326
Tilt and telescopic steering
control switch
P. 48
Parking brake pedal
P. 109
“TRAC OFF” switch P. 164
Coin holder P. 314
Mode select switch P. 105
“AVS” switch P. 161
Page 113 of 540
When driving2
93

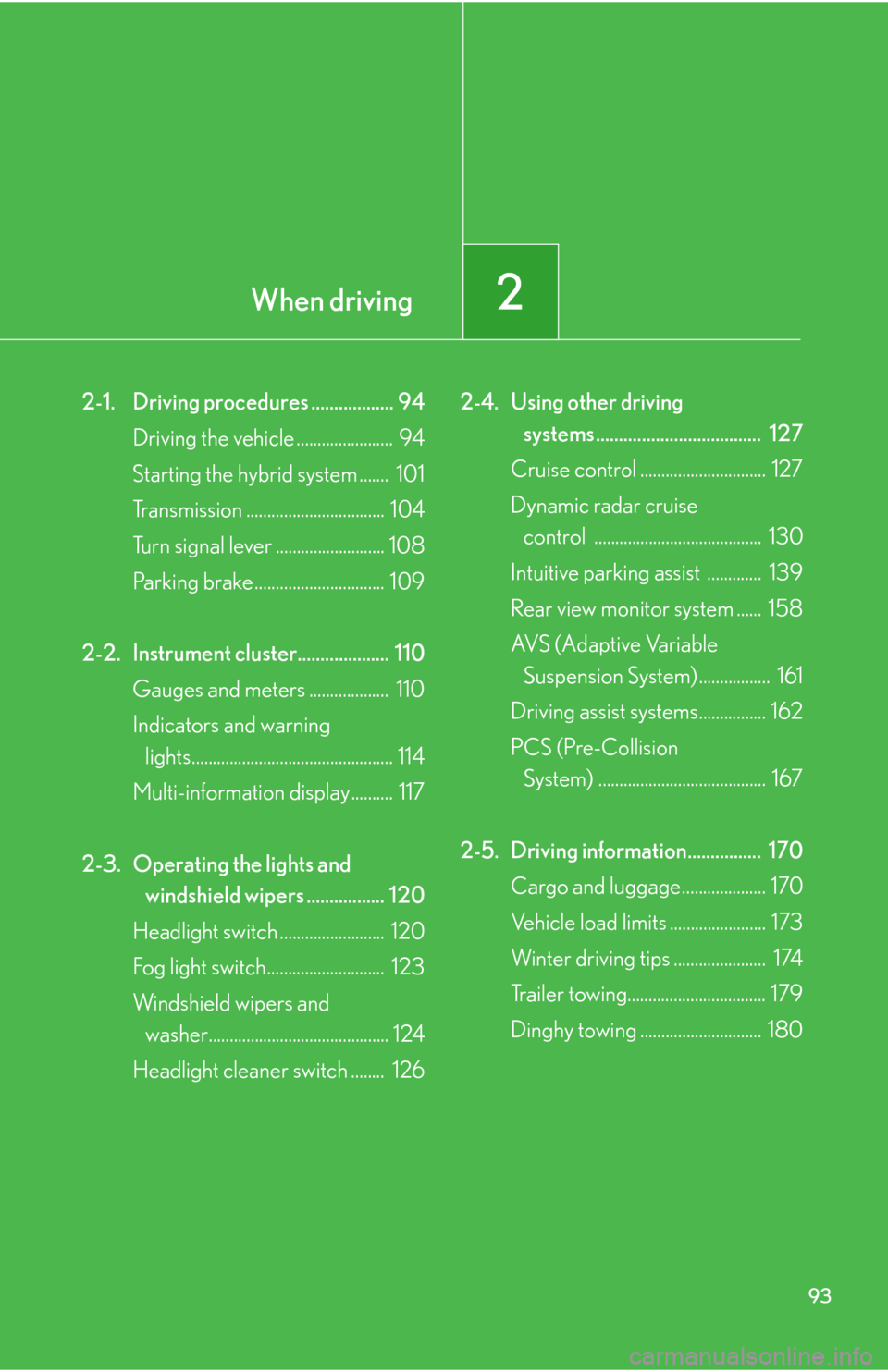

2-1. Driving procedures .................. 94Driving the vehicle ....................... 94
Starting the hybrid system ....... 101
Transmission ................................. 104
Turn signal lever .......................... 108
Parking brake ............................... 109
2-2. Instrument cluster.................... 110 Gauges and meters ................... 110
Indicators and warning
lights................................................ 114
Multi-information display.......... 117
2-3. Operating the lights and
windshield wipers ................. 120
Headlight switch ......................... 120
Fog light switch............................ 123
Windshield wipers and
washer........................................... 124
Headlight cleaner switch ........ 126 2-4. Using other driving
systems .................................... 127
Cruise control .............................. 127
Dynamic radar cruise
control ........................................ 130
Intuitive parking assist ............. 139
Rear view monitor system ...... 158
AVS (Adaptive Variable
Suspension System) ................. 161
Driving assist systems................ 162
PCS (Pre-Collision
System) ........................................ 167
2-5. Driving information................ 170 Cargo and luggage.................... 170
Vehicle load limits ....................... 173
Winter driving tips ...................... 174
Trailer towing................................. 179
Dinghy towing ............................. 180
Page 118 of 540
98
2-1. Driving procedures

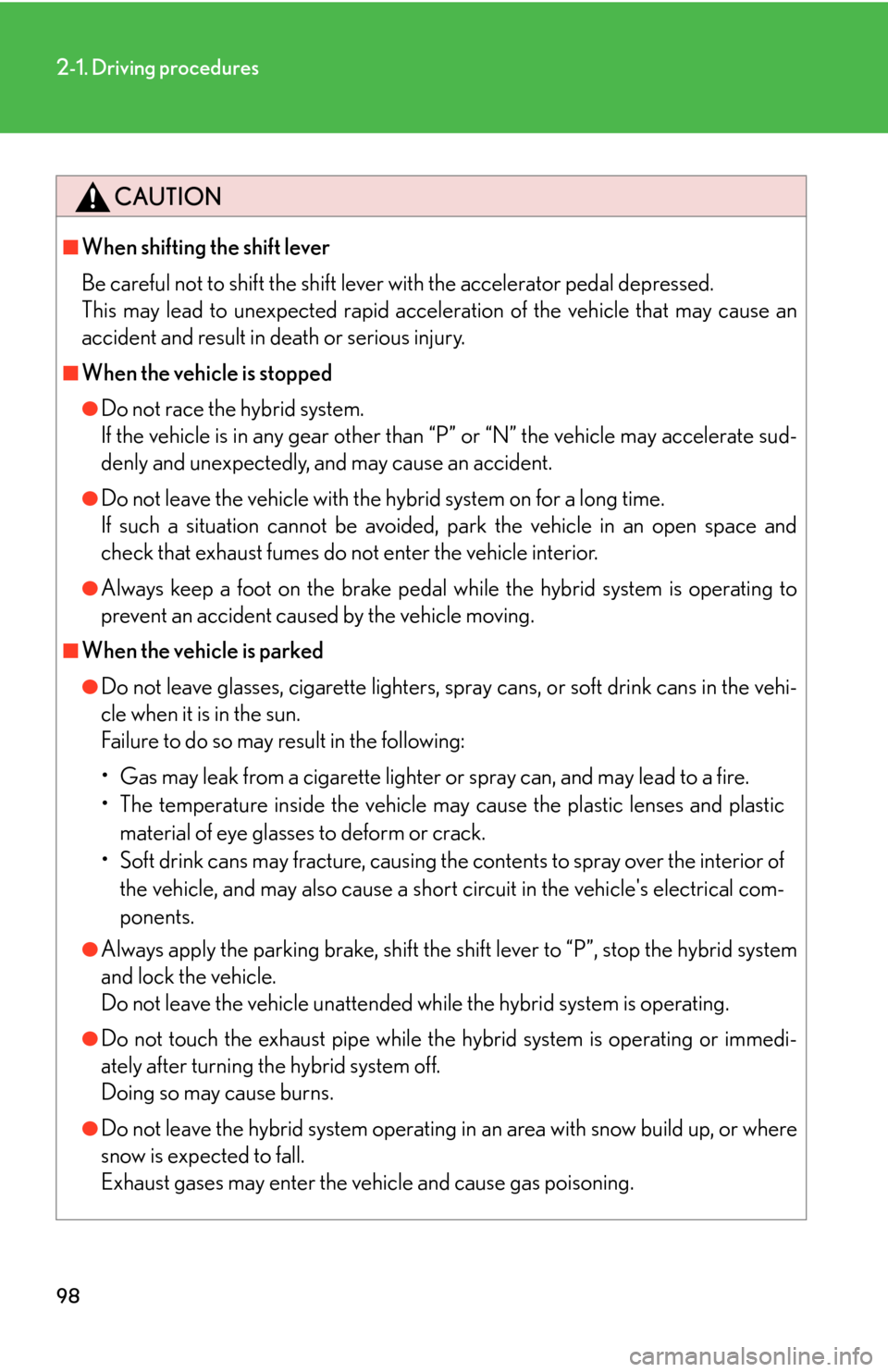

CAUTION
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
■When the vehicle is stopped
●Do not race the hybrid system.
If the vehicle is in any gear other than “P” or “N” the vehicle may accelerate sud-
denly and unexpectedly, and may cause an accident.
●Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do no t enter the vehicle interior.
●Always keep a foot on the brake pedal while the hybrid system is operating to
prevent an accident caused by the vehicle moving.
■When the vehicle is parked
●Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-
cle when it is in the sun.
Failure to do so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plastic
material of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of
the vehicle, and may also cause a short circuit in the vehicle's electrical com-
ponents.
●Always apply the parking brake, shift the sh ift lever to “P”, stop the hybrid system
and lock the vehicle.
Do not leave the vehicle unattended while the hybrid system is operating.
●Do not touch the exhaust pipe while the hybrid system is operating or immedi-
ately after turning the hybrid system off.
Doing so may cause burns.
●Do not leave the hybrid system operating in an area with snow build up, or where
snow is expected to fall.
Exhaust gases may enter the vehicle and cause gas poisoning.
Page 121 of 540
101
2-1. Driving procedures
2
When driving
Starting the hybrid system
Modes can be switched by pressing the power switch when carrying the
electronic key on your person. (The hybrid system can be started in any
mode by operating the switch at the same time as depressing the brake
pedal.)
■Changing power switch mode
“OFF” mode
“A C C ” m o d e
Some electrical components
such as the audio system can be
used.
“IG-ON” mode
All electrical components can
be used.
■Starting the hybrid system
Check that the parking brake is set.
Turn off unnecessary lights and accessories.
Check that the shift lever is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
The power switch indicator turns green.
Press the power switch.
After a few seconds, the
“READY” light will flash and
come on with a beep sound.
The vehicle can move when the
“READ
Y” light is on, even if the
engine is stopped.
STEP1
STEP2
STEP3
STEP4
STEP5
Page 122 of 540
102
2-1. Driving procedures

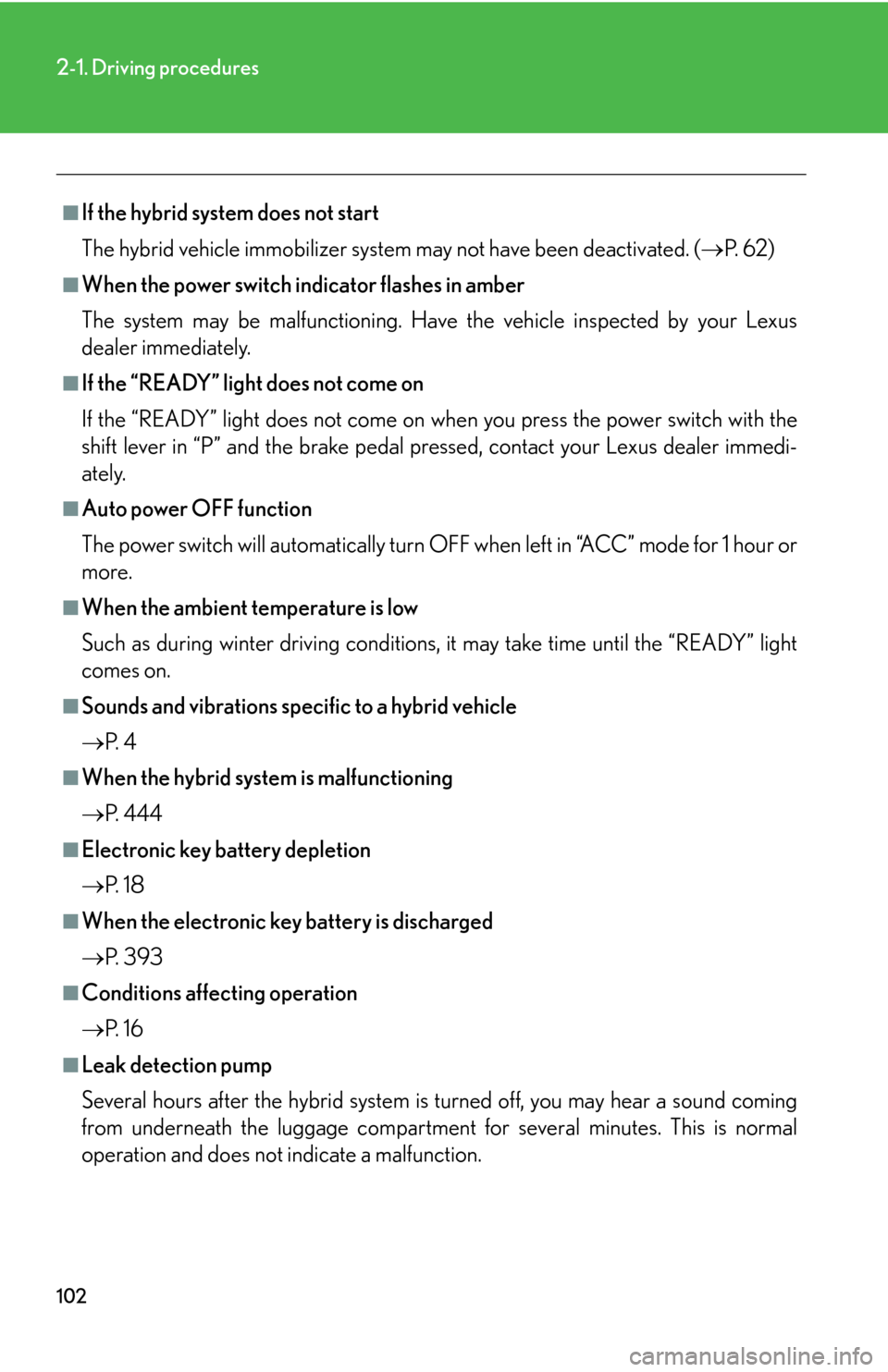

■If the hybrid system does not start
The hybrid vehicle immobilizer system may not have been deactivated. (P.
6 2 )
■When the power switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus
deal
er immediately.
■If the “READY” light does not come on
If the “READY” light does not come on when you press the power switch with the
shi
ft lever in “P” and the brake pedal pressed, contact your Lexus dealer immedi -
ately.
■Auto power OFF function
The power switch will automatically turn OFF when lef
t in “ACC” mode for 1 hour or
more.
■When the ambient temperature is low
Such as during winter driving conditions, it
may take time until the “READY” light
comes on.
■Sounds and vibrations specific to a hybrid vehicle
P.
4
■When the hybrid system is malfunctioning
P. 4 4 4
■Electronic key battery depletion
P.
1 8
■When the electronic key battery is discharged
P.
3 9 3
■Conditions affecting operation
P.
1 6
■Leak detection pump
Several hours after the hybrid system is turned off, you may hear a sound coming
fr
om underneath the luggage compartment for several minutes. This is normal
operation and does not indicate a malfunction.
Page 141 of 540
121
2-3. Operating the lights and windshield wipers
2
When driving

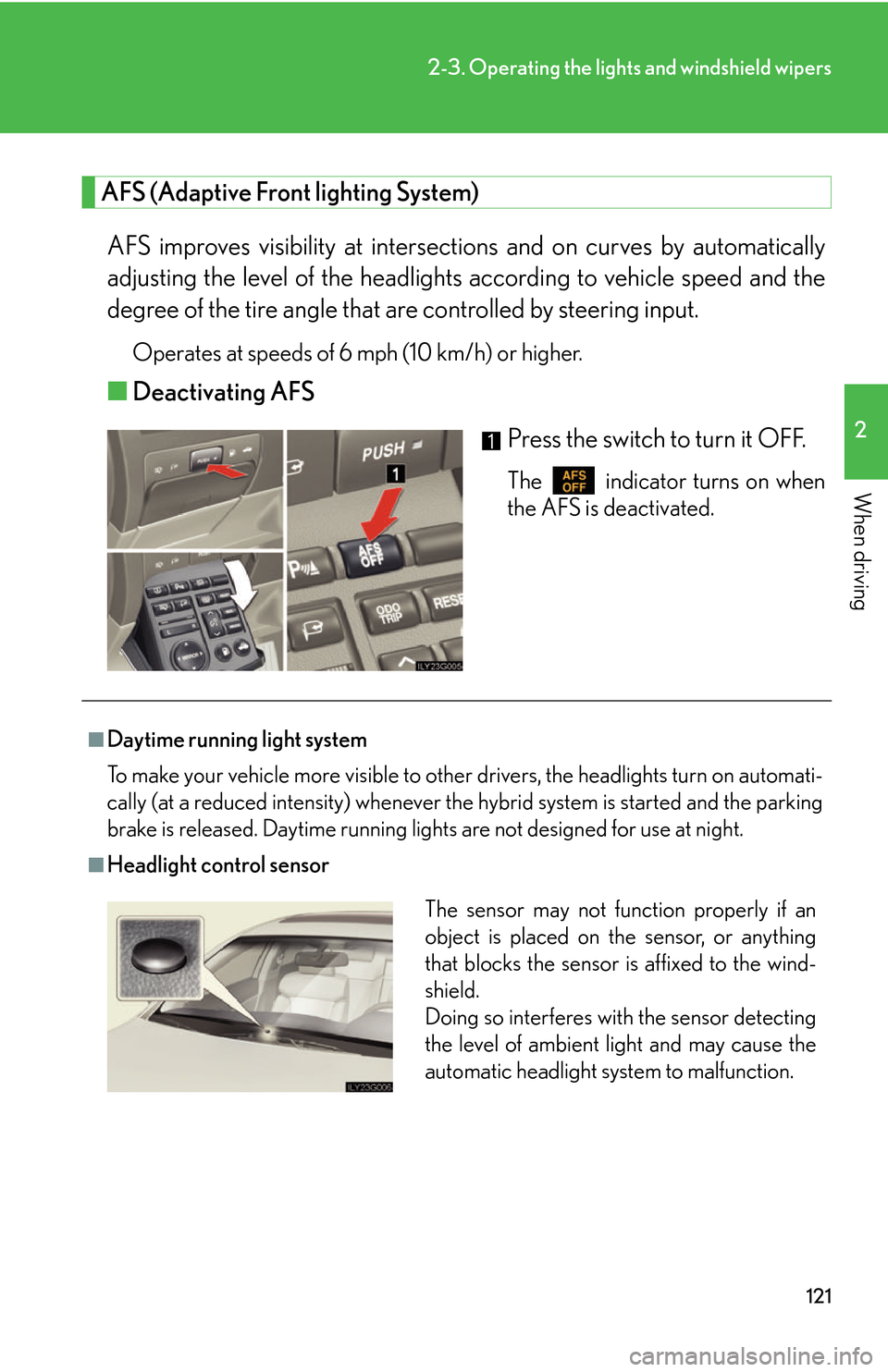

AFS (Adaptive Front lighting System)
AFS improves visibility at intersectio ns and on curves by automatically
adjusting the level of the headlights according to vehicle speed and the
degree of the tire angle that are controlled by steering input.
Operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the switch to turn it OFF.
The indicator turns on when
the AFS is deactivated.
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati -
cally (at a reduced intensity) whenever the hy
brid system is started and the parking
brake is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
Page 148 of 540
128
2-4. Using other driving systems
■Cruise control can be set when
●The shift lever is in the “D” or “4”, “5”, or “6” range of “S”.
●Vehicle speed is between approximately 25 mph (40 km/h) and 125 mph
(200 km/h).
■Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
r
esumes.
■Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
●Actual vehicle speed falls more than 10 mph (16 km/h) below the preset vehicle
speed
●Actual vehicle speed is below 25 mph (40 km/h)
●VSC is activated
■If the cruise control indicator light flashes
Turn the “ON-OFF” button off once, and
then reactivate the system.
If the cruise control speed cannot be set or i
f the cruise control cancels immediately
after being activated, there may be a malfun ction in the cruise control system. Have
the vehicle inspected by your Lexus dealer.

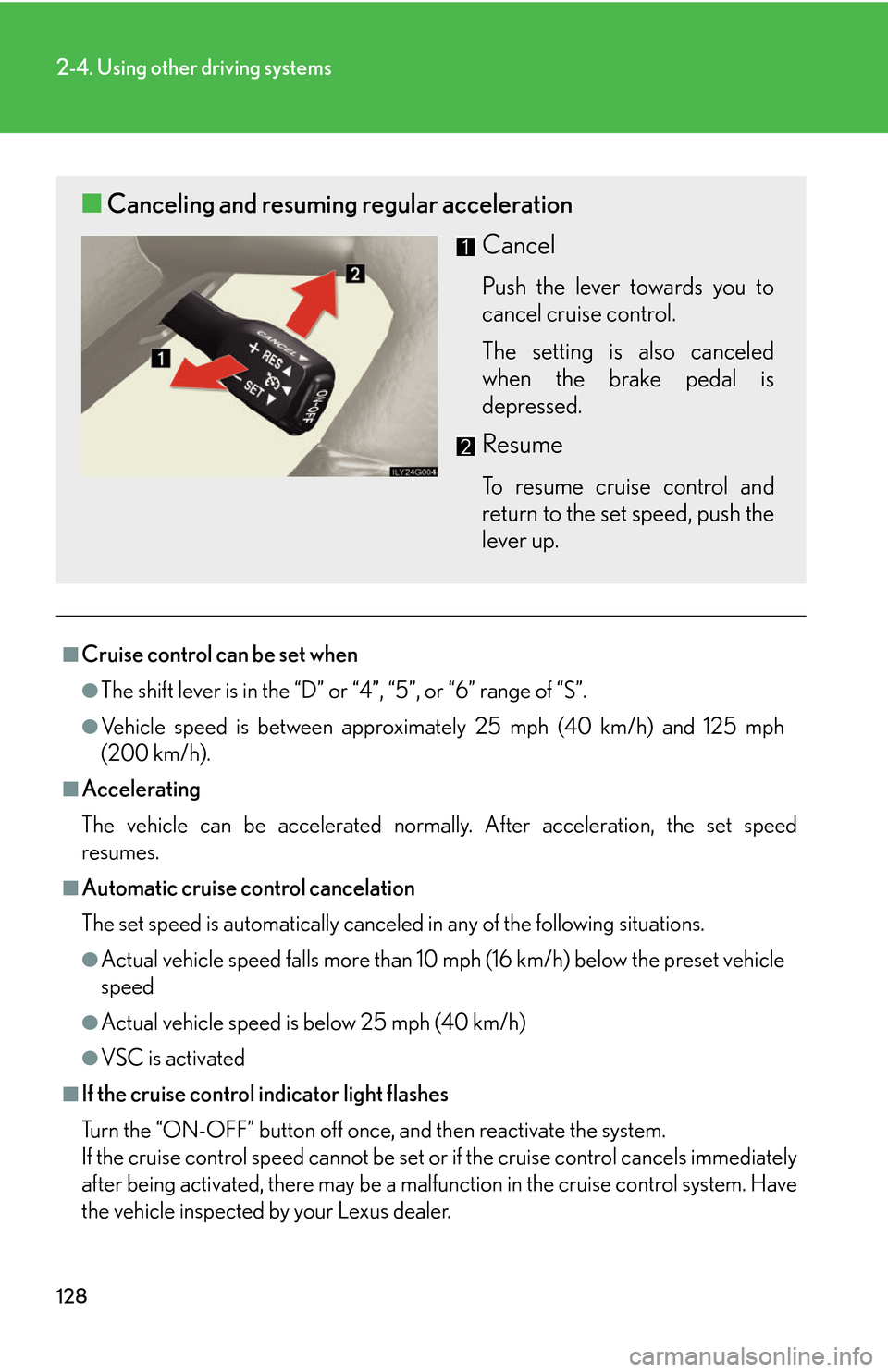

■ Canceling and resuming regular acceleration
Cancel
Push the lever towards you to
cancel cruise control.
The setting is also canceled
when th
e brake pedal is
depressed.
Resume
To resume cruise control and
return to the set speed, push the
lever up.
Page 151 of 540
131
2-4. Using other driving systems
2
When driving

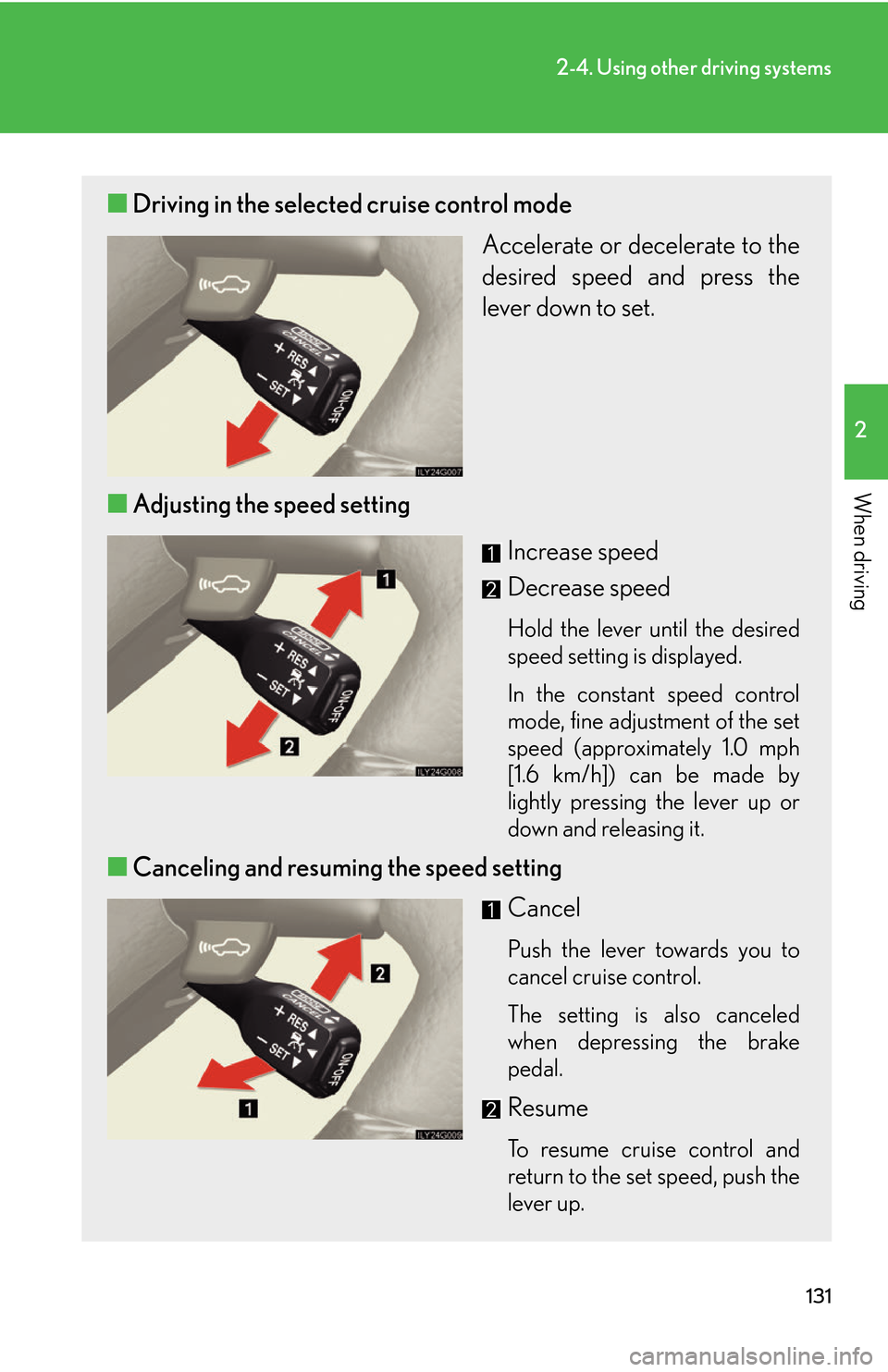

■Driving in the selected cruise control mode
Accelerate or decelerate to the
desired speed and press the
lever down to set.
■ A
djusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is displayed.
In the constant speed control
mode,
fine adjustment of the set
speed (approximately 1.0 mph
[1.6 km/h]) can be made by
lightly pressing the lever up or
down and releasing it.
■ Canceling and resuming the speed setting
Cancel
Push the lever towards you to
cancel cruise control.
The setting is also canceled
when depr
essing the brake
pedal.
Resume
To resume cruise control and
return to the set speed, push the
lever up.
Page 183 of 540

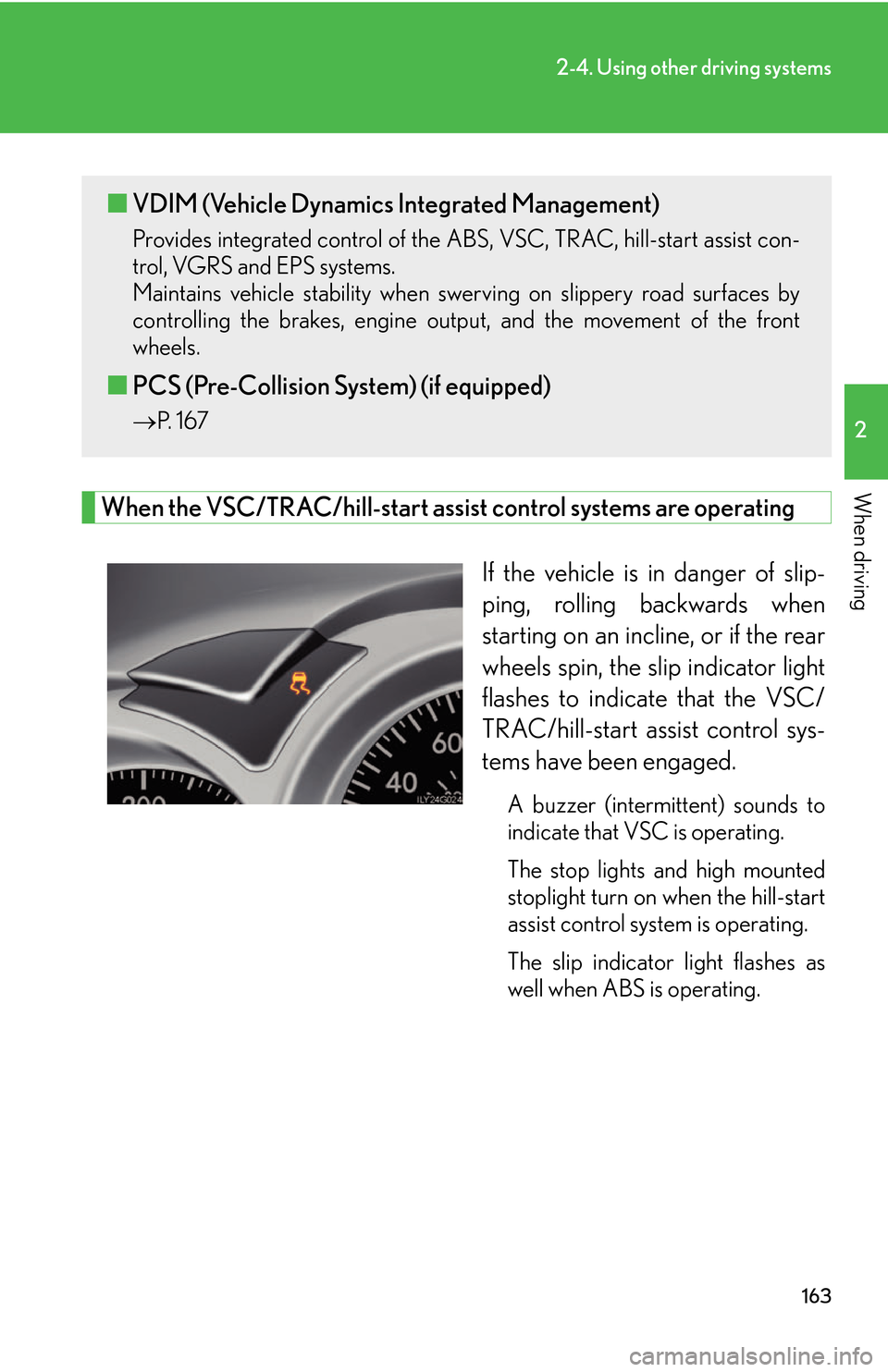

163
2-4. Using other driving systems
2
When driving
When the VSC/TRAC/hill-start assist control systems are operating
If the vehicle is in danger of slip-
ping, rolling backwards when
star
ting on an incli ne, or if the rear
wheels spin, the slip indicator light
flashes to indicate that the VSC/
TRAC/hill-start assist control sys -
tems have been engaged.
A buzzer (intermittent) sounds to
indicate that VSC is operating.
The stop lights and high mounted
stoplight turn on when the hill-star
t
assist control system is operating.
The slip indicator light flashes as
well when ABS is operating.
■ VDIM (Vehicle Dynamics Integrated Management)
Provides integrated control of the AB S, VSC, TRAC, hill-start assist con-
trol, VGRS and EPS systems.
Maintains vehicle stability when swerving on slippery road surfaces by
contr
olling the brakes, engine output, and the movement of the front
wheels.
■ PCS (Pre-Collision System) (if equipped)
P. 1 6 7
