remote start Lexus GS450h 2007 Specifications / LEXUS 2007 GS450H FROM JULY 2006 PROD. (OM30A05U) User Guide

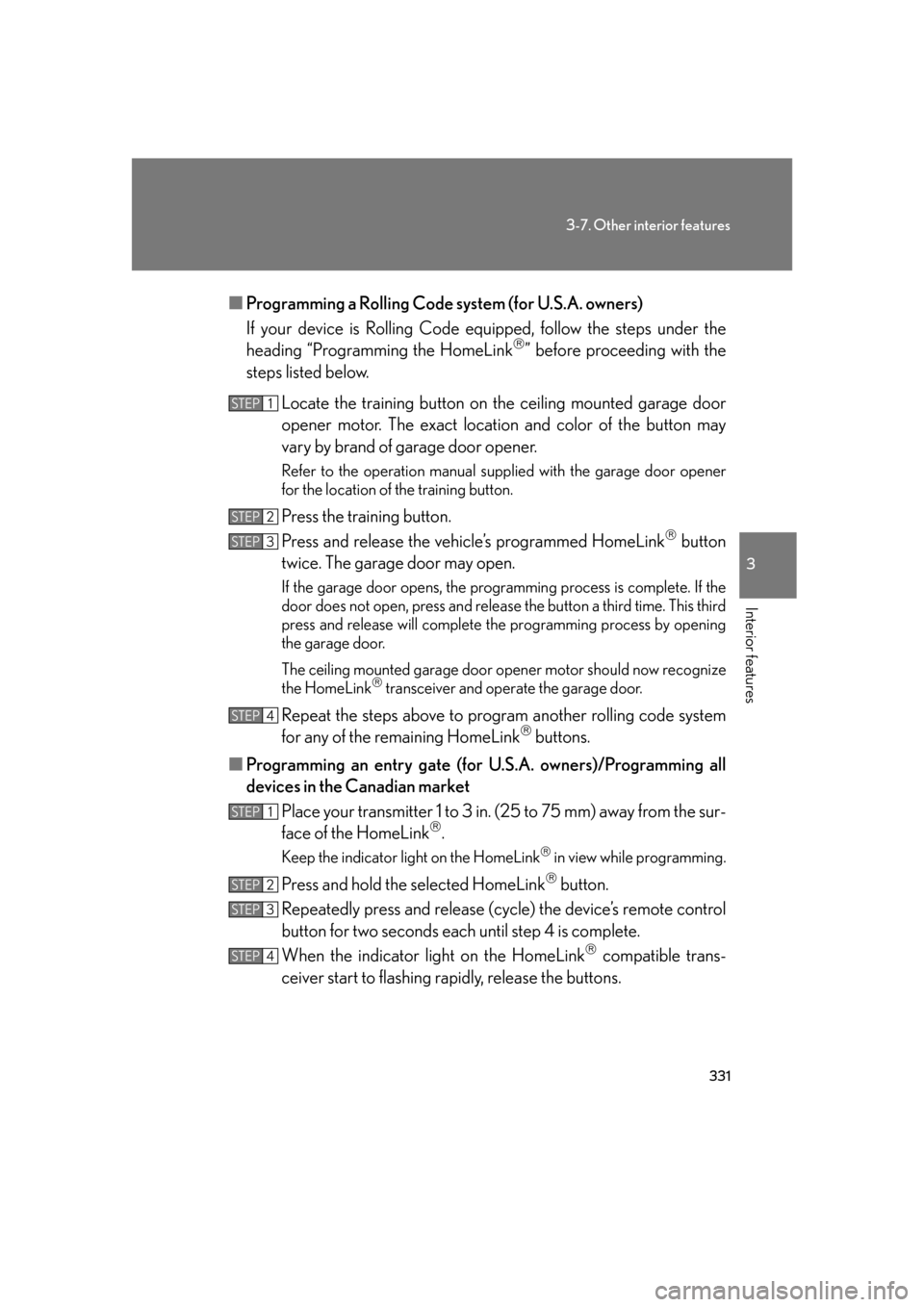

331
3-7. Other interior features
3
Interior features
■Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code eq uipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Press and release the vehicle’s programmed HomeLink
 button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to prog ram another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U .S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cyc le) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

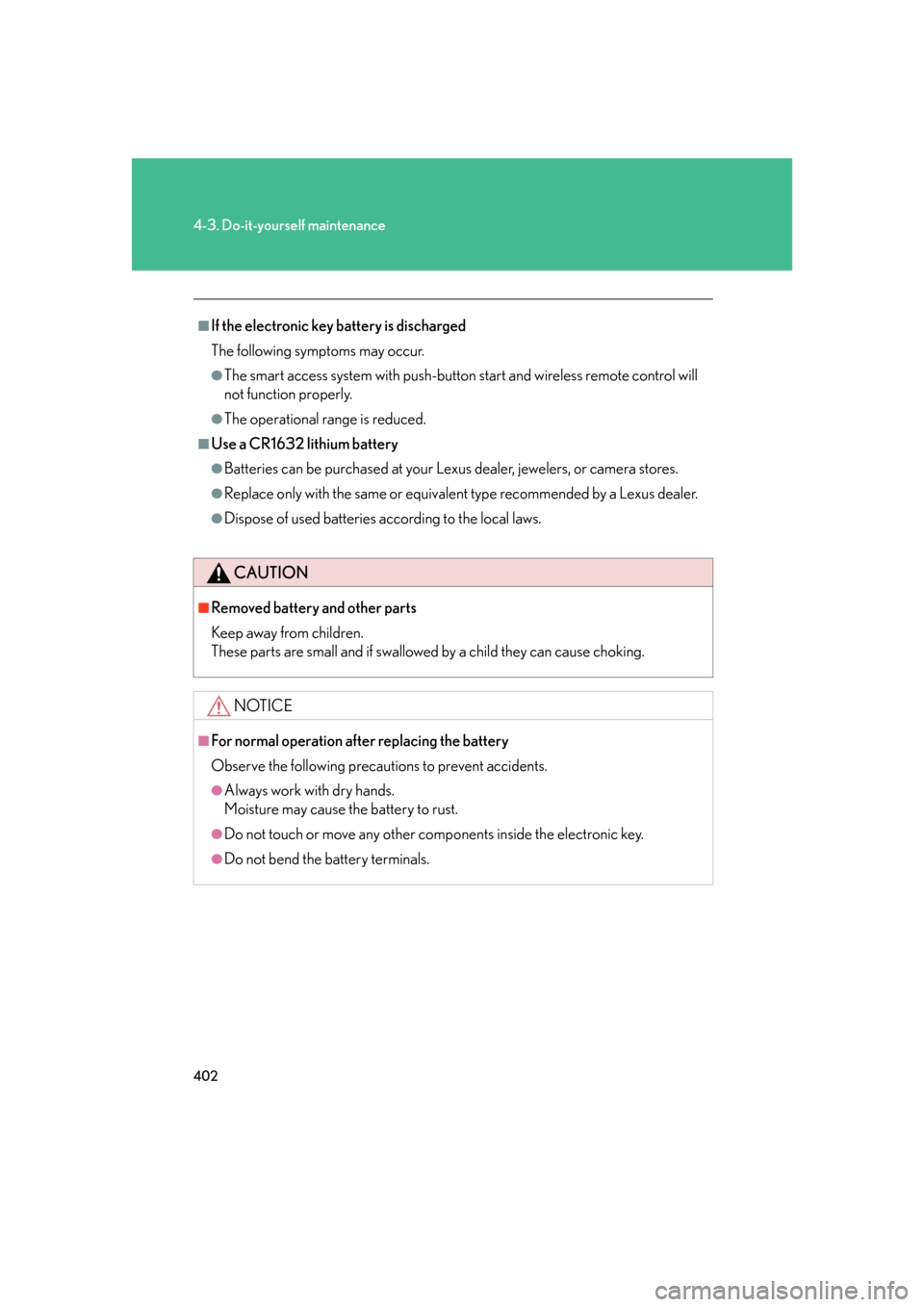

402
4-3. Do-it-yourself maintenance
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children. 
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands. 
Moisture may cause the battery to rust.
●Do not touch or move any other comp onents inside the electronic key.
●Do not bend the battery terminals.

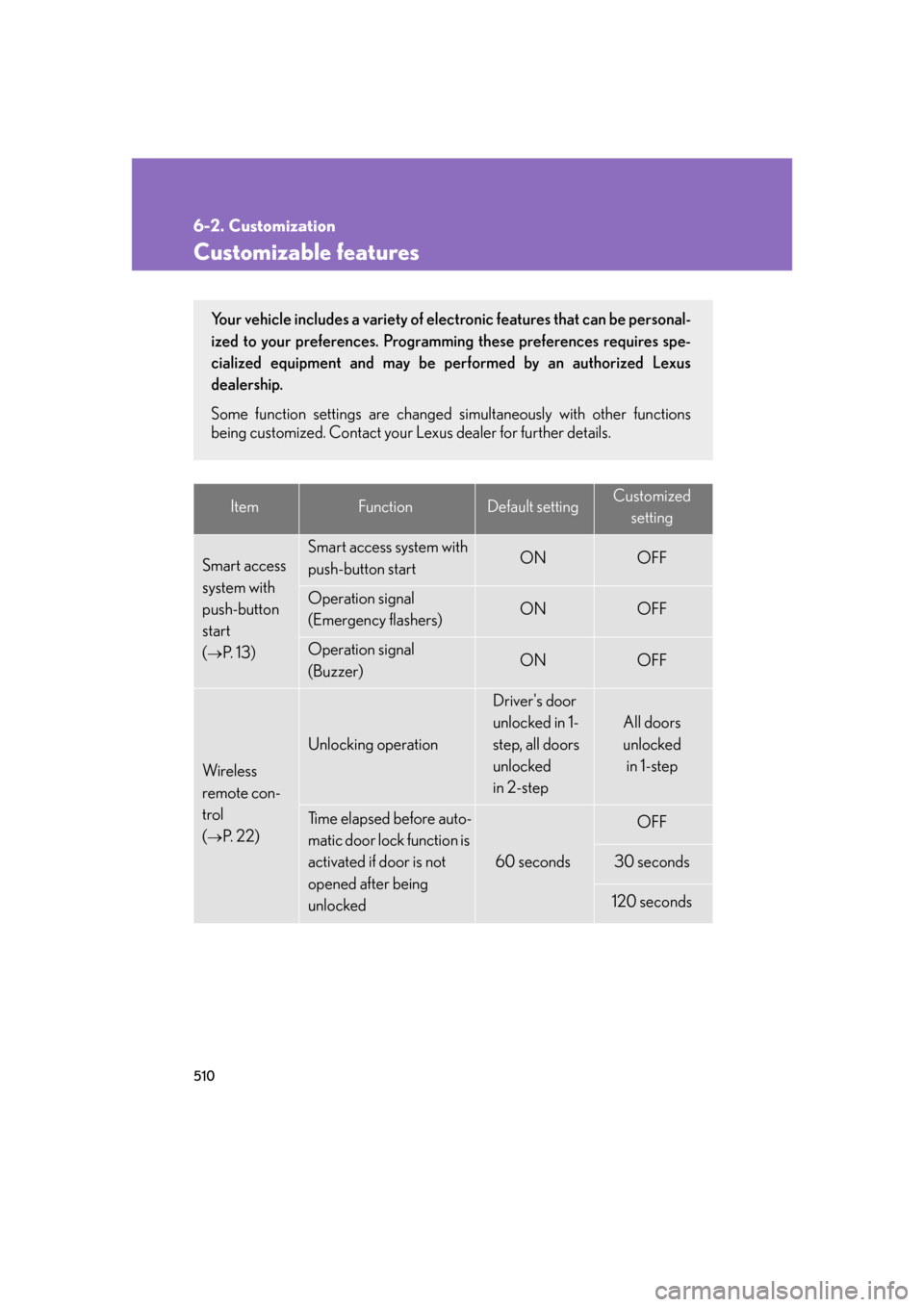

510
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart access
system with
push-button
start 
(
P. 1 3 )
Smart access system with
push-button startONOFF
Operation signal 
(Emergency flashers)ONOFF
Operation signal 
(Buzzer)ONOFF
Wireless
remote con-
trol 
(
P. 22)
Unlocking operation
Driver's door
unlocked in 1-
step, all doors
unlocked 
in 2-step
All doors
unlocked in 1-step
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
OFF
30 seconds
120 seconds
Your vehicle includes a variety of elec tronic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.

521
Alphabetical index
Garage door opener.......................... 329
Gas station information ..................... 528
Gauges.........................................................112
Glove box ............................................... 307
Hands-free system ................................ 261
Head restraints......................................... 38
Headlight aim .......................................... 419
Headlight cleaner .................................. 128
HeadlightsAFS (Adaptive Front lighting 
System) ................................................. 123
Discharge headlights 
precautions ....................................... 426
Replacing light bulbs ......................... 421
Switch ........................................................ 122
Wattage ................................................. 494
Heaters Seat heaters..................................319, 321
Side mirror ..............................................199
Hill-start assist control ......................... 164
Hood ......................................................... 366
Hooks Cargo.......................................................327
Shopping bag.......................................327
Hybrid system .................................................. 2
Emergency shut o ff system .................6
Energy monitor/consumption 
screen .........................................................6
High voltage components ...................5
Power meter ............................................ 112
Power switch .........................................103
Hybrid vehicle immobilizer 
system ....................................................... 59 Illuminated entry system ....................303
I/M test...................................................... 362
Indicator lights........................................... 116
Initialization
Items to initialize .................................. 514
Inside rear view mirror .......................... 47
Instrument panel light control ............ 113
Interior lights Interior lights ........................................ 304
Wattage ..................................................494
Intuitive parking assist ............................ 141
Jack Positioning the jack ...........................367
Replacing the wheel .......................... 461
Jack handle............................................... 461
Keys If you lose your keys ......................... 473
Key number plate .................................... 11
Keys ................................................................ 11
Power switch......................................... 103
Mechanical key ......................................... 11
When the electronic key battery 
is discharged..................................... 474
Wireless remote control ................... 22
Lexus Link System ............................... 338
Light bulbs Replacing .................................................421
Wattage ..................................................494
Light sensitive optitron meter............. 114
Lights Fog light switch .................................... 125
Headlights switch................................. 122
Interior lights list ................................. 303G
H
I
J
K
L

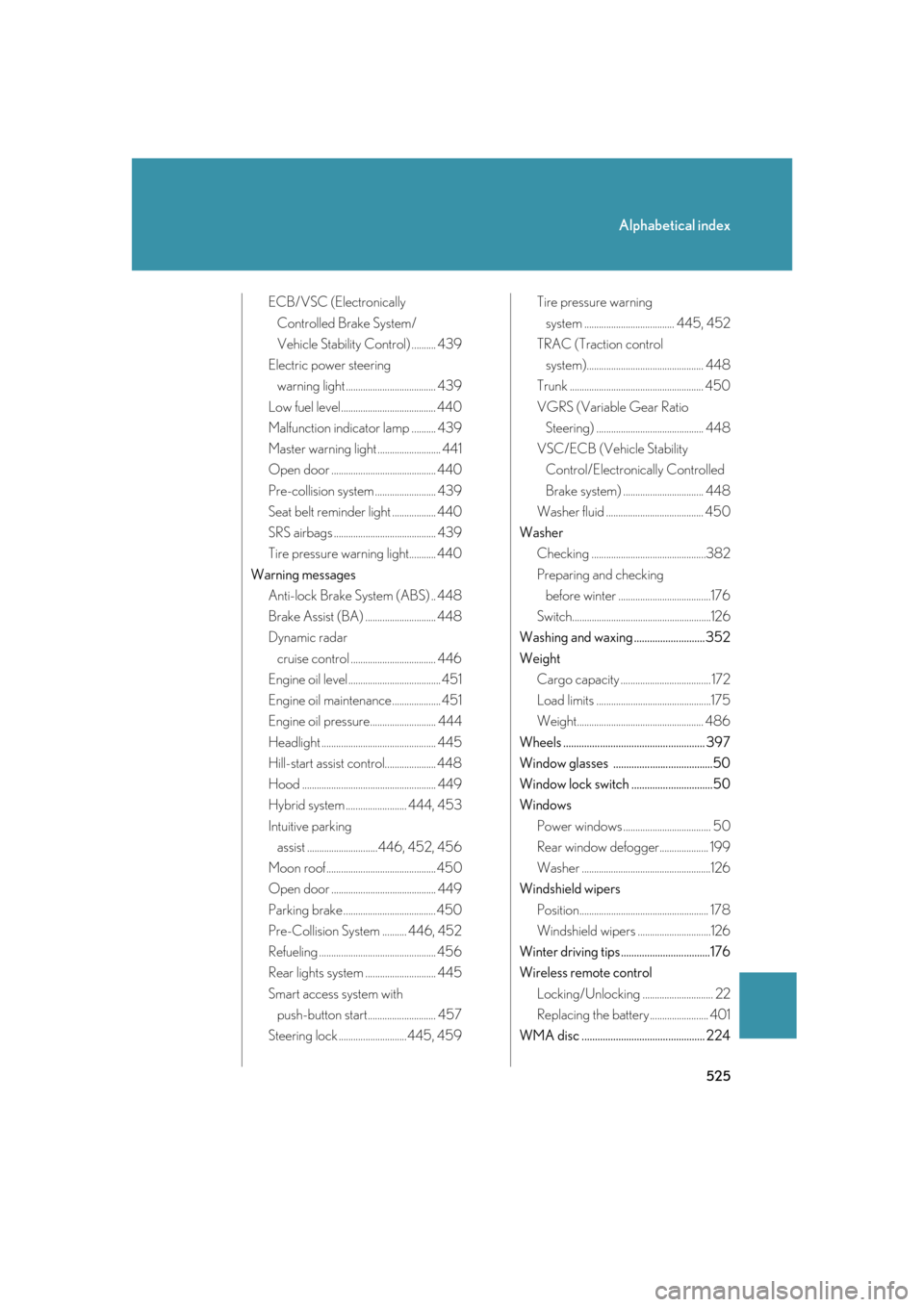

525
Alphabetical index
ECB/VSC (Electronically 
Controlled Brake System/ 
Vehicle Stability Control) .......... 439
Electric power steering  warning light ..................................... 439
Low fuel level....................................... 440
Malfunction indicator lamp .......... 439
Master warning light .......................... 441
Open door ........................................... 440
Pre-collision system ......................... 439
Seat belt reminder light .................. 440
SRS airbags .......................................... 439
Tire pressure warning light........... 440
Warning messages Anti-lock Brake System (ABS) .. 448
Brake Assist (BA) ............................. 448
Dynamic radar cruise control ................................... 446
Engine oil level ...................................... 451
Engine oil maintenance.................... 451
Engine oil pressure........................... 444
Headlight ............................................... 445
Hill-start assist control..................... 448
Hood ....................................................... 449
Hybrid system ......................... 444, 453
Intuitive parking 
assist .............................446, 452, 456
Moon roof ............................................. 450
Open door ........................................... 449
Parking brake ...................................... 450
Pre-Collision System .......... 446, 452
Refueling ................................................ 456
Rear lights system ............................. 445
Smart access system with 
push-button start............................ 457
Steering lock ............................445, 459 Tire pressure warning

system ..................................... 445, 452
TRAC (Traction control 
system)................................................ 448
Trunk ....................................................... 450
VGRS (Variable Gear Ratio 
Steering) ............................................ 448
VSC/ECB (Vehicle Stability 
Control/Electronically Controlled 
Brake system) ................................. 448
Washer fluid ........................................ 450
Washer Checking ...............................................382
Preparing and checking 
before winter ......................................176
Switch.........................................................126
Washing and waxing ........................... 352
Weight Cargo capacity ..................................... 172
Load limits ...............................................175
Weight.................................................... 486
Wheels ...................................................... 397
Window glasses ......................................50
Window lock switch ...............................50
Windows Power windows .................................... 50
Rear window defogger.................... 199
Washer .....................................................126
Windshield wipers Position..................................................... 178
Windshield wipers ..............................126
Winter driving tips ..................................176
Wireless remote control Locking/Unlocking ............................. 22
Replacing the battery........................ 401
WMA disc ............................................... 224
