4-3. Do-it-yourself maintenance
4
Maintenance and care

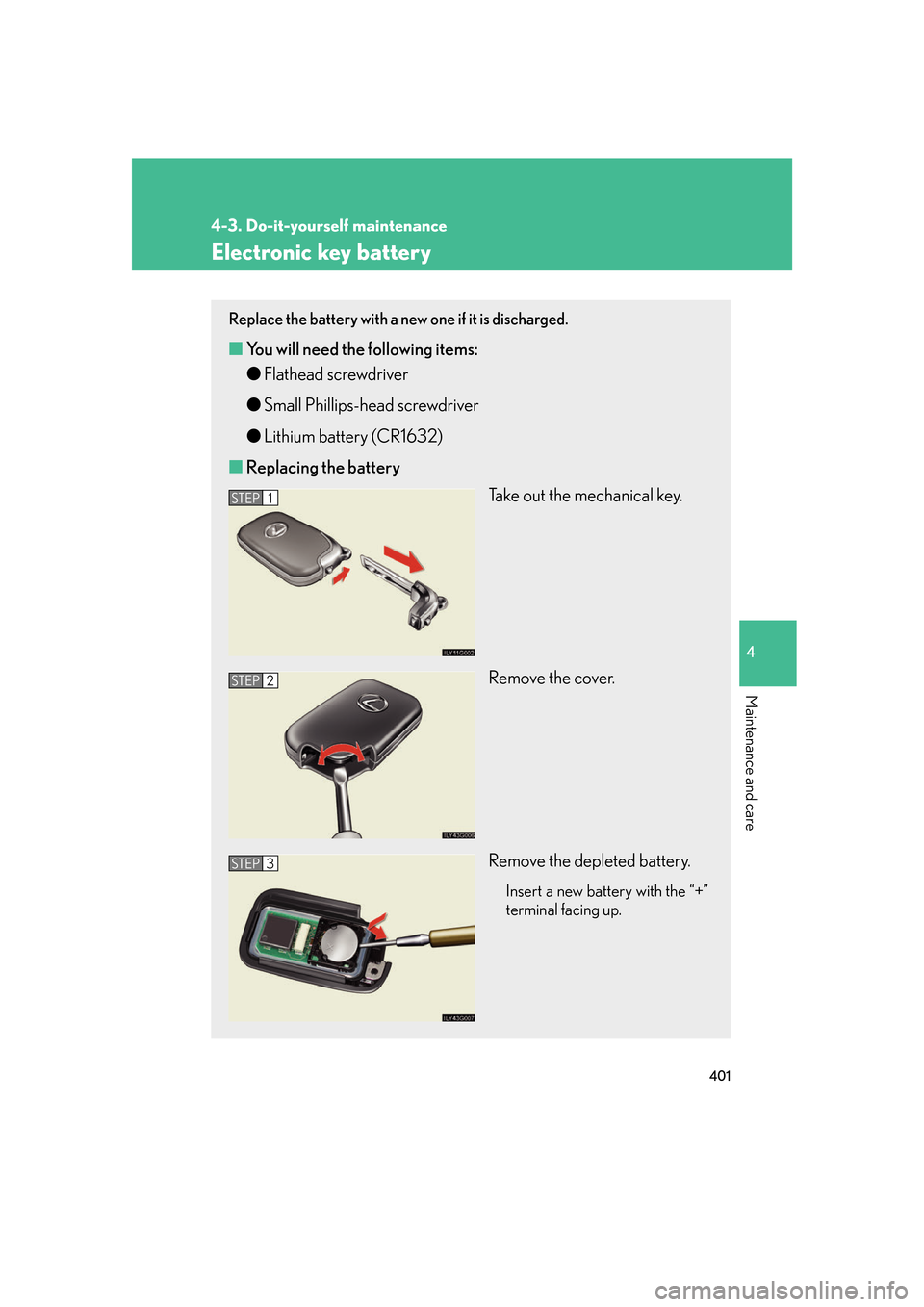

Electronic key battery
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver
● Small Phillips-head sc rewdriver
● Lithium battery (CR1632)
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
STEP1
STEP2
STEP3

402
4-3. Do-it-yourself maintenance
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children. 
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands. 
Moisture may cause the battery to rust.
●Do not touch or move any other comp onents inside the electronic key.
●Do not bend the battery terminals.

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the power switch to “OFF” mode.
Remove the engine compartment cover if necessary.
P. 3 7 0
Open the fuse box cover.
Engine compartment
Remove the clips.
Front controller in the engine compartment fuse box Lift the lid off while pushing the
tabs on either side.STEP1
STEP2
STEP3

404
4-3. Do-it-yourself maintenance

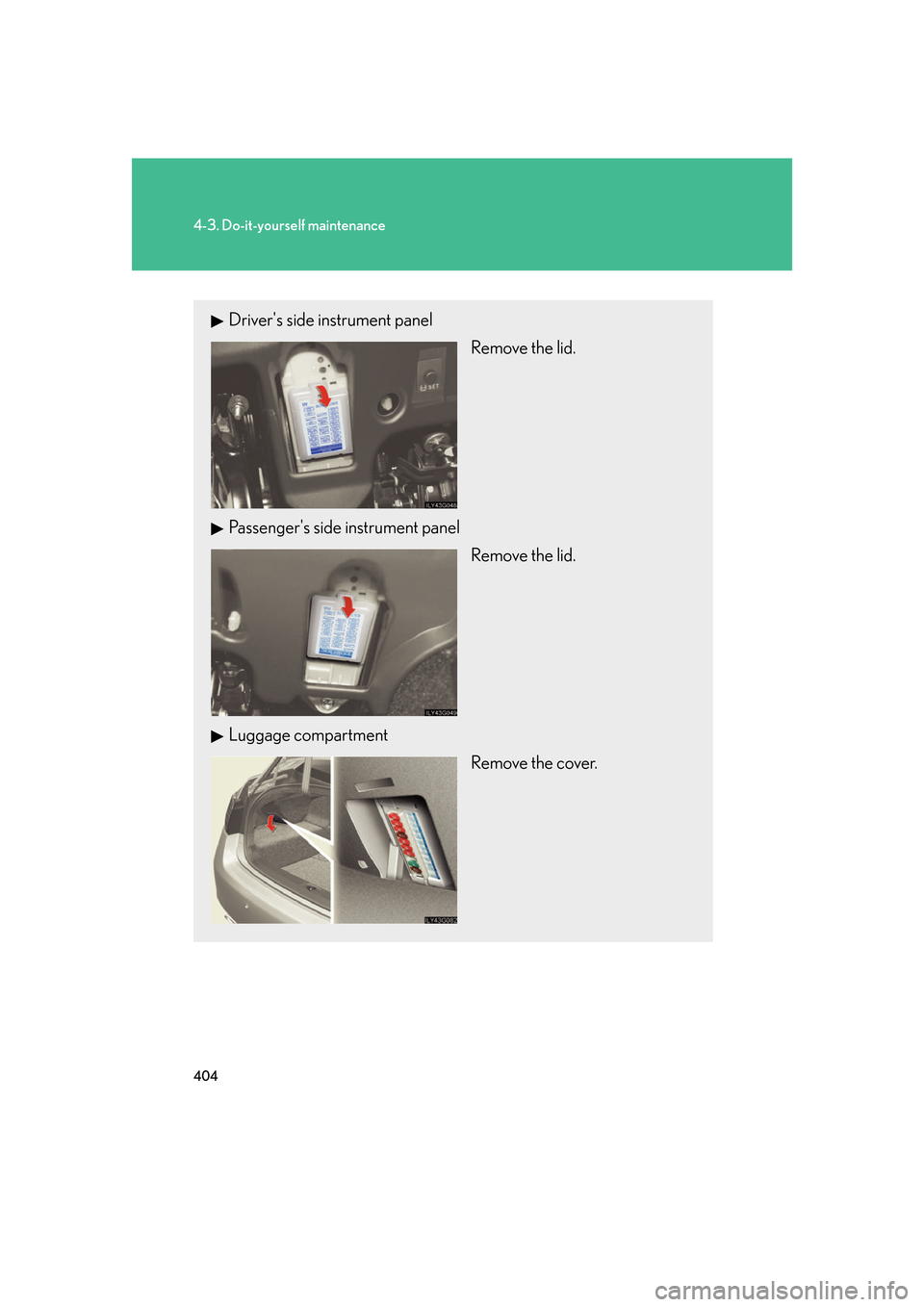

Driver's side instrument panelRemove the lid.
Passenger's side instrument panel Remove the lid.
Luggage compartment Remove the cover.

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
Luggage compartment (vehicles with active stabilizer suspension
system)
Remove the lid.
After a system failure, see “Fuse la yout and amperage ratings”
( P. 408) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5

406
4-3. Do-it-yourself maintenance
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
Type DNormal fuse
Blown fuse
Contact your Lexus dealer.

408
4-3. Do-it-yourself maintenance

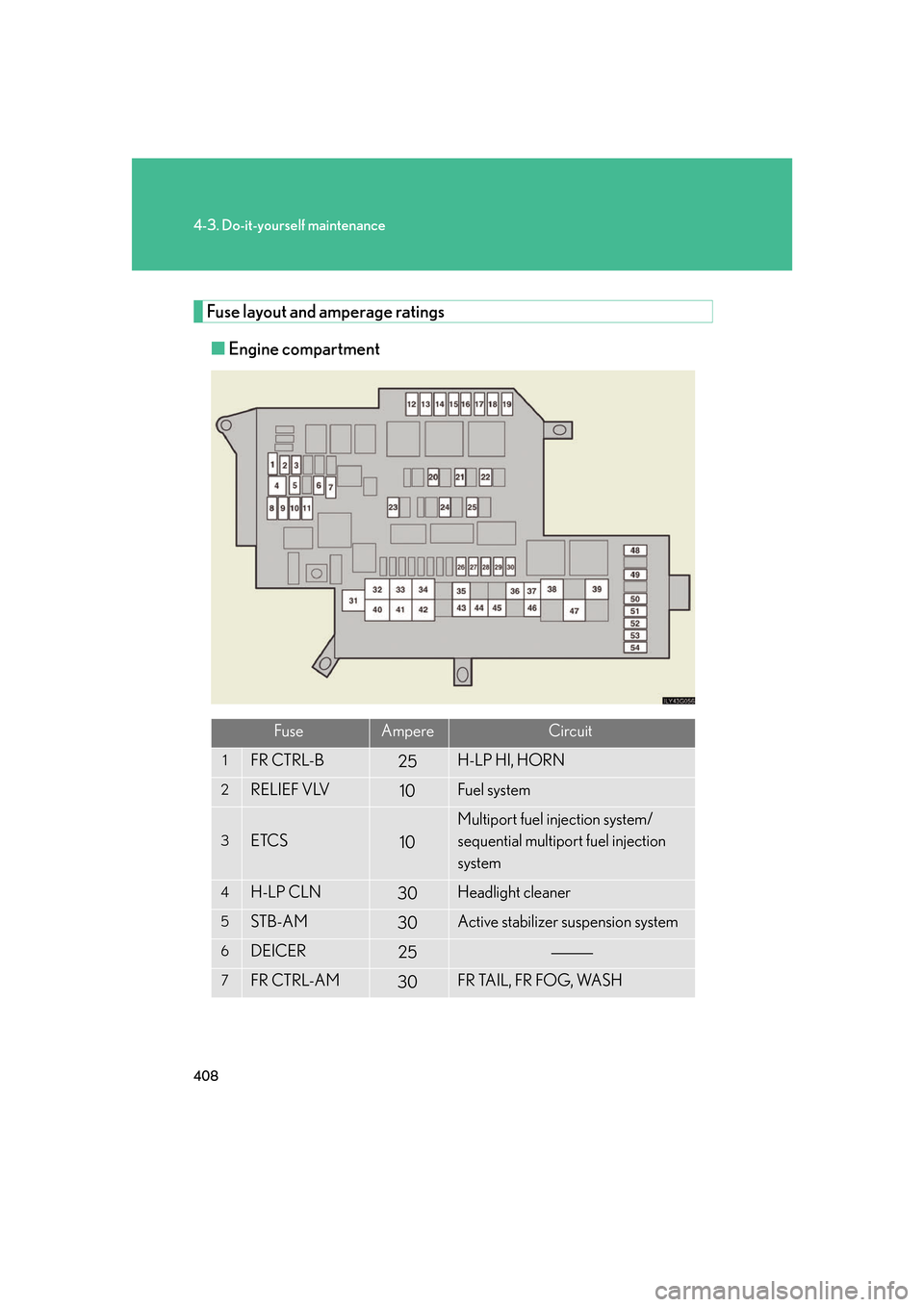

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1FR CTRL-B25H-LP HI, HORN
2RELIEF VLV10Fuel system
3ETCS10
Multiport fuel injection system/
sequential multiport fuel injection
system
4H-LP CLN30Headlight cleaner
5STB-AM30Active stabilizer suspension system
6DEICER25
7FR CTRL-AM30FR TAIL, FR FOG, WASH

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
8IG210
Multiport fuel injection system/
sequential multiport fuel injection
system, noise filter
9EFI No.210Fuel system, exhaust system
10H-LP R LWR15Headlight low beam (right)
11H-LP L LWR15Headlight low beam (left)
12D/C CUT30DOME, MPX-B
13IGCT No.37. 5Hybrid battery (traction battery)
14IGCT No.27. 5Hybrid system
15MPX-B7. 5
Power windows, door control system,
power seat, electronically controlled
brake system, combination switch,
electric tilt and telescopic steering,
gauges and meters
16DOME7. 5Interior lights, foot lights, vanity light,
gauges and meters
17ABS MAIN110Electronically controlled brake sys-
tem
18ABS MOTOR30ABS
19ABS MAIN210Electronically controlled brake sys-
tem
20F/ P M P25Fuel system
21EFI25
EFI2, multiport fuel injection system/
sequential multiport fuel injection
system
22INJ20
Multiport fuel injection system/
sequential multiport fuel injection
system

410
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
23A/F15Fuel system
24INV W/P10Hybrid system
25IGCT No.120Hybrid system, IGCT No.2, 
IGCT No.3
26FR FOG15Fog light
27FR TAIL10Tail light, rear side marker light
28WA S H20Windshield washer
29HORN10Horn
30H-LP HI20Headlight high beam
31DC/DC140Charging system
32RAD FAN60Electric cooling fans
33LH J/B AM80
S/ROOF, FR P/SEAT LH, TV, A/C,
FUEL OPN, FR WIP, H-LP LVL, 
FR S/HTR LH, A/C W/P
34E/G AM60H-LP CLN, FR CTRL-AM, DEICER,
STB AM
35HEATER50Air conditioning system
36DEFOG50Rear window defogger
37ABS230VSC, ABS
38RH J/B-AM80
AM1, OBD, STOP SW, TI & TE, 
FR P/SEAT RH, STR LOCK, 
SECURITY, ECU-IG R, RH-IG, 
F S/HTR RH, CIG, PWR OUTLET, 
AIR SUS
