navigation system Lexus GS450h 2007 Specifications / LEXUS 2007 GS450H FROM JULY 2006 PROD. OWNER'S MANUAL (OM30A05U)

xiii
Audio remote control switches P. 259
Cruise control switch
P. 129, 132
Telephone switch P. 261
“DISP” switch P. 120
Distance switch P. 134
Talk switch* P. 272
: If equipped
*: Refer to “Navigation System Owner's Manual”.
A
B

xiv
C
Pictorial indexInstrument panel
Security indicator P. 59, 61
Rear window and outside 
rear view mirror defoggers 
P. 199
Emergency flashers
Clock
P. 314Outside temper
ature display P. 315
Air conditioning 
system
P. 192
Audio system
P. 200
Navigation system*Touch screen 

P. 184

xv
“AFS OFF” switch P. 123
Rear sunshade switch P. 324
Headlight cleaner switch P. 128
Intuitive parking assist switch P. 141
Odometer/trip meter and trip meter 
reset button
P. 113
Instrument panel light control P. 113
Fuel filler door opener P. 55
Trunk opener P. 29
Outside rear view mirror switches P. 48
D
: If equipped
*: Refer to “Navigation System Owner's Manual”.

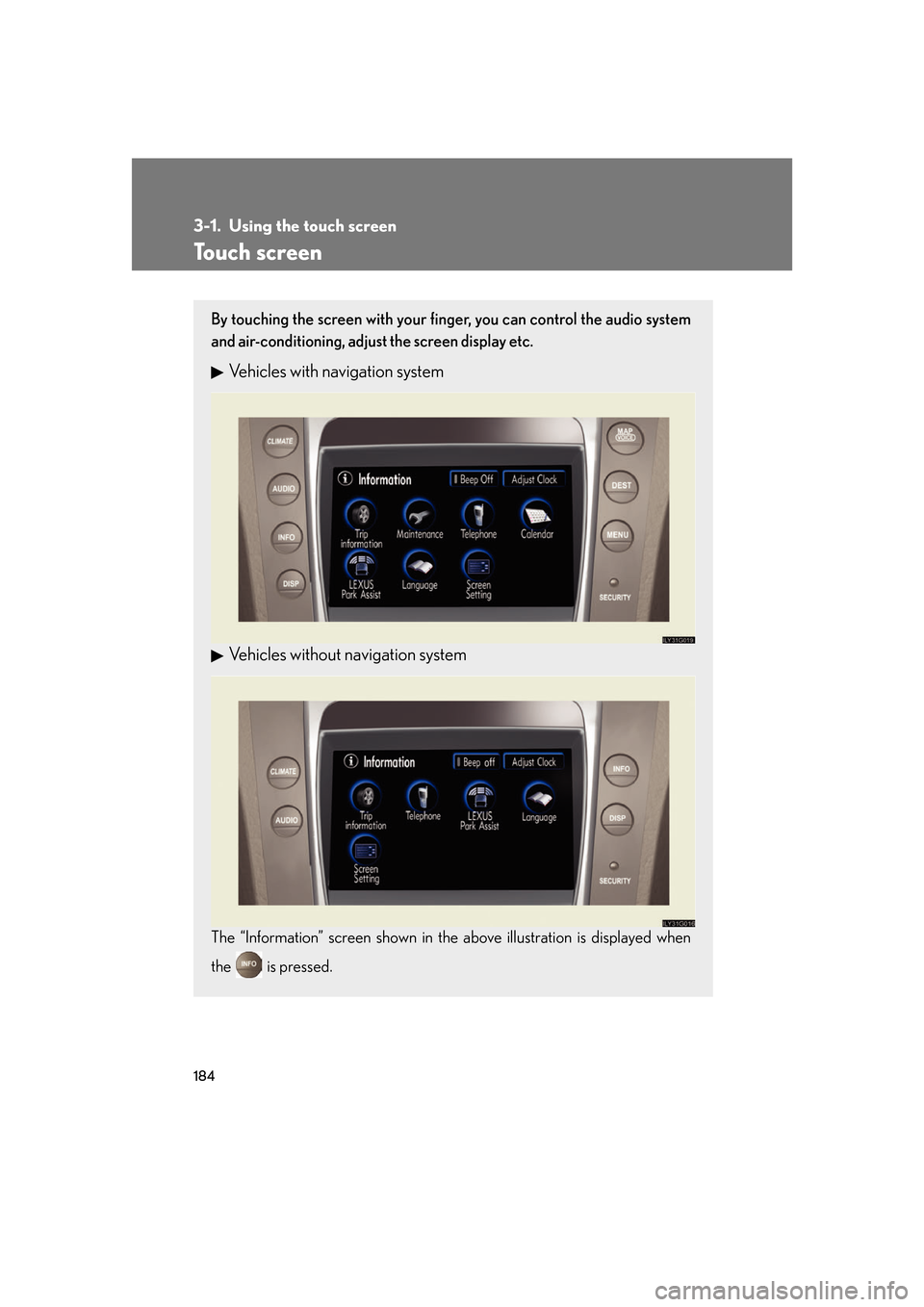

184
3-1. Using the touch screen
Touch screen
By touching the screen with your finger, you can control the audio system
and air-conditioning, adjust the screen display etc.
Vehicles with navigation system
Vehicles without navigation system
The “Information” screen shown in the above illustration is displayed when
the is pressed.

185
3-1. Using the touch screen
3
Interior features
The initial screen
If the power switch is set to “ACC” or
“IG-ON” mode, the initializing screen
will be displayed for a few seconds as
the system starts up.
SwitchesPa g e
“CLIMATE”P. 1 9 2
“A U D I O ”P. 2 0 0
“INFO” (Displaying the “Informa-
tion” screen)P. 1 8 4
“DISP” (Adjusting the display)P. 1 8 8
Trip Information. (Displaying the
“Trip Information” screen)P. 6
MaintenanceNavigation System Owner's Manual
Te l e p h o n eP. 2 6 5
CalendarNavigation System Owner's Manual
“LEXUS Park Assist”P. 1 5 5
LanguageP. 1 8 7
Screen SettingP. 1 9 0
Adjust ClockP. 3 1 4 /
Navigation System Owner's Manual

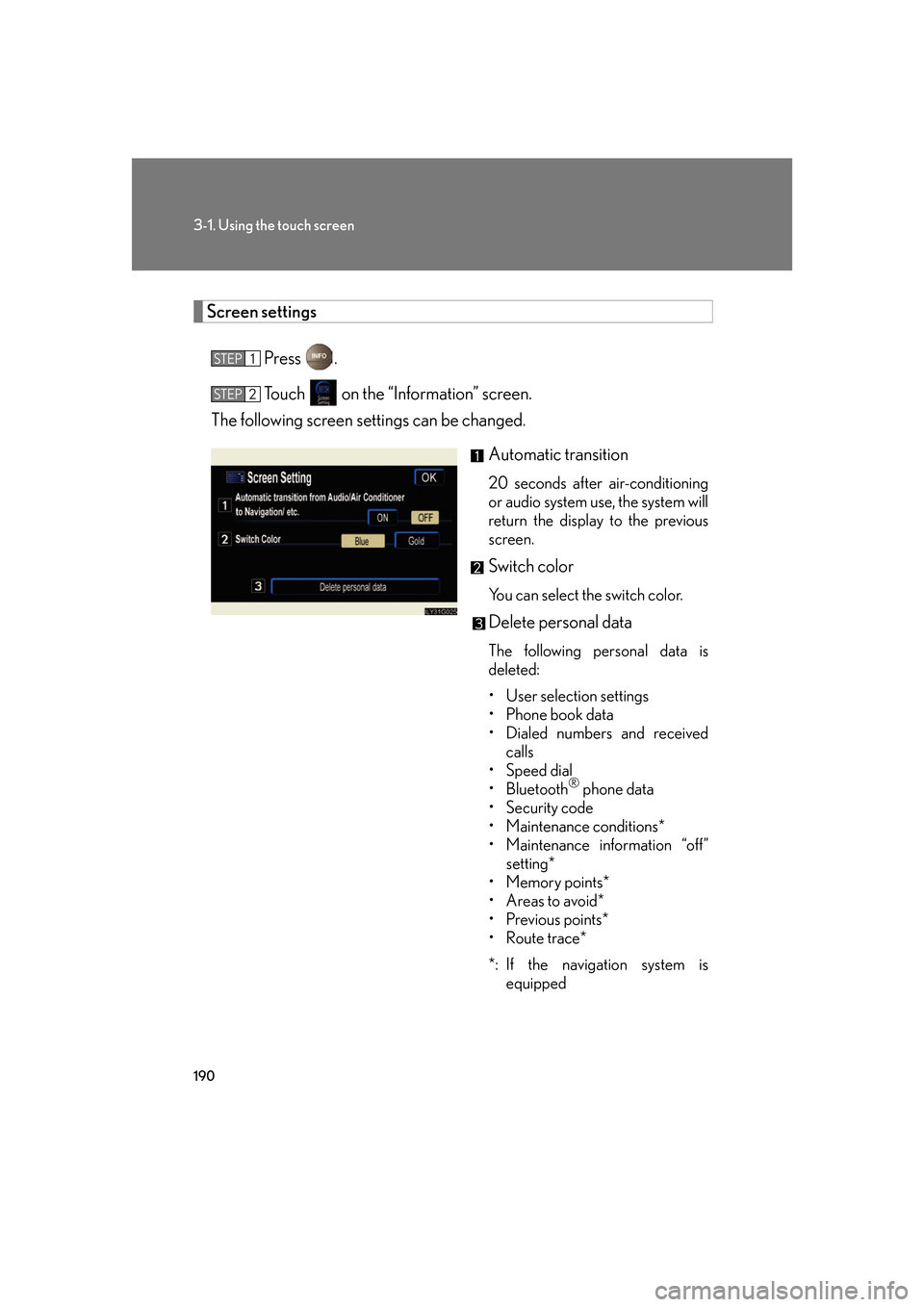

190
3-1. Using the touch screen
Screen settingsPress .
Touch on the “Information” screen.
The following screen se ttings can be changed.
Automatic transition
20 seconds after air-conditioning
or audio system use, the system will
return the display to the previous
screen.
Switch color
You can select the switch color.
Delete personal data
The following personal data is
deleted:
• User selection settings
•Phone book data
• Dialed numbers and received calls
•Speed dial
• Bluetooth
® phone data
•Security code
• Maintenance conditions*
• Maintenance information “off” setting*
•Memory points*
•Areas to avoid*
• Previous points*
• Route trace*
*: If the navigation system is equipped
STEP1
STEP2

192
3-2. Using the air conditioning system and defogger
Automatic air conditioning system
Airflow and outlets are automatically adjusted according to the tempera-
ture setting.
Press
to display the air conditioning operation screen.
The above illustration is for a vehicle equipped with th e navigation sys-
tem. The position of may differ slightly for vehicles not equipped
with the navigation system.
Automatic mode
Driver’s side 
temperature display
Fan speed display
Off Airflow display
Air conditioning operation
screen display button
Passenger’s side 
temperature 
display
Micro dust and pollen removal mode
Driver's side

temperature control
Air conditioning

ON/OFF switch
Outside air or recirculated mode
Windshield defogger Passenger’s side 
temperature control
Dual operation switch

200
3-3. Using the audio system
Audio system type
CD and (optional) DVD player with changer, cassette player, and AM/FM
radio 
This illustration below is for a vehicl e not equipped with the DVD player.
Vehicles with navigation system
Vehicles without navigation system
The audio system appearance and scr een may differ slightly for vehi-
cles equipped with the DVD player.

232
3-3. Using the audio system
Using the DVD player (if equipped)
Insert a disc or press with a disc inserted.
When you press during the playback of the disc, the following audio/
video control screen appears.
This illustration shows the audio system of a vehicle with the navigation
system.
Po w e r Vo l u m e
Track, file and chapter 
selection/fast forward/ 
rewind Disc eject
PlaybackDisc load Change disc
Display audio/video control screen
Select disc
Disc slot
Select file

273
3-4. Using the hands-free system
3
Interior features
●Calling by number from the “Telephone” screen
Press the talk switch.
Following the system guidance, wa it until the beep and then say
the desired number.
Following the system guidance , press the talk switch.
Following the system guidance, wa it until the beep and then say
“Dial”.
● Sending tones from the “Call” screen
Press the talk switch.
Following the system guidance, wa it until the beep and then say
the desired number.
Following the system guidance , press the talk switch.
Following the system guidance, wa it until the beep and then say
“Yes”.
■ Calling using POI
You can make a call using a Point Of Interest. ( “Navigation System
Owner’s Manual”)
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4
