seat memory Lexus GS450h 2007 Specifications / LEXUS 2007 GS450H FROM JULY 2006 PROD. OWNER'S MANUAL (OM30A05U)

TABLE OF CONTENTSIndex
ii
1-1. Hybrid system .................................. 2Hybrid system ...................................... 2
1-2. Key information ............................. 11 Keys ......................................................... 11
1-3. Opening, closing and locking 
the doors and trunk ................... 13
Smart access system with  push-button start ........................... 13
Wireless remote control .............. 22
Doors.................................................... 25
Trunk..................................................... 29
1-4. Adjustable components ............ 33 Front seats .......................................... 33
Driving position memory 
system ............................................... 35
Head restraints................................ 38
Seat belts ............................................ 40
Steering wheel.................................. 46
Inside rear view mirror .................. 47
Outside rear view mirrors ........... 48
1-5. Opening and closing the 
windows and moon roof .......... 50
Power windows............................... 50
Moon roof .......................................... 52 1-6. Refueling ........................................ 55
Opening the fuel tank cap........... 55
1-7. Theft deterrent system............... 59 Hybrid vehicle immobilizer 
system ............................................... 59
Alarm..................................................... 61
Theft prevention labels 
(U.S.A.) ............................................. 63
1-8. Safety information ....................... 64 Correct driving posture ............... 64
SRS airbags ....................................... 66
Front passenger occupant 
classification system .................... 77
Child restraint sy stems ................. 82
Installing child restraints .............. 85
2-1. Driving procedures..................... 96 Driving the vehicle .......................... 96
Starting the hybrid system ......... 103
Transmission ................................... 106
Turn signal lever.............................. 110
Parking brake .................................... 111
2-2. Instrument cluster ...................... 112 Gauges and meters ....................... 112
Indicators and warning lights ..... 116
Multi-information display............. 119
1Before driving
2When driving

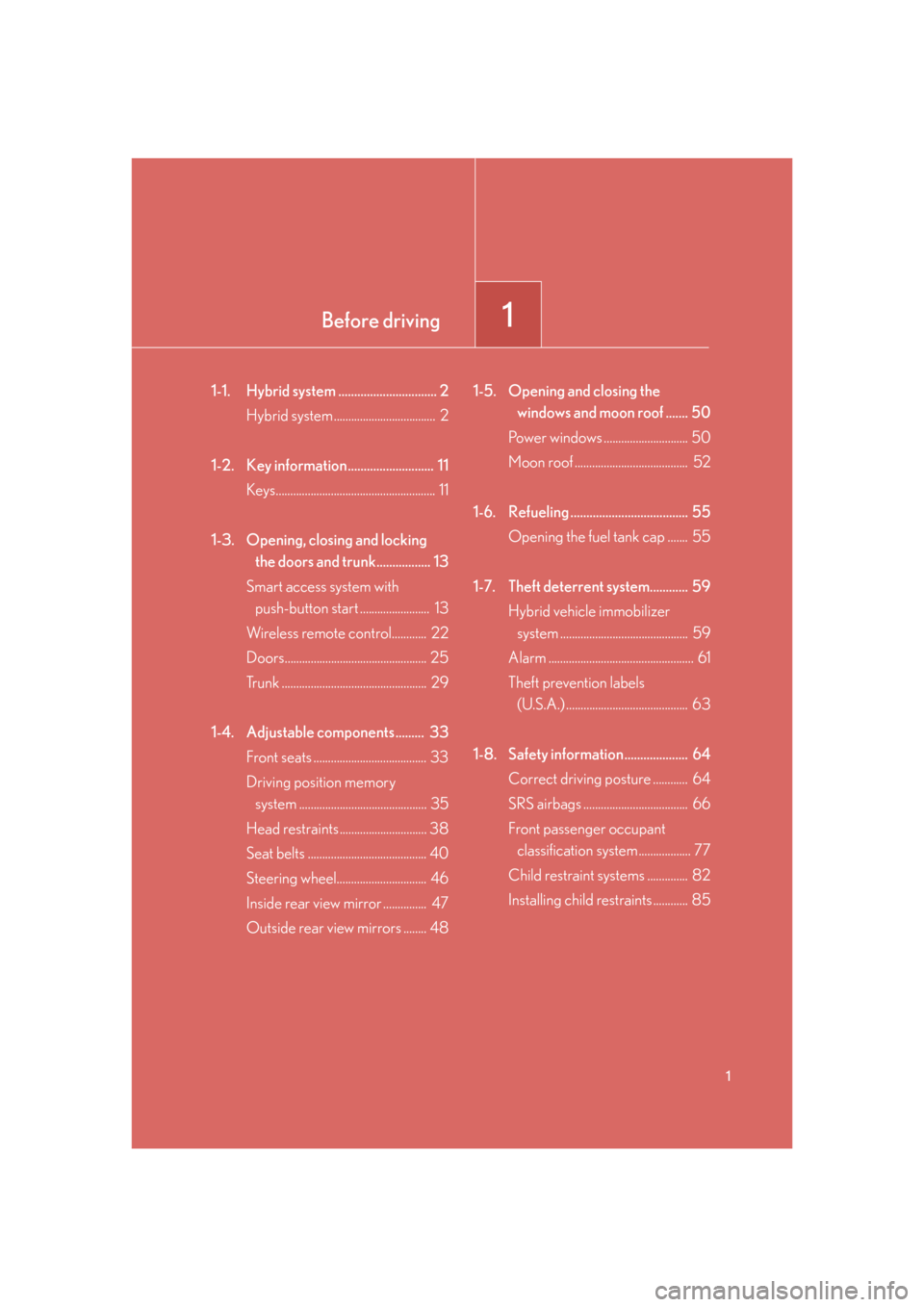

Before driving1
1
1-1. Hybrid system ............................... 2Hybrid system ................................... 2
1-2. Key information ........................... 11 Keys....................................................... 11
1-3. Opening, closing and locking 
the doors and trunk................. 13
Smart access system with 
push-button start ........................ 13
Wireless remote control............ 22
Doors................................................. 25
Trunk .................................................. 29
1-4. Adjustable components ......... 33 Front seats ....................................... 33
Driving position memory 
system ............................................ 35
Head restraints .............................. 38
Seat belts ......................................... 40
Steering wheel............................... 46
Inside rear view mirror ............... 47
Outside rear view mirrors ........ 48 1-5. Opening and closing the

windows and moon roof ....... 50
Power windows ............................. 50
Moon roof ....................................... 52
1-6. Refueling ..................................... 55 Opening the fuel tank cap ....... 55
1-7. Theft deterrent system............ 59 Hybrid vehicle immobilizer 
system ............................................ 59
Alarm .................................................. 61
Theft prevention labels 
(U.S.A.) .......................................... 63
1-8. Safety information .................... 64 Correct driving posture ............ 64
SRS airbags .................................... 66
Front passenger occupant 
classification system.................. 77
Child restraint systems .............. 82
Installing child restraints ............ 85

35
1
1-4. Adjustable components
Before driving
Driving position memory system (if equipped)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be entered into the computer's
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked. 
Three different driving positions can be entered into memory.
The same buttons are found on the front passenger's side, allowing the
position of the front passenger's seat to be memorized.
■ Entering a position to memory
Check that the shift lever is set in “P”.
Switch to “IG-ON” mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3

37
1-4. Adjustable components
1
Before driving
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm. ( P. 6 1 )
■Canceling the linked do or unlock operation
Close the driver’s door with the po wer switch set to the “OFF” mode.
Push the “SET” button and the button on the wireless remote control
at the same time for about 1 second until you hear 2 beeps.
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column) can
be activated within 30 seconds after the co rresponding side door is opened, even if
the power switch is in the “OFF” mode.
■If any position memory button is push ed while the adjustments are being made
The operation will stop. To reactivate the sy stem, push the desired button (“1” or “2”)
again.
■If the 12 volt battery is disconnected
The memorized positions must be reset be cause the computer's memory is erased
when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
If this happens, you can stop the moveme nt by pressing another driving position
memory button.
STEP4
STEP1
STEP2

520
Alphabetical index
Emergency, in case ofIf a warning light turns on ..............438
If a warning message is 
displayed ............................................ 444
If the hybrid system will not 
start.......................................................... 471
If the shift lever cannot be  shifted from P ....................................472
If the 12 volt battery is 
discharged ....................................... 476
If you have a flat tire .............. 460, 461
If you lose your keys......................... 473
If you think something is 
wrong ................................................... 435
If your vehicle becomes stuck.....483
If your vehicle needs to be 
towed ................................................... 428
If your vehicle overheats ............... 480
When the electronic key battery 
is discharged .................................... 474
Energy monitor............................................ 6
Engine Compartment .....................................369
Hood........................................................366
How to start the hybrid system ... 103
If the hybrid system will not 
start.......................................................... 471
Overheating........................................ 480
Power switch ........................................ 103
Engine compartment cover .............370
Engine coolant temperature 
gauge......................................................... 112
Engine/inverter coolant Capacity .................................................490
Checking ............................................... 376
Preparing and checking before winter ...................................... 176 Engine oil
Capacity ................................................ 489
Checking................................................. 371
Preparing and checking 
before winter...................................... 176
Engine oil maintenance data ........... 374
EPS (Electric Power Steering) .........164
Event data recorder ............................ 436
First-aid kit storage belt ..................... 327
Floor mats ................................................ 326
Fluid Brake ....................................................... 378
Washer................................................... 382
Fog lights Switch ........................................................ 125
Wattage ................................................. 494
Foot light .................................................. 304
Front passenger occupant 
classification system ............................. 77
Front passenger's seat belt 
reminder light ..................................... 440
Front seats Adjustment ...............................................33
Driving position memory ..................35
Front turn signal lights Wattage ................................................. 494
Fuel Capacity ................................................ 488
Fuel gauge ................................................ 112
Gas station information ................. 528
Information ........................................... 495
Refueling ................................................... 55
Messages .............................................. 456
Fuel filler door ........................................... 55
Fuses .......................................................... 403
F

522
Alphabetical index
Replacing light bulbs.......................... 421
Turn signal lever .................................... 110
Vanity lights ............................................313
Wattage.................................................. 494
Maintenance Do-it-yourself maintenance ......... 363
General maintenance .....................359
Maintenance data..............................486
Maintenance requirements .......... 357
Meter Instrument panel light control .........113
Meters .........................................................112
Micro dust and pollen removal 
mode ........................................................ 195
Mirrors Inside rear view mirror........................47
Side mirror heater ...............................199
Side mirrors ............................................. 48
Vanity mirrors........................................313
Moon roof ................................................... 52
MP3 disc ...................................................... 224
Multi-information display ....................... 119
Odometer................................................... 112
Oil Engine oil ................................................. 371
Opener Fuel filler door......................................... 55
Hood........................................................366
Trunk ........................................................... 29
Outside rear view mirrors Adjusting and folding ......................... 48
Driving position memory.................. 35
Outside temperature display............ 315
Overhead console .............................. 308 Overheating, Engine
............................. 480
Parking brake..............................................111
Parking lights Replacing light bulbs ......................... 421
Switch .........................................................122
Wattage ................................................. 494
PCS (Pre-Collision System) ..............165
Personal lights........................................305
Power meter.............................................. 112
Power outlet ............................................ 318
Power windows ........................................ 50
Radar cruise control..............................132
Radiator .....................................................377
Radio .............................................................. 203
RDS (Radio Data System) ................ 205
Rear sunshade ....................................... 324
Rear turn signal lights Replacing light bulbs ......................... 421
Wattage ................................................. 494
Rear view monitor system ................. 160
Rear window defogger ........................199
Replacing Electronic key battery ....................... 401
Fuses ........................................................ 403
Light bulbs .............................................. 421
Reporting safety defects for 
U.S. owners............................................516
Seat belts Adjusting the seat belt ..........................41
Automatic Locking Retractor 
(ALR) ....................................................... 42
Child restraint system 
installation ............................................. 85
M
O
P
R
S

523
Alphabetical index
Cleaning and maintaining 
the seat belts..................................... 355
Emergency Locking Retractor  (ELR) ........................................................ 42
How to wear your seat belt............. 40
How your child should wear 
the seat belt...........................................43
Pre-collision seat belts........................ 42
Pregnant women, 
proper seat belt use.......................... 42
Reminder light..................................... 440
Seat belt extenders ...............................43
Seat belt pretensioners........................ 41
Seat heaters.................................... 319, 321
Seat ventilators........................................ 321
Seating capacity ..................................... 175
Seats Child seats/child restraint 
system installation ............................. 85
Cleaning ................................................ 354
Driving position memory ................. 35
Head restraint ........................................ 38
Properly sitting in the seat.................64
Seat adjustment ......................................33
Seat adjustment precautions ...........33
Seat heaters..................................319, 321
Ventilated seats .................................... 321
Service reminder indicators ...............117
Shift lever If the shift lever cannot be 
shifted from P .................................... 472
Transmission ..........................................106
Shift lock system .................................... 472
Shopping bag hooks ............................327
Side airbags ................................................66
Side marker lights Switch ........................................................ 122 Side mirror
Adjusting and folding..........................48
Driving position memory ..................35
Smart access system with 
push-button start Antenna location .....................................15
Entry function ............................................13
Starting the hybrid system .............. 103
Spare tire Inflation pressure ................................493
Spare tire ................................................ 462
Spark plug................................................490
Specifications .........................................486
Speedometer ............................................ 112
Steering wheel Adjustment ............................................... 46
Audio switches....................................259
Driving position memory ..................35
Storage compartment ........................309
Storage feature......................................306
Stuck If your vehicle becomes stuck .... 483
Sun visors .................................................. 312
Switch Fog light switch .................................... 125
Light switches ........................................ 122
Mode select switch ............................ 107
Power door lock switch .................... 25
Power switch......................................... 103
Power window switch ....................... 50
Window lock switch........................... 50
Wipers and washer switch .............126
