1-1. Hybrid system .................................. 2Hybrid system ...................................... 2
1-2. Key information ............................ 12 Keys ....................................................... 12
1-3. Opening, closing and locking 
the doors and trunk ................... 14
Smart access system with  push-button start ........................... 14
Wireless remote control .............. 23
Doors.................................................... 26
Trunk.................................................... 30
1-4. Adjustable components ............ 34 Front seats .......................................... 34
Driving position memory 
system .............................................. 36
Head restraints................................. 39
Seat belts ............................................ 42
Steering wheel.................................. 48
Inside rear view mirror.................. 49
Outside rear view mirrors .......... 50
1-5. Opening and closing the 
windows and moon roof .......... 52
Power windows................................ 52
Moon roof ......................................... 55 1-6. Refueling ....................................... 58
Opening the fuel tank cap.......... 58
1-7. Anti-theft system ......................... 62 Hybrid vehicle immobilizer 
system ............................................... 62
Alarm.................................................... 64
Theft prevention labels 
(U.S.A.) ............................................. 66
1-8. Safety information ....................... 67 Correct driving posture ............... 67
SRS airbags ....................................... 69
Child restraint sy stems ................ 80
Installing child restraints ............... 83
2-1. Driving procedures..................... 94 Driving the vehicle .......................... 94
Starting the hybrid system .......... 101
Transmission ................................... 104
Turn signal lever............................. 108
Parking brake ................................. 109
2-2. Instrument cluster ...................... 110 Gauges and meters ...................... 110
Indicators and warning lights ..... 114
Multi-information display............. 117
1Before driving
2When driving

When driving2
93
2-1. Driving procedures .................. 94Driving the vehicle ....................... 94
Starting the hybrid system ....... 101
Transmission ................................. 104
Turn signal lever .......................... 108
Parking brake ............................... 109
2-2. Instrument cluster.................... 110 Gauges and meters ................... 110
Indicators and warning 
lights................................................ 114
Multi-information display.......... 117
2-3. Operating the lights and 
windshield wipers ................. 120
Headlight switch ......................... 120
Fog light switch............................ 123
Windshield wipers and 
washer........................................... 124
Headlight cleaner switch ........ 126 2-4. Using other driving

systems .................................... 127
Cruise control .............................. 127
Dynamic radar cruise 
control ........................................ 130
Intuitive parking assist ............. 139
Rear view monitor system ...... 158
AVS (Adaptive Variable 
Suspension System) ................. 161
Driving assist systems................ 162
PCS (Pre-Collision 
System) ........................................ 167
2-5. Driving information................ 170 Cargo and luggage.................... 170
Vehicle load limits ....................... 173
Winter driving tips ...................... 174
Trailer towing................................. 179
Dinghy towing ............................. 180

97
2-1. Driving procedures
2
When driving

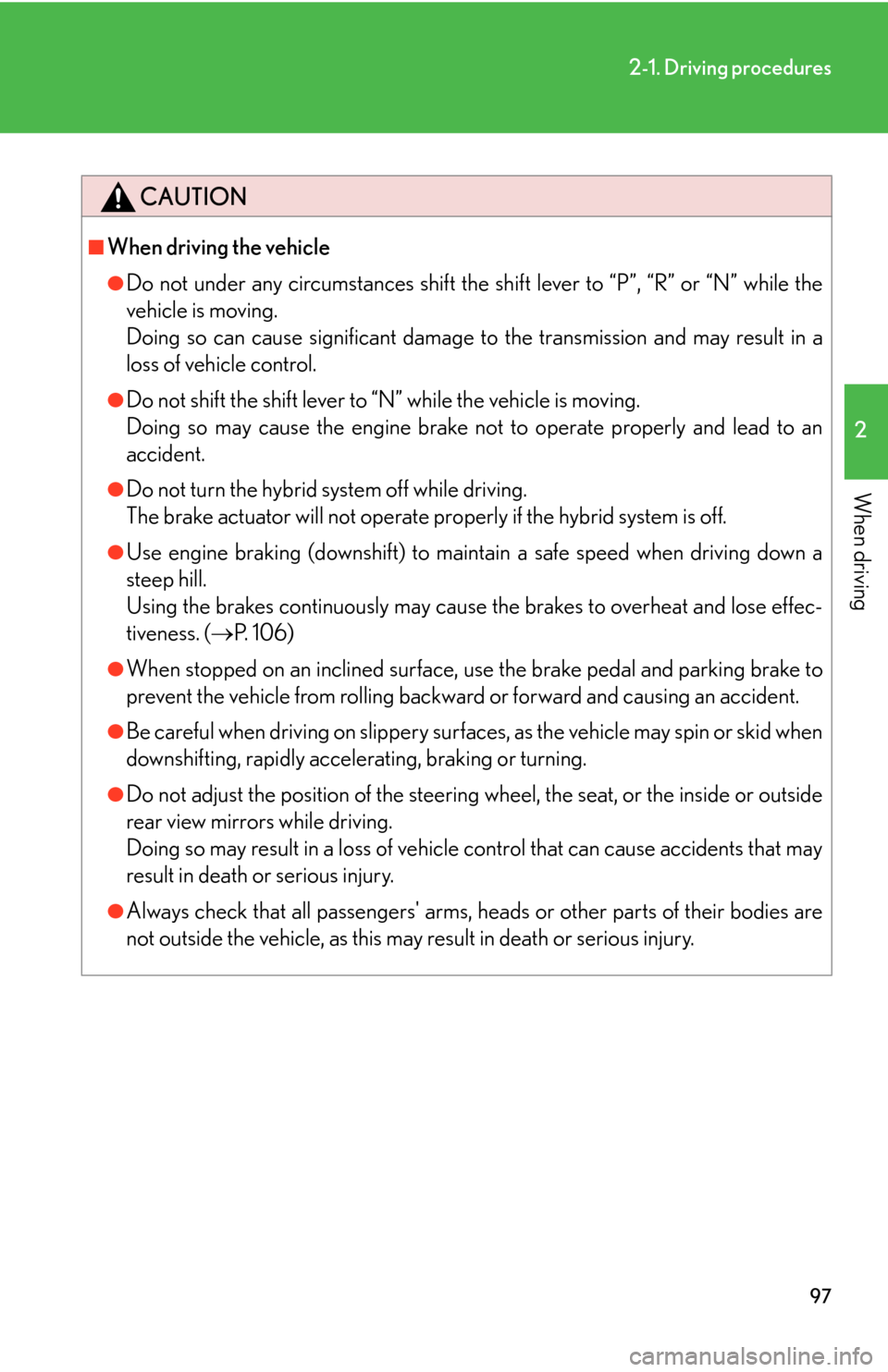

CAUTION
■When driving the vehicle
●Do not under any circumstances shift the shift lever to “P”, “R” or “N” while the
vehicle is moving. 
Doing so can cause significant damage to the transmission and may result in a
loss of vehicle control.
●Do not shift the shift lever to “N” while the vehicle is moving. 
Doing so may cause the engine brake not to operate properly and lead to an
accident.
●Do not turn the hybrid system off while driving. 
The brake actuator will not operate properly if the hybrid system is off.
●Use engine braking (downshift) to maintain a safe speed when driving down a
steep hill. 
Using the brakes continuously may cause the brakes to overheat and lose effec-
tiveness. ( P. 1 0 6 )
●When stopped on an inclined surface, use the brake pedal and parking brake to
prevent the vehicle from rolling backward or forward and causing an accident.
●Be careful when driving on slippery surfaces, as the vehicle may spin or skid when
downshifting, rapidly accelerating, braking or turning.
●Do not adjust the position of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving. 
Doing so may result in a loss of vehicle control that can cause accidents that may
result in death or serious injury.
●Always check that all passengers' arms, heads or other parts of their bodies are
not outside the vehicle, as this may result in death or serious injury.

104
2-1. Driving procedures

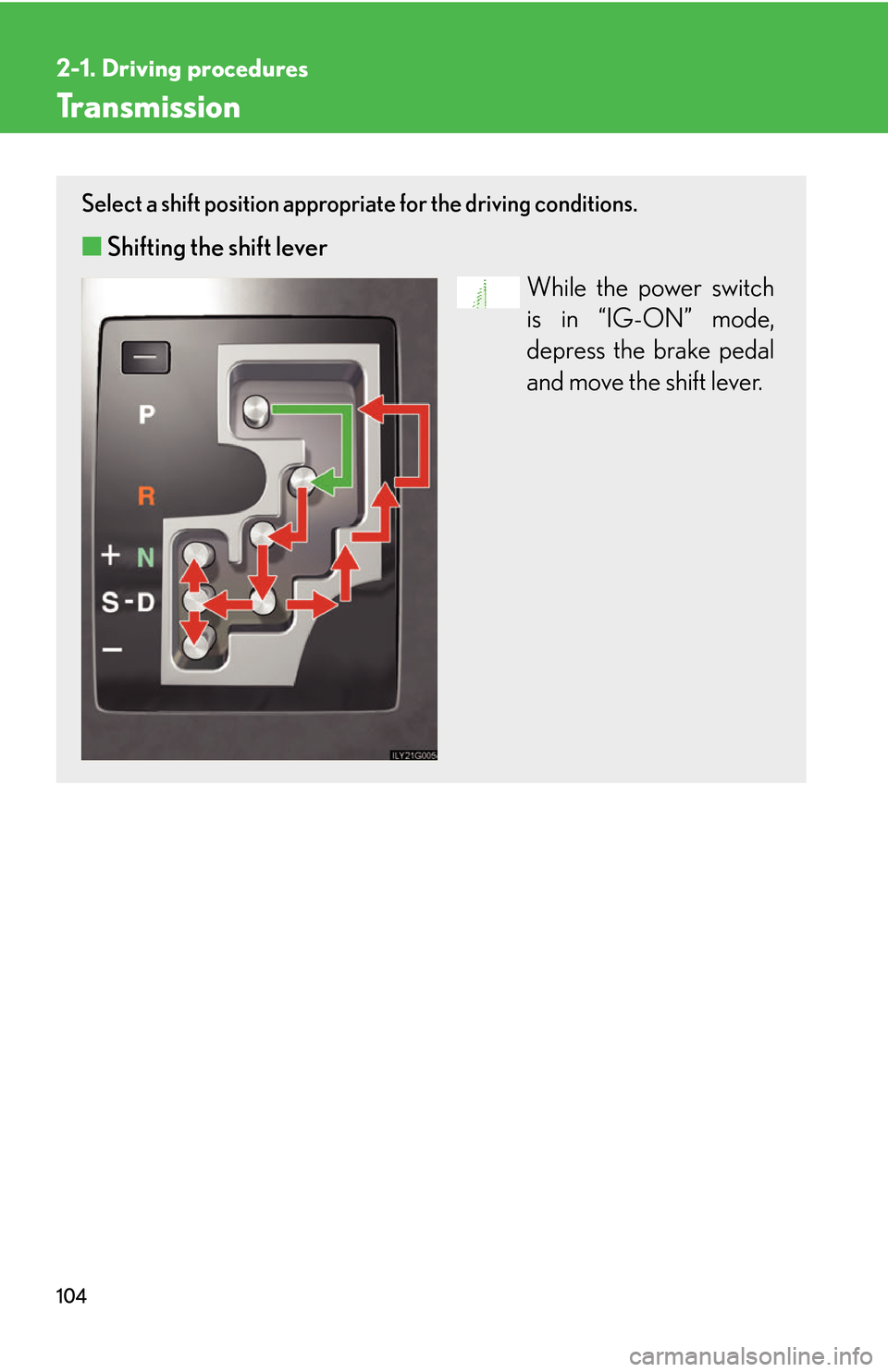

Transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the power switch
is in “IG-ON” mode,
depr
ess the brake pedal
and move the shift lever.

107
2-1. Driving procedures
2
When driving
■When in heavy traffic
To avoid running the hybrid battery (traction battery) down, leave the shift lever in
“D” or “S”.
■When driving with the cruise control system (or dynamic radar cruise control sys-
tem)
The engine brake will not operate in the “S” mode, even when downshifting to “5” or
“4”. ( P. 127, 130)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the power switch is turned to “ACC” or
“IG-ON” mode after driving in snow mode.
■If the shift lever cannot be shifted from “P”
 P. 4 6 7
■If the indicator does not come on even after shifting the shift lever to “S”
This may indicate a malfunction in the transmission. Have the vehicle inspected by
your Lexus dealer immediately. 
(In this situation, the vehicle will operate as if the shift lever is in “D”.)

352
4-2. Maintenance
Vehicle interior

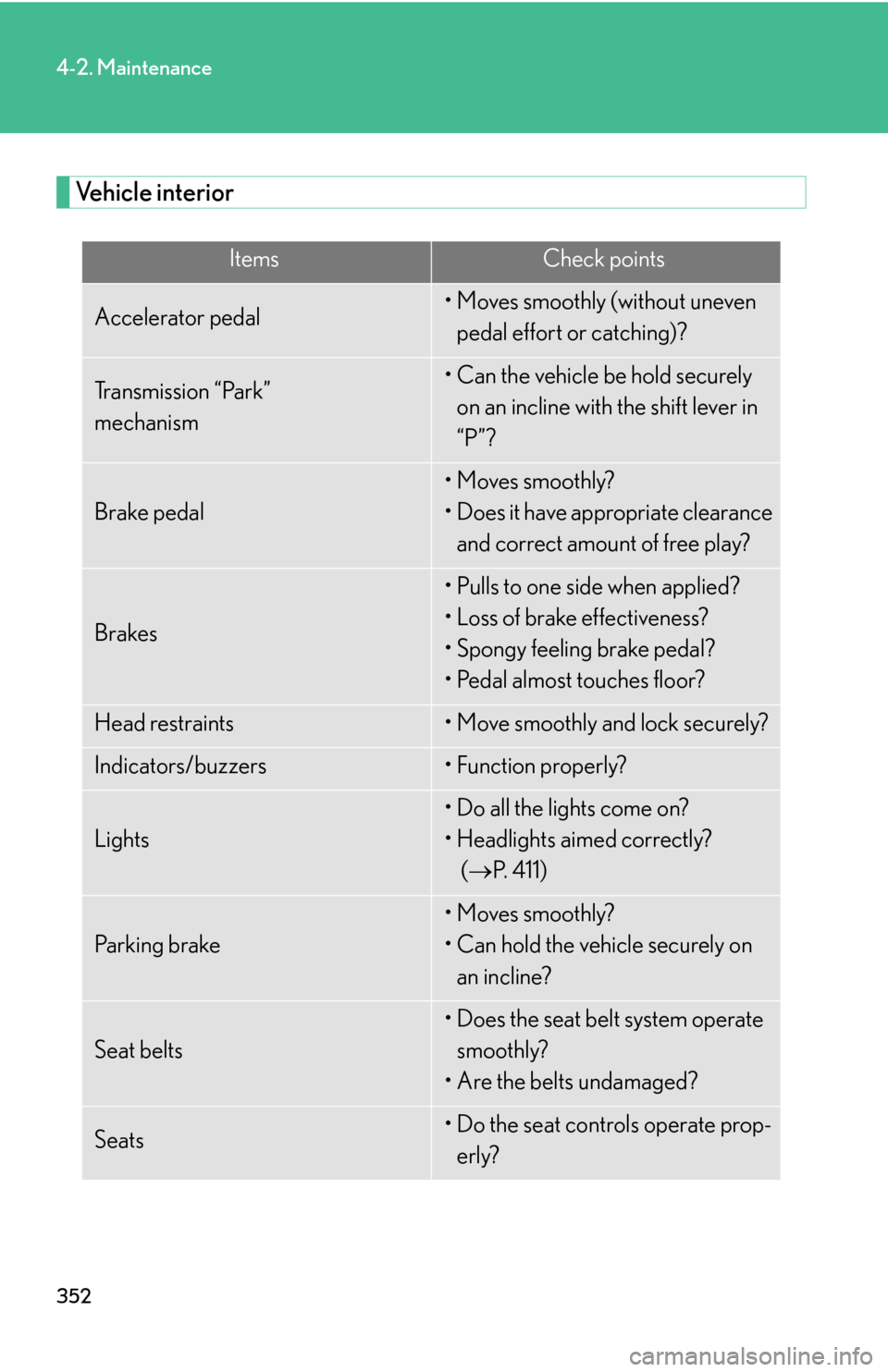

ItemsCheck points
Accelerator pedal• Moves smoothly (without uneven pedal effort or catching)?
Transmission “Park” 
mechanism• Can the vehicle be hold securely on an incline with the shift lever in
“P”?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance and correct amount of free play?
Brakes
• Pulls to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints• Move smoothly and lock securely?
Indicators/buzzers• Function properly?
Lights
• Do all the lights come on?
• Headlights aimed correctly? 
(  P. 4 1 1 )
Pa r k i n g b r a ke
• Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seat belts
• Does the seat belt system operate smoothly?
• Are the belts undamaged?
Seats• Do the seat controls operate prop- erly?

406
4-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1ECU-IG RH10
Electric tilt and telescopic steering,
combination switch, power seat,
smart access system with push-but-
ton start, air conditioning system,
touch screen, shift lock system, tire
pressure warning system, front/rear
stabilizer system
2FR S/HTR RH15Seat heaters, seat heaters and venti-
lators
3RH-IG7. 5
Front right door control system, rear
right door control system, seat belt
pretensioners, transmission, seat
heaters, seat heaters and ventilators
4AM215Starting system
5FR DOOR RH20Front right door control system
6RR DOOR RH20Rear right door control system
7AIR SUS20AV S
8PWR OUTLET15Po w e r o u t l e t
9CIG15Cigarette lighter

420
5-1. Essential information

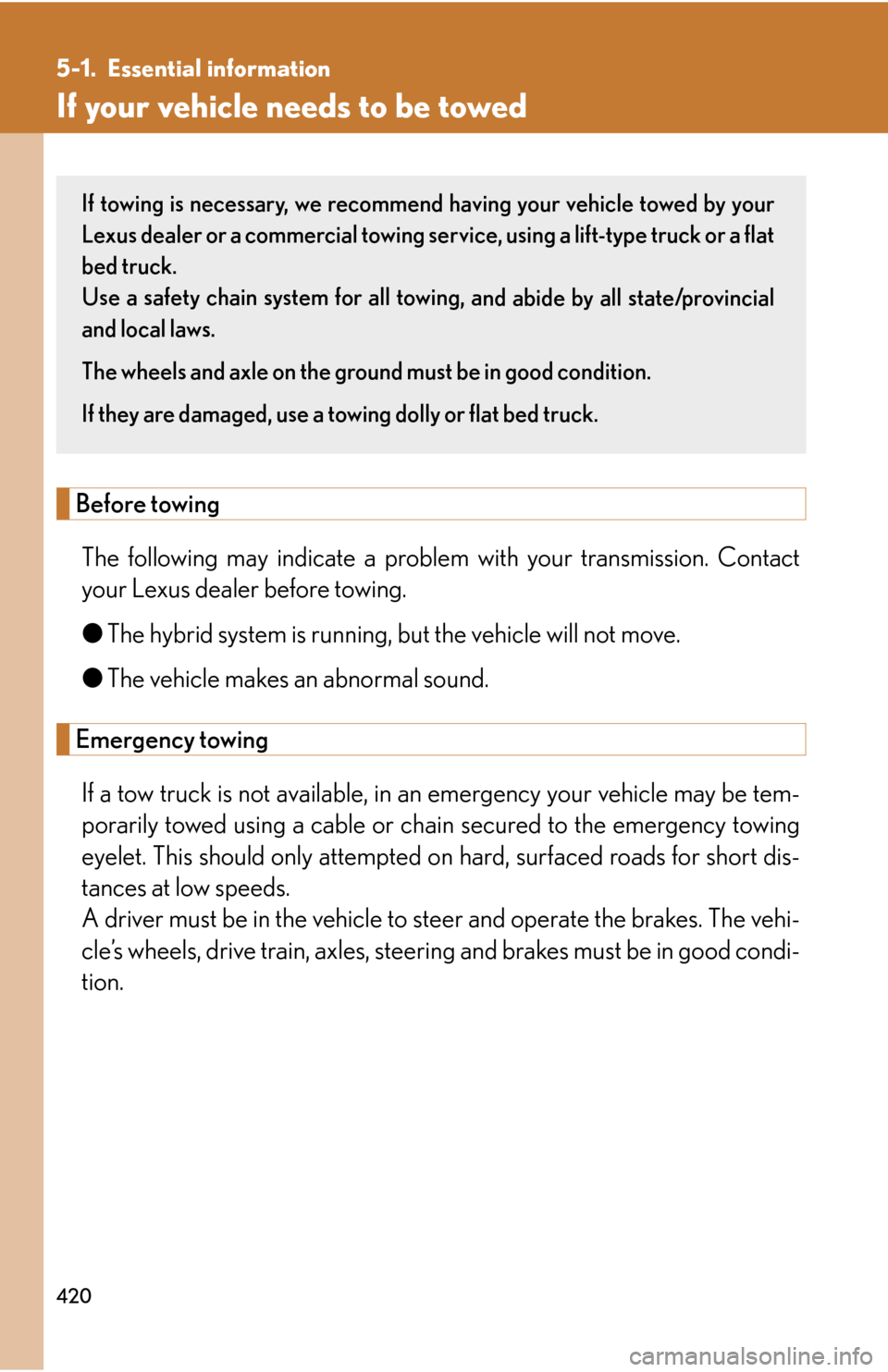

If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The hybrid s
ystem is running, but the vehicle will not move.
● The v
ehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or ch ain secur
ed to the emergency towing
eyelet. This should only attempted on hard, surfaced roads for short dis-
tances at low speeds. 
A driver must be in the vehicle to steer and oper
ate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and br
akes must be in good condi -
tion.
If towing is necessary, we recommen d having your vehicle towed by your
Lexus dealer or a commercial towing service, using a lift-type truck or a flat
bed truck.

Use a safety chain system for all towing , a
nd abide by all state/provincial
and local laws.
The wheels and axle on the ground must be in good condition.
If they are damaged, use a to wing dolly
or flat bed truck.

5
When trouble arises
421
5-1. Essential information
Towing eyelet
■Emergency towing procedureRelease the parking brake.
Put the shift lever in “N”.
The power switch must be in the “ACC” mode (hybrid system off) or the
“IG-ON” mode (hybrid system on).
CAUTION
■Caution while towing
●Use extreme caution when towing the vehicle. 
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain.
●If the hybrid system is not running, the power assist for the brakes and steering
will not function, making steeri ng and braking more difficult.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground. 
This may cause serious dama ge to the transmission.
STEP1
STEP2
STEP3

424
5-1. Essential information

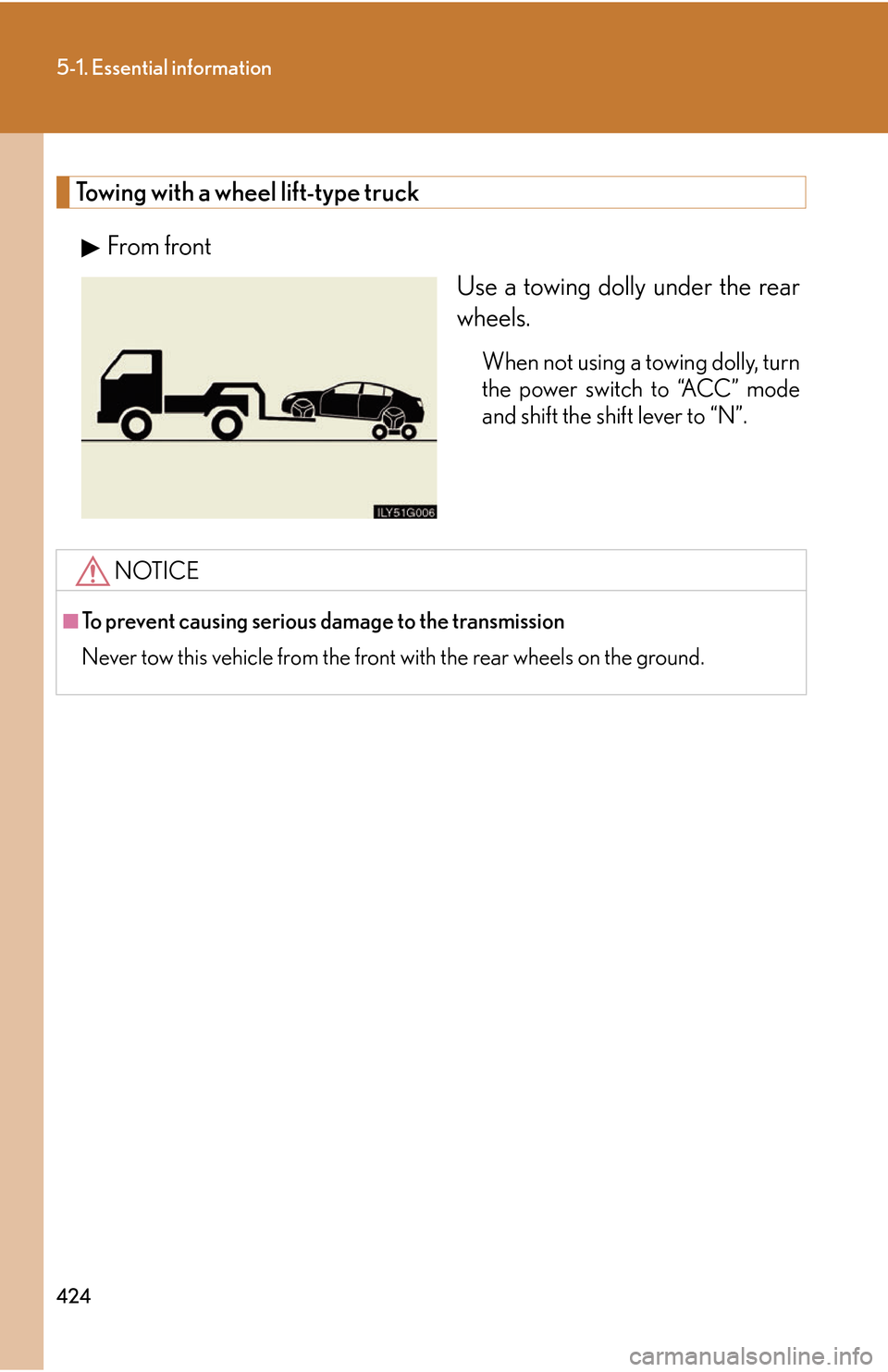

Towing with a wheel lift-type truck
From frontUse a towing dolly under the rear
wheels.
When not using a towing dolly, turn
the power switch to “ACC” mode
and shift the shift lever to “N”.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground.
