56
1-6. Refueling
Closing the fuel tank capAfter refueling, turn the fuel tank
cap clockwise until you hear a
click. The cap will revolve slightly in
the opposite direction once
released.
Hang the fuel tank cap on the
back of the fuel filler door.STEP4
■Fuel types
Use premium unleaded gasoline. (91 Octane Rating [Research Octane Number
96] or higher)
■Fuel tank capacity
Approximately 17.2 gal. (65 L, 14.3 Imp. gal.)
■Open fuel filler door warning
 P. 4 5 6

68
1-8. Safety information
Your vehicle is equipped with “ADVANCED AIRBAGS” designed based
on US motor vehicle safety standards (FMVSS208). The airbag system
controls airbag deployment power for the driver and front passenger. The
driver airbag system consists of the dr iver's seat position sensor etc. The
front passenger's airbag system consists of the front passenger occupant
classification sensor etc.
The main SRS airbag system componen ts are shown above. The SRS air-
bag system is controlled by the airb ag sensor assembly. The airbag sen-
sor assembly consists of a safing sensor and an airbag sensor.
In certain types of severe frontal or side impacts, the SRS airbag system
triggers the airbag inflators. A chemica l reaction in the inflators quickly
fills the airbags with non-toxic gas to he lp restrain the motion of the occu-
pants.
■If the SRS airbags deploy (inflate)
●Bruising and slight abrasion s may result from contact with a deploying (inflating)
SRS airbag.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, and parts of the front pillar and roof side rail, may be hot
for several minutes. The airbag itself may also be hot.
●The windshield may crack.

356
4-1. Maintenance and care
NOTICE
■Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces.
●Non-seat portions: Organic substances such as benzene or gasoline, alkaline or
acidic solutions, dye, or bleach.
●Seats: Acidic solutions, such as thinner, benzene, or alcohol.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended pe riods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water. 
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■Cleaning the inside of the rear window
Be careful not to scratch or damage the heater wires or antenna.

488
6-1. Specifications
Engine
Fuel
Electric motor (Traction motor)
Hybrid battery (Traction battery)
Model2GR-FSE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity17.2 gal. (65 L, 14.3 lmp.gal.)
Ty p ePermanent magnet synchronous motor
Maximum output147 kW
Maximum torque275 N•m (28.0 kgf•m, 202.8 ft•lbf.)
Ty p eNickel-Metal hydride battery
Vo l t a g e7.2 V/module
Capacity6.5 Ah (3HR)
Quantity40 modules
Overall voltage288 V

490
6-1. Specifications
Cooling system
Ignition system
Capacity
Gasoline engine
Inverter9.8 qt. (9.3 L, 8.1 lmp.qt.)
3.0 qt. (2.9 L, 2.5 lmp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life organic acid technology
Do not use plain water alone.
Spark plug
Make DENSO 
NGKFK20HBR11 
ILFR6D11T
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

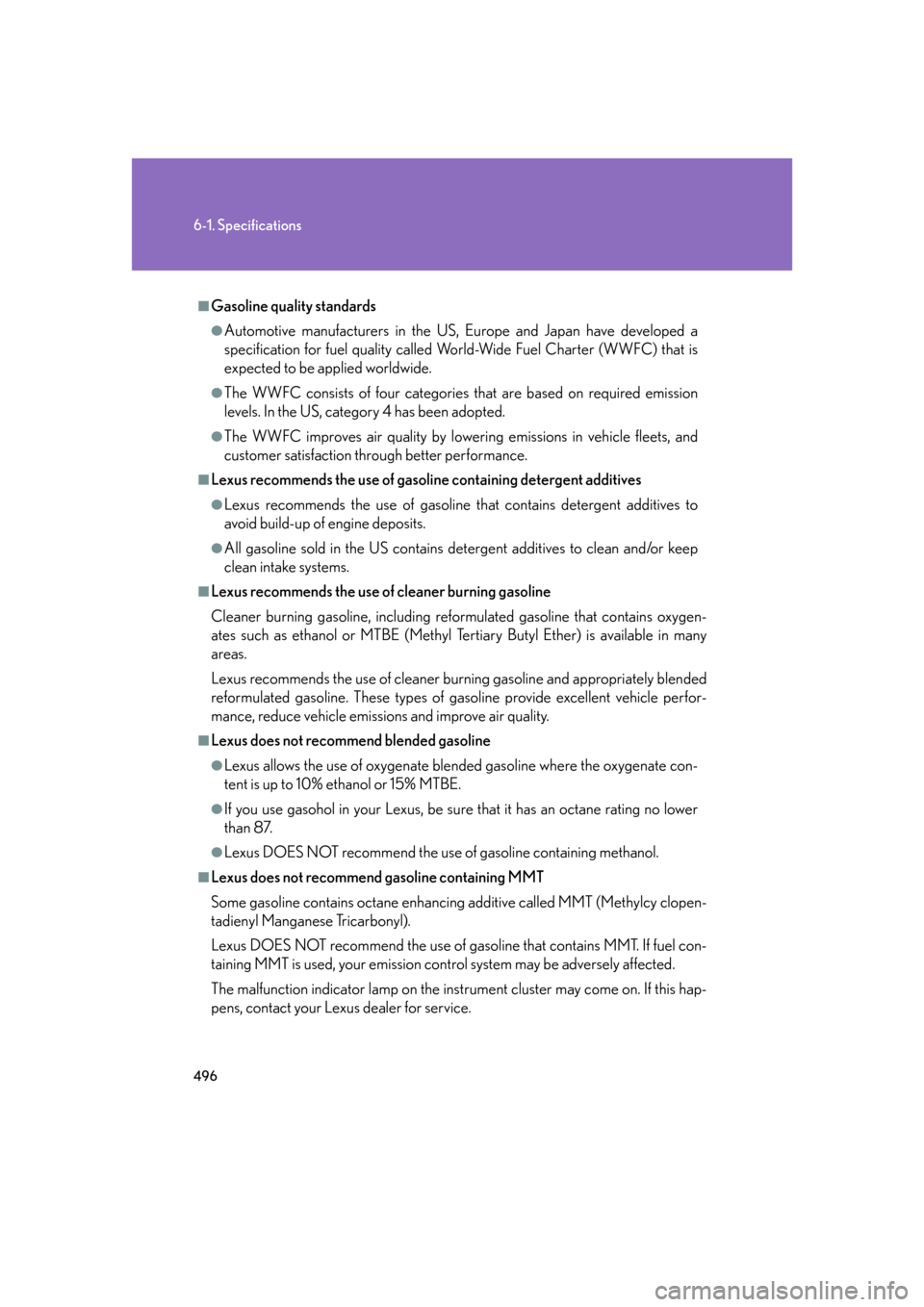

496
6-1. Specifications
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction th rough better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains de tergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reform ulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tert iary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancin g additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.

497
6-1. Specifications
6
Vehicle specifications
NOTICE
■Notice on gasoline quality
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here. 
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking. 
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knoc king, etc.), discontinue the use of that type of fuel.
■When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.

528
GAS STATION INFORMATION
Auxiliary catch leverP. 3 6 6Trunk openerP. 2 9Fuel filler door P. 5 5
Hood lock release lever P. 3 6 6Fuel filler door openerP. 5 5Tire inflation pressureP. 4 9 3
Fuel tank capacity17.2 gal. (65 L, 14.3 lmp.gal.)
Fuel typePremium unleaded gasoline only P. 56, 488
Cold tire inflation 
pressureP. 4 9 3
Engine oil capacity
(Drain and refill)qt. (L, Imp.qt.)
With filter 6.6 (6.3, 5.5)
Without filter 6.2 (5.9
, 5.2)
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil P. 489
Recommended oil viscosity: SAE 5W-30
