341
3-7. Other interior features
3
Interior features
Wait a few seconds until the compass direction is displayed.
The calibration is complete.
■Circling calibration
If “CAL” appears on the display,
driv
e the vehicle at 5 mph (8 km/
h) or less in a circ le until a direction
is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis -
played.
STEP4
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth's magnetic field is subject to interfer -
ence by artificial magnetic fields (underground car park/parking lot, under a
st
eel tower, between buildings, roof car pa rk/parking lot, near an intersection,
near a large vehicle, etc.).
●The vehicle has become magnetized. 
(There is a magnet or metal object near the inside rear view mirror.)
●The 12 volt battery has been disconnected.
●A door is open.

342
3-7. Other interior features
CAUTION
■Caution while driving
Do not adjust the display.
Be sure to adjust the display on ly when the vehicle is stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror. 
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electr ic systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

Maintenance and care4
343
4-1. Maintenance and care ......... 344Cleaning and protecting the 
vehicle exterior........................ 344
Cleaning and protecting the 
vehicle interior......................... 346
4-2. Maintenance ........................... 349 Maintenance 
requirements ............................ 349
General maintena nce .............. 351
Emission inspection and 
maintenance (I/M) 
programs ................................... 354 4-3. Do-it-yourself

maintenance......................... 355
Do-it-yourself service 
precautions ............................... 355
Hood .............................................. 358
Positioning the jack .................. 359
Engine compartment ................ 361
Tires ................................................. 375
Tire inflation pressure .............. 385
Wheels .......................................... 389
Air conditioning filter ............... 391
Electronic key battery ............. 393
Checking and replacing 
fuses ............................................. 395
Headlight aim ................................ 411
Light bulbs..................................... 413

344
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
■Automatic car washes
●Fold the mirrors back before washing the vehicle.
●Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
■High pressure automatic car washes
Do not allow the nozzles of the car wash to come within close proximity of the win -
dows. Before entering an automatic car wash, check that the fuel filler door is
cl
osed.
■Aluminum wheels
Remove any dirt immediately by using a neutral detergent. Do not use hard brushes
or
abrasive cleaners. Do not use strong or harsh chemical cleaners. Use the same
mild detergent and wax as used on the paint.
■Bumpers and side moldings
Do not scrub with abrasive cleaners.
Perform the following to protect the vehicle and maintain it in prime condi-
tion.
● Working from top to bottom, liber ally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
Wash the vehicle body using a sponge or soft cloth, such as a chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● W
ipe away any water.
●If w
ater no longer beads on clea n paint, apply wax when the vehi-
cle body is cool.

345
4-1. Maintenance and care
4
Maintenance and care
■To prevent paint deterioration and corrosion on the body
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects or insect droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust, iron
powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
CAUTION
■Caution about the exhaust pipe
Exhaust gasses cause the exhaus t pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled suffi-
ciently, as touching a hot exhaust pipe can cause burns.
NOTICE
■To protect your vehicle’s painted surfaces
Do not use organic cleaners su ch as benzene or gasoline.
■Cleaning the exterior lights
Wash carefully. Do not use organic subs tances or scrub with a hard brush. 
This may damage the surfaces of the lights.

346
4-1. Maintenance and care
Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle's interior and keep
it in top condition:
■ Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner
. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
■ Cleaning the leather ar
eas
● R
emove dirt and dust using a vacuum cleaner.
●W
ipe any excess dirt and dust wi th a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool deter -
gent.
● Wring out any excess water from the cloth and thoroughly wipe
off all remaining traces of detergent.
● W
ipe the surface with a dry, soft cloth to remove any remaining
moisture. Allow the leather to dr y in shaded and ventilated area.
■ S
ynthetic leather areas
●R
emove loose dirt using a vacuum cleaner.
●A
pply a mild soap solution to th e synthetic leather using a sponge
or soft cloth.
● Allo
w the solution to soak in fo r a few minutes. Remove the dirt
and wipe off the solution with a clean, damp cloth.

347
4-1. Maintenance and care
4
Maintenance and care
■Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause damage to the
r
ear window defogger heater wires. Use a cloth dampened with lukewarm water to
gently wipe the window clean. Wipe the wi ndow in strokes running parallel to the
heater wires.
■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to main -
tain the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or
b
rush to apply the foam. Rub in overlappin g circles. Do not apply water. The excel-
lent results are obtained by keep ing
the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the
belts periodically for excessive wear, fraying or cuts.
CAUTION
■Water in the vehicle
●Be careful not to splash or spill liquid on the floor.
●Do not splash water on the electric comp onents in the engine compartment. This
may cause the malfunction of the electric components.
●Do not get any of the SRS components or wiring in the vehicle interior wet. 
(  P. 7 0 ) 
Electrical malfunction may cause the airbags to deploy or not function properly,
resulting in death or serious injury.

348
4-1. Maintenance and care
NOTICE
■Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces.
●Non-seat portions: Organic substances such as benzene or gasoline, alkaline or
acidic solutions, dye, or bleach.
●Seats: Acidic solutions, such as thinner, benzene, or alcohol.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended pe riods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water. 
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■Cleaning the inside of the rear window
Be careful not to scratch or damage the heater wires or antenna.

349
4
Maintenance and care
4-2. Maintenance
Maintenance requirements
■Repair and replacement
It is recommended that genuine Lexus parts be used for repair to ensure perfor-
mance of each system. If non-Lexus parts are used in replacement or if a repair
sho
p other than a Lexus dealer performs repairs, confirm the warranty coverage.
To ensure safe and economical drivin g, day-to-day care and regular main-
tenance is essential. It is the owne r
’s responsibility to perform regular
checks. Lexus recommends the following maintenance.
■ General maintenance
Should be performed on a daily basis. This can be done b
y yourself
or by a Lexus dealer.
■ Scheduled maintenance
Should be performed at specified inter
vals according to the mainte -
nance schedule.
For details about maintenance items and schedules, refer to the “War -
ranty and Services Guide/Owner’ s Manual Supple
ment/Scheduled
Maintenance”.
■ Do-it-yourself maintenance
You can perform some maintenance procedures yourself. 
Please be aware that do-it-your self maintenance may af
fect war-
ranty coverage.
The use of Lexus service and repair manuals is recommended.
For details about warranty coverage, see the separate “Owner’s Guide”,
“W
arranty and Services Guide”, “Owner’s Manual Supplement” or
“Warranty Booklet”.

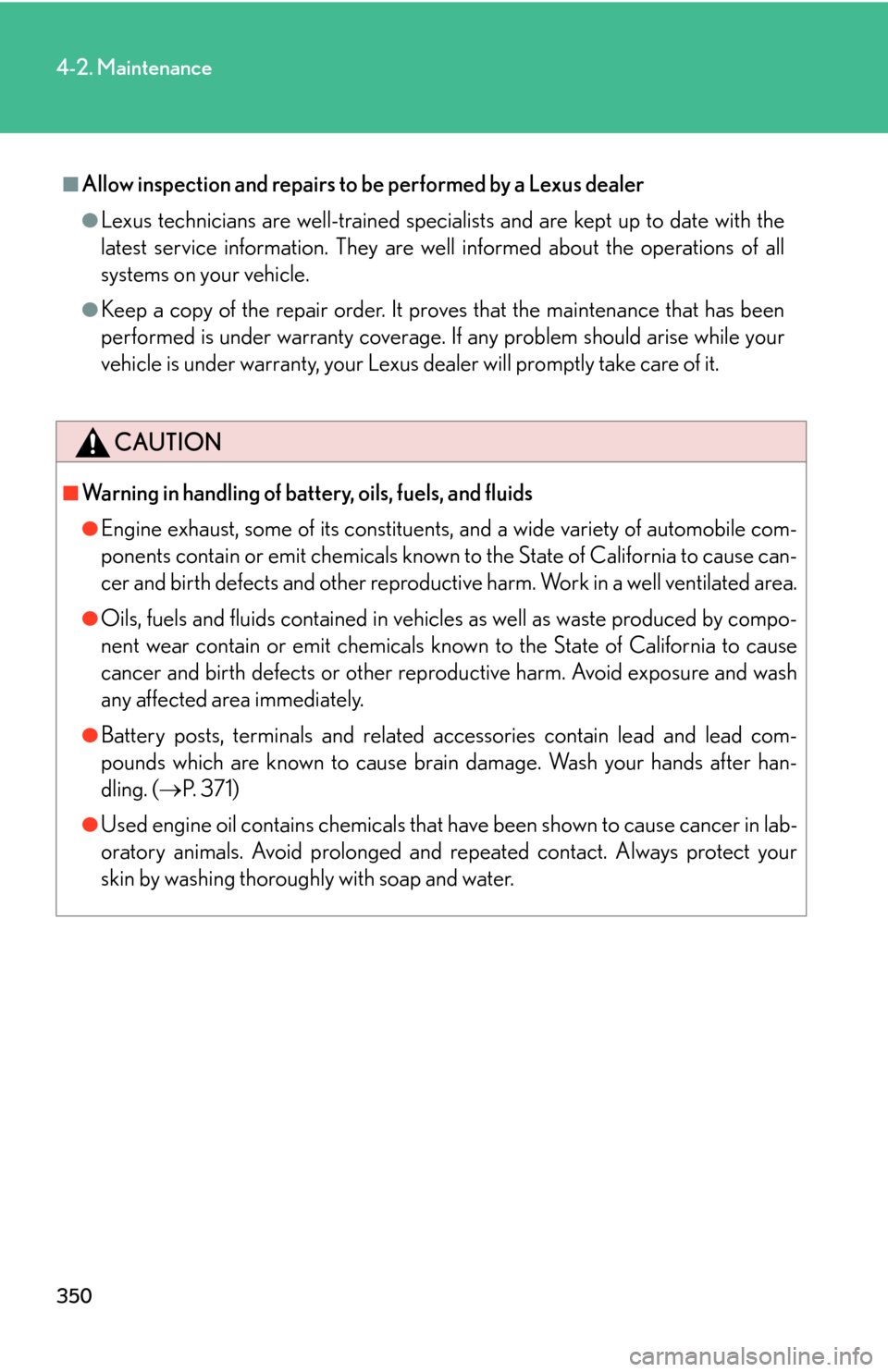

350
4-2. Maintenance
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained speciali sts and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus de aler will promptly take care of it.
CAUTION
■Warning in handling of battery, oils, fuels, and fluids
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. (P. 3 7 1 )
●Used engine oil contains chemicals that have been shown to cause cancer in lab-
oratory animals. Avoid prolonged and repeated contact. Always protect your
skin by washing thorough ly with soap and water.
