1-1. Hybrid system
1
Before driving
■Regenerative braking
The motor generator converts kinetic energy to electric energy when:
●The accelerator pedal is released.
●The brake pedal is depressed with the shift lever in “D” or “S”.
■Conditions in which the gasoline engine may not stop
The gasoline engine starts and
stops automatically. However, it may not stop auto -
matically in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●During low or high hybrid battery (traction battery) temperature
■Charging the battery
●As the gasoline engine charges the hybrid battery (traction battery), the battery
does not need to be charged from an outside source. However, if the vehicle is
left parked for a long time the hybrid battery will slowly discharge. For this rea -
son, be sure to drive the vehicle at least once every few months for at least 30
min
utes or 10 miles (16 km). If the hybrid battery becomes fully discharged and
you are unable to jump-start the vehicle with the 12 volt battery, contact your
Lexus dealer.
●If the shift lever is in “N”, the hybrid battery (traction battery) will not be
charged. When driving in heavy traffic, operate the vehicle with the shift lever in
“D” or “S” to avoid discharging the battery.
■ During normal driving
The gasoline engine is predomina ntly used. The electric motor
(traction motor) charges the hybrid battery as necessary.
■ When acceler
ating sharply
The power of the hybrid battery (tr action batter
y) is added via elec-
tric motor (traction motor) to th at of the gasoline engine.
■ When br
aking (Regenerative brake)
The electric motor (traction motor) char
ges the hybrid battery
(traction battery).

5
When trouble arises
471
5-2. Steps to take in an emergency
If the 12 volt battery is discharged
The following procedures may be used to start the hybrid system if the 12
volt battery is discharged.

You can call your Lexus dealer, Roadside Assistance or Lexus Customer
Ser
vice.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12 volt battery, you can jump start your Lexus following the steps
below.
Open the trunk using the mechanical key. ( P. 4 6 9 )
Connecting the jumper cables. If required, remove all vent pl ugs fr
om the booster battery. Lay a
cloth over the open vents on the booster batter
y. (This helps reduce
the explosion hazard, personal injuries and burns.)
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second v
ehicle.
Negative (-) battery terminal or your vehicle. Start the engine of the second v
ehicle. Increase the engine
speed slightly and maintain at that le
vel for approximately 5
minutes to recharge the 12 volt battery of your vehicle.
Open and close any of the door s with the po
wer switch “OFF”.
STEP1
STEP2
STEP3
STEP4

472
5-2. Steps to take in an emergency
■To prevent 12 volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the 12 volt battery is removed or discharged
The hybrid system may not start. ( P. 3 7 2 )
Also, the following systems must be initialized.
●Po w e r w i n d o w s (P. 5 3 )
●Moon roof (P. 5 6)
●Variable gear ratio steering (P. 1 5 1 )
●Tire pressure warning system (P. 3 7 7 )
●Intuitive parking assist (P. 1 5 1)
Maintain the engine speed on th e second vehicle and turn the
power switch to the “IG-ON” mo de, then start the vehicle’s
hybrid system.
Make sure the “READY” light co mes on. If the light does not
come on, contact your Lexus dealer.
Once the vehicle’s hybrid system has started, remove the
jumper cables in the exact reverse or
der in which they were
connected.
Once the hybrid system starts, have the v
ehicle checked at your Lexus
dealer as soon as possible.
STEP5
STEP6
STEP7

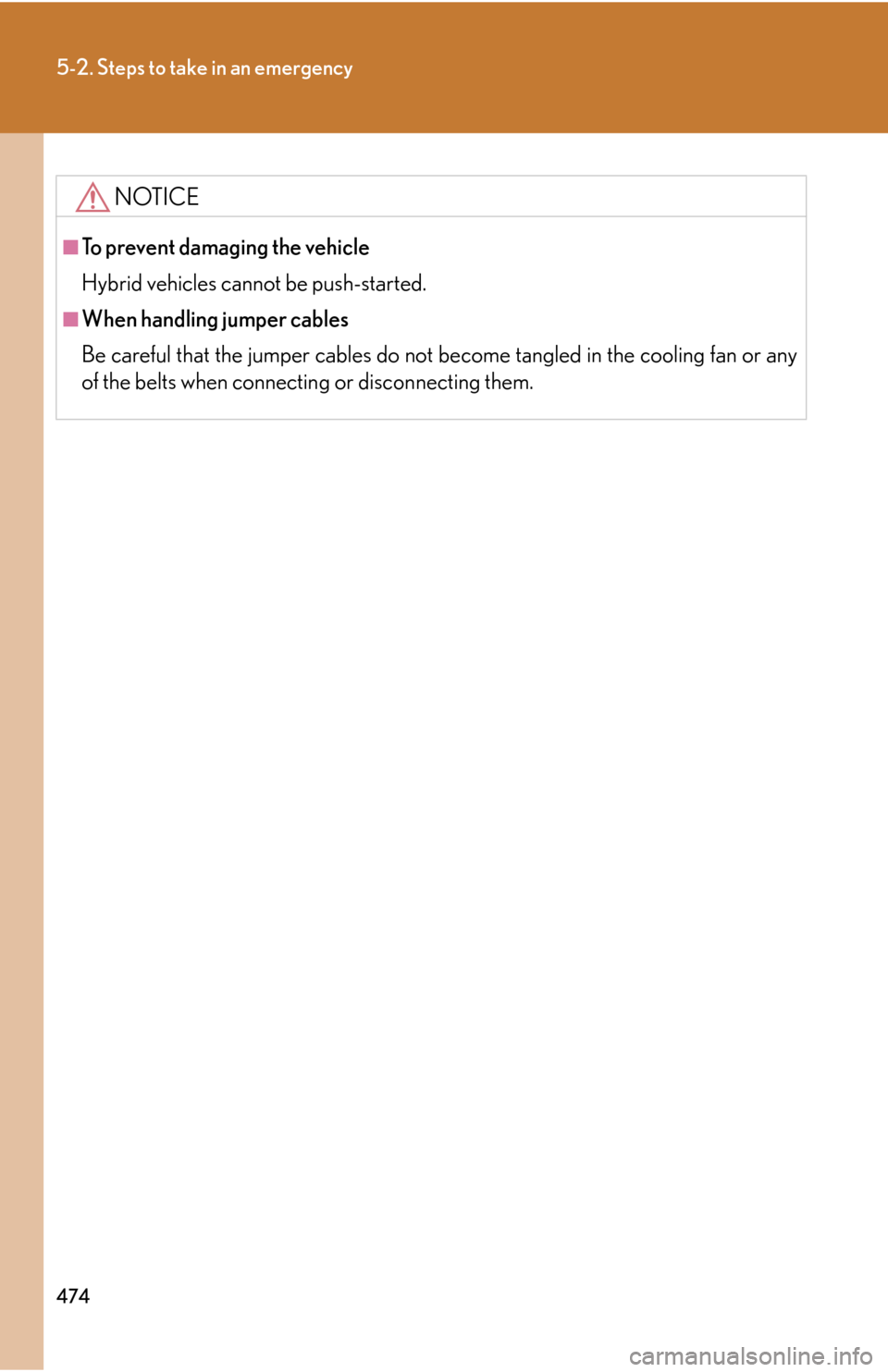

474
5-2. Steps to take in an emergency
NOTICE
■To prevent damaging the vehicle
Hybrid vehicles cannot be push-started.
■When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan or any
of the belts when connecting or disconnecting them.
