Lexus GS450h 2007 Using the hands-free system (for cellular phone) / LEXUS 2007 GS450H FROM JULY 2006 PROD. OWNER'S MANUAL (OM30A05U)

101
2-1. Driving procedures
2
When driving
CAUTION
■When taking a nap in the vehicle
Always turn the hybrid system off. 
Otherwise, you may accidentally move the shift lever or press the accelerator
pedal, which could cause an accident or fi re due to abnormal hybrid system over-
heating. Additionally, if the vehicle is park ed in a poorly ventilated area, exhaust
fumes may enter the vehicle and cause gas poisoning.
■When braking the vehicle
●When the brakes are wet, drive more cautiously. 
Braking distance increases when the brakes are wet, and may cause one side of
the vehicle to brake differently than the other side. Also the parking brake may
not securely hold the vehicle.
●If the brake actuator does not operate, do not follow other vehicles closely and
avoid downhill or sharp turns that require making. 
In this case, braking is still possible, but it will require more force on the pedal than
usual. Braking distance may also increase.
●Do not pump the brake pedal if the hybrid system is not operating. 
Each push on the pedal uses up yo ur reserved brake fluid pressure.
●The brake system consists of 3 individual hydraulic systems: if one of the systems
fails, the other will still operate. In this case, the brake pedal should be depressed
more firmly than usual and braking distance becomes longer. 
Do not drive your vehicle with only a single brake system. Have your brakes fixed
immediately.

102
2-1. Driving procedures
NOTICE
■While driving the vehicle
Do not use the accelerator pedal or depress accelerator and brake pedals together
to hold the vehicle on a hill.
■When parking the vehicle
Always put the shift lever in “P”. Failure to do so may cause the vehicle to move or
the vehicle may accelerate suddenly if the accelerator pedal is accidentally
depressed.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for a long
time. 
Doing so may damage the power steering motor.
●When driving over bumps in the road, drive as slowly as possible to avoid damag-
ing the wheels, underside of the vehicle, etc.
■If you hear a squealing or scraping no ise (brake pad wear limit indicators)
Have your Lexus dealer check and replac e the brake pads as soon as possible.
The rotor damage can result if the pads are not replaced when needed.
Front brake only: Moderate levels of the brake pad and disc wear allow enhanced
front braking power. As a result, the discs may wear more quickly than conventional
brake discs. Therefore, when replacing the brake pads, Lexus recommends that you
also have the thickness of the discs measured.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
that of the brake discs are exceeded.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brak e pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( P. 464)

103
2-1. Driving procedures
2
When driving
Starting the hybrid system
Modes can be switched by pressing the power switch when carrying the
electronic key on your person. (The hybrid system can be started in any
mode by operating the switch at the same time as depressing the brake
pedal.)
■Changing power switch mode
“OFF” mode*
Emergency flashers can be
used.
“A C C ” m o d e
Some electrical components
such as the audio system can be
used.
“IG-ON” mode
All electrical components can
be used.
*: The power cannot be switched to “OFF” unless the shift lever is in
“P”.
■ Starting the hybrid system
Check that the parking brake is set.
Turn off unnecessary lights and accessories.
Check that the shift lever is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
The power switch indicator turns green.
Press the power switch.
After a few seconds, the
“READY” light will flash and
come on with a beep sound.
The vehicle can move when the
“READY” light is on, even if the
engine is stopped.
STEP1
STEP2
STEP3
STEP4
STEP5

104
2-1. Driving procedures
■If the hybrid system does not start
The hybrid vehicle immobilizer system may not have been deactivated. (P. 5 9 )
■When the power switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus
dealer immediately.
■If the “READY” light does not come on
If the “READY” light does not come on when you press the power switch with the
shift lever in “P” and the brake pedal pressed, contact your Lexus dealer immedi-
ately.
■Auto power OFF function
If the vehicle is left in the “ACC” mode for more than an hour with the shift lever in
“P”, the power switch will automatically turn “OFF”.
■When the ambient temperature is low
Such as during winter driving conditions, it may take time until the “READY” light
comes on.
■Sounds and vibrations specific to a hybrid vehicle
 P. 4
■When the hybrid system is malfunctioning
P. 4 5 0
■Electronic key battery depletion
P. 1 7
■When the electronic key battery is discharged
P. 4 0 1
■Conditions affecting operation
P. 1 5
■Leak detection pump
Several hours after the hybrid system is turned off, you may hear a sound coming
from underneath the luggage compartment for several minutes. This is normal
operation and does not indicate a malfunction.

105
2-1. Driving procedures
2
When driving
CAUTION
■When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not press the
accelerator pedal while starting the hybrid system under any circumstances.
Doing so may cause an accident resu lting in death or serious injury.
■Caution while driving
Do not touch the power switch while driving. 
Pressing and holding the power switch will stop the hybrid system, which may lead
to an accident.
NOTICE
■To prevent 12 volt battery discharge
Do not leave the power switch in “ACC” or “IG-ON” mode for lo ng periods without
the hybrid system on.
■When starting the hybrid system
●Do not race the hybrid system.
●If the hybrid system becomes difficult to start, have the hybrid system checked
immediately.

106
2-1. Driving procedures

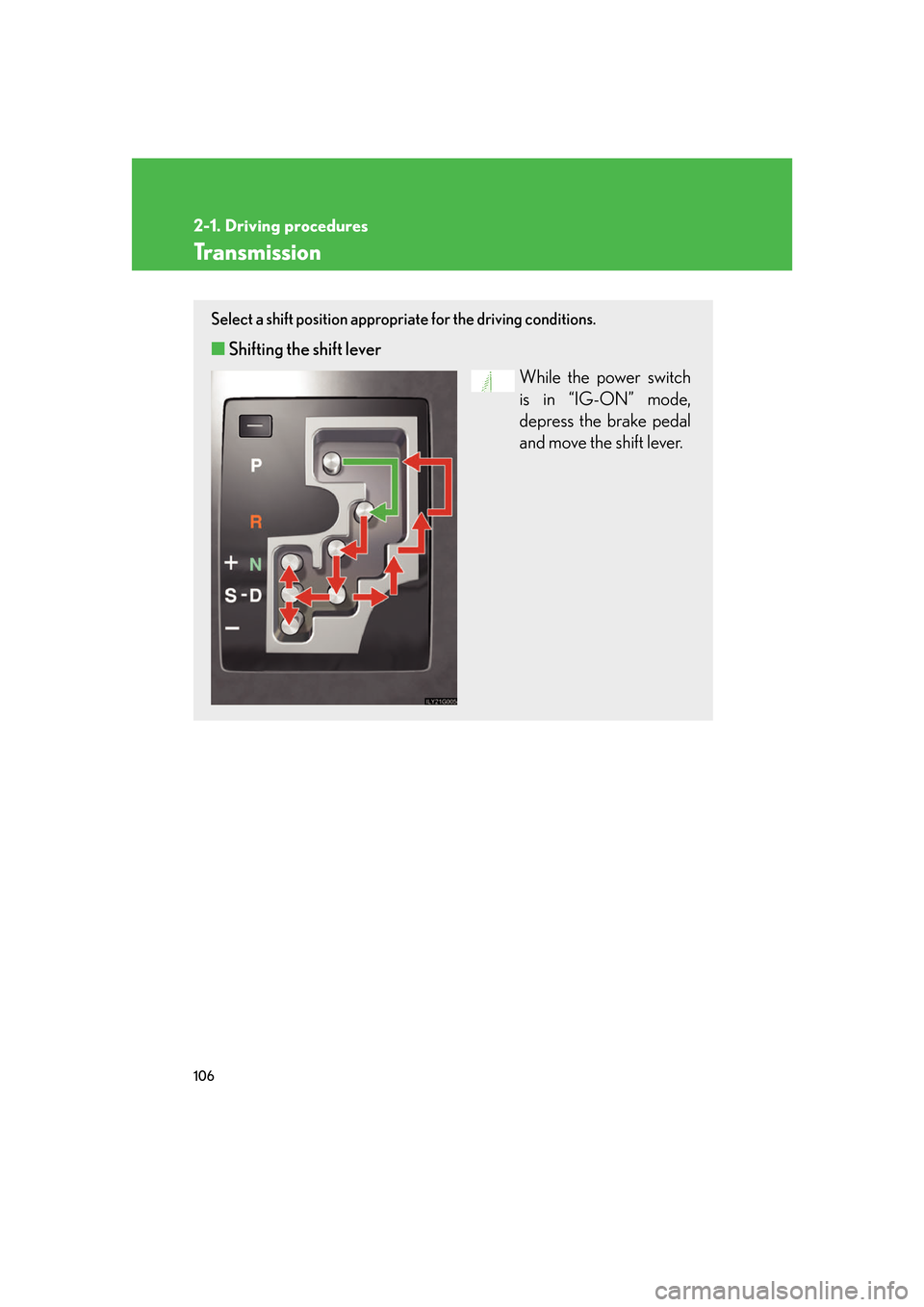

Transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the power switch
is in “IG-ON” mode,
depress the brake pedal
and move the shift lever.

107
2-1. Driving procedures
2
When driving
■Shift position uses
*1: To improve fuel consumption and reduce noises, set the shift lever in the
“D” position for normal driving.
*
2: By selecting shift ranges using “S” mode, you can control engine braking
forces.
■ Selecting a driving mode
The following patterns can be selec ted to suit current driving and
operating conditions.
Power mode
For powerful acceleration and
driving in mountainous regions.
Normal mode
Snow mode
For accelerating and driving on
slippery road surfaces, such as
on snow.
Press “SNOW” to return to nor-
mal mode.
Shift positionFunction
PParking the vehicle or starting the hybrid system
RReversing
NNeutral
DNormal driving*1
S“S” mode driving*2 ( P. 1 0 8 )

108
2-1. Driving procedures
Changing shift ranges in “S” modeShift the shift lever to the “S” position and operate the shift lever. Upshifting
Downshifting
The initial shift range in “S” mode is automatically set to “5”.
■ Shift ranges and their functions
●You can choose from 6 levels of engine braking force.
● A lower shift range will provide gr eater engine braking force than a
higher shift range, and the engine revolutions will also increase.
● If you accelerate while in ranges “1” to “5”, the shift range may auto-
matically range up in accordance with the vehicle's speed.
■Downshifting restrictions in “S” mode
The shift lever cannot be downshifted if the following speeds are exceeded. (The
warning buzzer will sound twice in this situation.)
DownshiftingMaximum speed
mph (km/h)
5 4108 (173)
4 378 (125)
3 258 (94)
2 134 (55)

109
2-1. Driving procedures
2
When driving
■When in heavy traffic
To avoid running the hybrid battery (traction battery) down, leave the shift lever in
“D” or “S”.
■When driving with the cruise control system (or dynamic radar cruise control sys-
tem)
The engine brake will not operate in the “S” mode, even when downshifting to “5” or
“4”. ( P. 129, 132)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the power switch is turned to “ACC” or
“IG-ON” mode after driving in snow mode.
■If the shift lever cannot be shifted from “P”
 P. 4 7 2
■If the indicator does not come on even after shifting the shift lever to “S”
This may indicate a malfunction in the transmission. Have the vehicle inspected by
your Lexus dealer immediately. 
(In this situation, the vehicle will operate as if the shift lever is in “D”.)

110
2-1. Driving procedures
Turn signal lever
■Turn signals can be operated when
The power switch is in “IG-ON” mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.
