warning light Lexus GS450h 2007 Using the hands-free system (for cellular phone) / LEXUS 2007 GS450H FROM JULY 2006 PROD. (OM30A05U) Owner's Guide

444
5-2. Steps to take in an emergency
If a warning message is displayed
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warnings indicate the possibility of damage to
the vehicle that may lead to an acci dent. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Malfunction in the hybrid system.
(Flashing)
Abnormal engine oil pressure.
The warning light may turn on if the engine oil pres-
sure is too low.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Multi-information display
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
If any of the warning li ght turns on again after pe rforming the following
actions, contact your Lexus dealer.

5
When trouble arises
445
5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Malfunction in the automatic headlight leveling sys-
tem.
Malfunction in the rear lights system.
Malfunction in the tire pressure warning system.
The tire pressure warning light will blink for 1 minute
and then stay on.
(Flashing)
Malfunction in the steering lock system.

5
When trouble arises
447
5-2. Steps to take in an emergency
■If the tire pressure warning system is inoperative
The system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●If the tire inflation pressure is more than 73 psi (500 kPa, 5.1 kgf/cm2 or bar).
The system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If the tire pressure warning select switch is set to a different tire setting.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used.
●If tire chains are used.
■If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on after blinking for 1 minute frequently
when the power switch is turned to “IG-ON” mode, have it checked by your Lexus
dealer.
NOTICE
■Precaution when insta lling a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

5
When trouble arises
455
5-2. Steps to take in an emergency
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure re commended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat an d can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle's handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver's responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when th e system is not operating properly. The
TPMS (tire pressure warning system) malf unction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists . When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacem ent or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.

5
When trouble arises
457
5-2. Steps to take in an emergency
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning massage and light turn off.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once(Comes on for 8 seconds.)
(Flashing)
The electronic key
is not detected
when attempting
to start the hybrid
system.Confirm the
location of
the elec-
tronic key.
Once3 times
(Flashing)
An open door
other than the
driver's door is
closed while the
electronic key is
outside the detec-
tion range and the
power switch is in
“ACC” or “IG-
ON” mode.
Confirm the
location of
the elec-
tronic key.

460
5-2. Steps to take in an emergency
If you have a flat tire (Vehicles with run-flat tires)
■In some condition (such as at high temperatures)
You can not continue driving for up to 100 miles (160 km).
■If you cannot distinguish between th e standard tires and run-flat tires
Consult your Lexus dealer.
■For the detailed information on run-flat tires
See the tire warranty book.
NOTICE
■When replacing the tires
●Have the tires replaced by the nearest Lexus dealer or authorized tire dealer. The
tire pressure warning valves and transmitters will be affected by the installation or
removal of tires.
●Replace the grommets for the tire pressure warning valves and transmitters as
well.
■To avoid damaging the tire pressu re warning valves and transmitters
Do not use liquid sealants on flat tires.
Take your vehicle to the nearest Lexus dealer or authorized tire dealer as
soon as possible.
■ Run-flat tires (A “RFT” or “DSST” mark is molded on the sidewall)
You can continue driving a vehi-
cle with run-flat tires even if any
tire goes flat.
It is able to run for a maximum of
100 miles (160 km) at a speed
below 55 mph (90 km/h) after
the tire pressure warning light
comes on. (P. 4 4 0 )

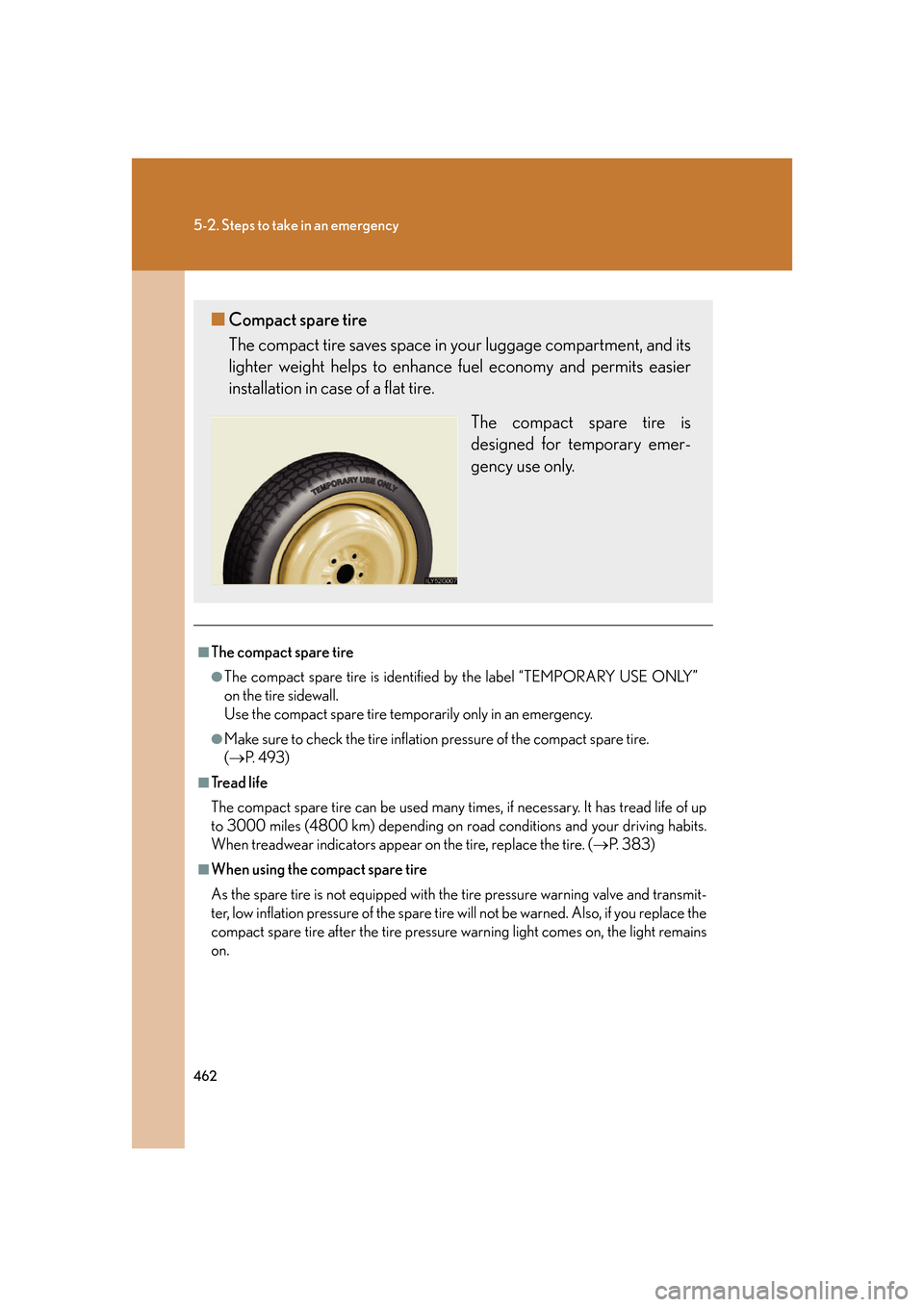

462
5-2. Steps to take in an emergency
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
●Make sure to check the tire inflatio n pressure of the compact spare tire. 
(  P. 4 9 3 )
■Tr e a d l i f e
The compact spare tire can be used many times, if necessary. It has tread life of up
to 3000 miles (4800 km) depending on road conditions and your driving habits.
When treadwear indicato rs appear on the tire, replace the tire. ( P. 383)
■When using the compact spare tire
As the spare tire is not equipped with the tire pressure warning valve and transmit-
ter, low inflation pressure of the spare tire will not be warned. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light remains
on.
■ Compact spare tire
The compact tire saves space in your luggage compartment, and its
lighter weight helps to enhance fuel economy and permits easier
installation in case of a flat tire.
The compact spare tire is
designed for temporary emer-
gency use only.

5
When trouble arises
477
5-2. Steps to take in an emergency
■To prevent 12 volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical compon ents when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the 12 volt battery is removed or discharged
The hybrid system may not start. ( P. 3 8 0 )
Also, the following systems must be initialized.
●Po w e r w i n d o w s (P. 5 1 )
●Variable gear ratio steering (P. 1 5 3 )
●Tire pressure warning system (P. 3 8 5 )
●Intuitive parking assist (P. 1 5 3 )
Maintain the engine speed on th e second vehicle and turn the
power switch to the “IG-ON” mo de, then start the vehicle’s
hybrid system.
Make sure the “READY” light co mes on. If the light does not
come on, contact your Lexus dealer.
Once the vehicle’s hybrid system has started, remove the
jumper cables in the exact reverse order in which they were
connected.
Once the hybrid system starts, have the vehicle checked at your Lexus
dealer as soon as possible.STEP5
STEP6
STEP7

518
Alphabetical index
Alphabetical index
A/C (Air conditioning system) ........ 192
ABS (Anti-lock Brake System) ........ 164
Active stabilizer suspension 
system...................................................... 164
Air conditioning system (A/C) Air conditioning filter .......................399
Automatic air conditioning 
system .................................................... 192
Airbags Airbag operating conditions........... 69
Airbag precautions for your 
child...........................................................72
Airbag warning light ........................ 439
Curtain shield airbag 
precautions .......................................... 75
General airbag precautions ............72
Locations of airbags............................ 66
Modification and disposal of 
airbags .................................................... 76
Side airbag precautions .....................72
Side and curtain shield airbags 
operating conditions ....................... 69
SRS airbags ............................................. 66
Alarm ............................................................. 61
Antenna ....................................................209
Armrest .....................................................323
Ashtrays ..................................................... 316
Audio system Antenna ..................................................209
Cassette player..................................... 212
CD player/changer ........................... 216
DVD information ................................. 251
DVD player/changer...................... 232
DVD video/audio ............................. 235
MP3/WMA disc ............................... 224
Optimal use.......................................... 255
Radio ........................................................ 203 Steering switches .............................. 259
Video CD .............................................. 247
Automatic headlight leveling 
system ...................................................... 124
Automatic light control system......... 122
AVS (Adaptive Variable 
Suspension System) ...........................163
BA (Brake Assist)...................................164
Back-up lights Wattage ................................................. 494
Battery 12 volt battery .......................................379
Checking................................................379
Hybrid battery (Tra ction battery) .... 5
If the 12 volt battery is 
discharged .........................................476
Preparing and checking 
before winter...................................... 176
Bluetooth
®.............................................. 263
Brake Fluid .......................................................... 378
Parking brake............................................111
Care Exterior ................................................... 352
Interior..................................................... 354
Seat belts ............................................... 355
Cargo capacity........................................ 172
Cargo hooks .......................................... 327
CD player/changer............................. 232
Chains ......................................................... 177
Child-protectors...................................... 26
Child restraint system (CRS)
Definition ...................................................82
Installation ................................................ 85
A
B
C

519
Alphabetical index
Installing CRS with lower 
anchorages .......................................... 89
Installing CRS with seatbelts .......... 85
Installing CRS with top straps ........ 90
Child safety Airbag precautions .............................. 72
Child restraint system ........................ 82
Child-protectors....................................26
How your child should wear 
the seatbelt ............................................43
Installing child restraints .................... 85
Moon roof ................................................ 54
Power window lock switch ............. 50
Power window precautions.............. 51
Removed electronic key battery 
precautions ....................................... 402
Seat belt comfort guide....................... 41
Seat belt precautions...........................44
Seat heater precautions .........319, 321
Trunk............................................................32
Cigarette lighter ..................................... 317
Cleaning Exterior ................................................... 352
Interior..................................................... 354
Seat belts ............................................... 355
Clock........................................................... 314
Coin holder ............................................ 309
Compass ................................................. 334
Condenser............................................... 377
Console box........................................... 307
Cooling system Engine overheating ..........................480 Cruise control
Cruise control........................................129
Dynamic radar cruise control........132
Cup holders ............................................. 310
Curtain shield airbags............................ 66
Customizable features ........................ 510
Daytime running light system ........... 123
Defogger Rear window ......................................... 199
Side mirror.............................................. 199
Dimension................................................486
Dinghy towing ......................................... 182
Display Energy flow ................................................. 6
Multi-information display .................. 119
Touch screen ........................................ 184
Trip information ................................... 120
Warning message ............................. 444
Do-it-yourself maintenance .............363
Door courtesy lights ............................304
Door pocket............................................... 311
Doors Door lock .................................................. 25
Rear door child protector ................ 26
Driver's seat belt reminder light .....440
Driving Correct posture..................................... 64
Procedures ..............................................96
DVD player/changer.......................... 232
Electronic key Replacing battery................................ 401
When the electronic key battery 
is discharged..................................... 474
D
E
