xviii
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, im pair judgment and reduce coordination,
which could lead to an accident that will hurt or kill you, your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full at tention to driving. Anything that distracts
the driver, such as adjusting controls, ta lking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■When children are in the vehicle
Never leave children unattended in the vehicle.
When left unattended, children may be able to start the vehicle or shift the vehicle
into neutral. There is also a danger that children may injure themselves by playing
with the cigarette lighter, the windows, the moon roof, or other features of the vehi-
cle. In addition, heat build-up or extremel y cold temperatures inside the vehicle can
be fatal to children.
■Dispose of the hybrid battery (traction battery)
If your vehicle is disposed of without the hybrid battery having been removed, there
is a danger of serious electric shock if high voltage parts, cables and their connec-
tors are touched. In the event of that your vehicle must be disposed of, the hybrid
battery must be disposed of your Lexus dealer or a qualified service shop. If the
hybrid battery is not disposed of properly , they may cause electric shock that can
result in death or serious injury.

97
2-1. Driving procedures
2
When driving
■Breaking in your new Lexus
To extend the life of the vehicle, the following precautions are recommended to
observe:
●For the first 186 miles (300 km):
Avoid sudden stops.
●For the first 621 miles (1000 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low range in the “S” position.
• Do not drive at a constant speed for extended periods.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. ( P. 488)
■For efficient use
●Put the shift lever into “D” when driving 
In the “N” position, the gasoline engine operates but electricity cannot be gen-
erated. The hybrid ba ttery (traction battery) will be discharged requiring unnec-
essary engine power to recharge.
●Drive your vehicle smoothly 
Avoid abrupt acceleration and deceleration. Gradual acceleration and decel-
eration will make more effective use of the traction motor without having to use
gasoline engine power.
●Avoid repeated acceleration 
Repeated acceleration consumes hybrid battery (traction battery) power,
resulting in poor acceleration. Battery power can be restored by driving with
the accelerator pedal slightly released.
●Put the shift lever into “P” when parking 
In the “N” position, the hybrid battery (traction battery) does not recharge. 
Leaving the shift lever in the “N” position for an extended period of the time may
discharge the hybrid battery. The vehicle cannot run if the hybrid battery is dis-
charged.
■When starting on an incline
The hill-start assist control may operate. ( P. 1 6 4 )

109
2-1. Driving procedures
2
When driving
■When in heavy traffic
To avoid running the hybrid battery (traction battery) down, leave the shift lever in
“D” or “S”.
■When driving with the cruise control system (or dynamic radar cruise control sys-
tem)
The engine brake will not operate in the “S” mode, even when downshifting to “5” or
“4”. ( P. 129, 132)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the power switch is turned to “ACC” or
“IG-ON” mode after driving in snow mode.
■If the shift lever cannot be shifted from “P”
 P. 4 7 2
■If the indicator does not come on even after shifting the shift lever to “S”
This may indicate a malfunction in the transmission. Have the vehicle inspected by
your Lexus dealer immediately. 
(In this situation, the vehicle will operate as if the shift lever is in “D”.)

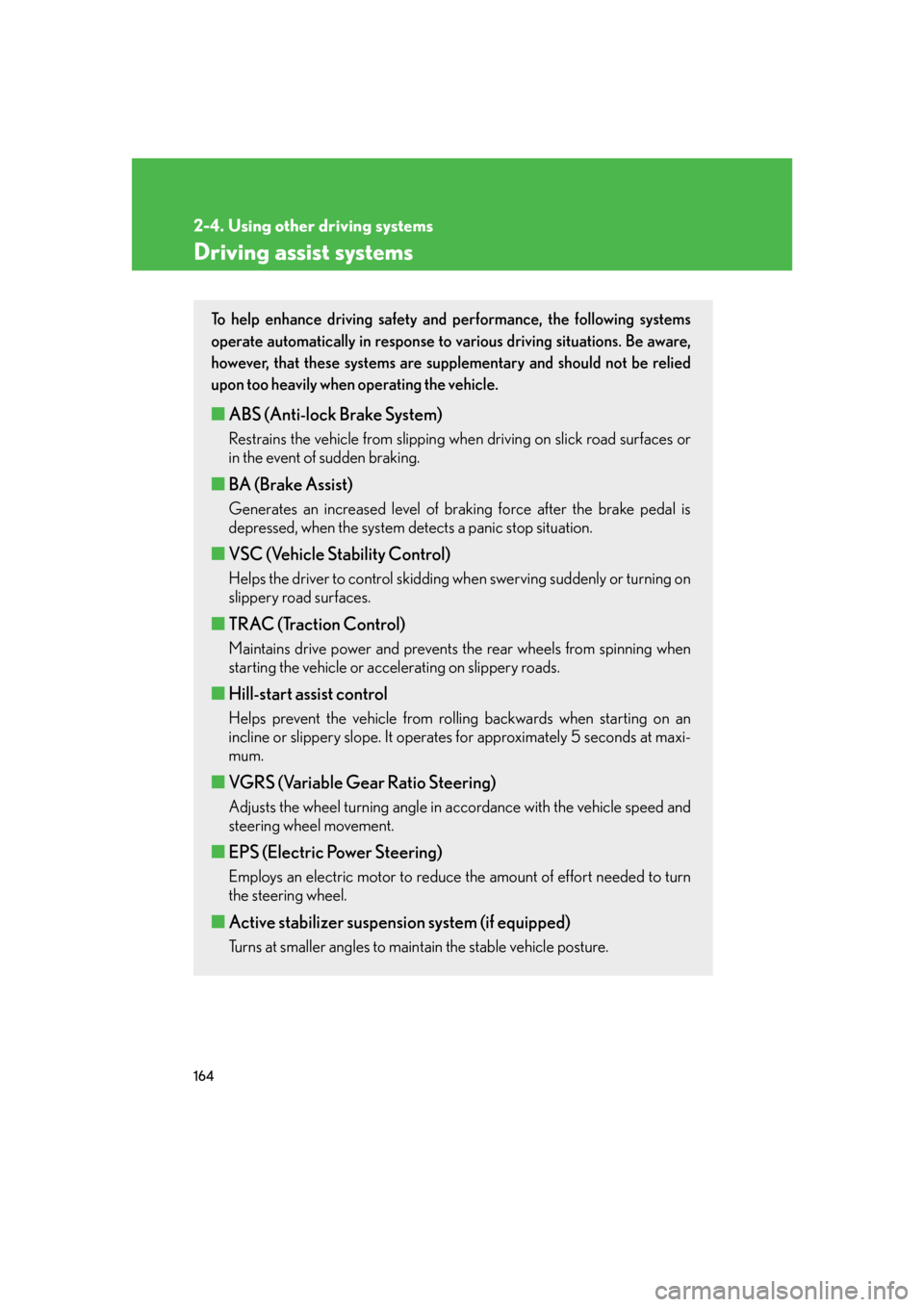

164
2-4. Using other driving systems
Driving assist systems
To help enhance driving safety and performance, the following systems
operate automatically in response to various driving situations. Be aware,
however, that these systems are supplementary and should not be relied
upon too heavily when operating the vehicle.
■ABS (Anti-lock Brake System)
Restrains the vehicle from slipping when driving on slick road surfaces or
in the event of sudden braking.
■BA (Brake Assist)
Generates an increased level of braking force after the brake pedal is
depressed, when the system detects a panic stop situation.
■VSC (Vehicle Stability Control)
Helps the driver to control skidding wh en swerving suddenly or turning on
slippery road surfaces.
■ TRAC (Traction Control)
Maintains drive power and prevents the rear wheels from spinning when
starting the vehicle or accelerating on slippery roads.
■Hill-start assist control
Helps prevent the vehicle from rolling backwards when starting on an
incline or slippery slope. It operates for approximately 5 seconds at maxi-
mum.
■ VGRS (Variable Gear Ratio Steering)
Adjusts the wheel turning angle in accordance with the vehicle speed and
steering wheel movement.
■EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel.
■Active stabilizer suspension system (if equipped)
Turns at smaller angles to main tain the stable vehicle posture.

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
8IG210
Multiport fuel injection system/
sequential multiport fuel injection
system, noise filter
9EFI No.210Fuel system, exhaust system
10H-LP R LWR15Headlight low beam (right)
11H-LP L LWR15Headlight low beam (left)
12D/C CUT30DOME, MPX-B
13IGCT No.37. 5Hybrid battery (traction battery)
14IGCT No.27. 5Hybrid system
15MPX-B7. 5
Power windows, door control system,
power seat, electronically controlled
brake system, combination switch,
electric tilt and telescopic steering,
gauges and meters
16DOME7. 5Interior lights, foot lights, vanity light,
gauges and meters
17ABS MAIN110Electronically controlled brake sys-
tem
18ABS MOTOR30ABS
19ABS MAIN210Electronically controlled brake sys-
tem
20F/ P M P25Fuel system
21EFI25
EFI2, multiport fuel injection system/
sequential multiport fuel injection
system
22INJ20
Multiport fuel injection system/
sequential multiport fuel injection
system

502
6-1. Specifications
■Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controll ed conditions on a specified gov-
ernment test course.
For example, a tire graded 150 would wear one and a half (1 - 1 /2) times as
well on the government course as a tire graded 100. 
The relative performance of tires de pends upon the actual conditions of
their use, however, and may depart significantly from the norm due to varia-
tions in driving habits, service practices and differences in road characteris-
tics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire’s ability to stop on wet pavement as measured
under controlled condit ions on specified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) trac-
tion.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Mo tor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.

524
Alphabetical index
Tail lightsSwitch ........................................................ 122
Theft deterrent system Alarm ............................................................ 61
Hybrid vehicle immobilizer 
system ..................................................... 59
Theft prevention labels .......................... 63
Tire inflation pressure .........................493
Tire information Glossary.................................................503
Size .......................................................... 500
Tire identification number ............. 499
Uniform tire quality grading .......... 501
Tires Chains ....................................................... 177
Checking ...............................................383
Compact spare tire .......................... 462
If you have a flat tire ............... 460, 461
Inflation pressure................................ 493
Information............................................498
Pressure warning system ..............383
Replacing .................................................461
Rotating tires ........................................383
Size ........................................................... 493
Snow tires ................................................ 179
Tools ............................................................ 461
Total load capacity ................................ 175
Touch screen ........................................... 184
Towing Dinghy towing .......................................182
Emergency towing ........................... 429
Trailer towing.......................................... 181
TRAC (Traction control) .................... 164
Transmission If the shift lever cannot be shifted from P ....................................472
Mode select switch.............................107 S mode .....................................................108
Transmission..........................................106
Trip meter ................................................... 113
Trunk Opener ...................................................... 29
Trunk light .................................................. 31
Wattage ................................................. 494
Turn signal lights Replacing light bulbs ......................... 421
Switch ..........................................................110
Wattage ................................................. 494
Vanity lights Vanity lights............................................ 313
Wattage ................................................. 494
Vanity mirrors ............................................. 313
VDIM (Vehicle Dynamics 
Integrated Management) ................165
Vehicle identification number......... 487
Vehicle load limits .................................. 175
Ventilators .................................................321
VGRS (Variable Gear Ratio 
Steering) .................................................164
VSC (Vehicle Stability Control) ......164
Warning buzzers Brake system ....................................... 438
Downshifting..........................................108
Open door .......................................... 440
Seat belt reminder ............................ 440
Warning lights Anti-lock brake system (ABS) ... 439
Brake system ....................................... 438
Charging system ............................... 438T
V
W

525
Alphabetical index
ECB/VSC (Electronically 
Controlled Brake System/ 
Vehicle Stability Control) .......... 439
Electric power steering  warning light ..................................... 439
Low fuel level....................................... 440
Malfunction indicator lamp .......... 439
Master warning light .......................... 441
Open door ........................................... 440
Pre-collision system ......................... 439
Seat belt reminder light .................. 440
SRS airbags .......................................... 439
Tire pressure warning light........... 440
Warning messages Anti-lock Brake System (ABS) .. 448
Brake Assist (BA) ............................. 448
Dynamic radar cruise control ................................... 446
Engine oil level ...................................... 451
Engine oil maintenance.................... 451
Engine oil pressure........................... 444
Headlight ............................................... 445
Hill-start assist control..................... 448
Hood ....................................................... 449
Hybrid system ......................... 444, 453
Intuitive parking 
assist .............................446, 452, 456
Moon roof ............................................. 450
Open door ........................................... 449
Parking brake ...................................... 450
Pre-Collision System .......... 446, 452
Refueling ................................................ 456
Rear lights system ............................. 445
Smart access system with 
push-button start............................ 457
Steering lock ............................445, 459 Tire pressure warning

system ..................................... 445, 452
TRAC (Traction control 
system)................................................ 448
Trunk ....................................................... 450
VGRS (Variable Gear Ratio 
Steering) ............................................ 448
VSC/ECB (Vehicle Stability 
Control/Electronically Controlled 
Brake system) ................................. 448
Washer fluid ........................................ 450
Washer Checking ...............................................382
Preparing and checking 
before winter ......................................176
Switch.........................................................126
Washing and waxing ........................... 352
Weight Cargo capacity ..................................... 172
Load limits ...............................................175
Weight.................................................... 486
Wheels ...................................................... 397
Window glasses ......................................50
Window lock switch ...............................50
Windows Power windows .................................... 50
Rear window defogger.................... 199
Washer .....................................................126
Windshield wipers Position..................................................... 178
Windshield wipers ..............................126
Winter driving tips ..................................176
Wireless remote control Locking/Unlocking ............................. 22
Replacing the battery........................ 401
WMA disc ............................................... 224
