4-3. Do-it-yourself maintenance
Wipe the dipstick and reinsert it fully.Low
Full
■ A
dding engine oil
If the oil level is below or near the
lo
w level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and pr
epare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise until you hear a click.
STEP6
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low  Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in househol d trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly retightened.

368
4-3. Do-it-yourself maintenance
Coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the hybrid system is cold.
Reservoir cap
Full
Low
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock and water
pump
. 
If you cannot find a leak, have your Lexus dealer pressure test the cap and check for
le
aks in the cooling system.
■Coolant selection
Only use “Toyota Super Long Life Coolant” or similar hig
h quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50%
deionized water. (Enabled: -31F [-35 C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% de
ionized water. (Enabled: -44 F [-42C])
For more details about engine/inverter coolant, contact your Lexus dealer.

395
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the power switch to “OFF” mode.
Remove the engine compartment cover if necessary.
P. 3 6 2
Open the fuse box cover.
Engine compartment
Remove the clips.
Front controller in the engine compartment fuse box Lift the lid off while pushing the
tabs on either side.STEP1
STEP2
STEP3

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P.
4 8 8 )
■ R
emove the engine compartment cover if necessary.
 P.
3 6 2
■ F
ront bulb locations
■Rear bulb locations
Parking light
Headlight high beam
Rear turn signal light Back-up light

5
When trouble arises
445
5-2. Steps to take in an emergency

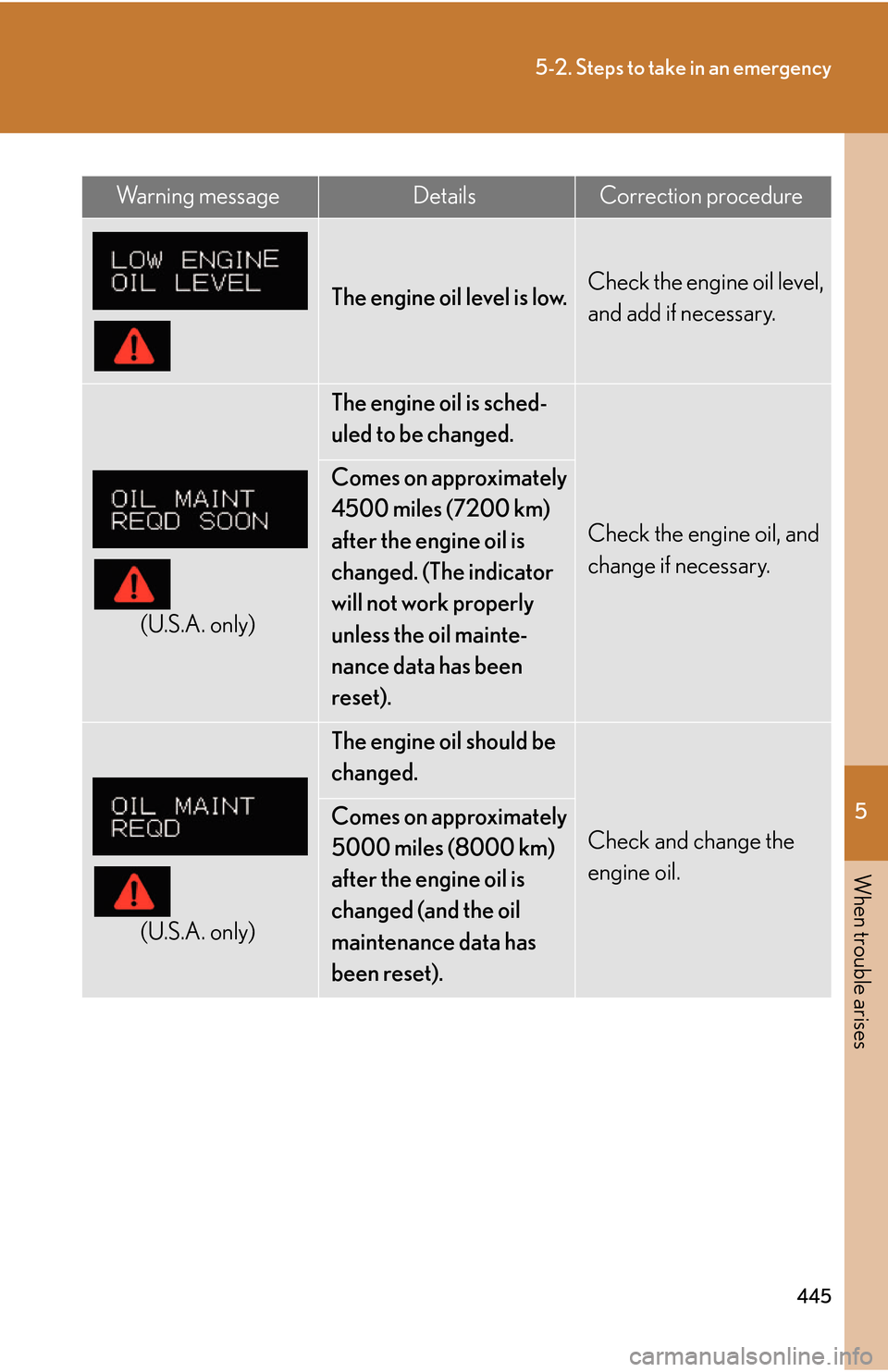

Wa r n i n g m e s s a g eDetailsCorrection procedure
The engine oil level is low.Check the engine oil level,
and add if necessary.
(U.S.A. only)
The engine oil is sched-
uled to be changed.
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset).
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).

472
5-2. Steps to take in an emergency
■To prevent 12 volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the 12 volt battery is removed or discharged
The hybrid system may not start. ( P. 3 7 2 )
Also, the following systems must be initialized.
●Po w e r w i n d o w s (P. 5 3 )
●Moon roof (P. 5 6)
●Variable gear ratio steering (P. 1 5 1 )
●Tire pressure warning system (P. 3 7 7 )
●Intuitive parking assist (P. 1 5 1)
Maintain the engine speed on th e second vehicle and turn the
power switch to the “IG-ON” mo de, then start the vehicle’s
hybrid system.
Make sure the “READY” light co mes on. If the light does not
come on, contact your Lexus dealer.
Once the vehicle’s hybrid system has started, remove the
jumper cables in the exact reverse or
der in which they were
connected.
Once the hybrid system starts, have the v
ehicle checked at your Lexus
dealer as soon as possible.
STEP5
STEP6
STEP7

5
When trouble arises
475
5-2. Steps to take in an emergency
If your vehicle overheats
■Electric motor (traction motor) and inverter
If the message “HYBRID SYSTEM OVERHEAT” is displayed on the
multi-information display.
■ Ga
soline engine
If the needle of the engine co olant temper
ature gauge enters the
red zone, the gasoline engine has probably overheated.
Observe the following steps: Stop the vehicle in a safe place and turn of
f the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: 
Stop the hybrid system and carefully lift the hood.
If you do not see steam: Leave the hybrid system running and carefully lift the hood.
Remove the engine compartment cover. ( P. 362 )
Check to see if the cooling fan is operating.
If the fan is operating: 
Wait until the engine coolant temperature gauge begins to
fall and then stop the hybrid s
ystem.
If the fan is not operating: 
Stop the hybrid system immed iately and call y
our local
Lexus dealer.
After the hybrid system has
cooled do
wn sufficiently, check
the coolant level and inspect the
radiator core (radiator) for any
leaks.
STEP1
STEP2
STEP3
STEP4
STEP5

476
5-2. Steps to take in an emergency
■Overheating
In the following situations, your vehicle may be overheating.
●The message “HYBRID SYSTEM OVERHEAT” is displayed on the multi-infor-
mation display.
●The engine coolant temperatur e gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when in specting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the hybrid
system is running.
●Do not loosen the radiator cap while the hybrid system and radiator are hot. 
Serious injury, such as burns, may resu lt from hot coolant and steam released
under pressure.
Add coolant if required.
Water can be used in an emer -
gency measure if coolant is
una
vailable. ( P. 4 8 4 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos -
sible.
STEP6

512
