maintenance Lexus GS450h 2007 Using the hands-free system (for cellular phone) / LEXUS 2007 GS450H THROUGH JUNE 2006 PROD. (OM30727U) Owner's Guide

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in househol d trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly retightened.

368
4-3. Do-it-yourself maintenance
Coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the hybrid system is cold.
Reservoir cap
Full
Low
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock and water
pump
. 
If you cannot find a leak, have your Lexus dealer pressure test the cap and check for
le
aks in the cooling system.
■Coolant selection
Only use “Toyota Super Long Life Coolant” or similar hig
h quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50%
deionized water. (Enabled: -31F [-35 C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% de
ionized water. (Enabled: -44 F [-42C])
For more details about engine/inverter coolant, contact your Lexus dealer.

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
Radiator and condenser
Check the radiator and condenser and clear any foreign objects. 
If either of the above parts are extremely dirty or you are not sure of their
condition, ha

ve your vehicle checked by your Lexus dealer.
CAUTION
■When the coolant may be hot
Do not remove the radiator cap. 
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing burns or other injuries.
NOTICE
■When adding the coolant
Coolant is neither plain water not straight antifreeze. The correct mixture of water
and anti freeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it damage to parts or paint.
CAUTION
■The radiator and condenser may be hot after driving
To prevent burns, do not touch the radiator or condenser after driving.

370
4-3. Do-it-yourself maintenance

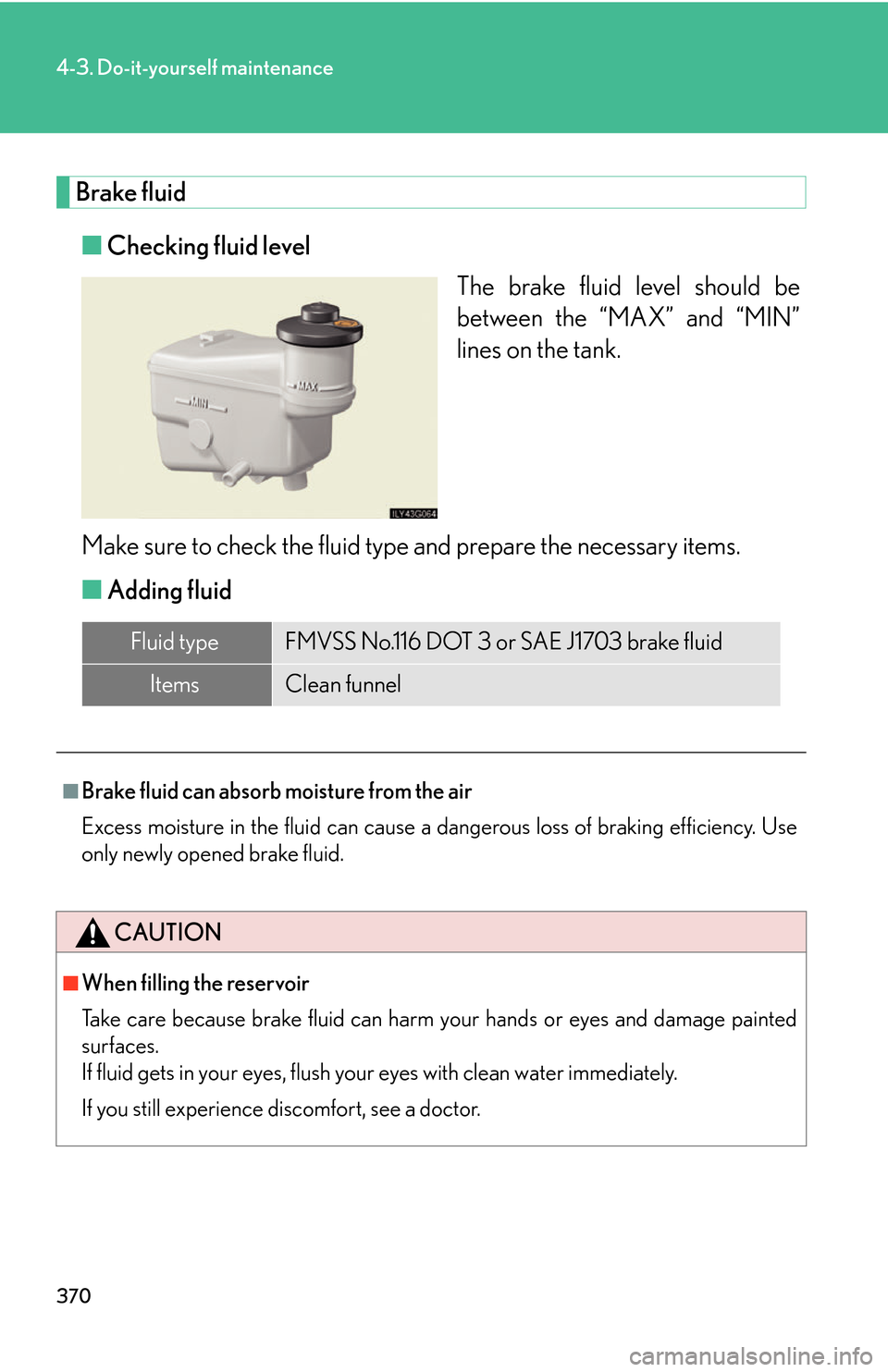

Brake fluid
■Checking fluid level
The brake fluid level should be
betw
een the “MAX” and “MIN”
lines on the tank.
Make sure to check the fluid type and prepare the necessary items.
■ A
dding fluid
Fluid typeFMVSS No.116 DOT 3 or SAE J1703 brake fluid
ItemsClean funnel
■Brake fluid can absorb moisture from the air
Excess moisture in the fluid can cause a dangerous loss of braking efficiency. Use
only newly opened brake fluid.
CAUTION
■When filling the reservoir
Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets in your eyes, flush your eyes with clean water immediately.
If you still experience discomfort, see a doctor.

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
12 volt battery
■Location
The 12 volt battery is located in the
lef
t-hand side of luggage compart-
ment.
■ Ex
terior
Make sure that the battery terminals ar
e not corroded and that there
are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high. 
If the reservoir needs frequent refilli ng, it may indicate a serious problem.

372
4-3. Do-it-yourself maintenance
■Before recharging
When recharging, the 12 volt battery produces hydrogen gas which is flammable
and
explosive. Therefore, before recharging:
●If recharging with the 12 volt battery installed on the vehicle, be sure to discon -
nect the ground cable.
●Make sure the power switch on the charger is off when connecting and discon -
necting the charger cables to the battery.
■After recharging/reconnecting the 12 volt battery
In some cases, the hybrid sy stem may
not start. Follow one or both of the following
procedures:
●After opening and closing the driver's door, wait 10 seconds then attempt to
start the hybrid system. (If the system does not start first time, repeat the proce -
dure.)
●With the shift lever in “P” and the powe r switch in the “OFF” mode, open and
close any door, then attempt to start the hybrid system.
If the system will not start even after mult i
ple attempts at both methods, contact
your Lexus dealer.

373
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■Chemicals in the 12 volt battery
A battery contains poisonous and corrosive sulfuric acid and may produce hydro-
gen gas which is flammable and explosive. To reduce the risk of death or serious
injury, take the following precautions while working on or near battery:
●Do not cause sparks by touching the battery terminals with tools.
●Do not smoke or light a match near the battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the battery.
●Keep children away from the battery.
■Where to safety charge the 12 volt battery
Always charge the battery in an open area. Do not charge the battery in a garage or
closed room where there is not sufficient ventilation.
■How to recharge the 12 volt battery
Only perform a slow charge (5A or less). The battery may explode if charged at a
quicker rate.
■Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immediate medi-
cal attention. If possible, continue to apply water with a sponge or cloth while
traveling to the nearest medical facility.
●If electrolyte gets on your skin 
Wash the affected area thoroughly. If you feel pain or a burning sensation, seek
medical attention immediately.
●If electrolyte gets on your clothes 
It can soak through clothing on to your skin. Immediately take off the clothing and
follow the procedure above if necessary.
●If you accidentally swallow electrolyte 
Drink a large quantity of water or milk. Fo llow with milk of magnesia, beaten raw
egg or vegetable oil. Get emergency medical attention immediately.

374
4-3. Do-it-yourself maintenance
Washer fluid
If any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■When recharging the 12 volt battery
Never recharge the battery while the hybrid system is on. Also, be sure all accesso-
ries are turned off.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary. 
Refer to the freezing temperatures listed on the washer fluid tank.

375
4-3. Do-it-yourself maintenance
4
Maintenance and care
Tires
Replace or rotate tires in accordance with maintenance schedules and
tread wear.
■Checking tires
New tread
Tread wear indicator
Worn tread
The location of tread wear indi-
cators is shown by the “TWI” or
“ ”

marks, etc., molded on the
sidewall of each tire.
Check spare tire condition and
inflati
on pressure if not rotated.
■Tire rotation
Rotate the tires in the order
sho
wn.
Lexus recommends tire rotation
in accordance with the mainte -
nance schedule to equalize tire
w
ear and extend tire life.
Do not fail to initialize the tire
pr
essure warning system after
tire rotation.
■ The tire pressure warning system
Your Lexus is equipped with a tire pr
essure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla -
tion pressure before serious problems arise. ( P. 4 3 3, 438 )
Front

376
4-3. Do-it-yourself maintenance
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and trans-
mitters must also be installed. Tire pr
essure warning valves and transmit-
ters can be installed in any of the following three ways:
● T
ire pressure warning valves and transmitters can be removed from the
old wheels and installed on the new wheels.
● When r
eplacing only the tire, the ti re pressure warning valve and trans-
mitter already installed on the wheel does not need to be replaced.
● R
eplacing both a wheel and its tire pressure warning valve and trans -
mitter.
When new tire pressure warning va lv
es and transmitters are installed,
new tire pressure warning valve and transmitter ID codes must be regis-
tered in the tire pressure warning ECU and tire pressure warning system
must be initializ
ed. (P. 3 7 7, 378 )
