6-1. Specifications
Engine
Fuel
Electric motor (Traction motor)
Hybrid battery (Traction battery)
Model2GR-FSE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity17.2 gal. (65 L, 14.3 lmp.gal)
Ty p ePermanent magnet synchronous motor
Maximum output147 kW
Maximum torque275 N•m (28.0 kgf•m, 202.8 ft•lbf)
Ty p eNickel-Metal hydride battery
Vo l t a g e7.2 V/module
Capacity6.5 Ah (3HR)
Quantity40 modules
Overall voltage288 V

483
6-1. Specifications
6
Vehicle specifications
Lubrication system
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity:
● The 5W por
tion of the oil viscosity rating indicates the characteristic of
the oil which allows cold startability . Oils with a lower value before the W
allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is as its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
Oil capacity 
(drain and refill)
with filter
without filter6.6 qt. (6.3 L, 5.5 lmp.qt.)
6.2 qt. (5.9 L, 5.2 lmp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil
viscosity
Use Lexus approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the above grade and viscosity.
Outside temperature

484
6-1. Specifications
Cooling system
Ignition system
Capacity
Gasoline engine
Inverter9.8 qt. (9.3 L, 8.1 lmp.qt.)
3.0 qt. (2.9 L, 2.5 lmp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili- cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life organic acid technology
Do not use plain water alone.
Spark plug
Make DENSO 
NGK
GapFK20HBR11 
ILFR6D11T 
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

489
6-1. Specifications
6
Vehicle specifications
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
a
ccommodates the special nozzle on unleaded fuel pumps.
■If premium gasoline is not available
If this premium fuel is not available, you may use unleaded gasoline with an Octane
R
ating of 87 or so (Research Octane Number 91). 
The use of such gasoline may cause the engine to knock or drastically reduce out -
put to protect itself while driving with a heav y
load. To avoid this, refill the tank with
premium unleaded gasoline as soon as possible.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
ar
e using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use on ly unleaded gasoline.
Premium unleaded gasoline with an Octane R
ating of 91 (Research
Octane Number 96) or higher required for optimum engine performance.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. an d CGSB3.5-M93 in Canada.

490
6-1. Specifications
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction th rough better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains de tergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reform ulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancin g additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.

491
6-1. Specifications
6
Vehicle specifications
NOTICE
■Notice on gasoline quality
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here. 
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking. 
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knoc king, etc.), discontinue the use of that type of fuel.
■When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle's paint.

497
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excess iv
e loading, either separately or in
combination, can cause heat build up and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Maximum loaded vehicle
weight
The sum of: 
(a) Curb weight 
(b) Accessory weight 
(c) Vehicle capacity weight 
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows

505
6
Vehicle specifications

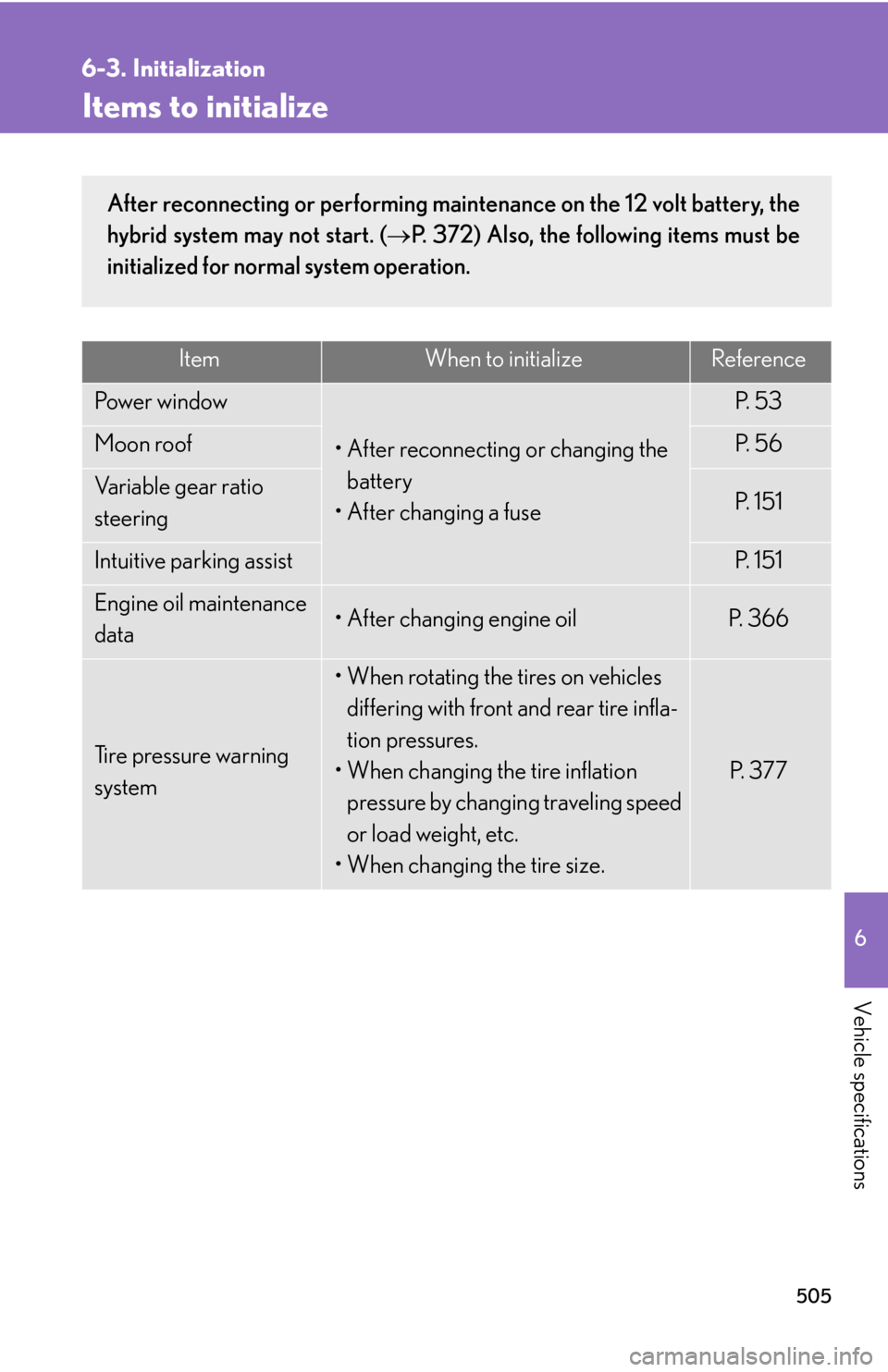

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Pow e r w i n d ow
• After reconnecting or changing the battery
• After changing a fuse
P. 5 3
Moon roofP. 5 6
Variable gear ratio
steeringP. 1 5 1
Intuitive parking assistP. 1 5 1
Engine oil maintenance
data• After changing engine oilP. 3 6 6
Tire pressure warning
system
• When rotating the tires on vehicles differing with front and rear tire infla-
tion pressures.
• When changing the tire inflation pressure by changing traveling speed
or load weight, etc.
• When changing the tire size.
P. 3 7 7
After reconnecting or performing main tenance on the 12 volt battery, the
hybrid system may not start. (
 P. 3 7 2 ) Also, the following items must be
initialized for normal system operation.

511
Alphabetical index
Installing CRS with lower 
anchorages .......................................... 87
Installing CRS with seatbelts .......... 83
Installing CRS with top straps ........ 88
Child safety Airbag precautions .............................. 75
Child restraint system ........................ 80
Child-protectors.................................... 27
How your child should wear 
the seatbelt ........................................... 45
Installing child restraints .................... 83
Moon roof ................................................. 57
Power window lock switch .............. 52
Power window precautions............ 54
Removed electronic key battery 
precautions ....................................... 394
Seat belt comfort guide...................... 43
Seat belt precautions...........................46
Seat heater precautions ..... 324, 326
Trunk ............................................................ 33
Cigarette lighter .................................... 322
Cleaning Exterior ................................................... 344
Interior..................................................... 346
Seat belts ................................................ 347
Clock........................................................... 319
Coin holder .............................................. 314
Compass ................................................. 339
Condenser.............................................. 369
Console box ............................................. 312
Cooling system Engine overheating .......................... 475Cruise control
Cruise control........................................ 127
Dynamic radar cruise control....... 130
Cup holders ............................................. 315
Curtain shield airbags............................ 69
Customizable features ...................... 500
Daytime running light system ............. 121
Defogger Rear window ......................................... 199
Side mirror.............................................. 199
Dimension............................................... 480
Dinghy towing ......................................... 180
Display Energy flow ................................................. 6
Multi-informatio n display
..................117
Touch screen ........................................ 182
Trip information ..................................... 118
Warning message ............................. 436
Do-it-yourself maintenance ............. 355
Door courtesy lights ........................... 308
Door pocket............................................. 316
Doors
Door lock .................................................. 26
Rear door child protector ................ 27
Driver's seat belt reminder light ..... 433
Driving Correct posture..................................... 67
Procedures .............................................. 94
DVD player/changer.......................... 232
Electronic key Replacing battery ............................... 393
When the electronic key battery 
is discharged.................................... 469
D
E

512
Alphabetical index
Emergency, in case ofIf a warning light turns on .............. 430
If a warning message is 
displayed ............................................ 436
If the hybrid system will not 
start........................................................ 466
If the shift lever cannot be 
shifted from P ................................... 467
If the 12 volt battery is 
discharged ......................................... 471
If you have a flat tire ............ 455, 456
If you lose your keys......................... 468
If you think something is 
wrong ....................................................427
If your vehicle becomes stuck..... 478
If your vehicle needs to be 
towed ................................................... 420
If your vehicle overheats ................ 475
When the electronic key battery 
is discharged .................................... 469
Energy monitor............................................ 6
Engine Compartment ....................................... 361
Hood........................................................ 358
How to start the hybrid system
.....101
If the hybrid system will not 
start........................................................ 466
Overheating......................................... 475
Power switch .......................................... 101
Engine compartment cover ............. 362
Engine coolant temperature 
gauge.........................................................110
Engine/inverter coolant Capacity ................................................. 484
Checking ............................................... 368
Preparing and checking 
before winter ...................................... 174 Engine oil
Capacity ................................................ 483
Checking............................................... 363
Preparing and checking  before winter...................................... 174
Engine oil maintenance data ........... 366
EPS (Electric Power Steering) ......... 162
Event data recorder ............................ 428
First-aid kit storage belt ..................... 332
Floor mats .................................................. 331
Fluid Brake ....................................................... 370
Washer.................................................... 374
Fog lights Switch ........................................................ 123
Wattage ................................................. 488
Foot light .................................................. 308
Front passenger's seat
belt 
reminder light ..................................... 433
Front seats Adjustment ............................................... 34
Driving position memory .................. 36
Front turn signal lights Wattage ................................................. 488
Fuel Capacity ................................................ 482
Fuel gauge ................................................ 110
Gas station information ................. 520
Information ........................................... 489
Refueling ................................................... 58
Messages .............................................. 450
Fuel filler door ........................................... 58
Fuses .......................................................... 395
F
