4
Seat heater switches∗
Pow

er switch
P.17
Air conditioning system P.32
Emergency flashers P.20
Rear window and outside rear
view mirror defoggers
P.29
Security indicator P.9
Audio system P.34
Glove box P.40
Trunk opener main switch P.48
See P.5
“AVS” switch P.24
Seat heater/ventilator
switches
∗ P.38
Mode select switch P.20
∗ : If equipped
“TRAC OFF” switch
P.24

5
OverviewInstrument Panel
∗ : If equipped Intuitive parking assist switch
∗ P.21
Rear sunshade switch P.41
Instrument panel light control P.29
Trunk opener P.48
Odometer/trip meter and trip meter reset
buttons
P.15
Cup holders P.40
Shift lever P.18
Headlight cleaner switch P.29
AFS cancel switch P.27
Fuel filler door opener P.47
Outside rear view mirror switches P.14
Ashtray P.37

Topic 1
Entering and Exiting
7
Keys
nElectronic key
lLocks and unlocks the doors
lOpens the trunk
lStarts and stops the hybrid system
nMechanical key
lLocks and unlocks the doors
lOpens the trunk
lLocks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull.
nWireless remote control
Locks the doors
Unlocks the doors
Opens the trunk
Sounds the alarm
(To stop the alarm, push any button on the
wireless remote control.)1
2
3
4
The wireless remote control can also be used to open the windows and moon roof.
To do so, simply press and hold button.

Topic 1
Entering and Exiting
8
Entering and Exiting
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before DrivingBefore Driving
Smart Access System with Push-button Start
nEntering the vehicle
To unlock the vehicle, simply grasp the door han-
dle.
nExiting the vehicle
To lock the vehicle, press the button on the door
handle.
nOpening the trunk
To open the trunk, press the button.
The smart access system with push-button start allows you to enter and exit the vehicle
or start the hybrid system by simply carrying the electronic key in your pocket or bag.
For details on starting the hybrid system, see page 17.
For details on what to do when the electronic key battery becomes discharged, see page 52.

Topic 1
Entering and Exiting
9
Anti-theft System
nHybrid vehicle immobilizer system
The hybrid vehicle immobilizer system prevents
the hybrid system from being started in the event
that an attempt is made to start the vehicle using
an unregistered key.
The security indicator light flashes to indicate that
the system is set.
nAlarm
When forcible entry is detected, the alarm
attracts attention to the vehicle by sounding the
horn and flashing the exterior lights.
When all the doors are locked, the security indi-
cator light comes on and begins to flash after
approximately 30 seconds to indicate that the
system is armed.
nSteering lock
The steering lock is engaged when the driver’s
door is opened with the power switch OFF.
The anti-theft system includes the following features to help protect your vehicle from theft.
To stop the alarm, start the hybrid system or unlock the doors or trunk using the entry func-
tion or the wireless remote control. (The alarm will stop after several seconds.)

Topic 5
Driving Comfort
42
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before Driving
Luggage Mat
Pull the lever upwards when lifting the luggage
mat up.
The lever can be hooked on the edge of the trunk.

Opening and ClosingTo p i c 6
Door Locks ............................................................. 45
Power Windows .................................................... 46
Moon Roof .............................................................. 46
Fuel Tank Cap ........................................................ 47
Hood ......................................................................... 47
Trunk......................................................................... 48

Topic 6
Opening and Closing
48
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Trunk
nTrunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn OFF the main
switch in the glove box.
ON
OFF
When the trunk opener is disabled, the trunk can-
not be opened using the entry function or the
wireless remote control.
nEntry function and wireless remote control
→P. 7 , 8
1
2

What to do if ...
51

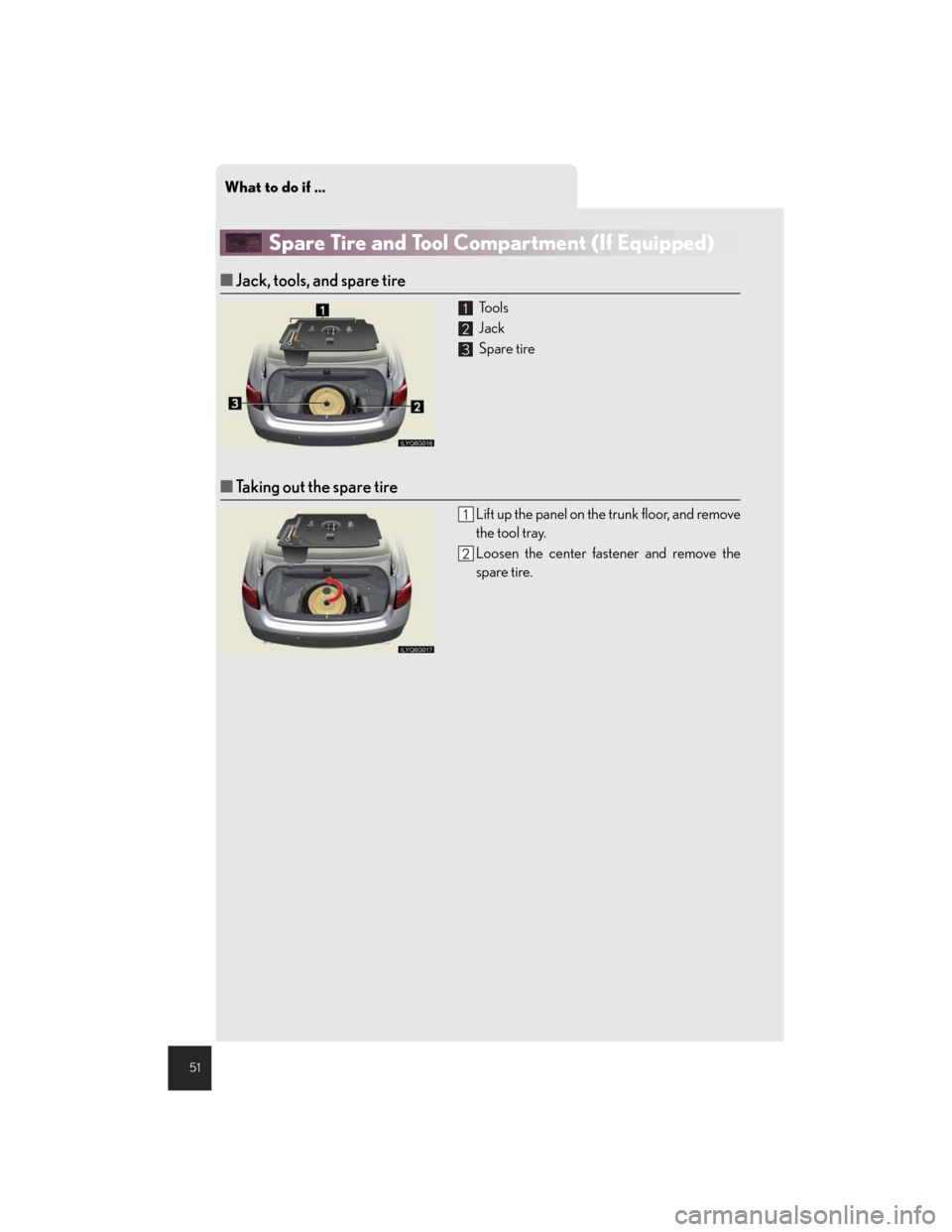

Spare Tire and Tool Compartment (If Equipped)
nJack, tools, and spare tire
Tools
Jack
Spare tire
nTaking out the spare tire
Lift up the panel on the trunk floor, and remove
the tool tray.
Loosen the center fastener and remove the
spare tire.
1
2
3

54
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Electronic Key Alarm
The electronic key alarm uses an alarm and warning messages to indicate that the electronic
key has been used improperly. Take appropriate measure in response to any warning mes-
sages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the correction procedure in the table below.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartmentRetrieve the electronic key
from the passenger com-
partment and lock the
doors again.
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the power switch
OFF
Tu r n t h e p o w e r s w i t c h O F F
and lock the doors again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic key
from the trunk and close
the trunk lid.
Exterior alarm sounds
once for 10 secondsTried to lock the vehicle
using the entry function
while a door is openClose all of the doors and
lock the doors again.
Interior alarm sounds
continuouslyTried to open the door and
exit the vehicle without
shifting the shift lever to P
Shift the shift lever to P.
Interior alarm rings
continuously
Switched to ACC mode
while the driver's door is
open (Opened the driver's
door when the power
switch is in ACC mode.)
Tu r n t h e p o w e r s w i t c h O F F
and close the driver's door.
Turned the power switch
OFF while the driver's
door is still open
Close the driver's door.
