Lexus GS450h 2008 Do-it-yourself maintenance / LEXUS 2008 GS450H OWNER'S MANUAL (OM30A96U)

5
When trouble arises
511
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
Messages displayed when refuelingThe following messages are displayed af ter the fuel lid opener is pressed.
If the messages do not change or are displayed continuously, have the
vehicle checked by your Lexus dealer.
MessageDetails
Preparing the vehicle for refueling.
Wait a moment.
You may commence refueling.Finish refueling within 30 minutes.
Close the fuel lid.

512
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
(If equipped)
Calibrate the neutral position of the steering wheel.
■Initializing the steering sensor
Use one of the following methods.
●With the vehicle stopped, turn the steering wheel all the way to the left and right.
(The order is not important.)
●Drive for more than 5 minute on an un-crowded road with as few curves and
corners as possible.
If the steering guide symbol disappears, th e steering sensor has been initialized. If
the steering guide symbol does not disappear, have the vehicle checked by your
Lexus dealer.

5
When trouble arises
513
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning message and light turn off.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once(Comes on for 10 seconds.)
(Flashing)
The electronic key
is not detected
when attempting
to start the hybrid
system.Confirm the
location of
the elec-
tronic key.
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“POWER” switch
is in ACCES-
SORY or ON
mode.
Confirm the
location of
the elec-
tronic key.

514
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“POWER” switch
is in ACCES-
SORY or ON
mode with the
shift lever in “P”.
Tu r n t h e
“POWER”
switch to
OFF or con-
firm the
location of
the elec-
tronic key.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“POWER” switch
is in ACCES-
SORY or ON
mode with the
shift lever not in
“P”.
•Shift the shift lever
to “P”.
•Confirm
the loca-
tion of the
electronic
key.

5
When trouble arises
515
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Flashing)
The electronic key
battery is low.Replace the
battery.
( P. 4 5 4 )

An open door has
been closed and
the “POWER”
switch has been
turned twice to
the ACCES-
SORY mode from
OFF.
Press the
“POWER”
switch while
applying the
brakes.

(Flashing)
The steering lock
has not released
within 3 seconds
of pressing the
“POWER” switch.
The “POWER”
switch indicator
will flash green for
15 seconds.Press the
“POWER”
switch again
while turn-
ing the
steering
wheel with
the brake
pedal
depressed.

516
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
OnceThe electronic key
does not operate
properly.
 P. 5 3 1


5
When trouble arises
517
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm

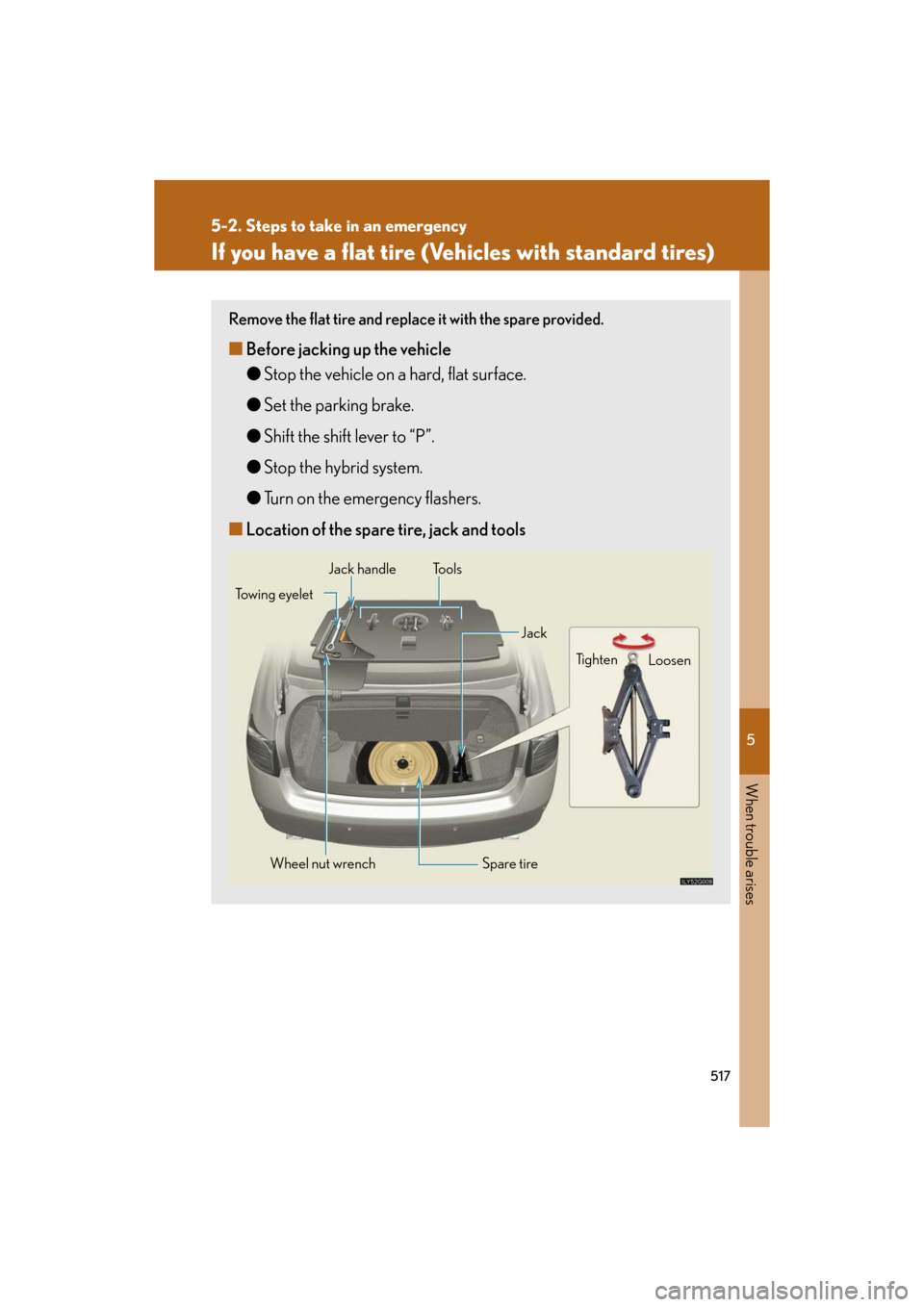

If you have a flat tire (Vehicles with standard tires)
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P”.
● Stop the hybrid system.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Wheel nut wrench Jack
Jack handle
Spare tireTi g h t e n
Loosen
Tools
Towing eyelet

518
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
●Make sure to check the tire inflatio n pressure of the compact spare tire. 
(  P. 5 5 1 )
■Tr e a d l i f e
The compact spare tire can be used many times, if necessary. It has tread life of up
to 3000 miles (4800 km) depending on road conditions and your driving habits.
When treadwear indicato rs appear on the tire, replace the tire. ( P. 4 3 5 )
■When using the compact spare tire
As the spare tire is not equipped with the tire pressure warning valve and transmit-
ter, low inflation pressure of the spare tire will not be warned. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light remains
on.
■ Compact spare tire
The compact tire saves space in your luggage compartment, and its
lighter weight helps to enhance fuel economy and permits easier
installation in case of a flat tire.
The compact spare tire is
designed for temporary emer-
gency use only.

5
When trouble arises
519
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
Taking out the spare tireLift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided. Then take out the tool
tray.
Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be
turned by hand, use the wrench
that is stored in the trunk. (To
secure the tire, tighten the center
fastener by hand. Do not use the
wrench or other tools.)
STEP1
STEP2
STEP3

520
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
Replacing a flat tireChock the tires.
Slightly loosen the wheel nuts (one
turn).
STEP1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
Rear
Left-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
STEP2
