navigation Lexus GS450h 2008 Do-it-yourself maintenance / LEXUS 2008 GS450H OWNER'S MANUAL (OM30A96U)

13
GS_HV_U
December 12, 2007 3:50 pm
Audio remote control switches P. 303
Cruise control switch

P. 166, 169
Telephone switch
P. 306
“DISP” switch P. 156
Distance switch P. 171
Talk switch* P. 318
: If equipped
*: Refer to “Navigation System Owner’s Manual”.
A
Tilt and telescopic steering 
control switch
P. 73

14
GS_HV_U
December 12, 2007 3:50 pm
Pictorial indexInstrument panel
Rear window and outside
rear view mirror defoggers
P. 240
Emergency flashers Air conditioning 
system
P. 232
Audio system 

P. 241
Navigation system*Touch screen 

P. 224
Security indicator
P. 88, 90
Clock P. 364Outside temper ature display
P. 365
B

15
GS_HV_U
December 12, 2007 3:50 pm
“AFS OFF” switch P. 159
Rear sunshade switch P. 372
Headlight cleaner switch P. 165
Intuitive parking assist switch P. 180
Odometer/trip meter and
trip meter reset buttons
P. 149
Instrument panel light control P. 149
Outside rear view mirror switches P. 75
: If equipped
*: Refer to “Navigation System Owner’s Manual”.
C

224
GS_HV_U
December 12, 2007 3:50 pm

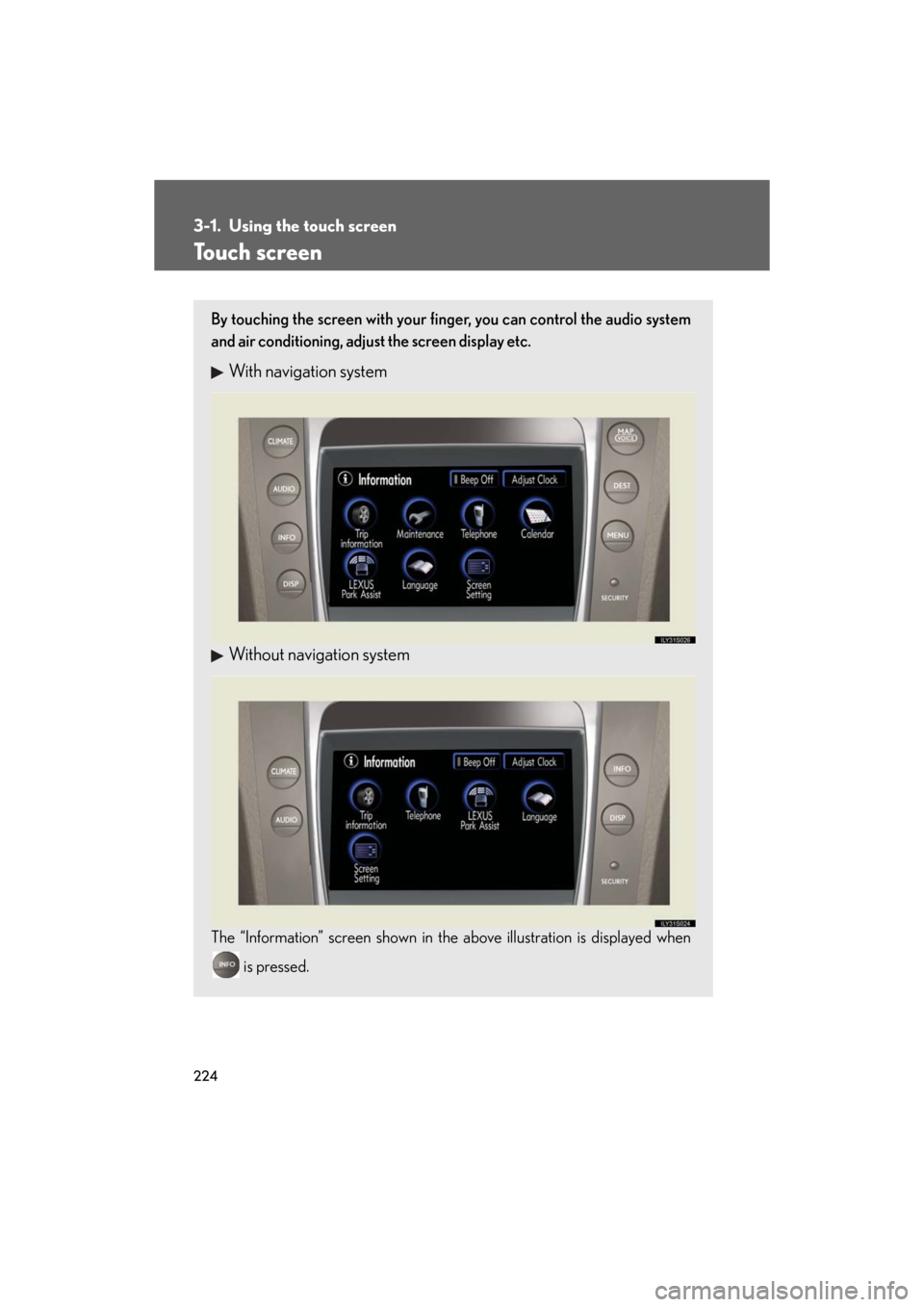

3-1. Using the touch screen
Touch screen
By touching the screen with your finger, you can control the audio system
and air conditioning, adjust the screen display etc.
With navigation system
Without navigation system
The “Information” screen shown in the above illustration is displayed when
is pressed.

225
3-1. Using the touch screen
3
Interior features
GS_HV_U
December 12, 2007 3:50 pm
SwitchesPa g e
“CLIMATE”P. 2 3 2
“A U D I O ”P. 2 4 1
“INFO” (Displaying the “Informa-
tion” screen)P. 2 2 4
“DISP” (Adjusting the display)P. 2 2 8
Trip Information (Displaying the
“Energy Monitor/Consumption”
screen)
P. 2 7
MaintenanceNavigation System Owner’s Manual
Te l e p h o n eP. 3 1 1
CalendarNavigation System Owner’s Manual
“LEXUS Park Assist”P. 1 8 9
LanguageP. 2 2 7
Screen SettingP. 2 3 0
Beep OffP. 2 2 7
Adjust ClockP. 3 6 4 /
Navigation System Owner’s Manual

230
3-1. Using the touch screen
GS_HV_U
December 12, 2007 3:50 pm
Screen settingsPress .
Touch on the “Information” screen.
The following screen se ttings can be changed.
Automatic transition
20 seconds after air conditioning
or audio system use, the system will
return the display to the previous
screen.
Switch color
You can select the switch color.
Delete personal data
The following personal data is
deleted:
• User selection settings
•Phone book data
• Dialed numbers and received calls
•Speed dial
• Bluetooth
® phone data
•Security code
• Maintenance conditions*
• Maintenance information off setting*
•Memory points*
•Areas to avoid*
• Previous points*
• Route trace*
*: If the navigation system is equipped
STEP1
STEP2

232
GS_HV_U
December 12, 2007 3:30 pm
3-2. Using the air conditioning system and defogger
Automatic air conditioning system
Airflow and outlets are automatically adjusted according to the tempera-
ture setting.
Press
to display the air conditioning operation screen.
The above illustration is for a vehicle equipped with th e navigation sys-
tem. The position of is slightly different for vehicles not equipped
with the navigation system.
Automatic mode
Driver’s side 
temperature display
Fan speed display
Off Airflow display
Air conditioning operation
screen display button
Passenger’s side 
temperature 
display
Micro dust and pollen filter
Driver’s side

temperature control
Air conditioning

ON/OFF switch
Outside air or recirculated mode
Windshield defogger Passenger’s side 
temperature control
Dual operation switch

241
3
Interior features
GS_HV_U
December 13, 2007 10:50 am
3-3. Using the audio system
Audio system type
CD and (optional) DVD player with changer, cassette player, and AM/FM
radio 
This illustration below is for a ve hicle equipped with the DVD player.
The audio system appearance and scr een may differ slightly for vehi-
cles not equipped with the DVD play er. In addition, the position of
is slightly different for vehicles not equipped with the navigation sys-
tem.

320
3-4. Using the hands-free system (for cellular phone)
GS_HV_U
December 13, 2007 10:51 am
■Calling using POI
You can make a call using a Point Of Interest. ( “Navigation System
Owner’s Manual”)
■Made/Received call history list
●If you make a call to or receive a call from a number registered in the phone
book, the name is displayed in the call history.
●If you make multiple calls to the same number, only the last call made is dis-
played in the made calls history.
● is displayed to the left of phone number for unanswered calls.
● is displayed to the left of the phone number for refused calls.
●Calls where the number is unavailable, such as public telephones, are not stored
in the call history.
■When driving
●The functions “Dialing”, “Dialing from the phone book”, and “Dialing from his-
tory” are unavailable.
●If you press on the steering wheel, th e “Speed Dial” screen is displayed. At
this time phone numbers will not be displayed. Choose from the names dis-
played to make a call.
■International calls
You may not be able to make international calls, depending on the mobile phone in
use.

364
3-7. Other interior features
GS_HV_U
December 13, 2007 10:51 am
Clock
■The clock is displayed when
The “POWER” switch is in ACCESSORY or ON mode.
■When the 12 volt battery is disconnected
The time display will automatically be set to 1:00.
■Adjust clock
With navigation system 
 “Navigation System Owner’s Manual”.
Without navigation system 
Perform the following steps.
Press .
To u c h . Adjust hours.
Adjust minutes.
Round the nearest hour.
Turn daylight saving time on.
Turn daylight saving time off.
After setting, touch .
STEP1
STEP2
STEP3
