display Lexus GS450h 2008 Owner's Manual

502
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Wa r n i n g m e s s a g eDetails
(If equipped)
Intuitive parking assist malfunction.The malfunctioning sensor is shown flashing on the
display.
(If equipped)
Malfunction in the active stabilizer suspension sys-
tem.
(If equipped)
Malfunction in the PCS.
(Flashing)
(If equipped)
Malfunction in the radar cruise control system. Stop the vehicle in a safe place. Turn the “POWER”
switch to OFF and then to ON mode again to reset
the cruise control system.
GS450h_HV_U.book Page 502 Thursday, June 19, 2008 1:44 PM

504
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Have the vehicle inspected immediately.Failing to investigate the cause of the following warning may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
*: Electronically Controlled Brake System
Wa r n i n g m e s s a g eDetails
Malfunction in the TRAC, VSC or hill-start assist con-
trol system. “CHECK ECB
*” may be displayed at the same time,
or on its own.
(U.S.A.)
(Canada)
Malfunction in the ABS or brake assist system.
“CHECK ECB*” may be displayed at the same time,
or on its own.
Malfunction in the VGRS.
(If equipped, steering guide symbol and
arrows are flashing)
The steering sensor cable is broken and signals can-
not be received.
GS450h_HV_U.book Page 504 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
505
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

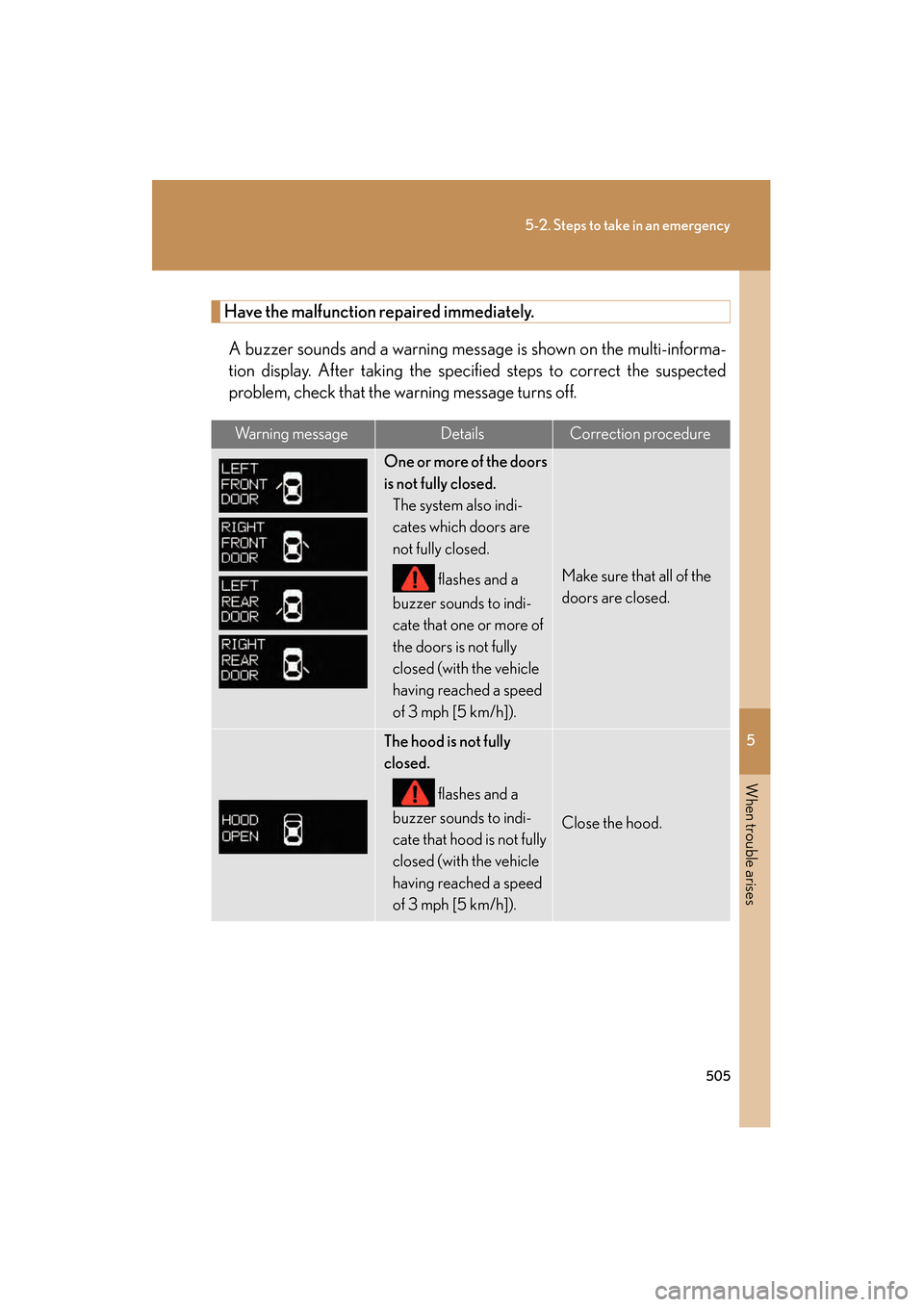

Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
One or more of the doors
is not fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
The hood is not fully
closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.
GS450h_HV_U.book Page 505 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
511
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

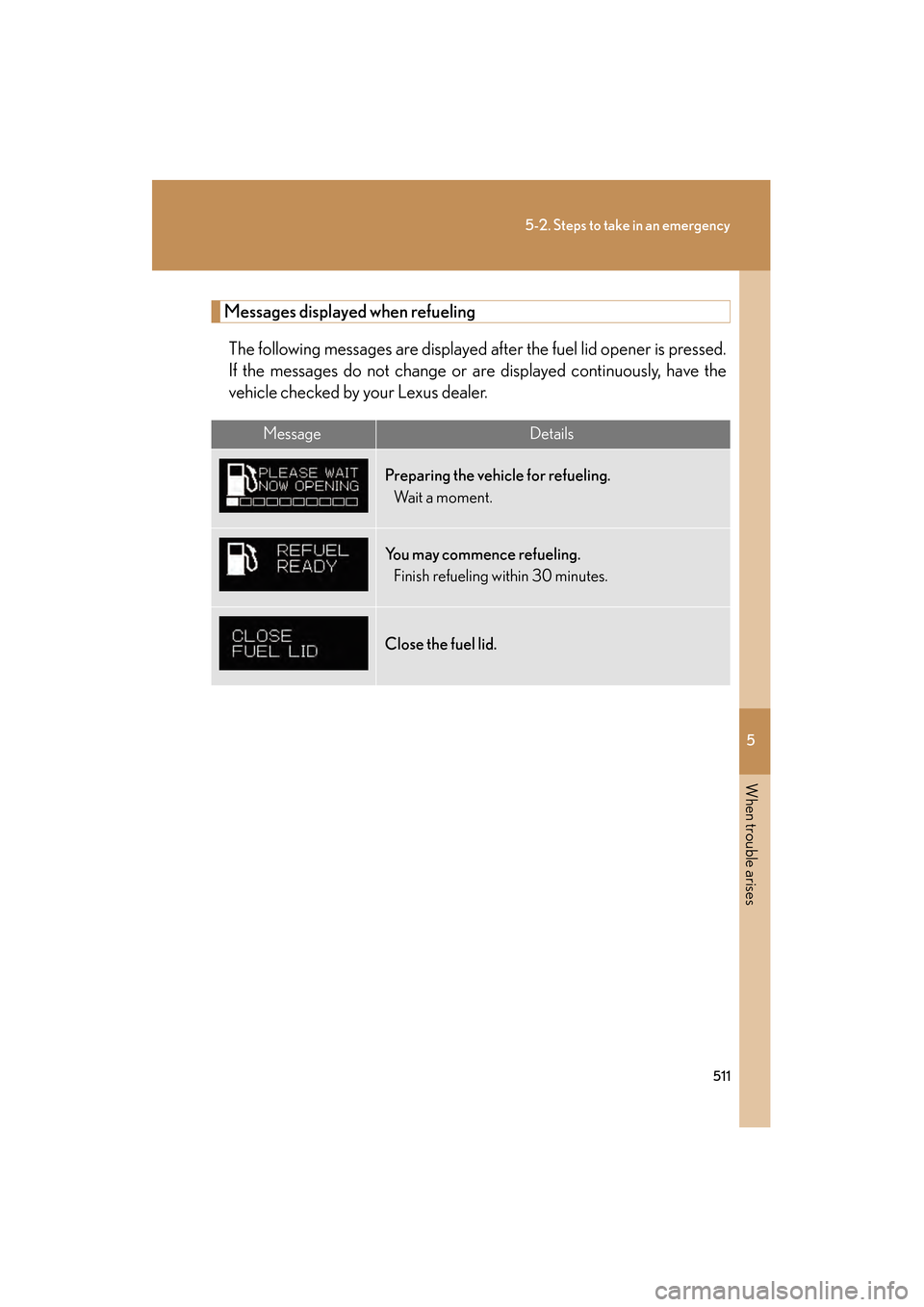

Messages displayed when refuelingThe following messages are displayed after the fuel lid opener is pressed.
If the messages do not change or are displayed continuously, have the
vehicle checked by your Lexus dealer.
MessageDetails
Preparing the vehicle for refueling. Wait a moment.
You may commence refueling.Finish refueling within 30 minutes.
Close the fuel lid.
GS450h_HV_U.book Page 511 Thursday, June 19, 2008 1:44 PM

512
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
(If equipped)
Calibrate the neutral position of the steering wheel.
■Initializing the steering sensor
Use one of the following methods.
●With the vehicle stopped, turn the steering wheel all the way to the left and right.
(The order is not important.)
●Drive for more than 5 minute on an un-crowded road with as few curves and
corners as possible.
If the steering guide symbol disappears, the steering sensor has been initialized. If
the steering guide symbol does not disappear, have the vehicle checked by your
Lexus dealer.
GS450h_HV_U.book Page 512 Thursday, June 19, 2008 1:44 PM

514
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“POWER” switch
is in ACCES-
SORY or ON
mode with the
shift lever in “P”.
Tu r n t h e
“POWER”
switch to
OFF or con-
firm the
location of
the elec-
tronic key.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“POWER” switch
is in ACCES-
SORY or ON
mode with the
shift lever not in
“P”.
•Shift the shift lever
to “P”.
•Confirm the loca-
tion of the
electronic
key.
GS450h_HV_U.book Page 514 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
539
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
●The message “HYBRID SYSTEM OVERHEAT” is displayed on the multi-infor-
mation display.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the hybrid
system is running.
●Do not loosen the radiator cap while the hybrid system and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add coolant if necessary.
Water can be used in an emer-
gency measure if coolant is
unavailable. (→P. 5 4 8 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6
GS450h_HV_U.book Page 539 Thursday, June 19, 2008 1:44 PM

574
6-2. Customization
GS_HV_U
June 19, 2008 1:15 pm

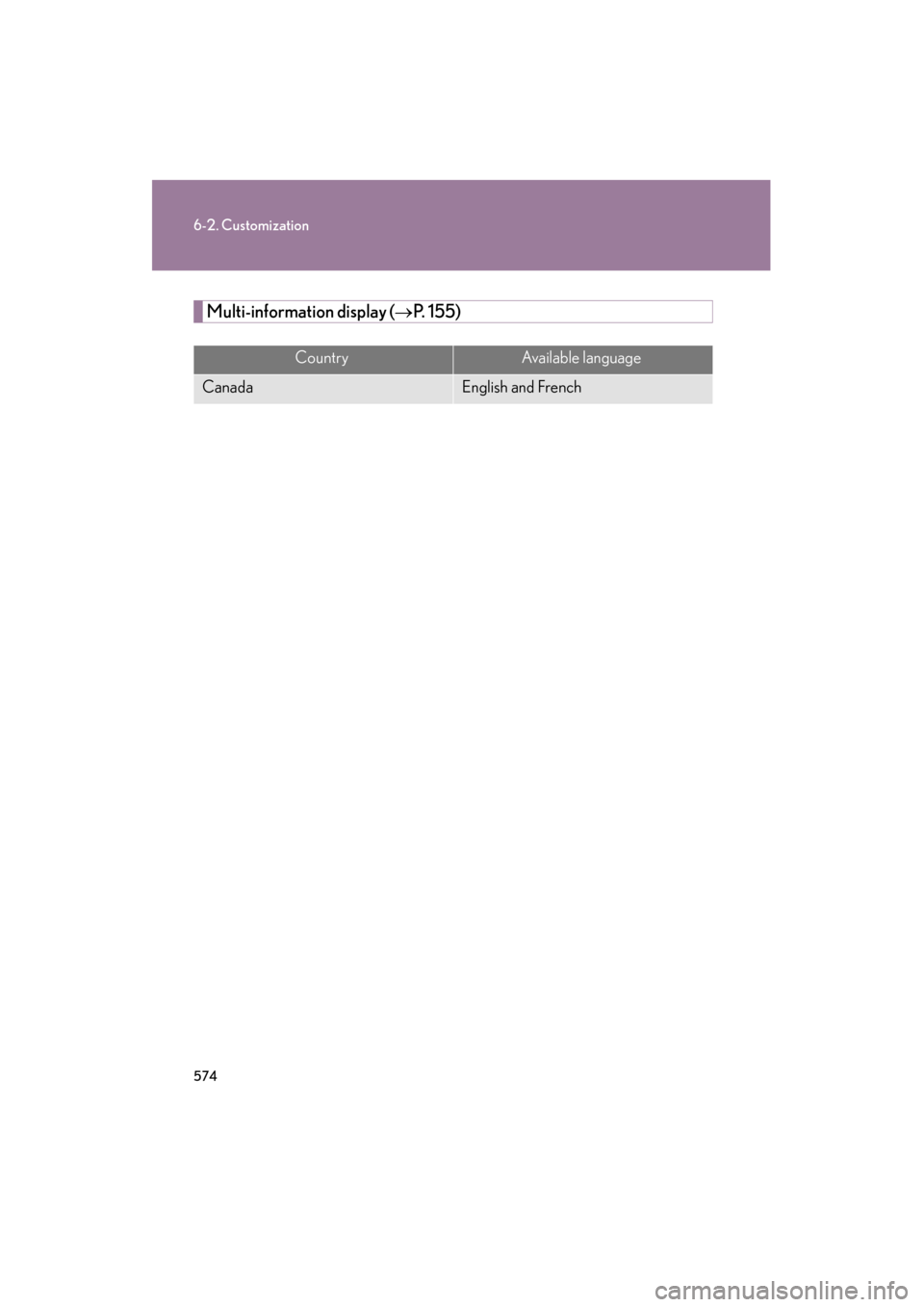

Multi-information display (→P. 155)
CountryAvailable language
CanadaEnglish and French
GS450h_HV_U.book Page 574 Thursday, June 19, 2008 1:44 PM

582
GS_HV_U
December 12, 2007 3:30 pm

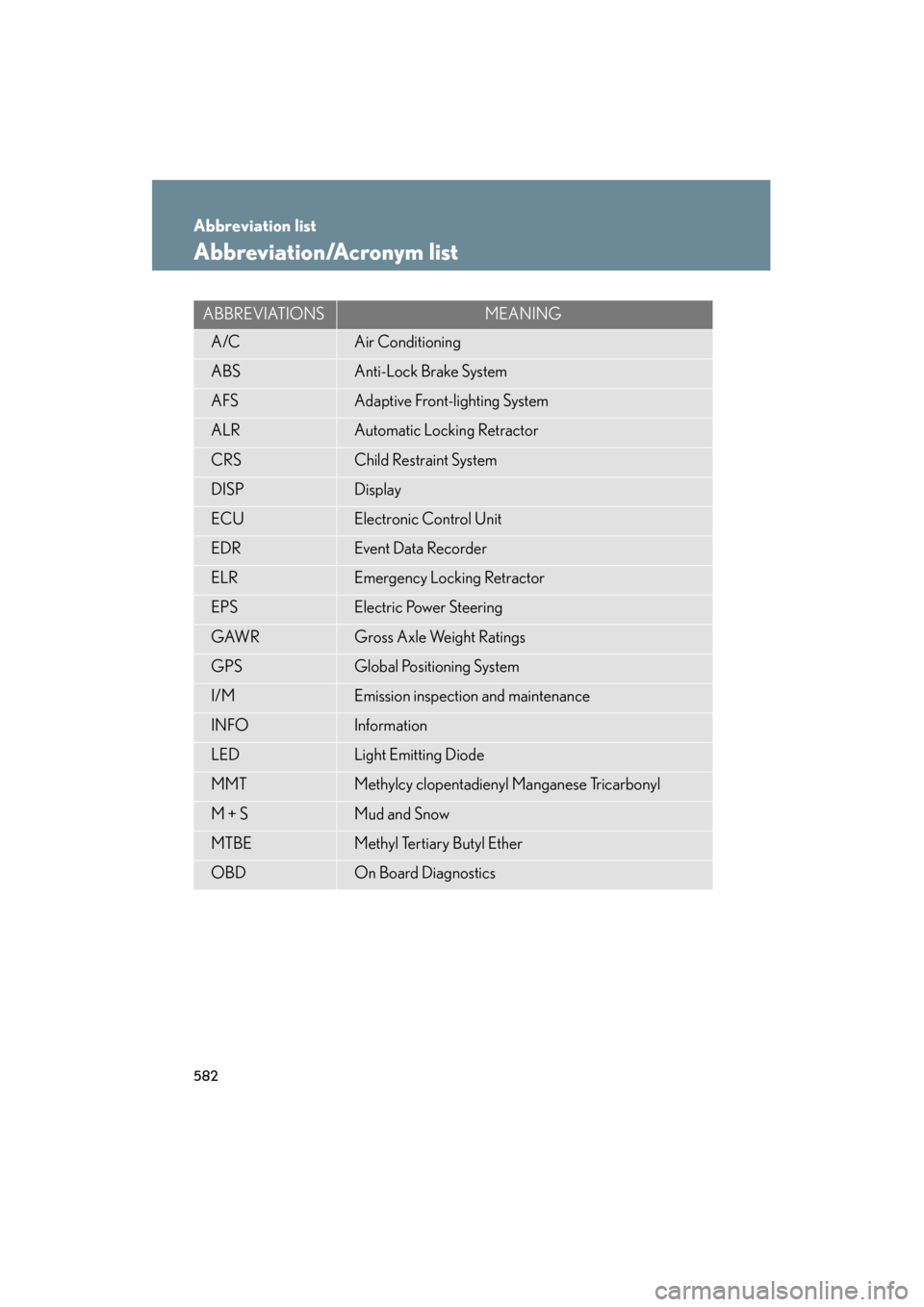

Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/CAir Conditioning
ABSAnti-Lock Brake System
AFSAdaptive Front-lighting System
ALRAutomatic Locking Retractor
CRSChild Restraint System
DISPDisplay
ECUElectronic Control Unit
EDREvent Data Recorder
ELREmergency Locking Retractor
EPSElectric Power Steering
GAWRGross Axle Weight Ratings
GPSGlobal Positioning System
I/MEmission inspection and maintenance
INFOInformation
LEDLight Emitting Diode
MMTMethylcy clopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
GS450h_HV_U.book Page 582 Thursday, June 19, 2008 1:44 PM

585
Alphabetical index
GS_HV_U
June 19, 2008 1:15 pm
CareExterior ................................................... 402
Interior.....................................................405
Seat belts ...............................................406
Cargo capacity ....................................... 210
Cargo hooks ...........................................375
CD player/changer .............................257
Chains......................................................... 216
Child-protectors ....................................... 51
Child restraint system Definition....................................................113
Installation.................................................. 117
Installing CRS with lower anchors ................................................... 121
Installing CRS with seatbelts .......... 118
Installing CRS with top straps ....... 123
Child safety Airbag precautions ............................102
Battery precautions.............. 432, 537
Child restraint system ......................... 113
Child-protectors..................................... 51
How your child should wear
the seatbelt ........................................... 69
Installing child restraints ..................... 117
Moon roof precautions ..................... 82
Power window lock switch .............. 77
Power window precautions.............79
Removed electronic key battery
precautions ....................................... 455
Seat belt comfort guide......................67
Seat belt precautions.......................... 70
Seat heater precautions ................ 370
Trunk precautions .................................57
Cigarette lighter ....................................367 Cleaning
Exterior....................................................402
Interior .................................................... 405
Seat belts ............................................... 406
Clock ......................................................... 364
Coin holder .............................................360
Compass ................................................. 383
Condenser ..............................................428
Console box ........................................... 357
Cooling system Engine overheating.......................... 538
Cruise control
Cruise control....................................... 166
Dynamic radar cruise control....... 169
Cup holders ............................................360
Curtain shield airbags............................ 95
Customizable features .......................569
Daytime running light system ........... 159
Defogger Rear window ........................................240
Side mirror.............................................240
Dimension................................................ 544
Dinghy towing ..........................................221
Display Energy flow .............................................. 27
Multi-information display ................ 155
Touch screen ....................................... 224
Trip information ................................... 156
Warning message............................ 500
Do-it-yourself maintenance .............. 414
Door courtesy lights ............................352
Door pocket............................................. 361C
D
GS450h_HV_U.book Page 585 Thursday, June 19, 2008 1:44 PM
