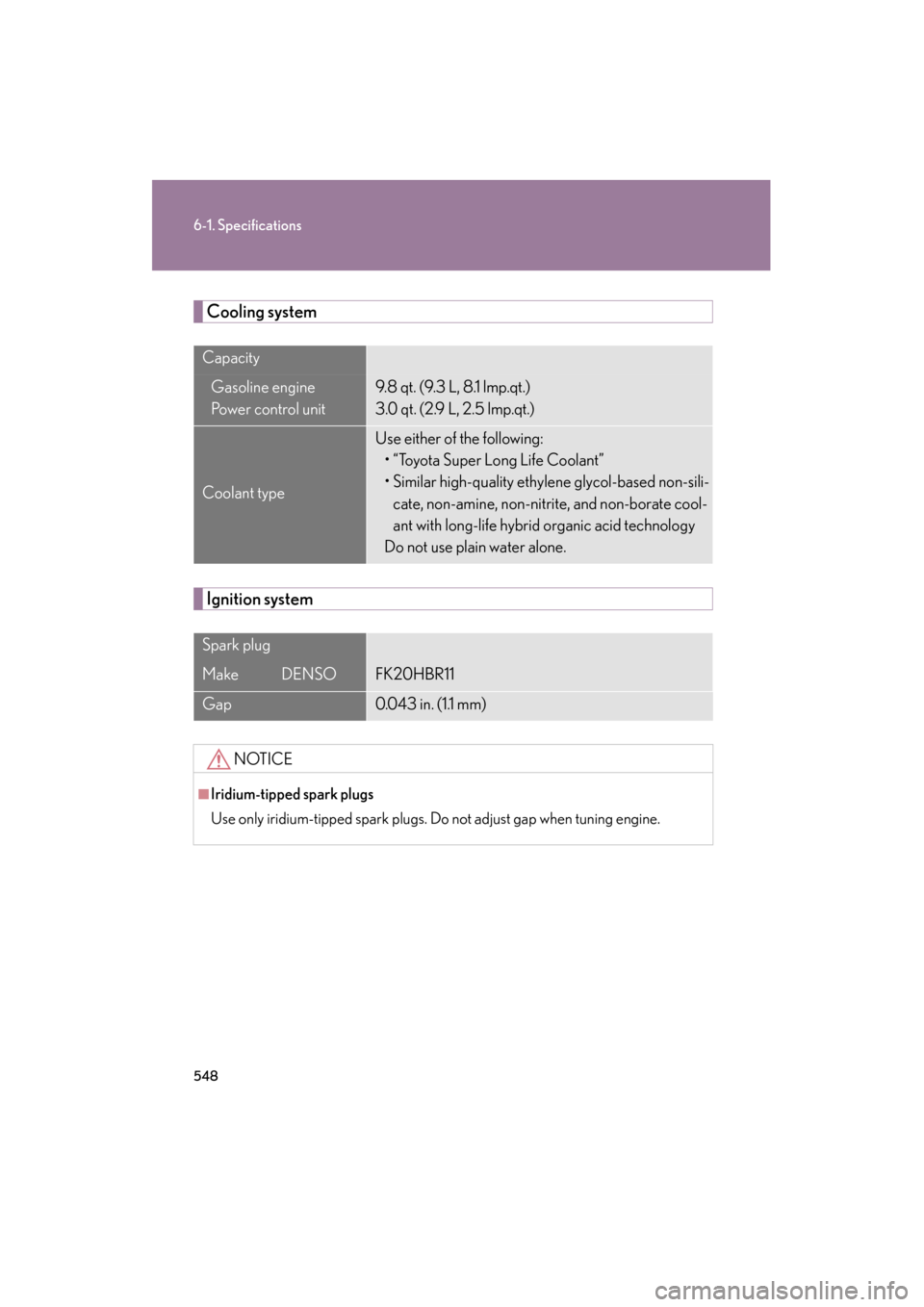

548
6-1. Specifications
GS_HV_U
June 19, 2008 1:15 pm
Cooling system
Ignition system
Capacity
Gasoline engine
Po w e r c o n t ro l u n i t9.8 qt. (9.3 L, 8.1 lmp.qt.)
3.0 qt. (2.9 L, 2.5 lmp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSOFK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
GS450h_HV_U.book Page 548 Thursday, June 19, 2008 1:44 PM

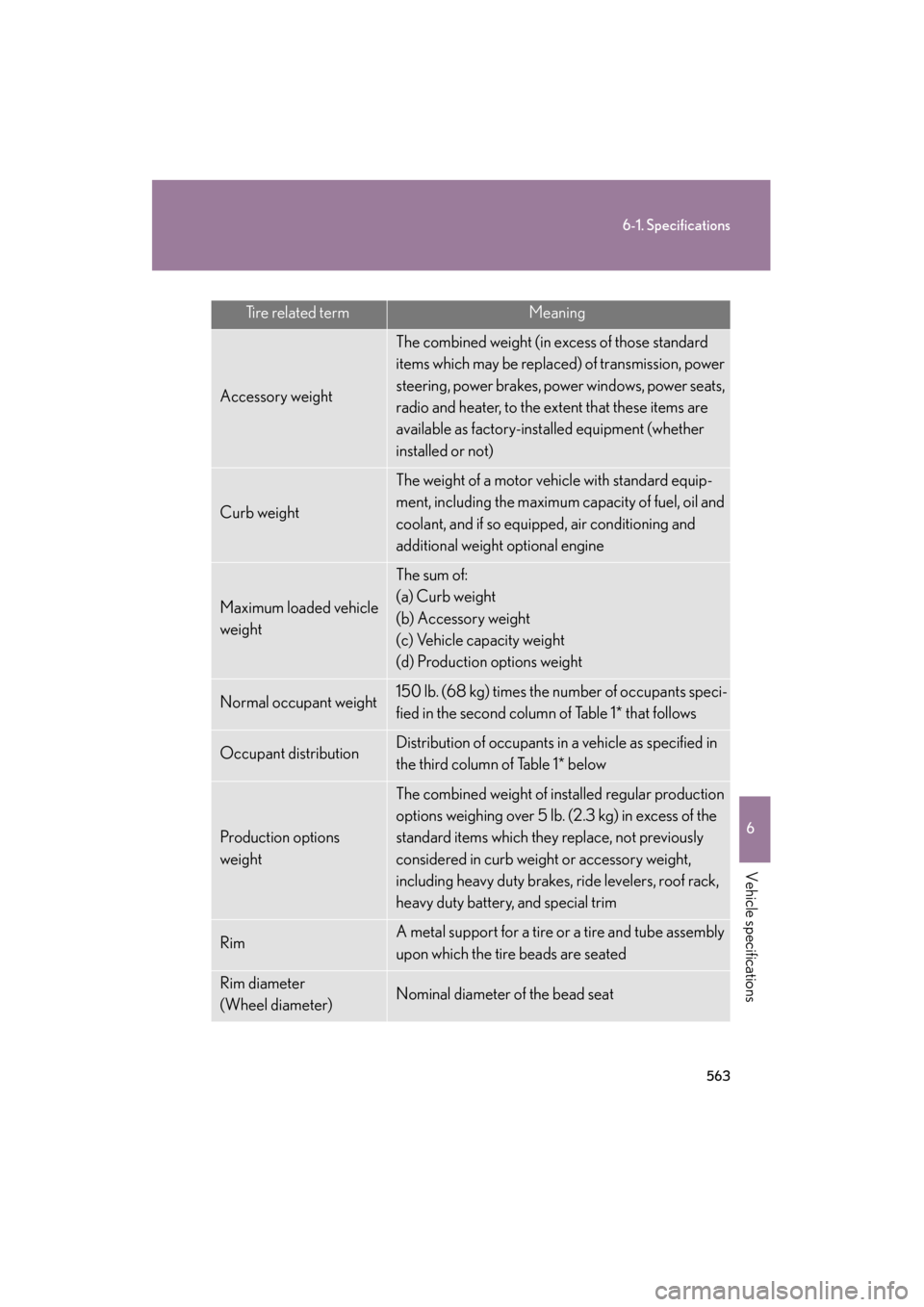

563
6-1. Specifications
6
Vehicle specifications
GS_HV_U
June 19, 2008 1:15 pm
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of transmission, power
steering, power brakes, power windows, power seats,
radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1* below
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
GS450h_HV_U.book Page 563 Thursday, June 19, 2008 1:44 PM

586
Alphabetical index
GS_HV_U
June 19, 2008 1:15 pm
DoorsDoor lock................................ 35, 47, 50
Rear door child protector .................. 51
Driver’s seat belt reminder light .....493
Driver’s seat position memory ...........60
Driving
Correct posture .................................... 93
Procedures .............................................128
DVD player/changer.......................... 266
Electric power steering ..................... 200
Electronic key If the electronic key does not operate properly ......................531
Replacing battery .............................. 454
Emergency, in case of
If a warning light turns on ................ 491
If a warning message is displayed ........................................... 500
If the electronic key does
not operate properly ......................531
If the hybrid system
will not start .......................................528
If the shift lever cannot be
shifted from “P”................................ 529
If the 12 volt battery is
discharged ....................................... 534
If you have a flat tire ............... 517, 527
If you lose your keys.........................530
If you think something is
wrong .................................................. 488
If your vehicle becomes stuck.......541
If your vehicle needs to be towed ................................................... 482
If your vehicle overheats ................538
Energy monitor......................................... 27 Engine
ACCESSORY mode .....................139
Compartment ..................................... 420
Hood ......................................................... 417
How to start the hybrid system..................................... 138
If the hybrid system will not start ....................................... 528
Overheating ........................................ 538
Power (ignition) switch .................... 138
Engine compartment cover ...............421
Engine coolant temperature gauge ...................................................... 148
Engine/power control unit coolant
Capacity ................................................ 548
Checking................................................ 427
Preparing and checking before winter...................................... 215
Engine oil Capacity .................................................547
Checking................................................ 422
Preparing and checking
before winter...................................... 215
Engine oil maintenance data ........... 425
Event data recorder ............................ 489
First-aid kit storage belt ..................... 375
Floor mats ................................................ 374
Fluid Brake ........................................................429
Washer....................................................434
Fog lights
Switch .......................................................... 161
Wattage ................................................. 552
Foot light .................................................. 352
E
F
GS450h_HV_U.book Page 586 Thursday, June 19, 2008 1:44 PM

594
GS_HV_U
June 19, 2008 1:15 pm
What to do if...
What to do if...
A tire puncturesP. 5 1 7 /527If you have a flat tire
The hybrid system does not start
P. 8 8Immobilizer system
P. 5 2 8If the hybrid system will not start
P. 5 3 4If the 12 volt battery is discharged
The shift lever cannot be
moved outP. 5 2 9If the shift lever cannot be shifted
from “P”
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 5 3 8If your vehicle overheats
The key is lostP. 5 3 0If you lose your keys
The battery runs outP. 5 3 4If the 12 volt battery is discharged
The doors cannot be lockedP. 5 0Doors
The horn begins to soundP. 9 0Alarm
The vehicle is stuck in mud or
sandP. 5 4 1If the vehicle becomes stuck
