key Lexus GS450h 2008 User Guide

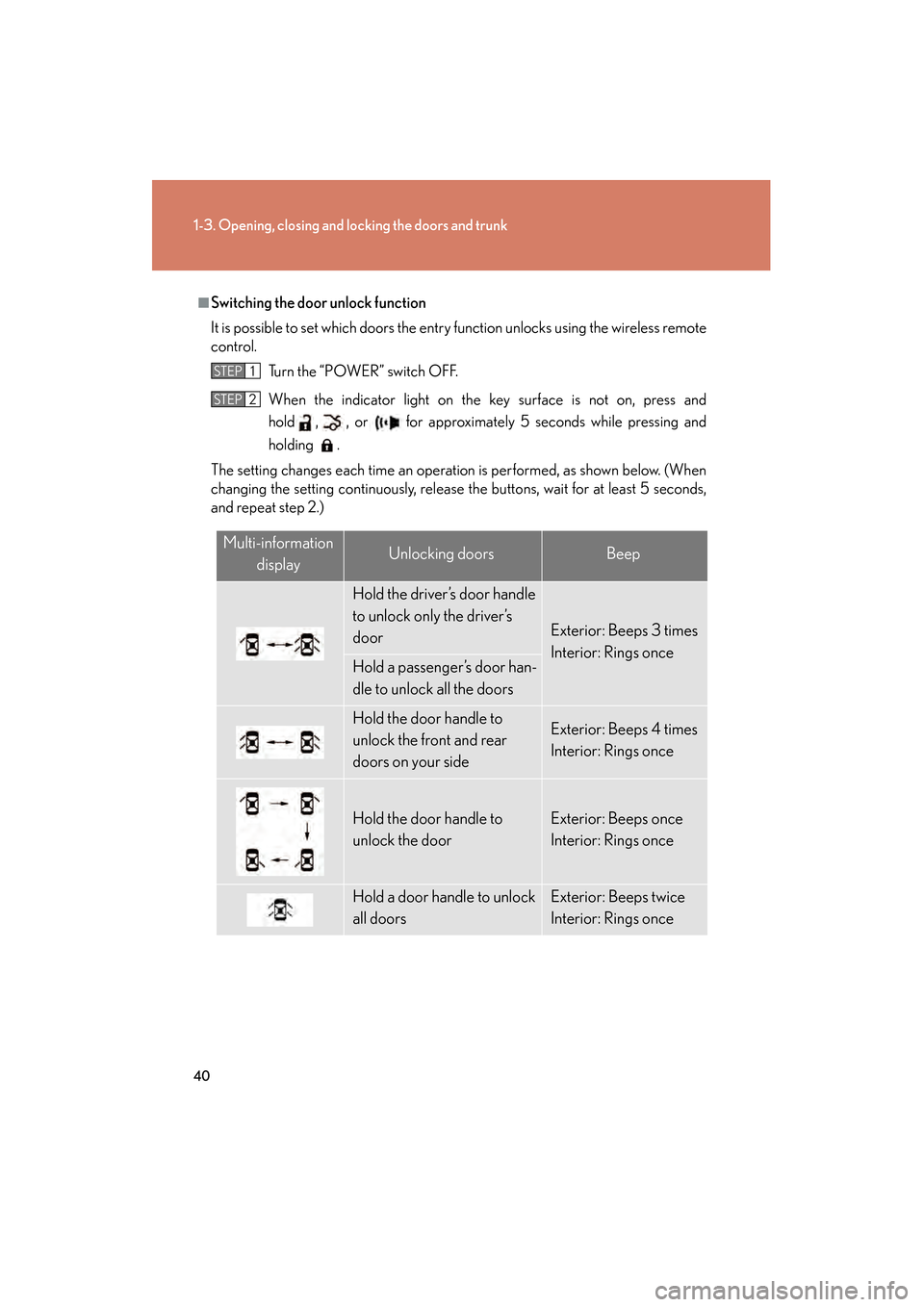

40
1-3. Opening, closing and locking the doors and trunk
GS_HV_U
June 19, 2008 1:15 pm
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote
control. Turn the “POWER” switch OFF.
When the indicator light on the key surface is not on, press and
hold , , or for approximately 5 seconds while pressing and
holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
STEP1
STEP2
Multi-information displayUnlocking doorsBeep
Hold the driver’s door handle
to unlock only the driver’s
door
Exterior: Beeps 3 times
Interior: Rings once
Hold a passenger’s door han-
dle to unlock all the doors
Hold the door handle to
unlock the front and rear
doors on your sideExterior: Beeps 4 times
Interior: Rings once
Hold the door handle to
unlock the doorExterior: Beeps once
Interior: Rings once
Hold a door handle to unlock
all doorsExterior: Beeps twice
Interior: Rings once
GS450h_HV_U.book Page 40 Thursday, June 19, 2008 1:44 PM

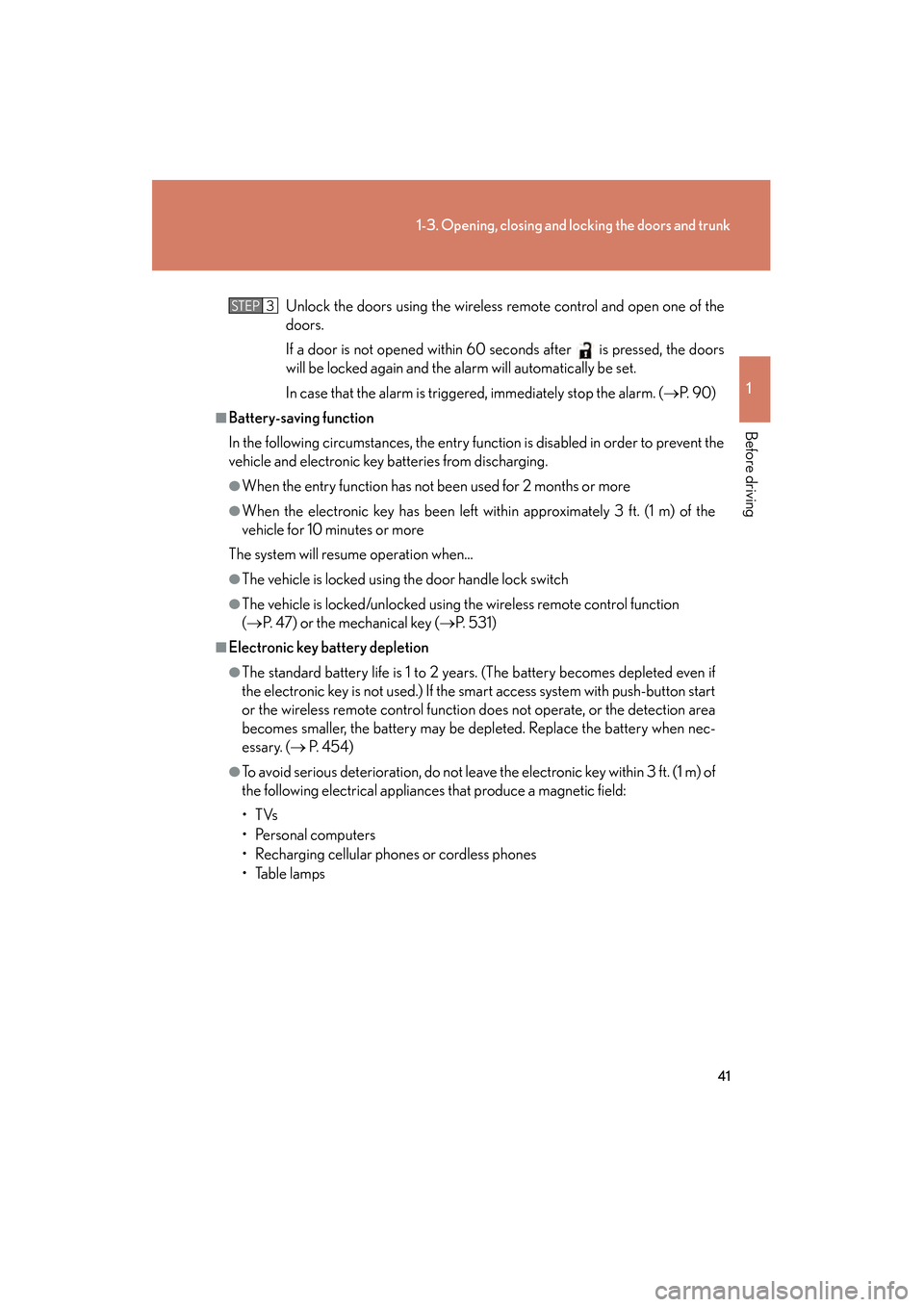

41
1-3. Opening, closing and locking the doors and trunk
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
Unlock the doors using the wireless remote control and open one of the
doors.
If a door is not opened within 60 seconds after is pressed, the doors
will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm. (→P. 9 0 )
■Battery-saving function
In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 2 months or more
●When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when...
●The vehicle is locked using the door handle lock switch
●The vehicle is locked/unlocked using the wireless remote control function
( → P. 47) or the mechanical key ( →P. 5 3 1 )
■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The battery becomes depleted even if
the electronic key is not used.) If the smart access system with push-button start
or the wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary. ( → P. 4 5 4 )
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
STEP3
GS450h_HV_U.book Page 41 Thursday, June 19, 2008 1:44 PM

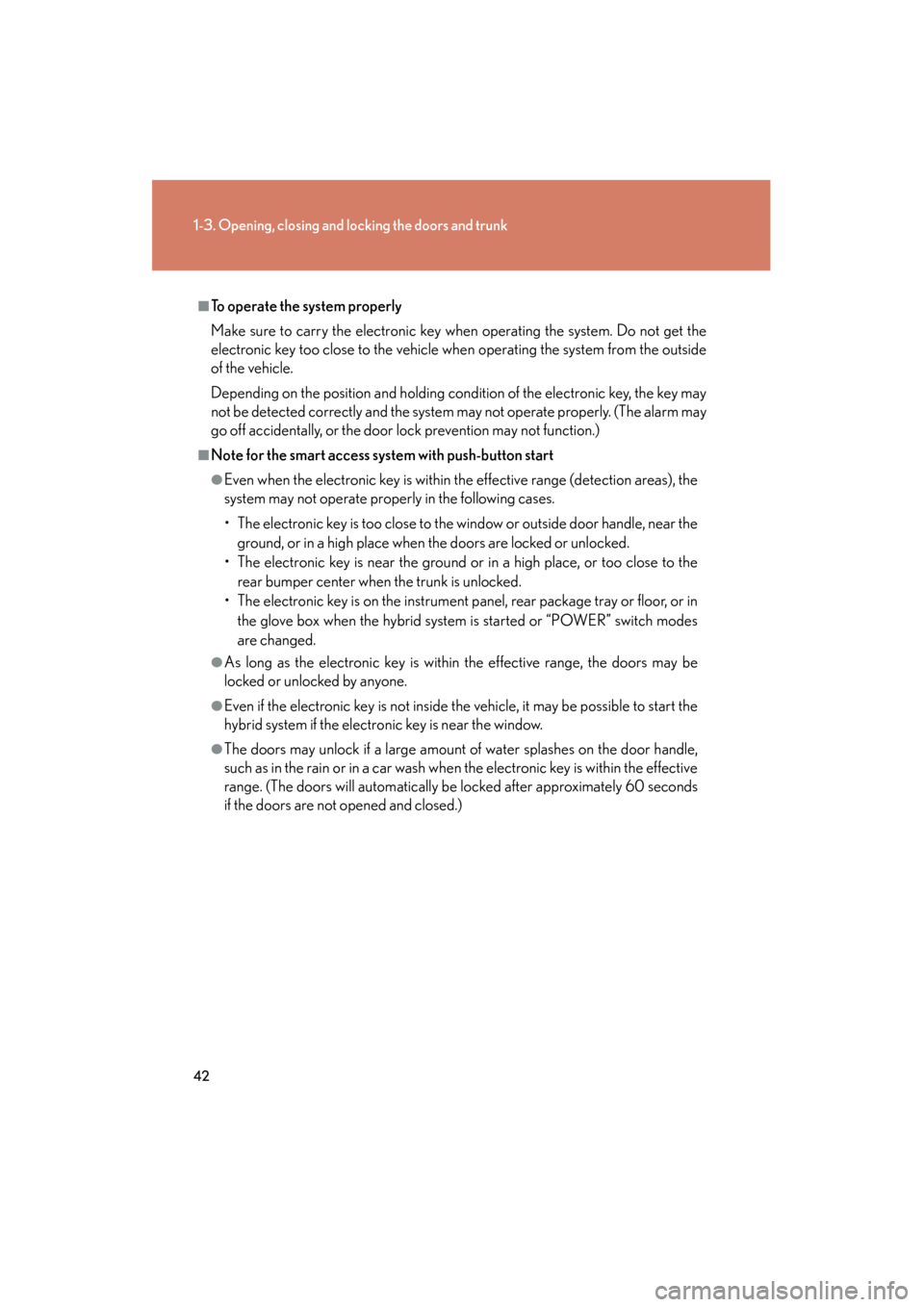

42
1-3. Opening, closing and locking the doors and trunk
GS_HV_U
June 19, 2008 1:15 pm
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
■Note for the smart access system with push-button start
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near theground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in
the glove box when the hybrid system is started or “POWER” switch modes
are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start the
hybrid system if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash when the electronic key is within the effective
range. (The doors will automatically be locked after approximately 60 seconds
if the doors are not opened and closed.)
GS450h_HV_U.book Page 42 Thursday, June 19, 2008 1:44 PM

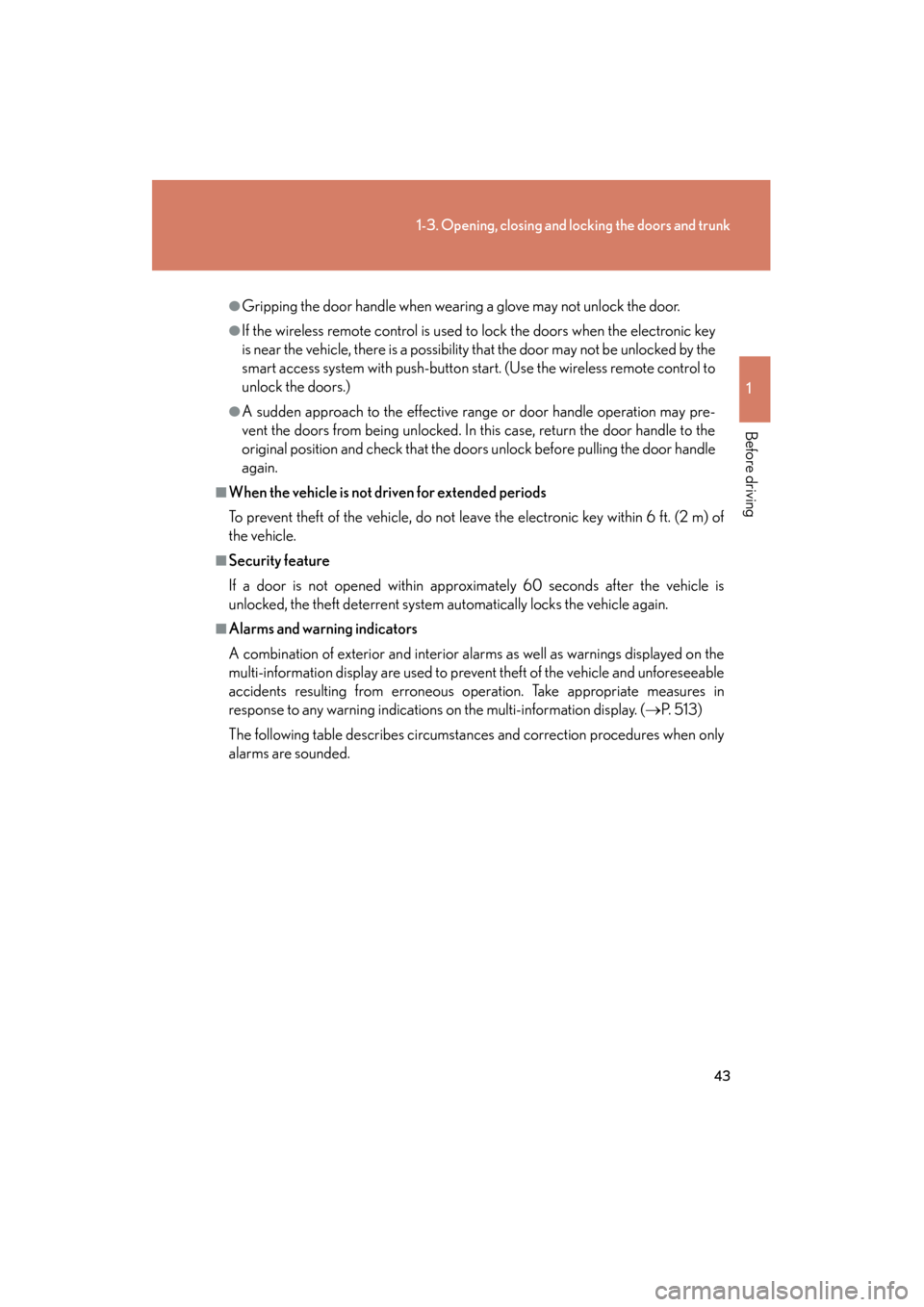

43
1-3. Opening, closing and locking the doors and trunk
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
smart access system with push-button start. (Use the wireless remote control to
unlock the doors.)
●A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door handle
again.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the theft deterrent system au tomatically locks the vehicle again.
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. ( →P. 5 1 3 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
GS450h_HV_U.book Page 43 Thursday, June 19, 2008 1:44 PM

44
1-3. Opening, closing and locking the doors and trunk
GS_HV_U
June 19, 2008 1:15 pm

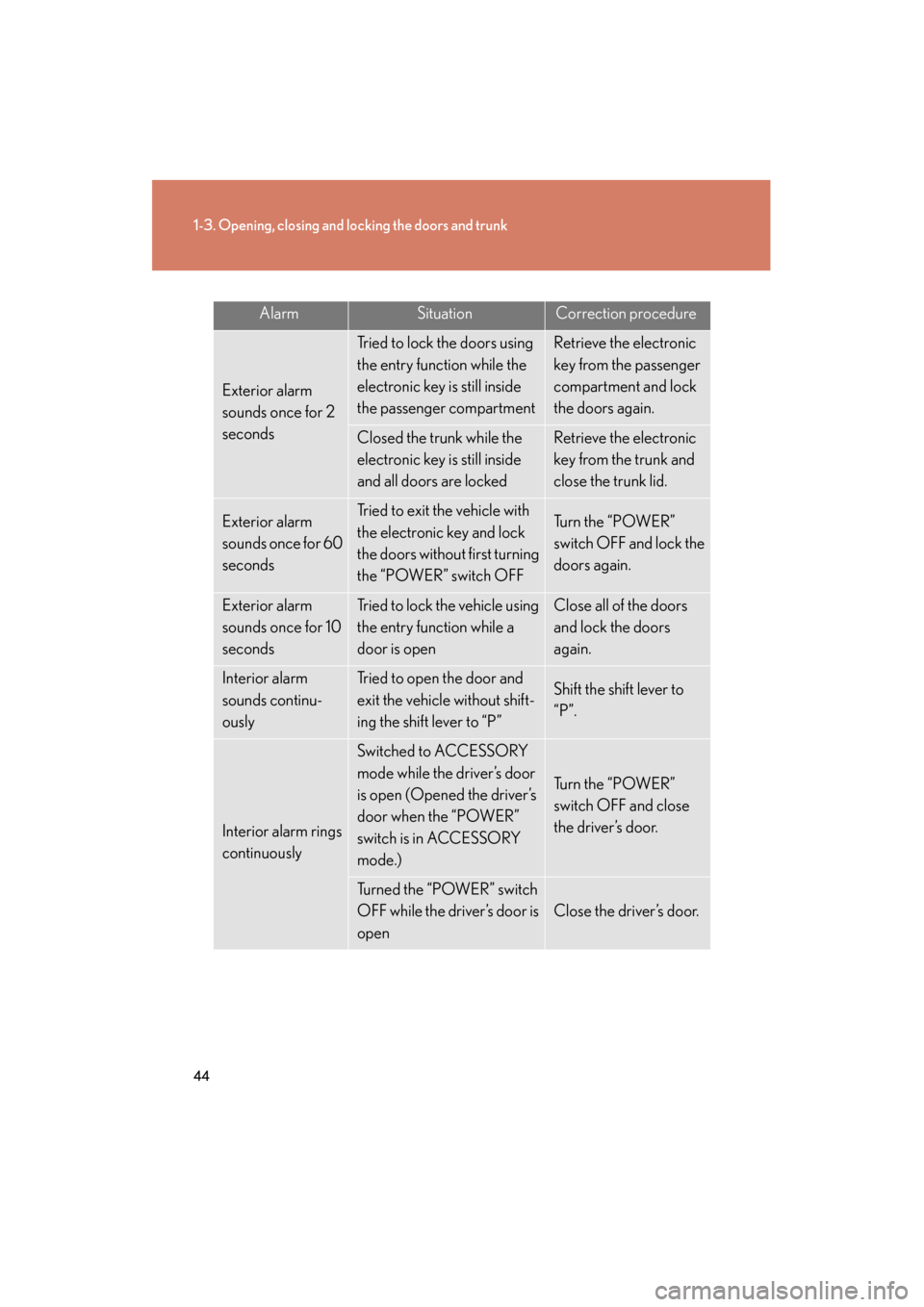

AlarmSituationCorrection procedure
Exterior alarm
sounds once for 2
seconds
Tried to lock the doors using
the entry function while the
electronic key is still inside
the passenger compartmentRetrieve the electronic
key from the passenger
compartment and lock
the doors again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic
key from the trunk and
close the trunk lid.
Exterior alarm
sounds once for 60
secondsTried to exit the vehicle with
the electronic key and lock
the doors without first turning
the “POWER” switch OFFTurn the “POWER”
switch OFF and lock the
doors again.
Exterior alarm
sounds once for 10
secondsTried to lock the vehicle using
the entry function while a
door is openClose all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ouslyTried to open the door and
exit the vehicle without shift-
ing the shift lever to “P”Shift the shift lever to
“P”.
Interior alarm rings
continuously
Switched to ACCESSORY
mode while the driver’s door
is open (Opened the driver’s
door when the “POWER”
switch is in ACCESSORY
mode.)
Turn the “POWER”
switch OFF and close
the driver’s door.
Turned the “POWER” switch
OFF while the driver’s door is
open
Close the driver’s door.
GS450h_HV_U.book Page 44 Thursday, June 19, 2008 1:44 PM

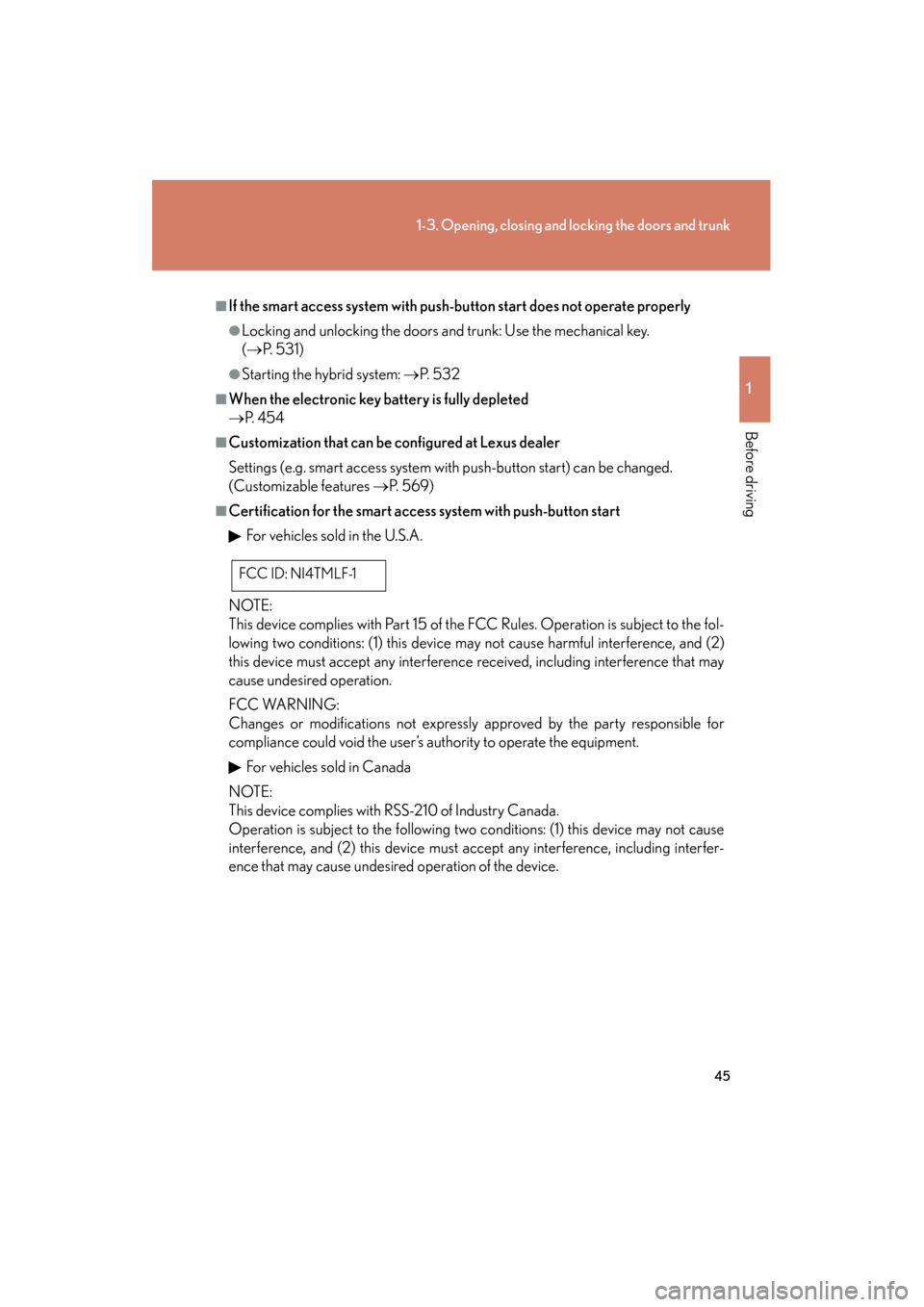

45
1-3. Opening, closing and locking the doors and trunk
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■If the smart access system with push-button start does not operate properly
●Locking and unlocking the doors and trunk: Use the mechanical key.
(→ P. 5 3 1 )
●Starting the hybrid system: →P. 5 3 2
■When the electronic key battery is fully depleted
→P. 4 5 4
■Customization that can be configured at Lexus dealer
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features →P. 5 6 9 )
■Certification for the smart access system with push-button start
For vehicles sold in the U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada
NOTE:
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
FCC ID: NI4TMLF-1
GS450h_HV_U.book Page 45 Thursday, June 19, 2008 1:44 PM

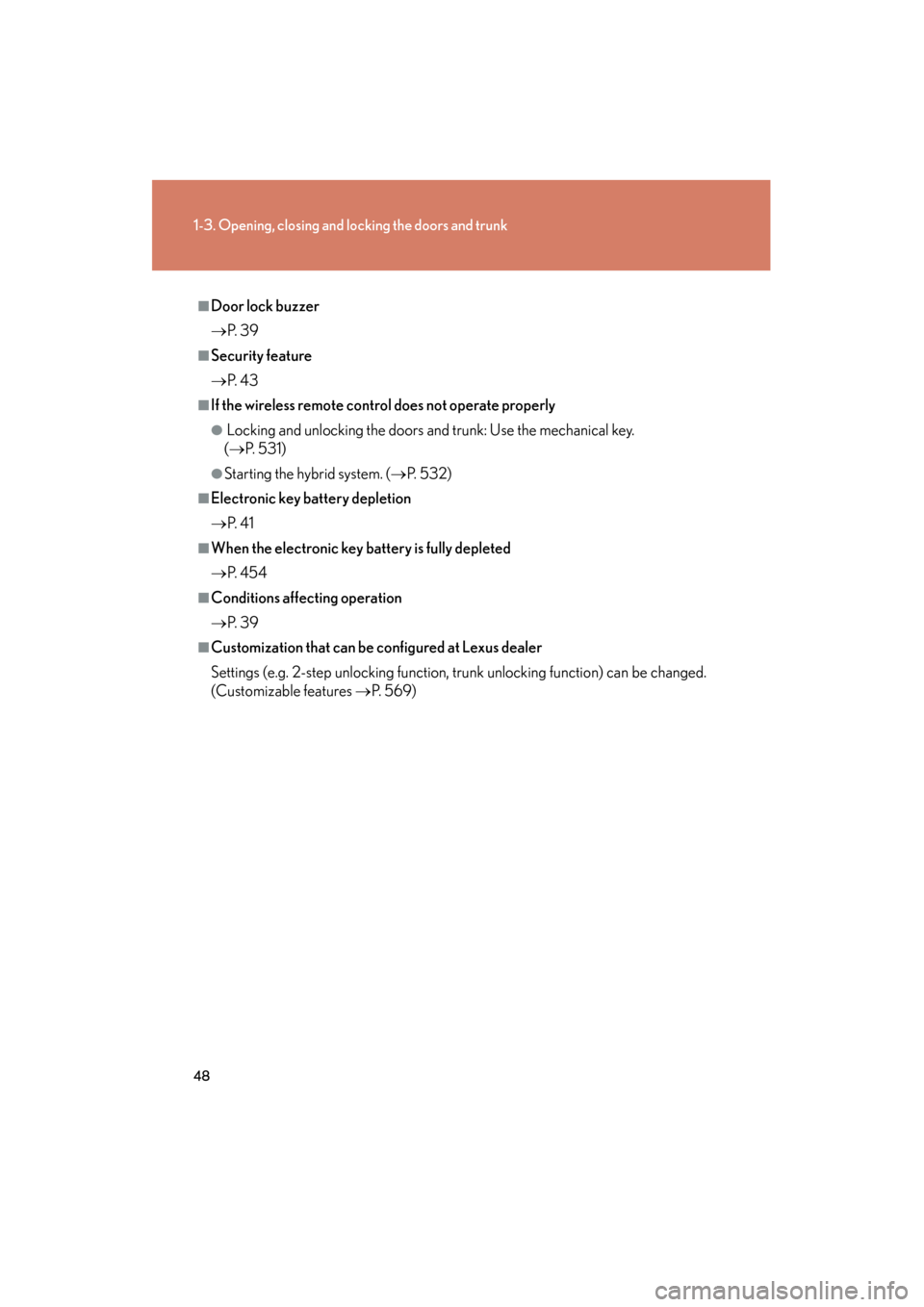

48
1-3. Opening, closing and locking the doors and trunk
GS_HV_U
June 19, 2008 1:15 pm
■Door lock buzzer
→P. 3 9
■Security feature
→P. 4 3
■If the wireless remote control does not operate properly
● Locking and unlocking the doors and trunk: Use the mechanical key.
(→ P. 5 3 1 )
●Starting the hybrid system. ( →P. 5 3 2 )
■Electronic key battery depletion
→P. 4 1
■When the electronic key battery is fully depleted
→P. 4 5 4
■Conditions affecting operation
→P. 3 9
■Customization that can be configured at Lexus dealer
Settings (e.g. 2-step unlocking function, trunk unlocking function) can be changed.
(Customizable features →P. 5 6 9 )
GS450h_HV_U.book Page 48 Thursday, June 19, 2008 1:44 PM

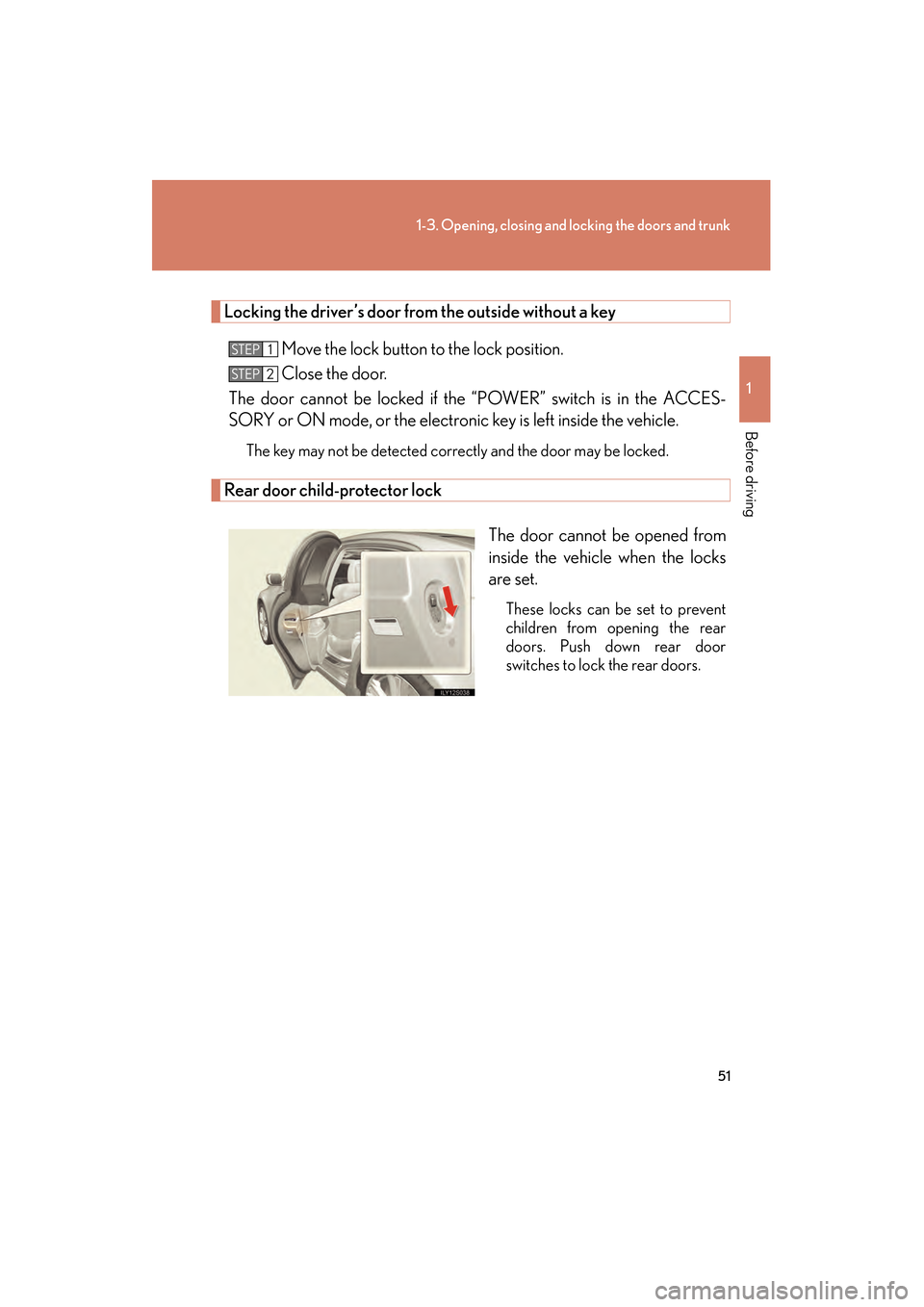

51
1-3. Opening, closing and locking the doors and trunk
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
Locking the driver’s door from the outside without a keyMove the lock button to the lock position.
Close the door.
The door cannot be locked if the “POWER” switch is in the ACCES-
SORY or ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Push down rear door
switches to lock the rear doors.
STEP1
STEP2
GS450h_HV_U.book Page 51 Thursday, June 19, 2008 1:44 PM

53
1-3. Opening, closing and locking the doors and trunk
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
FunctionShift lever positionSwitch position
Shift position linked door locking
function
“P”Shift position linked door unlock-
ing function
Speed linked door locking function
“N”Driver’s door linked door unlocking
function
■Closing the front doors from outside with the inside lock button set in the locked
position
The door cannot be locked if the “POWER” switch is in ACCESSORY or ON
mode, or the electronic key is left in the vehicle. (However, depending on the key’s
location, the system may not be able to detect it. In these instances the door lock
protection function will not operate properly.)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 5 3 1 )
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features →P. 5 7 1 )
GS450h_HV_U.book Page 53 Thursday, June 19, 2008 1:44 PM

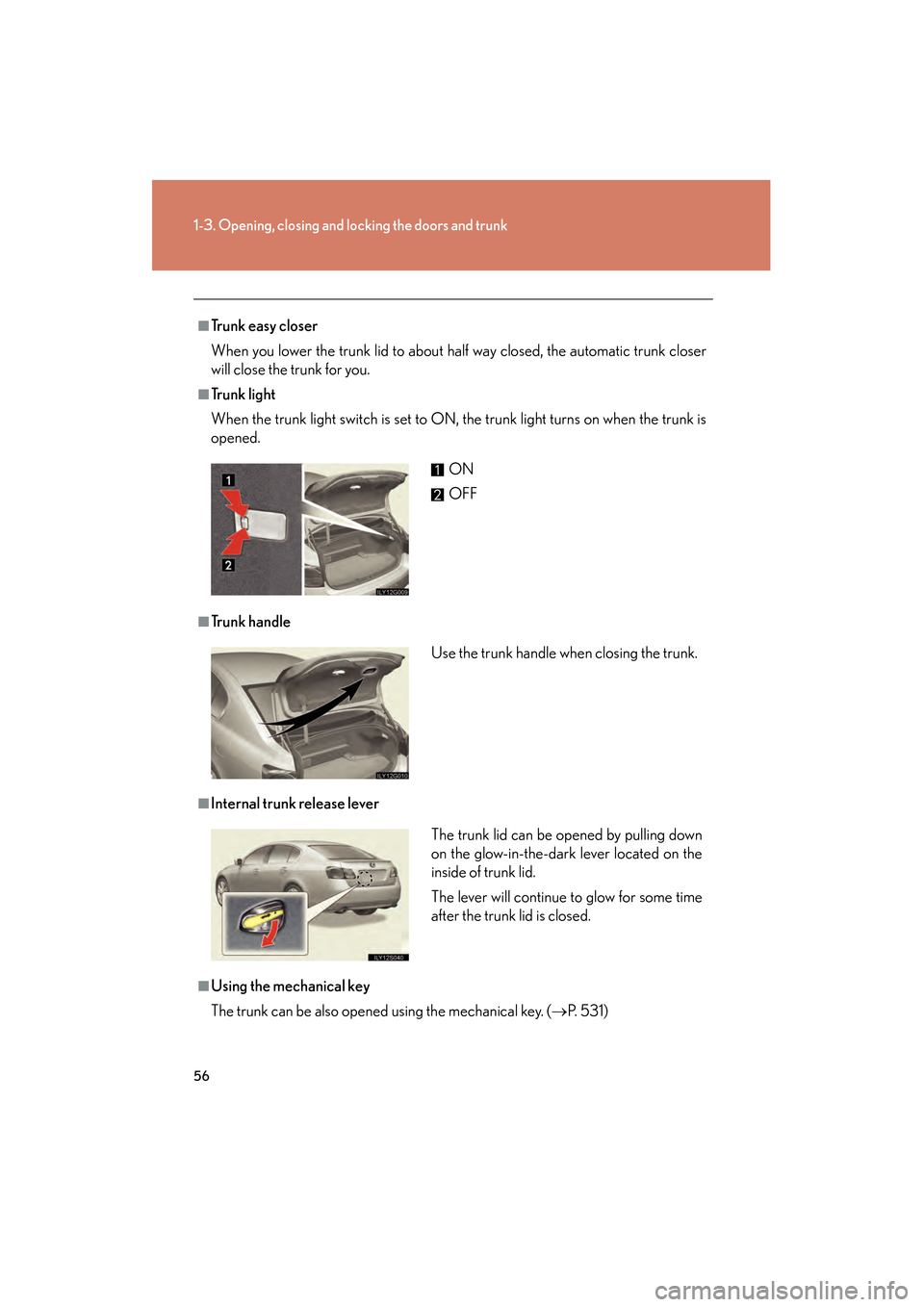

56
1-3. Opening, closing and locking the doors and trunk
GS_HV_U
June 19, 2008 1:15 pm
■Trunk easy closer
When you lower the trunk lid to about half way closed, the automatic trunk closer
will close the trunk for you.
■Trunk light
When the trunk light switch is set to ON, the trunk light turns on when the trunk is
opened.
■Tr u n k h a n d l e
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 5 3 1 )
ON
OFF
Use the trunk handle when closing the trunk.
The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of trunk lid.
The lever will continue to glow for some time
after the trunk lid is closed.
GS450h_HV_U.book Page 56 Thursday, June 19, 2008 1:44 PM
