remote start Lexus GS450h 2008 User Guide

81
1-5. Opening and closing the windows and moon roof
1
Before driving
GS_HV_U
June 19, 2008 1:15 pm
■The moon roof can be operated when
The “POWER” switch is in ON mode.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the mechanical key. (→P. 5 3 1 )
●The moon roof can be opened using the wireless remote control. ( →P. 4 7 )
●The moon roof can be closed using the smart access system with push-button
start. ( →P. 3 5 )
■Operating the moon roof after turning the “POWER” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“POWER” switch is switched to ACCESSORY mode or turned OFF. It cannot,
however, be operated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and th e moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the close switch depressed.
■To reduce moon roof wind noise
Drive with the moon roof opened automatically (just before fully opened position).
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 7 1 )
GS450h_HV_U.book Page 81 Thursday, June 19, 2008 1:44 PM

90
1-7. Theft deterrent system
GS_HV_U
December 12, 2007 3:30 pm
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than using the smart access system with push-button start, wire-
less remote control or mechanical key. (The doors will lock again
automatically.)
● The hood is opened while the vehicle is locked.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk.
● Turn the “POWER” switch to the ACCESSORY or ON mode.
(The alarm will be deactivated or stopped after a few seconds.)
GS450h_HV_U.book Page 90 Thursday, June 19, 2008 1:44 PM

380
3-7. Other interior features
GS_HV_U
June 19, 2008 1:15 pm

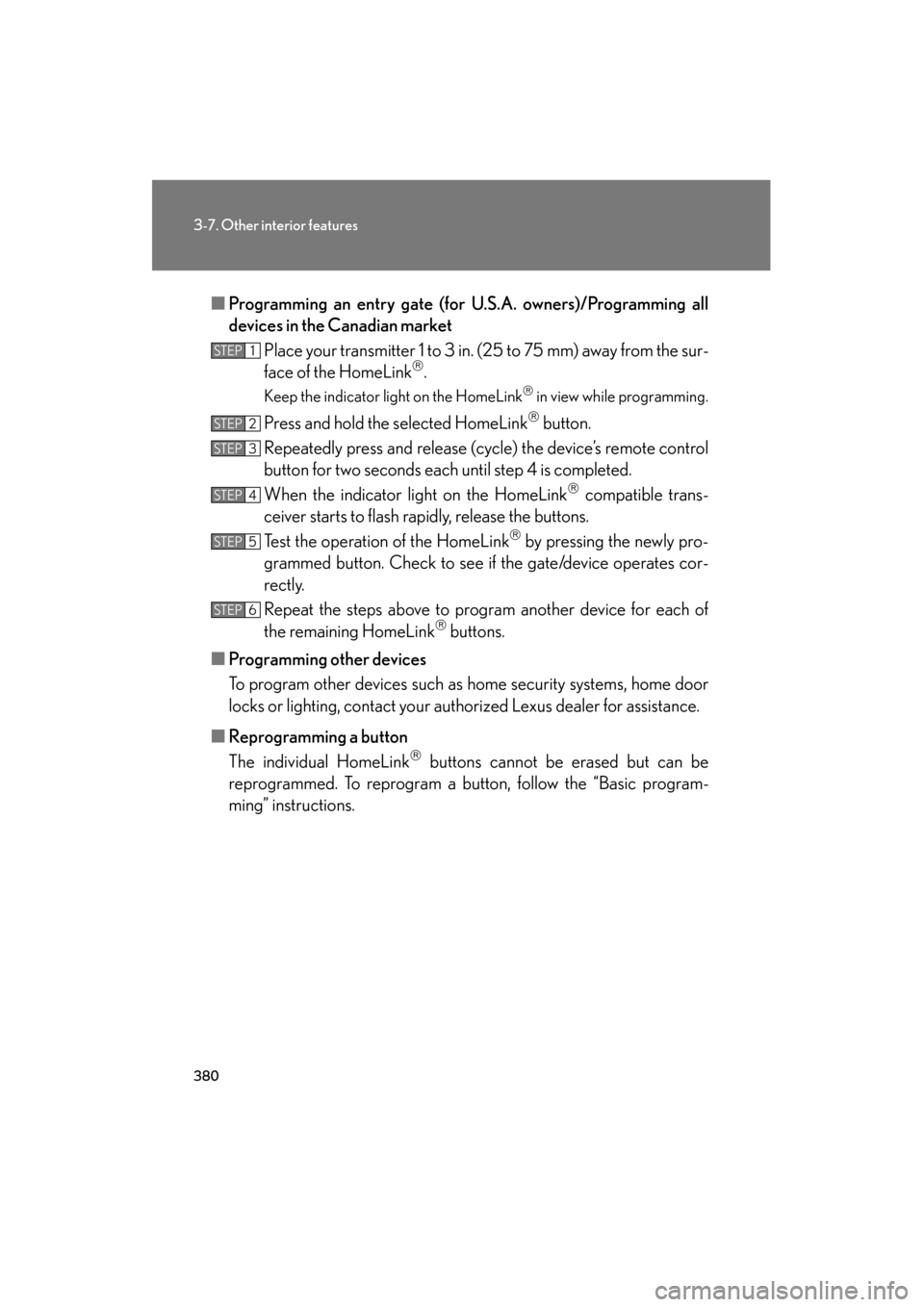

■Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is completed.
When the indicator light on the HomeLink
 compatible trans-
ceiver starts to flash rapidly, release the buttons.
Test the operation of the HomeLink
 by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
 buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your authorized Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
 buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Basic program-
ming” instructions.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
GS450h_HV_U.book Page 380 Thursday, June 19, 2008 1:44 PM

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U
June 19, 2008 1:15 pm
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by your Lexus
dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the electronic key.
●Do not bend the battery terminals.
GS450h_HV_U.book Page 455 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
531
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked
functions
Doors Using the mechanical key in order
to perform the following opera-
tions:
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver’s door.
Turning the key once again unlocks
the other doors.
Opens the windows/moon roof
(turn and hold)
If communication between the electronic key and vehicle is interrupted
(
→P. 39) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the hybrid system can be started by following the procedure
below.
GS450h_HV_U.book Page 531 Thursday, June 19, 2008 1:44 PM

592
Alphabetical index
GS_HV_U
June 19, 2008 1:15 pm
Rear lights system............................... 501
Smart access system with push-button start ..............................513
Steering lock .............................. 501, 515
Tire pressure warning system ....................................... 501, 507
TRAC ......................................................504
Trunk ....................................................... 506
VGRS......................................................504
VSC/ECB ............................................504
Washer fluid ........................................ 506
Washer
Checking ............................................... 434
Preparing and checking before winter ...................................... 215
Switch ........................................................ 162
Washing and waxing ...........................402
Weight Cargo capacity.....................................210
Load limits ............................................... 214
Weight .................................................... 544
Wheels ......................................................449
Window glasses ...................................... 77
Window lock switch ...............................50
Windows Power windows...................................... 77
Rear window defogger .................. 240
Washer ..................................................... 162
Windshield wipers Position ..................................................... 217
Windshield wipers .............................. 162
Winter driving tips ................................. 215
Wireless remote control key Locking/Unlocking ..............................47
Replacing the battery ...................... 454
WMA disc ............................................... 262
GS450h_HV_U.book Page 592 Thursday, June 19, 2008 1:44 PM
