dimensions Lexus GS450h 2008 Owner's Manual

544
GS_HV_U
June 19, 2008 1:15 pm

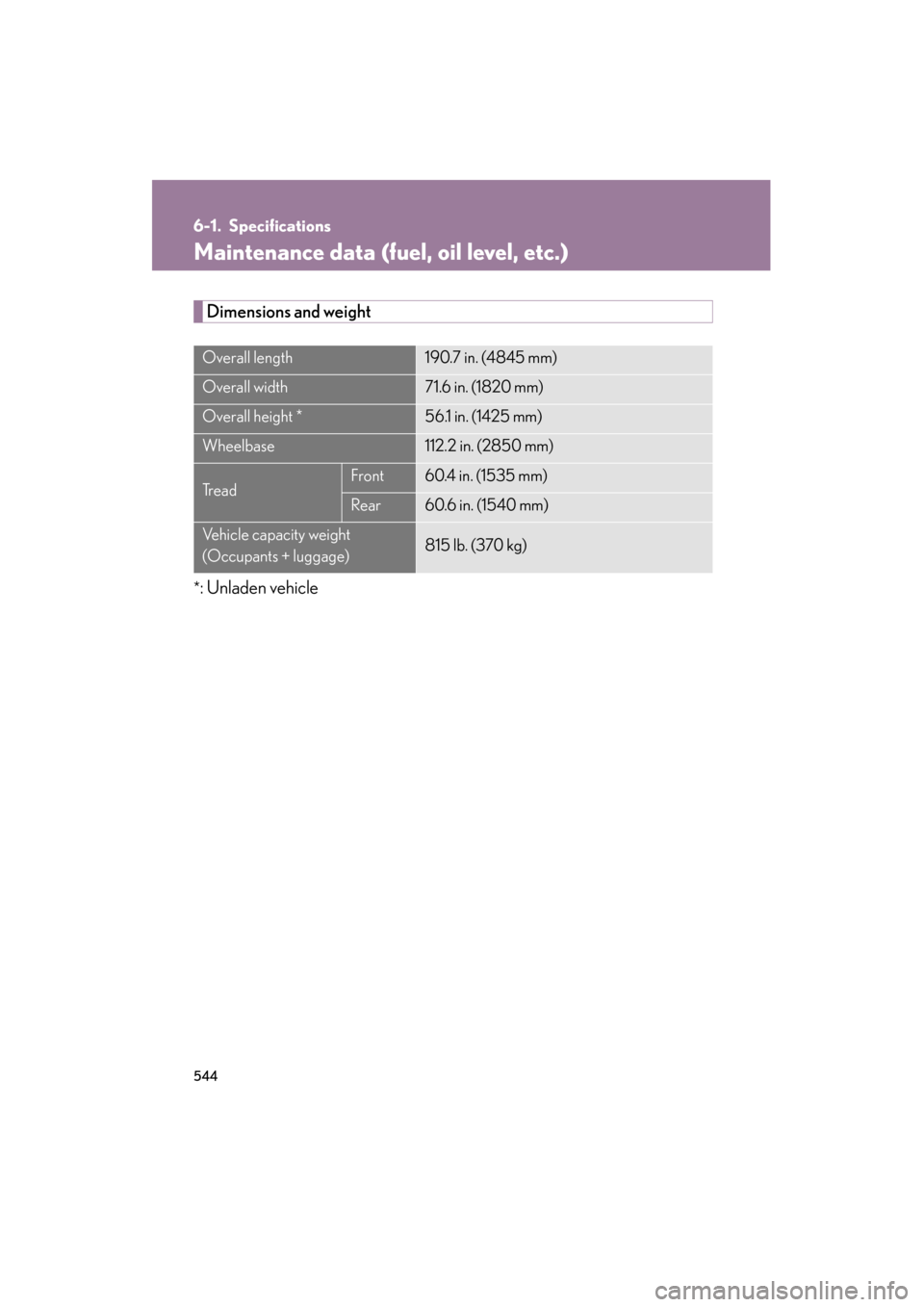

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length190.7 in. (4845 mm)
Overall width71.6 in. (1820 mm)
Overall height *56.1 in. (1425 mm)
Wheelbase112.2 in. (2850 mm)
Tr e a dFront60.4 in. (1535 mm)
Rear60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage)815 lb. (370 kg)
GS450h_HV_U.book Page 544 Thursday, June 19, 2008 1:44 PM

559
6-1. Specifications
6
Vehicle specifications
GS_HV_U
June 19, 2008 1:15 pm

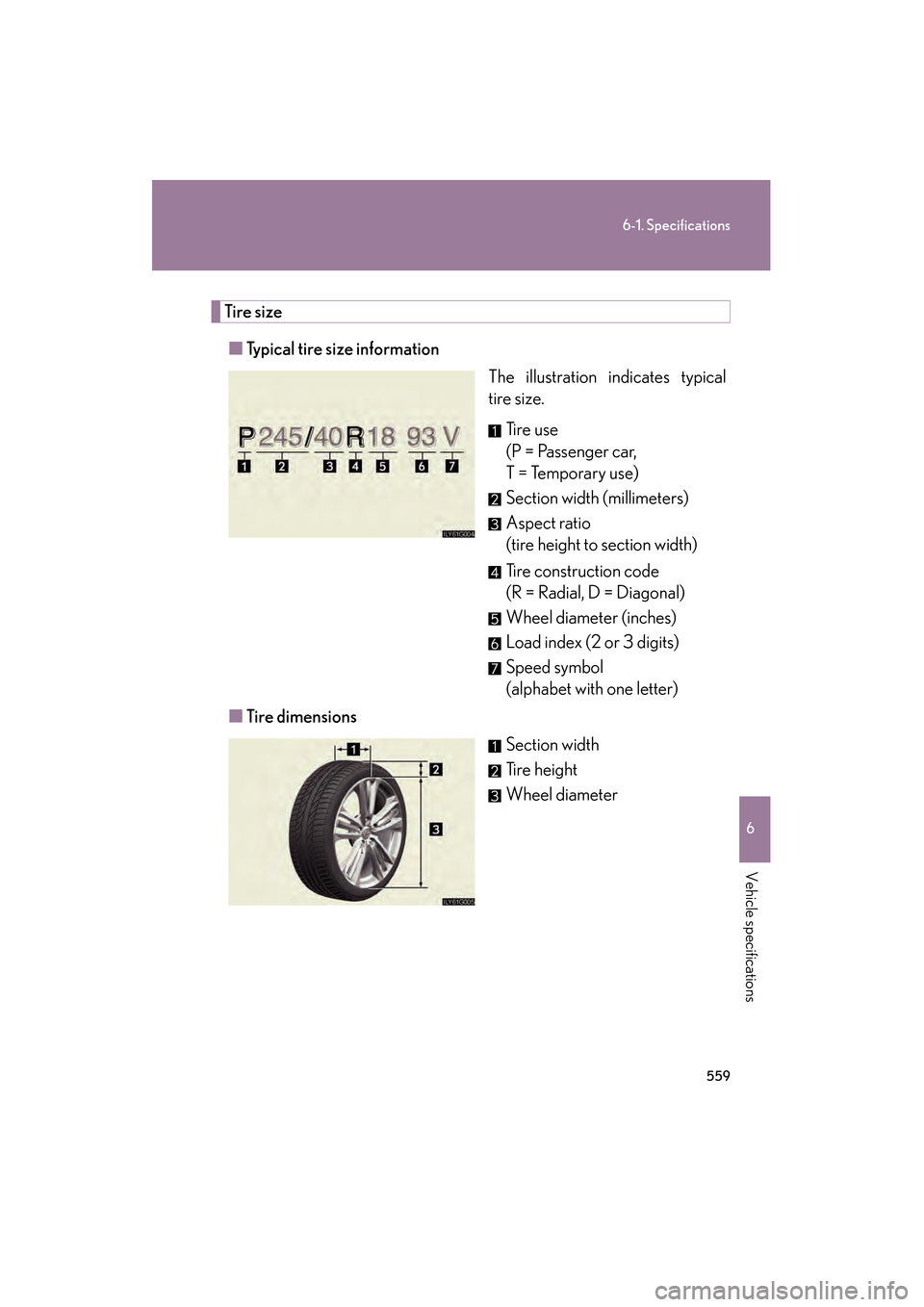

Tire size■ Typical tire si ze information
The illustration indicates typical
tire size.
Ti r e u s e
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 or 3 digits)
Speed symbol
(alphabet with one letter)
■ Tire dimensions
Section width
Tire height
Wheel diameter
GS450h_HV_U.book Page 559 Thursday, June 19, 2008 1:44 PM
