Page 164 of 596

164
2-3. Operating the lights and windshield wipers
GS_HV_U
May 19, 2008 9:00 pm
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
Page 165 of 596

165
2-3. Operating the lights and windshield wipers
2
When driving
GS_HV_U
May 19, 2008 9:00 pm
Headlight cleaner switch (if equipped)
■The headlight cleaner can be operated when
The “POWER” switch is in ON mode an d the headlight switch is turned ON.
NOTICE
■When the washer fluid tank is empty
Do not use this function, as the washer fluid pump may overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
Page 174 of 596

174
2-4. Using other driving systems
GS_HV_U
January 4, 2008 10:02 am
■The dynamic radar cruise can be set when
●The shift lever is in “D” or the “4”, “5” or “6” range of “S”.
●Vehicle speed is between approximately 27 mph (43 km/h) and 87 mph (139
km/h).
■Accelerating
The vehicle can be accelerated normally.
■Automatically canceling vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the follow-
ing situations.
●Actual vehicle speed falls below 25 mph (40 km/h)
●VSC is activated
●The windshield wipers are operating at high speed
●The mode select switch is set to snow mode
●The sensor cannot operate correctly because it is covered in some way
Vehicle-to-vehicle distance control driving must be reset by turning the “ON-
OFF” button on again.
If vehicle-to-vehicle distance control driving is automatically canceled for any other
reason, there may be a malfunction in the system. Contact your Lexus dealer.
■Automatically canceling constant speed control
The set speed is automatically canceled in the following situations.
●Actual vehicle speed is more than 10 mph (16 km/h) below the preset vehicle
speed
●Actual vehicle speed falls below 25 mph (40 km/h)
●VSC is activated
Page 217 of 596

217
2-5. Driving information
2
When driving
GS_HV_U
December 12, 2007 3:50 pm
Shifting the windshield wiper positionYou can shift the wipers to the rest position manually. (In heavy snow or
icy condition etc.)
Grip the hook section of the wiper arm firmly when shifting the wiper
position.
To rest position
Raise the wiper in line with the
windshield.
You can stand the wipers up for the
rest position.
*: More than 3.9 in. (10 cm)
To retract position Lower the wipers by pressing on
the upper part of the hook section.

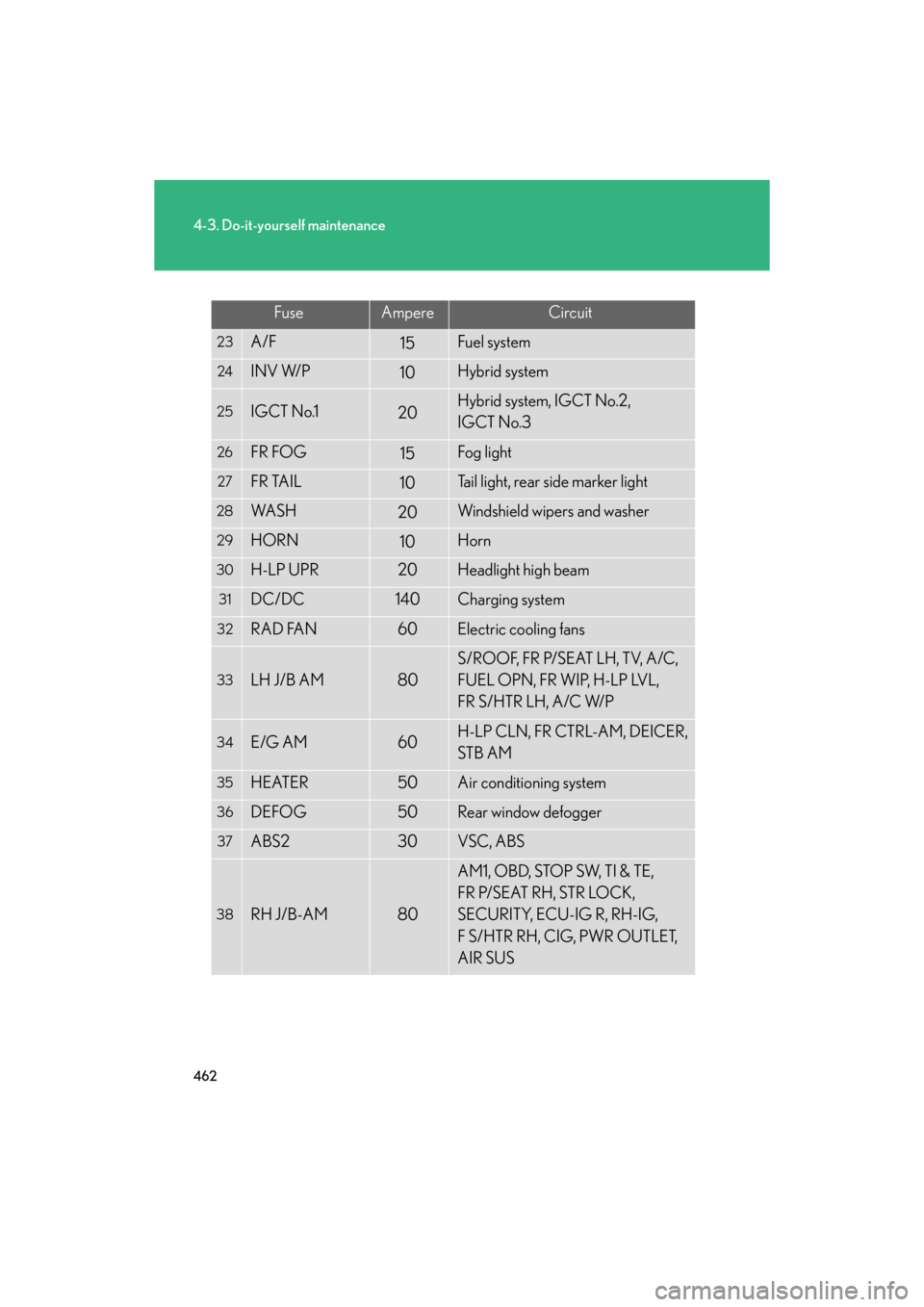

Page 462 of 596

462
4-3. Do-it-yourself maintenance
GS_HV_U
December 27, 2007 1:38 pm
FuseAmpereCircuit
23A/F15Fuel system
24INV W/P10Hybrid system
25IGCT No.120Hybrid system, IGCT No.2,
IGCT No.3
26FR FOG15Fog light
27FR TAIL10Tail light, rear side marker light
28WA S H20Windshield wipers and washer
29HORN10Horn
30H-LP UPR20Headlight high beam
31DC/DC140Charging system
32RAD FAN60Electric cooling fans
33LH J/B AM80
S/ROOF, FR P/SEAT LH, TV, A/C,
FUEL OPN, FR WIP, H-LP LVL,
FR S/HTR LH, A/C W/P
34E/G AM60H-LP CLN, FR CTRL-AM, DEICER,
STB AM
35HEATER50Air conditioning system
36DEFOG50Rear window defogger
37ABS230VSC, ABS
38RH J/B-AM80
AM1, OBD, STOP SW, TI & TE,
FR P/SEAT RH, STR LOCK,
SECURITY, ECU-IG R, RH-IG,
F S/HTR RH, CIG, PWR OUTLET,
AIR SUS

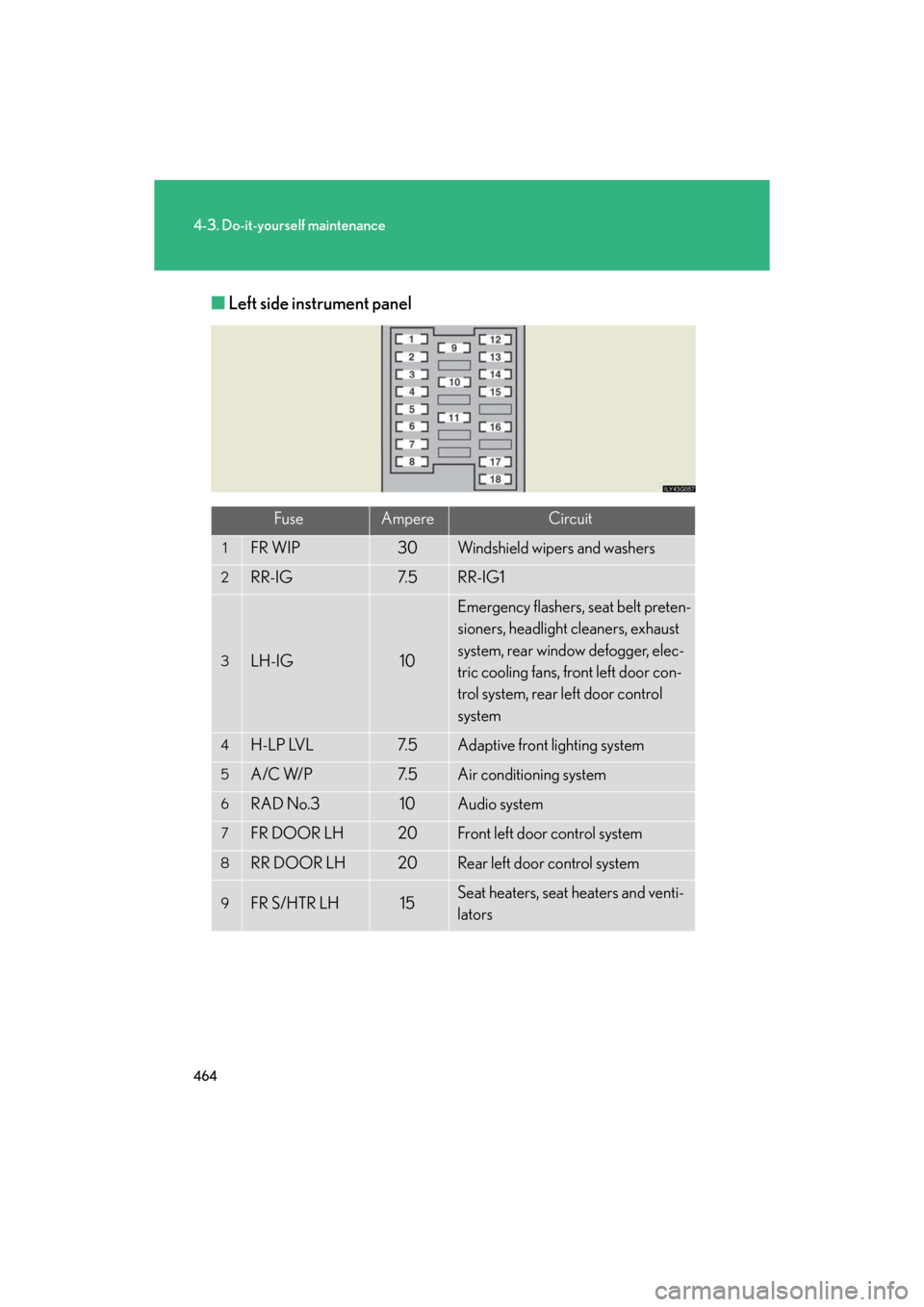

Page 464 of 596

464
4-3. Do-it-yourself maintenance
GS_HV_U
December 27, 2007 1:38 pm
■Left side instrument panel
FuseAmpereCircuit
1FR WIP30Windshield wipers and washers
2RR-IG7. 5RR-IG1
3LH-IG10
Emergency flashers, seat belt preten-
sioners, headlight cleaners, exhaust
system, rear window defogger, elec-
tric cooling fans, front left door con-
trol system, rear left door control
system
4H-LP LVL7. 5Adaptive front lighting system
5A/C W/P7. 5Air conditioning system
6RAD No.310Audio system
7FR DOOR LH20Front left door control system
8RR DOOR LH20Rear left door control system
9FR S/HTR LH15Seat heaters, seat heaters and venti-
lators
Page 508 of 596

508
5-2. Steps to take in an emergency
GS_HV_U
December 12, 2007 3:50 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
Intuitive parking assist is
dirty or covered with ice.Clean the sensor.
(Flashing)
(If equipped)
The PCS is not currently
functional.
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(Flashing)
(If equipped)
The radar cruise control
sensor is dirty or covered
with ice.
Clean the sensor.
(Flashing)
(If equipped)
The radar cruise control
system is unable to judge
vehicle-to-vehicle dis-
tance.
• Turn the mode select switch to either the nor-
mal or power mode.
• If the windshield wipers
are on, turn them off or
set them to either the
intermittent or the slow
mode.
Page 573 of 596

573
6-2. Customization
6
Vehicle specifications
GS_HV_U
December 12, 2007 3:50 pm
ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
P. 1 6 2 )
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Illumination
(
P. 3 5 2 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
“POWER” switch turned
OFF
ONOFF
Front/rear personal lights
turned on when a door is
openedCorresponding light onlyAll lights
OFF
Foot lights ONOFF
Shift lever lightONOFF
Outer foot lightONOFF
Rear sunshade
(
P. 3 7 2 )
Time elapsed before the
reverse operation feature
activates
0.7 seconds
0 seconds
0.9 seconds
1.2 seconds
Page 592 of 596

592
Alphabetical index
GS_HV_U
December 12, 2007 3:50 pm
Rear lights system............................... 501
Smart access system with
push-button start ..............................513
Steering lock .............................. 501, 515
Tire pressure warning
system ....................................... 501, 507
TRAC ......................................................504
Trunk ....................................................... 506
VGRS......................................................504
VSC/ECB ............................................504
Washer fluid ........................................ 506
Washer Checking ............................................... 434
Preparing and checking before winter ......................................215
Switch ........................................................ 162
Washing and waxing ...........................402
Weight Cargo capacity.....................................210
Load limits ............................................... 214
Weight .................................................... 544
Wheels ...................................................... 449
Window glasses ...................................... 77
Window lock switch ...............................50
Windows Power windows...................................... 77
Rear window defogger .................. 240
Washer ..................................................... 162
Windshield wipers Position ..................................................... 217
Windshield wipers .............................. 162
Winter driving tips ................................. 215
Wireless remote control key Locking/Unlocking ..............................47
Replacing the battery ...................... 454
WMA disc ............................................... 262
