remote start Lexus GS450h 2009 User Guide

396
3-7. Other interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Programming a Rolling Code system
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the learn button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button.
Press and hold the vehicle’s programmed HomeLink
 button for
2 seconds and release it. Repeat this step once again. The garage
door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is completed.
When the indicator light on the HomeLink
 compatible trans-
ceiver starts to flash rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4
GS450h_HV_U.book Page 396 Monday, April 27, 2009 10:10 AM

473
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by your Lexus
dealer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced
The battery for the card key is available only at Lexus dealers. Your Lexus dealer
can replace the battery for you.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the electronic key.
●Do not bend the battery terminals.
GS450h_HV_U.book Page 473 Monday, April 27, 2009 10:10 AM

550
5-2. Steps to take in an emergency
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked
functions
Doors Using the mechanical key (
→P. 36)
in order to perform the following
operations:
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Tu r n i n g t h e k e y r e a r w a r d u n l o c k s
the driver’s door.
Turning the key once again unlocks
the other doors.
Opens the windows/moon roof
(turn and hold)
If communication between the electronic key and vehicle is interrupted
(
→P. 43) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the hybrid system can be started by following the procedure
below.
GS450h_HV_U.book Page 550 Monday, April 27, 2009 10:10 AM

612

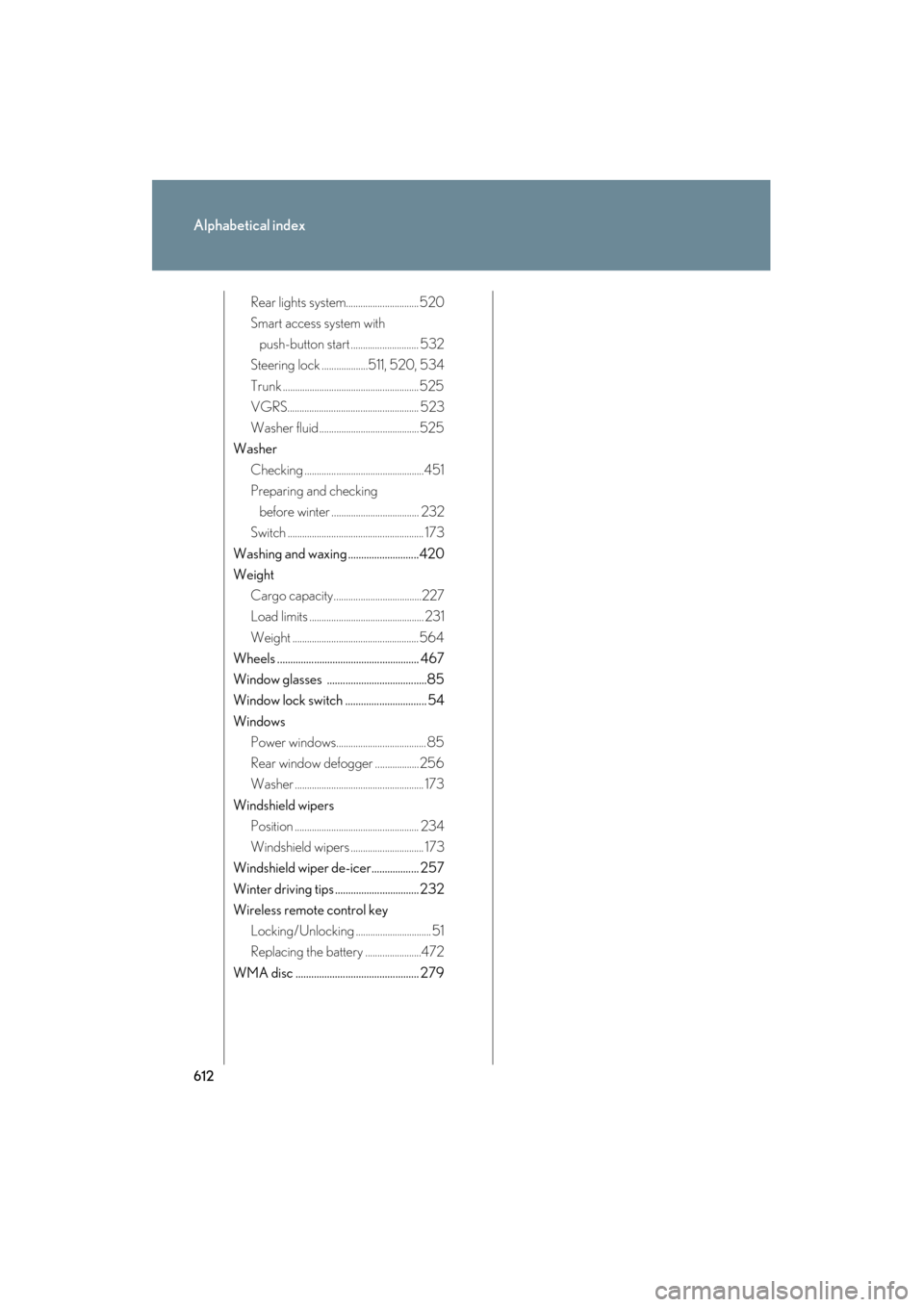

Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Rear lights system.............................. 520
Smart access system with push-button start ............................ 532
Steering lock ...................511, 520, 534
Trunk ........................................................ 525
VGRS...................................................... 523
Washer fluid ......................................... 525
Washer
Checking .................................................451
Preparing and checking before winter .................................... 232
Switch ........................................................ 173
Washing and waxing ...........................420
Weight Cargo capacity....................................227
Load limits ............................................... 231
Weight .................................................... 564
Wheels ...................................................... 467
Window glasses ......................................85
Window lock switch ............................... 54
Windows Power windows..................................... 85
Rear window defogger .................. 256
Washer ..................................................... 173
Windshield wipers Position ................................................... 234
Windshield wipers .............................. 173
Windshield wiper de-icer.................. 257
Winter driving tips ................................ 232
Wireless remote control key
Locking/Unlocking ............................... 51
Replacing the battery .......................472
WMA disc ............................................... 279
GS450h_HV_U.book Page 612 Monday, April 27, 2009 10:10 AM
