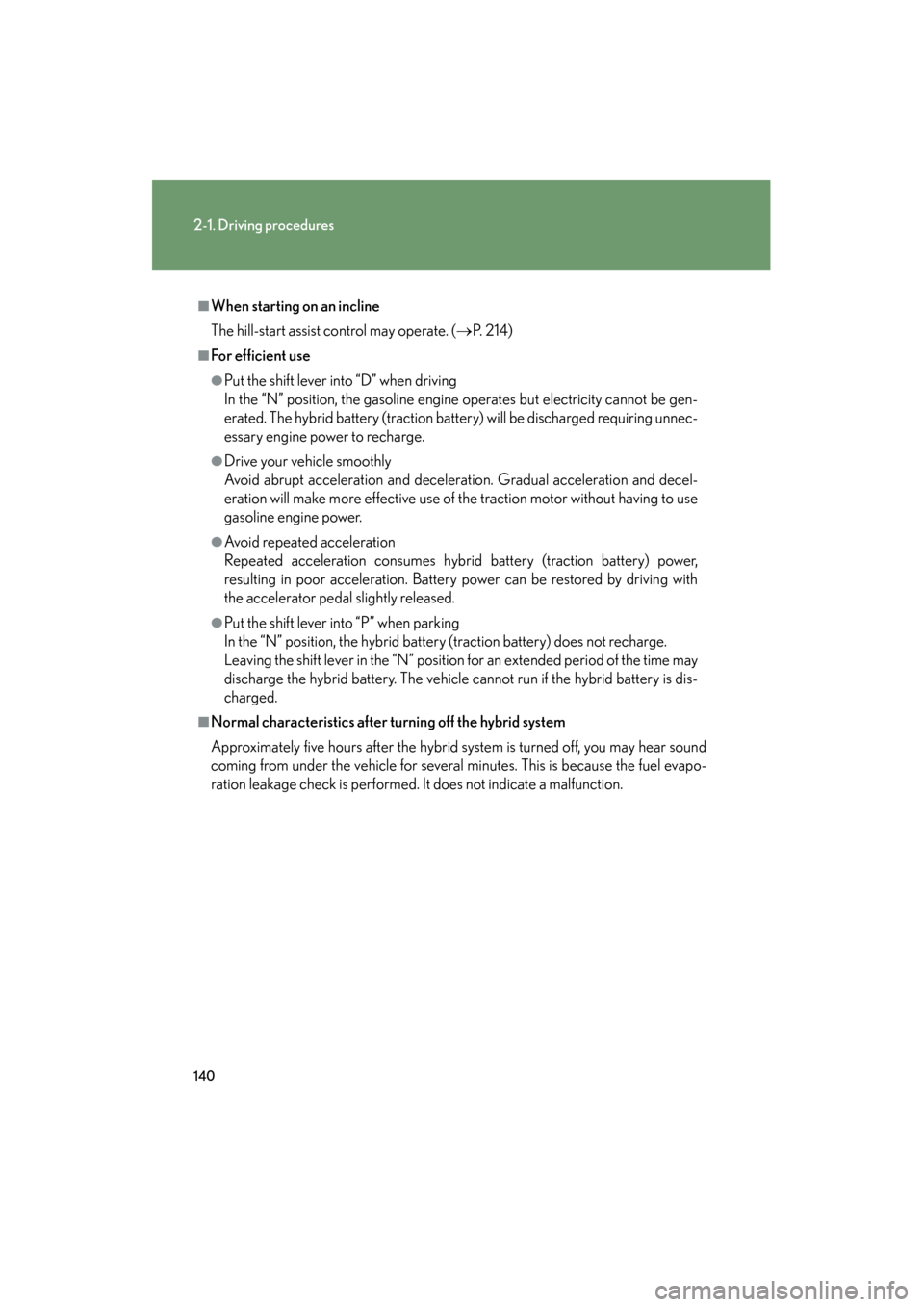

■When starting on an incline
The hill-start assist control may operate. (→P. 2 1 4 )
■For efficient use
●Put the shift lever into “D” when driving
In the “N” position, the gasoline engine operates but electricity cannot be gen-
erated. The hybrid battery (traction battery) will be discharged requiring unnec-
essary engine power to recharge.
●Drive your vehicle smoothly
Avoid abrupt acceleration and deceleration. Gradual acceleration and decel-
eration will make more effective use of the traction motor without having to use
gasoline engine power.
●Avoid repeated acceleration
Repeated acceleration consumes hybrid battery (traction battery) power,
resulting in poor acceleration. Battery power can be restored by driving with
the accelerator pedal slightly released.
●Put the shift lever into “P” when parking
In the “N” position, the hybrid battery (traction battery) does not recharge.
Leaving the shift lever in the “N” position for an extended period of the time may
discharge the hybrid battery. The vehicle cannot run if the hybrid battery is dis-
charged.
■Normal characteristics after turning off the hybrid system
Approximately five hours after the hybrid system is turned off, you may hear sound
coming from under the vehicle for several minutes. This is because the fuel evapo-
ration leakage check is performed. It does not indicate a malfunction.
GS450h_HV_U.book Page 140 Monday, April 27, 2009 10:10 AM

142
2-1. Driving procedures
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

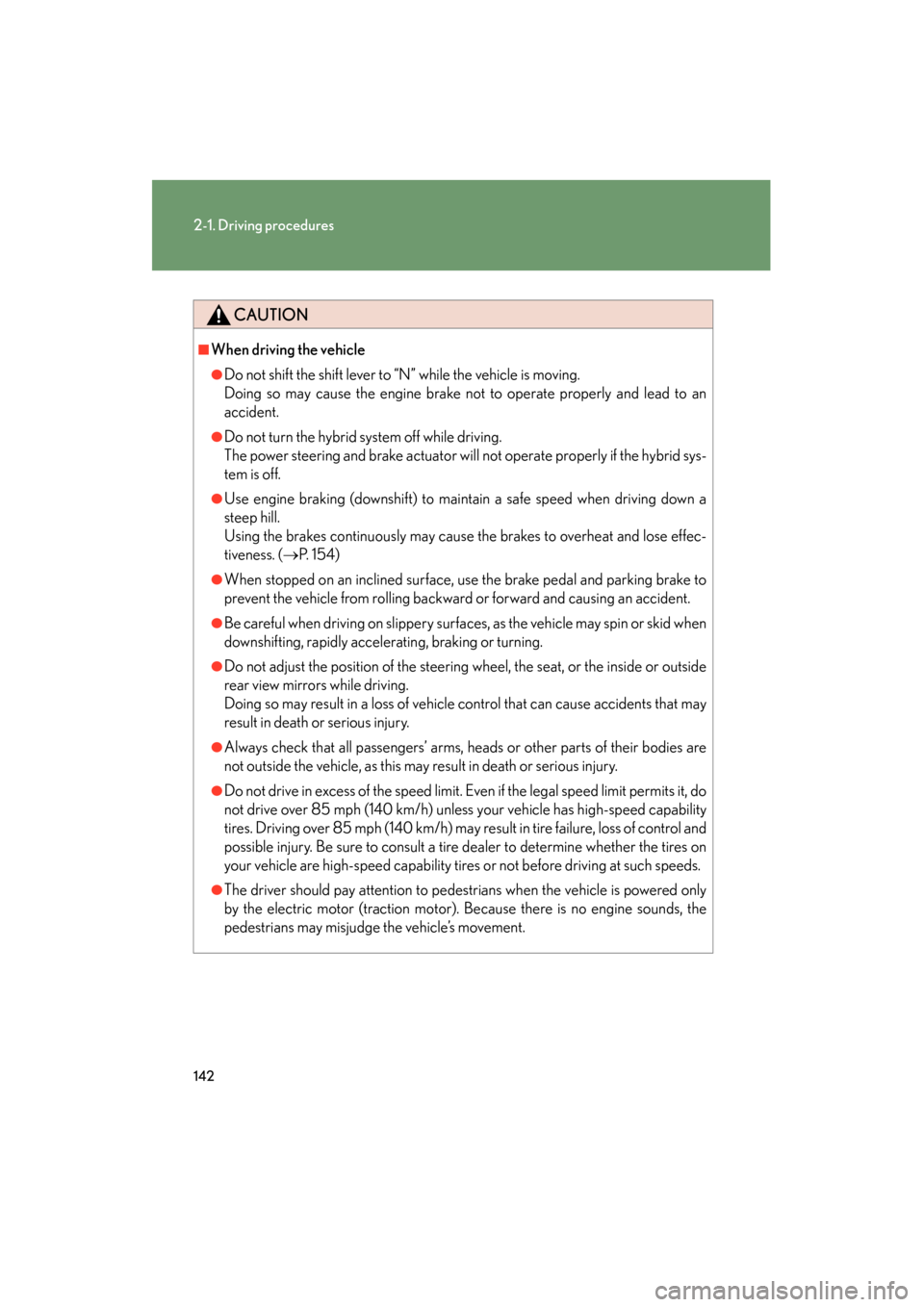

CAUTION
■When driving the vehicle
●Do not shift the shift lever to “N” while the vehicle is moving.
Doing so may cause the engine brake not to operate properly and lead to an
accident.
●Do not turn the hybrid system off while driving.
The power steering and brake actuator will not operate properly if the hybrid sys-
tem is off.
●Use engine braking (downshift) to maintain a safe speed when driving down a
steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effec-
tiveness. (→P. 1 5 4 )
●When stopped on an inclined surface, use the brake pedal and parking brake to
prevent the vehicle from rolling backward or forward and causing an accident.
●Be careful when driving on slippery surfaces, as the vehicle may spin or skid when
downshifting, rapidly accelerating, braking or turning.
●Do not adjust the position of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents that may
result in death or serious injury.
●Always check that all passengers’ arms, heads or other parts of their bodies are
not outside the vehicle, as this may result in death or serious injury.
●Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do
not drive over 85 mph (140 km/h) unless your vehicle has high-speed capability
tires. Driving over 85 mph (140 km/h) may result in tire failure, loss of control and
possible injury. Be sure to consult a tire dealer to determine whether the tires on
your vehicle are high-speed capability tires or not before driving at such speeds.
●The driver should pay attention to pedestrians when the vehicle is powered only
by the electric motor (traction motor). Because there is no engine sounds, the
pedestrians may misjudge the vehicle’s movement.
GS450h_HV_U.book Page 142 Monday, April 27, 2009 10:10 AM

143
2-1. Driving procedures
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

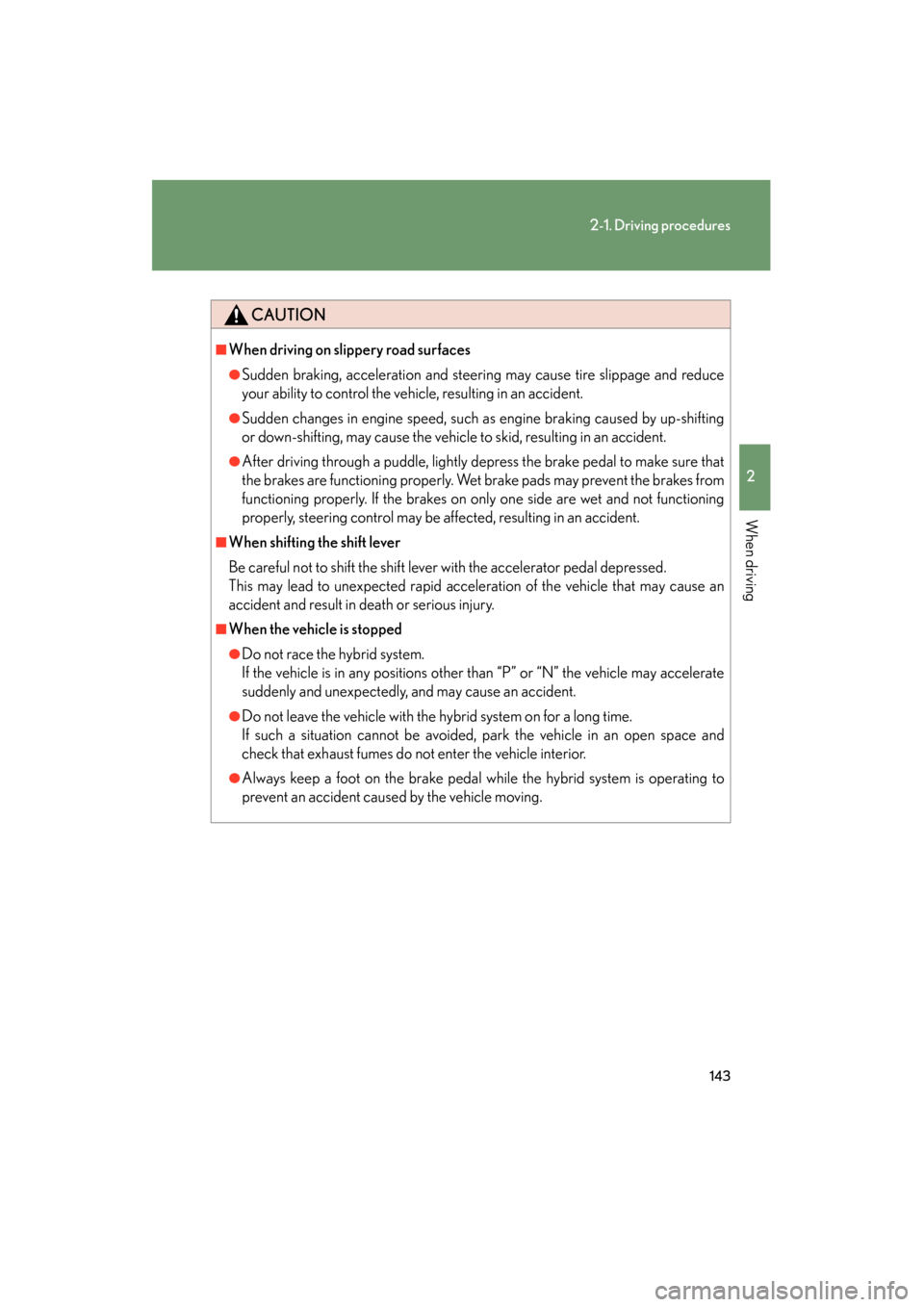

CAUTION
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce
your ability to control the vehicle, resulting in an accident.
●Sudden changes in engine speed, such as engine braking caused by up-shifting
or down-shifting, may cause the vehicle to skid, resulting in an accident.
●After driving through a puddle, lightly depress the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes from
functioning properly. If the brakes on only one side are wet and not functioning
properly, steering control may be affected, resulting in an accident.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
■When the vehicle is stopped
●Do not race the hybrid system.
If the vehicle is in any positions other than “P” or “N” the vehicle may accelerate
suddenly and unexpectedly, and may cause an accident.
●Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do not enter the vehicle interior.
●Always keep a foot on the brake pedal while the hybrid system is operating to
prevent an accident caused by the vehicle moving.
GS450h_HV_U.book Page 143 Monday, April 27, 2009 10:10 AM

147
2-1. Driving procedures
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

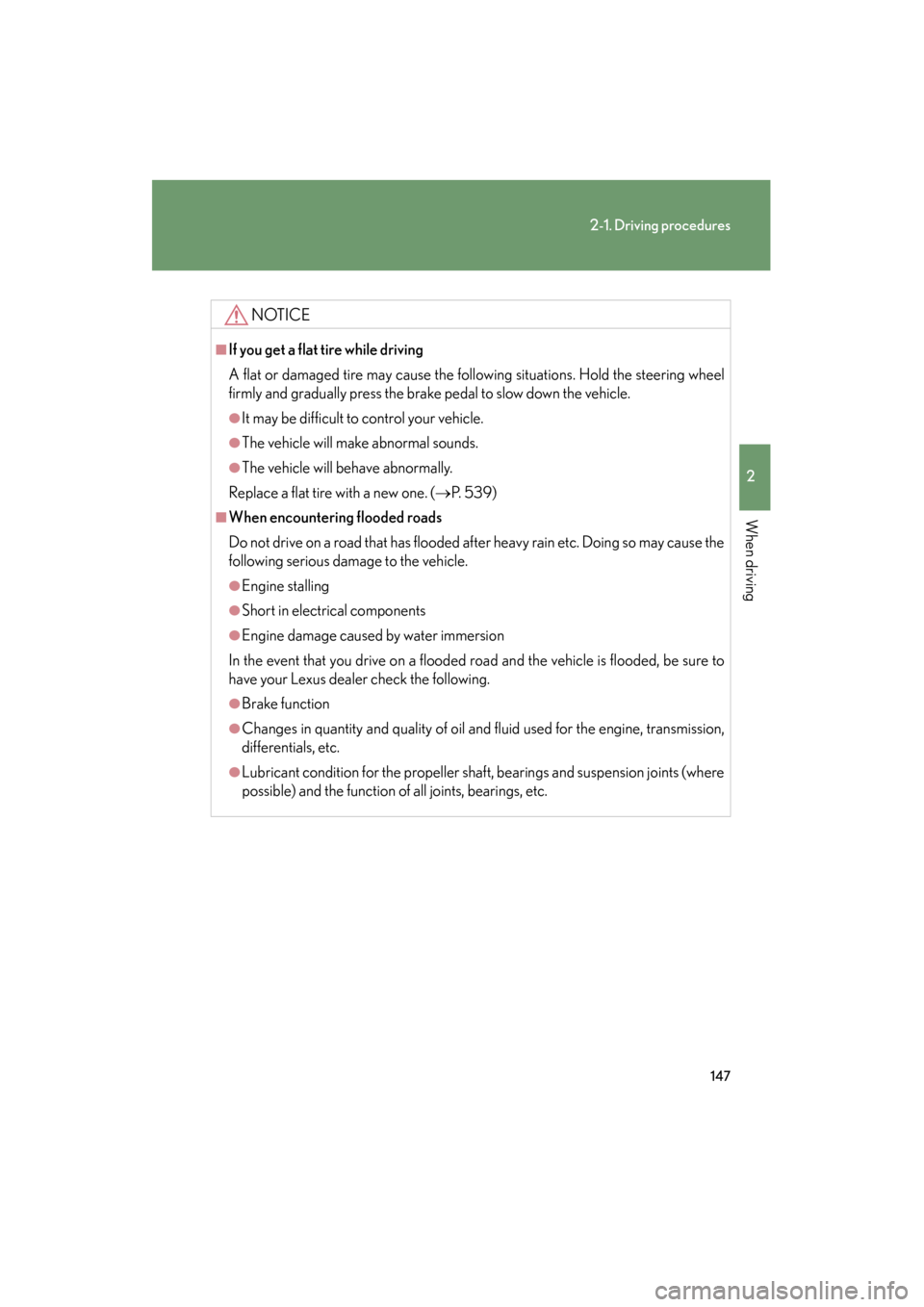

NOTICE
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( →P. 5 3 9 )
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle.
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following.
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
differentials, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible) and the function of all joints, bearings, etc.
GS450h_HV_U.book Page 147 Monday, April 27, 2009 10:10 AM

148
2-1. Driving procedures
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

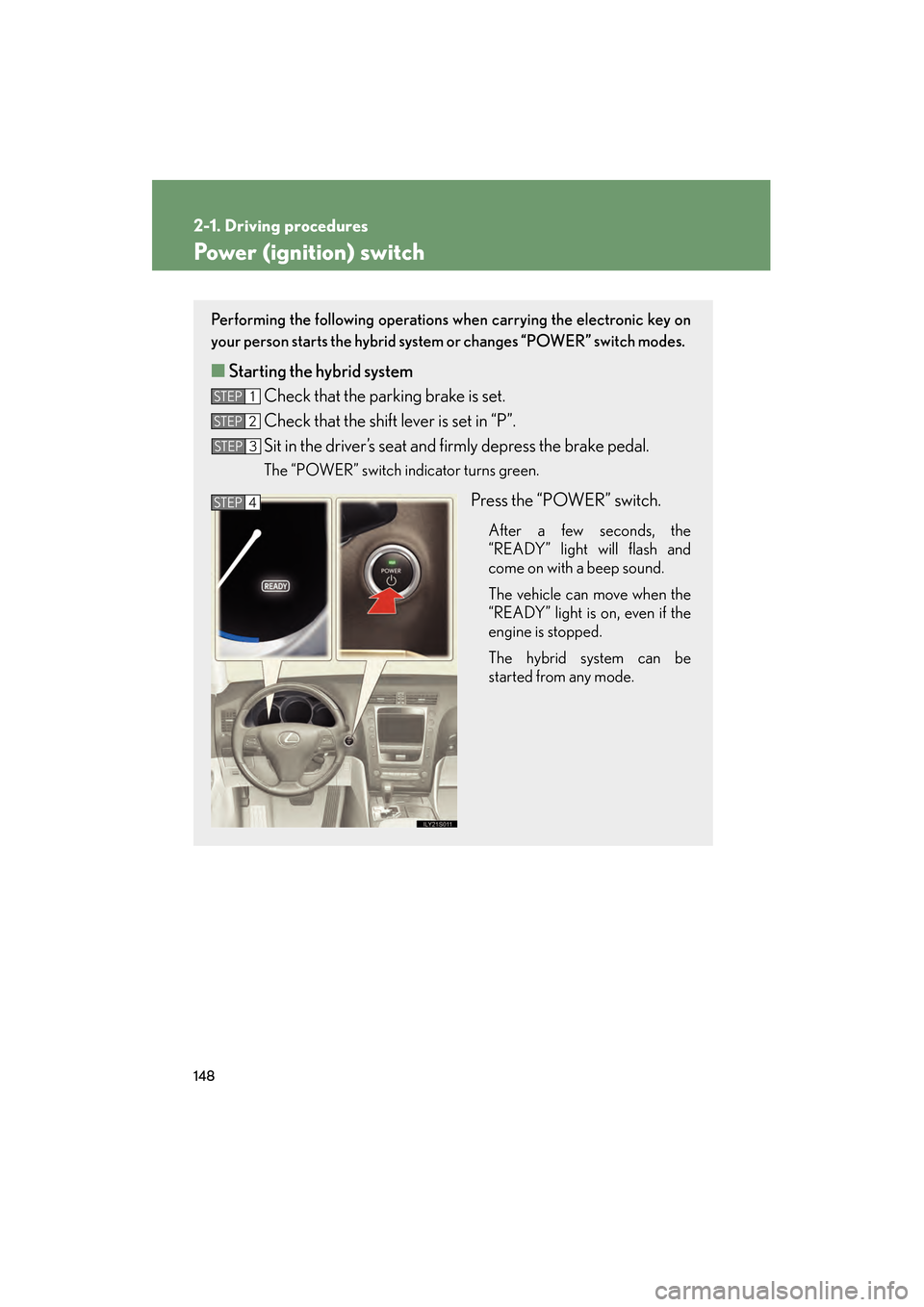

Power (ignition) switch
Performing the following operations when carrying the electronic key on
your person starts the hybrid syst em or changes “POWER” switch modes.
■Starting the hybrid system
Check that the parking brake is set.
Check that the shift lever is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
The “POWER” switch indicator turns green.
Press the “POWER” switch.
After a few seconds, the
“READY” light will flash and
come on with a beep sound.
The vehicle can move when the
“READY” light is on, even if the
engine is stopped.
The hybrid system can be
started from any mode.
STEP1
STEP2
STEP3
STEP4
GS450h_HV_U.book Page 148 Monday, April 27, 2009 10:10 AM

162
2-2. Instrument cluster
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

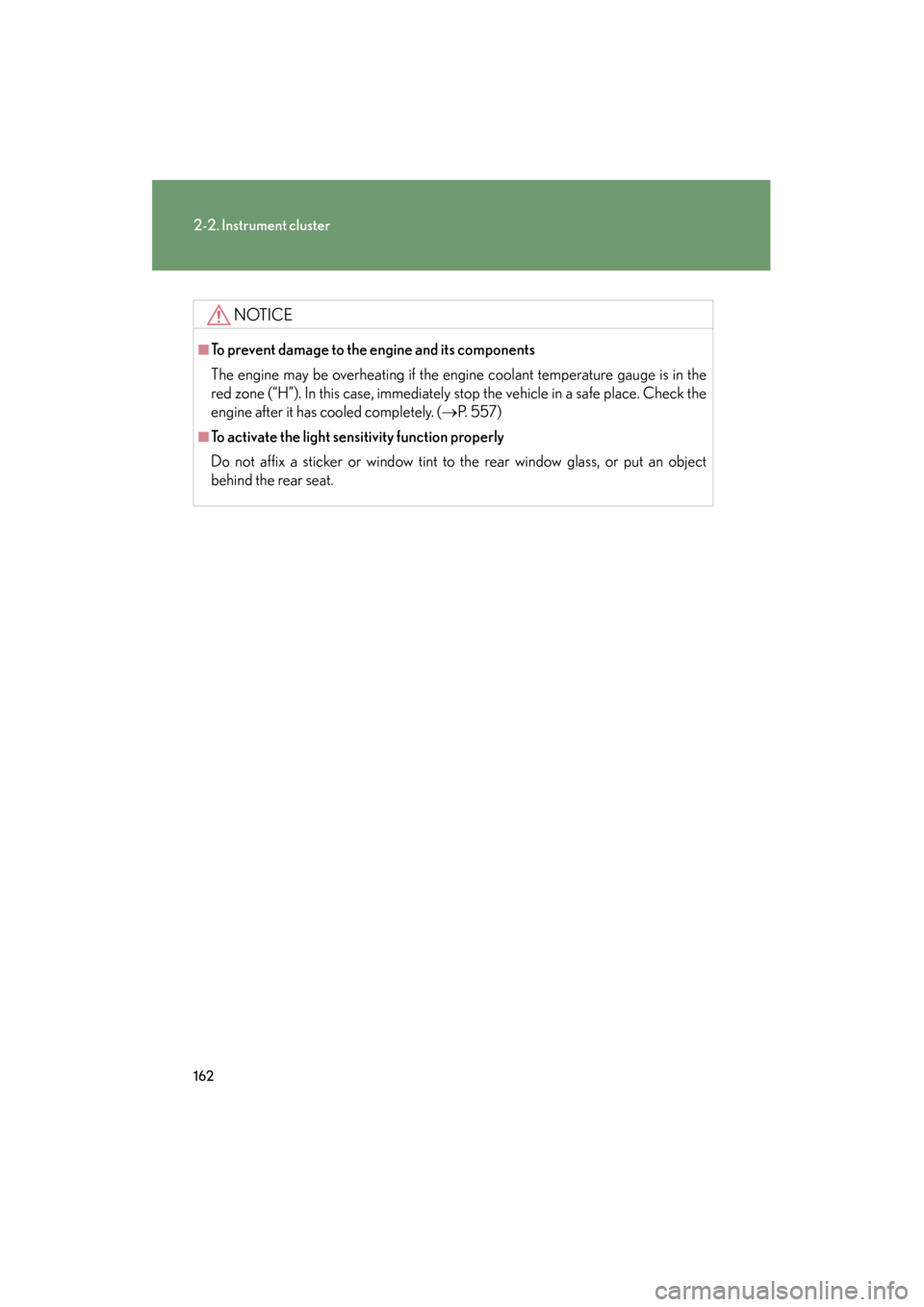

NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is in the
red zone (“H”). In this case, immediately stop the vehicle in a safe place. Check the
engine after it has cooled completely. (→P. 5 5 7 )
■To activate the light sensitivity function properly
Do not affix a sticker or window tint to the rear window glass, or put an object
behind the rear seat.
GS450h_HV_U.book Page 162 Monday, April 27, 2009 10:10 AM

232
2-5. Driving information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

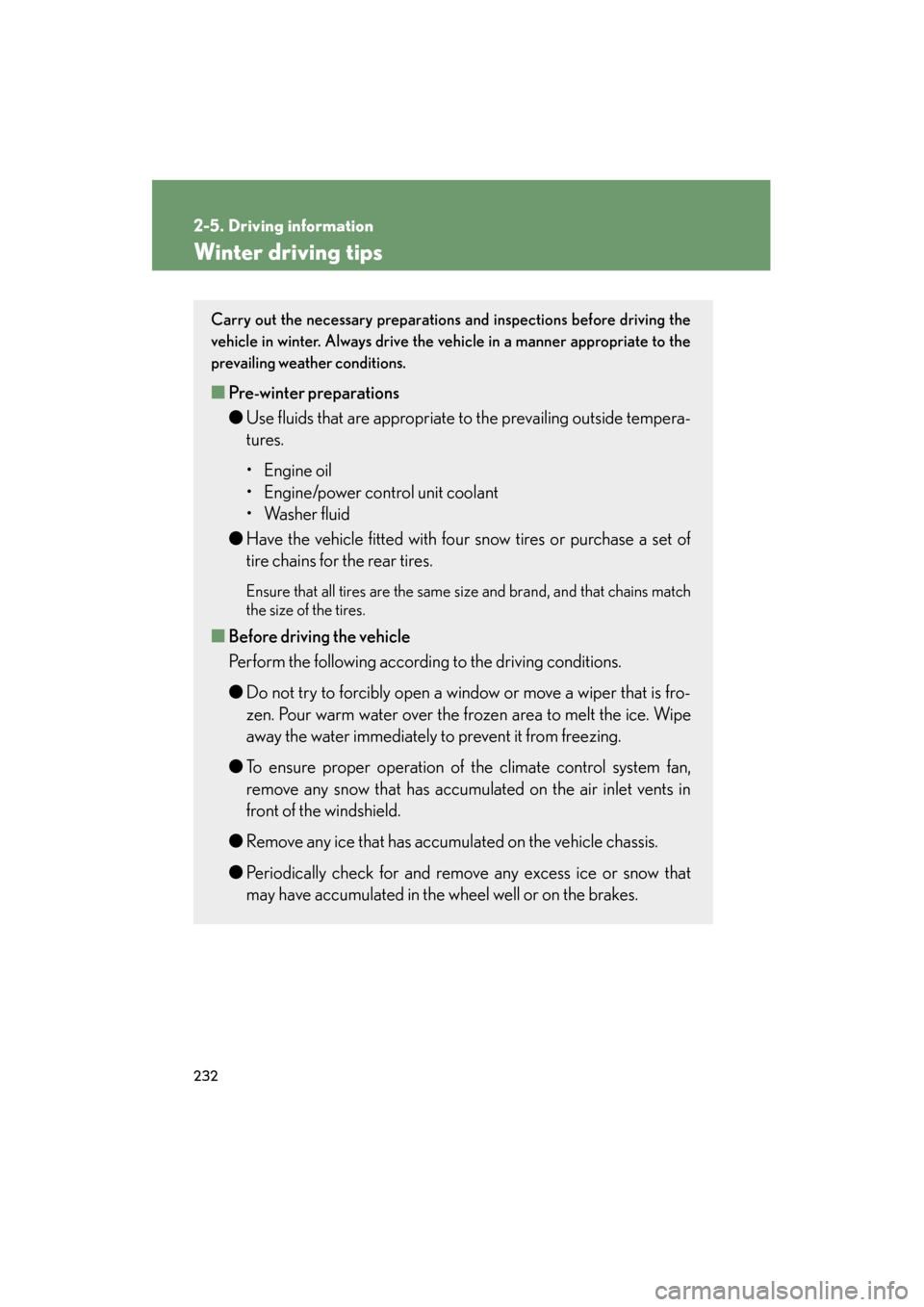

Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■ Before driving the vehicle
Perform the following according to the driving conditions.
●Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.
GS450h_HV_U.book Page 232 Monday, April 27, 2009 10:10 AM

Maintenance and care4
419
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

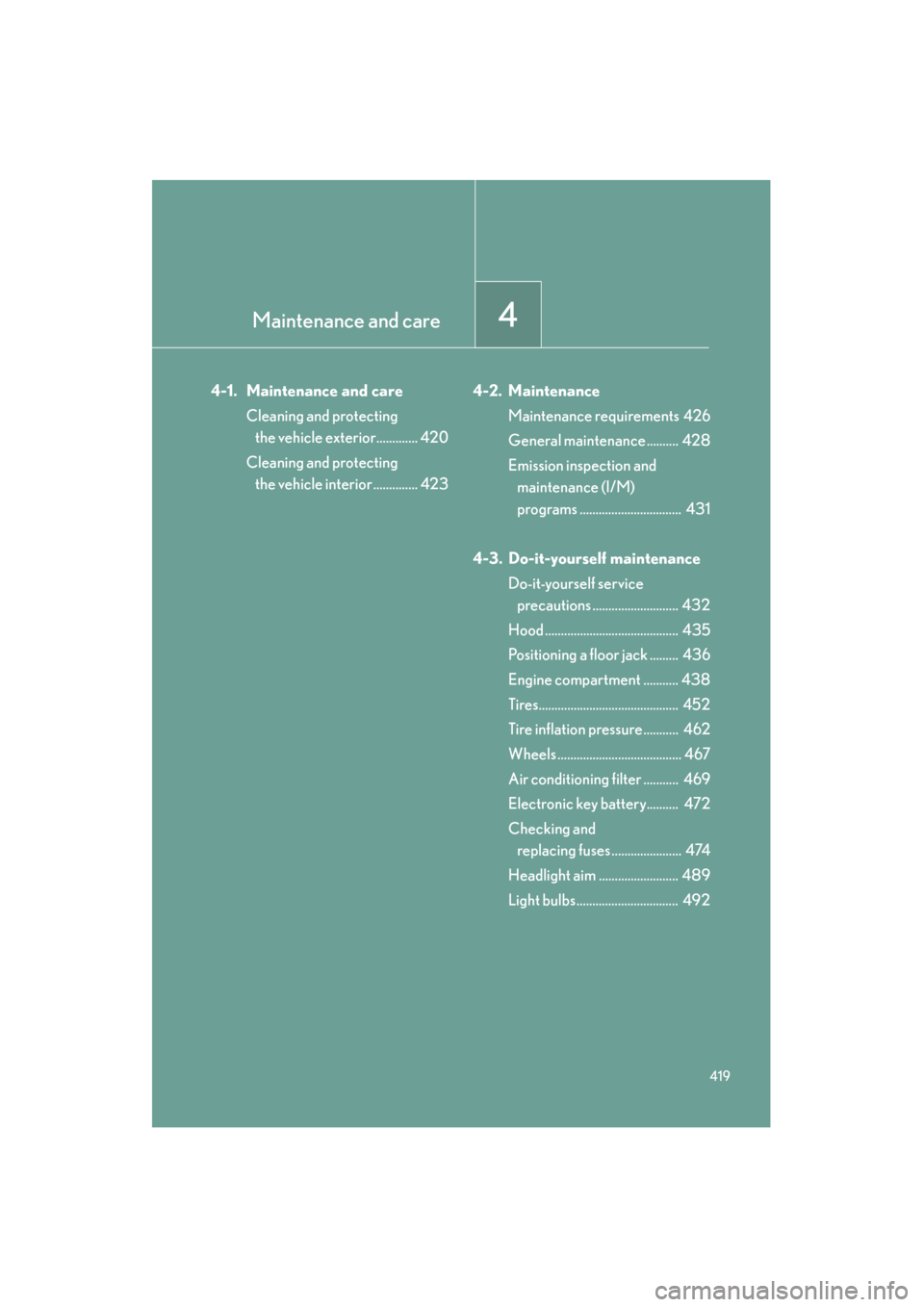

4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 420
Cleaning and protecting the vehicle interior .............. 423 4-2. Maintenance
Maintenance requirements 426
General maintenance .......... 428
Emission inspection and maintenance (I/M)
programs ................................ 431
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ........................... 432
Hood .......................................... 435
Positioning a floor jack ......... 436
Engine compartment ........... 438
Tires............................................ 452
Tire inflation pressure........... 462
Wheels ....................................... 467
Air conditioning filter ........... 469
Electronic key battery.......... 472
Checking and replacing fuses ...................... 474
Headlight aim ......................... 489
Light bulbs................................ 492
GS450h_HV_U.book Page 419 Monday, April 27, 2009 10:10 AM

428
4-2. Maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

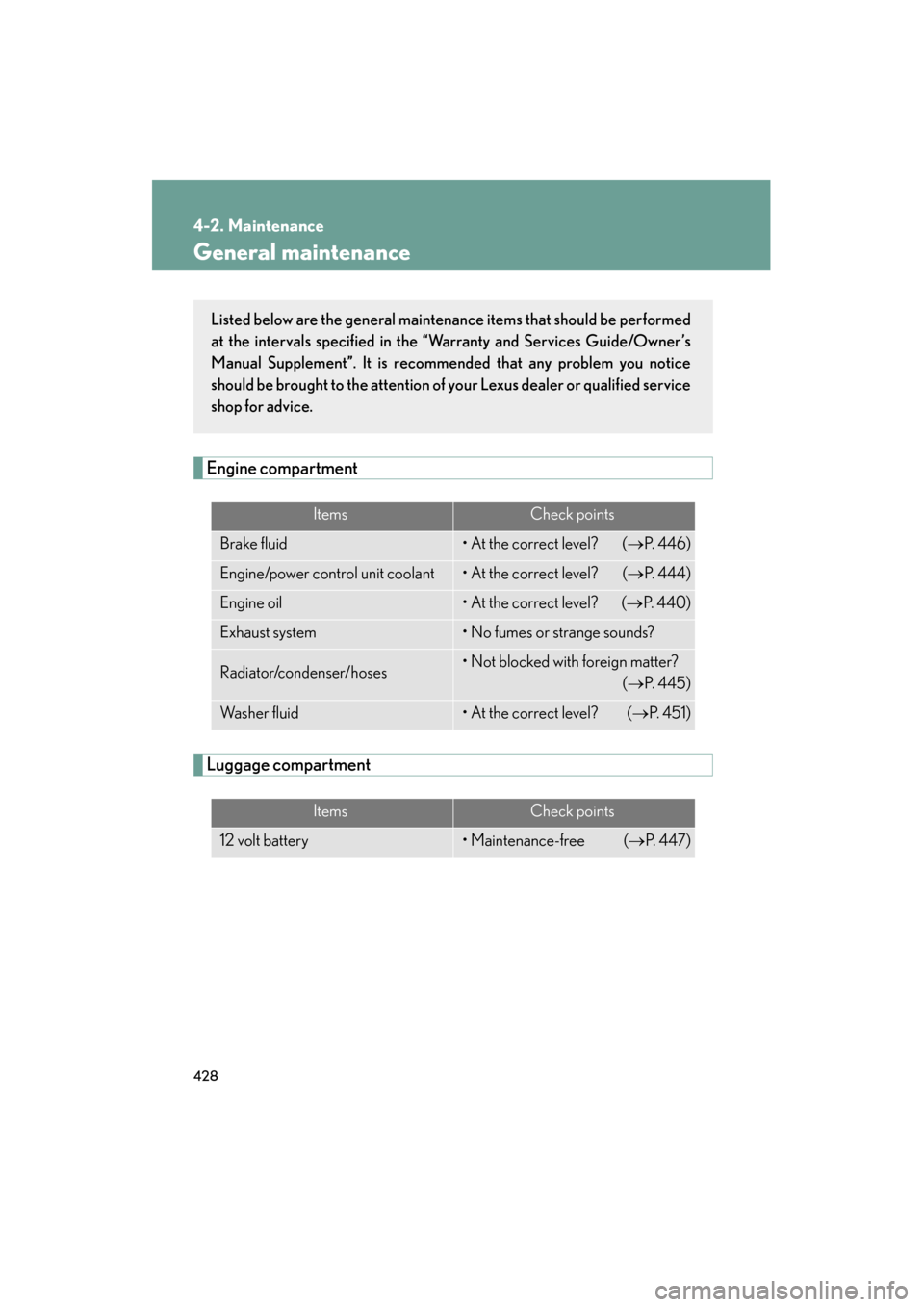

General maintenance
Engine compartment
Luggage compartment
ItemsCheck points
Brake fluid• At the correct level? (→P. 4 4 6 )
Engine/power control unit coolant• At the correct level? (→ P. 444)
Engine oil• At the correct level? (→P. 440)
Exhaust system• No fumes or strange sounds?
Radiator/condenser/hoses• Not blocked with foreign matter?
(→ P. 4 4 5 )
Wa s h e r f l u i d• At the correct level? ( →P. 4 5 1 )
ItemsCheck points
12 volt battery•Maintenance-free ( →P. 4 4 7 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.
GS450h_HV_U.book Page 428 Monday, April 27, 2009 10:10 AM
