flat tire Lexus GS450h 2009 Owner's Manual

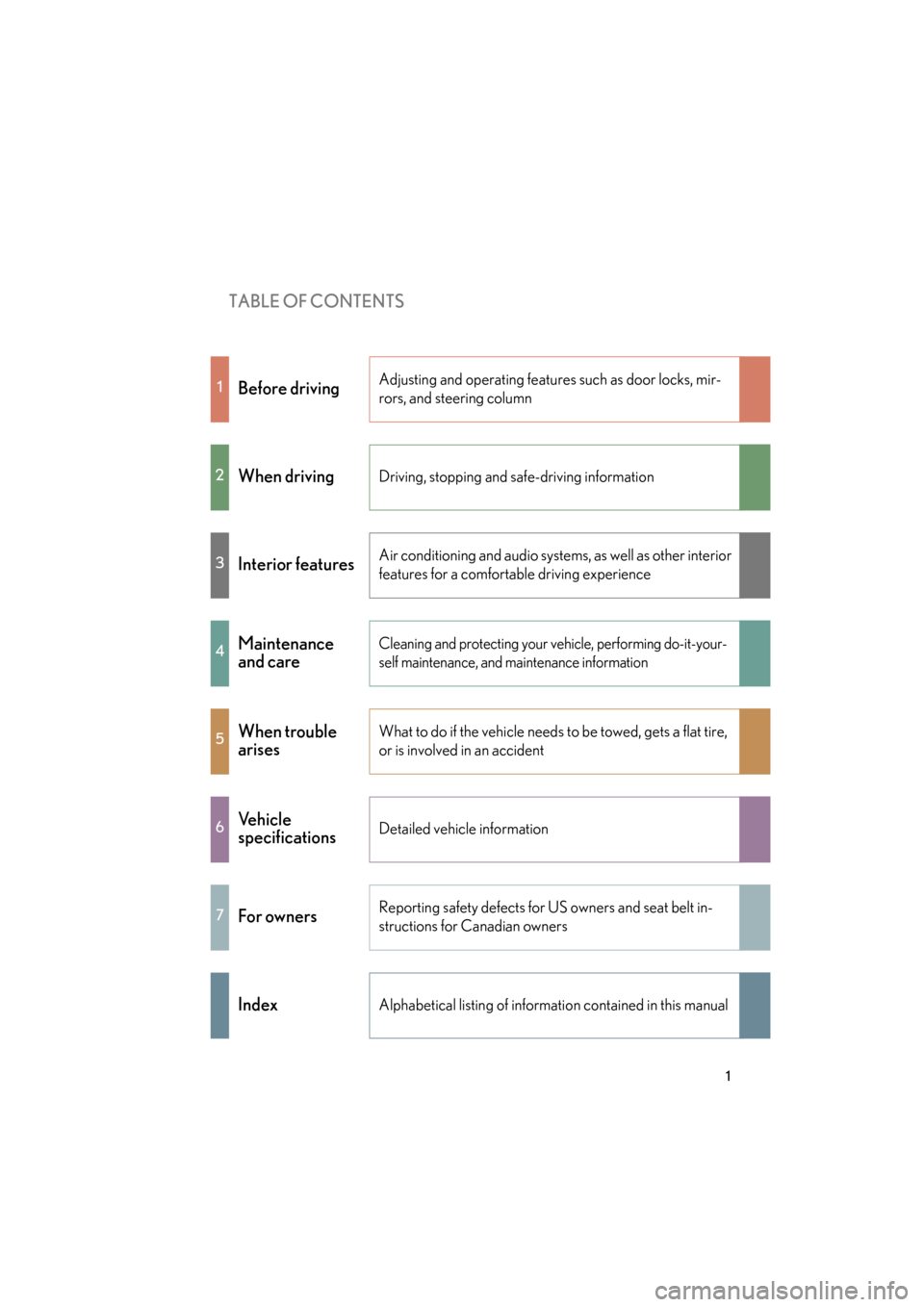

TABLE OF CONTENTS
1
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
1Before drivingAdjusting and operating features such as door locks, mir-
rors, and steering column
2When drivingDriving, stopping and safe-driving information
3Interior featuresAir conditioning and audio systems, as well as other interior
features for a comfortable driving experience
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-your-
self maintenance, and maintenance information
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident
6Ve h i c l e
specificationsDetailed vehicle information
7For ownersReporting safety defects for US owners and seat belt in-
structions for Canadian owners
IndexAlphabetical listing of information contained in this manual
GS450h_HV_U.book Page 1 Monday, April 27, 2009 10:10 AM

1
2
3
4
5
6
7
5
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
4-1. Maintenance and careCleaning and protecting the vehicle exterior................... 420
Cleaning and protecting the vehicle interior .................... 423
4-2. Maintenance Maintenance requirements ..... 426
General maintenance ................ 428
Emission inspection and maintenance (I/M)
programs ....................................... 431
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................. 432
Hood.................................................. 435
Positioning a floor jack ............... 436
Engine compartment................. 438
Tires ................................................... 452
Tire inflation pressure................. 462
Wheels.............................................. 467
Air conditioning filter.................. 469
Electronic key battery ................ 472
Checking and replacing fuses ........................... 474
Headlight aim ............................... 489
Light bulbs ....................................... 492 5-1. Essential information
Emergency flashers ................... 500
If your vehicle needs to be towed ................................... 501
If you think something is wrong ............................................. 507
Event data recorder................... 508
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer sounds... ..... 510
If a warning message is displayed ........................................ 519
If you have a flat tire (Vehicles with standard tires) ................... 536
If you have a flat tire (Vehicles with run-flat tires) ...................... 546
If the hybrid system will not start .................................. 547
If the shift lever cannot be shifted from “P” ......................... 548
If you lose your keys .................... 549
If the electronic key does not operate properly ...................... 550
If the 12 volt battery is discharged .................................. 553
If your vehicle overheats ........... 557
If the vehicle becomes stuck............................................... 560
4Maintenance and care5When trouble arises
GS450h_HV_U.book Page 5 Monday, April 27, 2009 10:10 AM

9
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Tire
●Rotation
● Replacement
● Inflation pressure
● Information
P. 452
P. 536
P. 572
P. 577
Tail lights P. 169
Side marker light P. 169
Trunk P. 59
Rear window defogger P. 256
Door P. 54
Fuel filler door P. 91
Turn signal light P. 156
∗: If equipped
GS450h_HV_U.book Page 9 Monday, April 27, 2009 10:10 AM

147
2-1. Driving procedures
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
NOTICE
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( →P. 5 3 9 )
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle.
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following.
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
differentials, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible) and the function of all joints, bearings, etc.
GS450h_HV_U.book Page 147 Monday, April 27, 2009 10:10 AM

220
2-4. Using other driving systems
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

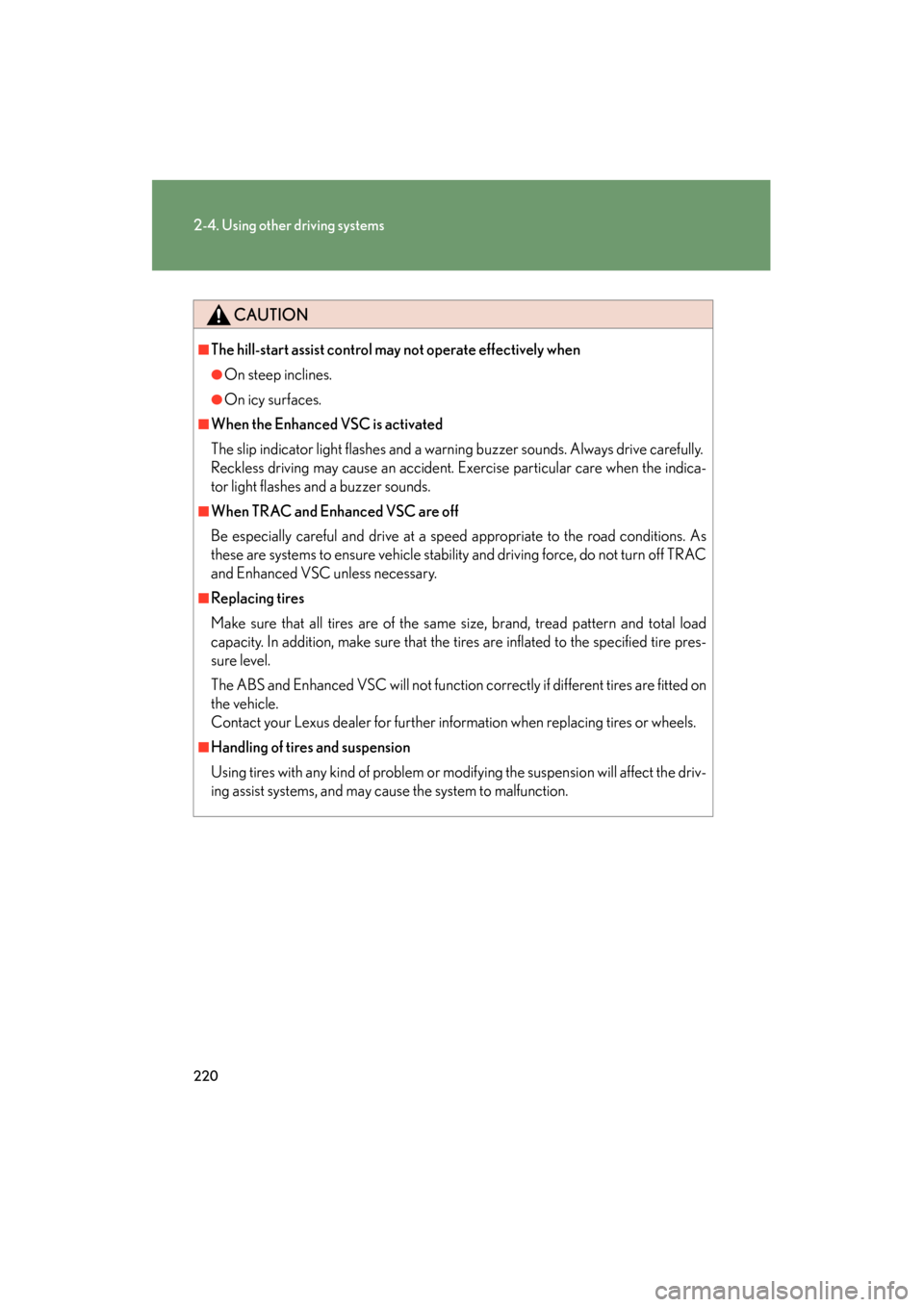

CAUTION
■The hill-start assist control may not operate effectively when
●On steep inclines.
●On icy surfaces.
■When the Enhanced VSC is activated
The slip indicator light flashes and a warning buzzer sounds. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the indica-
tor light flashes and a buzzer sounds.
■When TRAC and Enhanced VSC are off
Be especially careful and drive at a speed appropriate to the road conditions. As
these are systems to ensure vehicle stability and driving force, do not turn off TRAC
and Enhanced VSC unless necessary.
■Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total load
capacity. In addition, make sure that the tires are inflated to the specified tire pres-
sure level.
The ABS and Enhanced VSC will not function correctly if different tires are fitted on
the vehicle.
Contact your Lexus dealer for further information when replacing tires or wheels.
■Handling of tires and suspension
Using tires with any kind of problem or modifying the suspension will affect the driv-
ing assist systems, and may cause the system to malfunction.
GS450h_HV_U.book Page 220 Monday, April 27, 2009 10:10 AM

235
2-5. Driving information
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

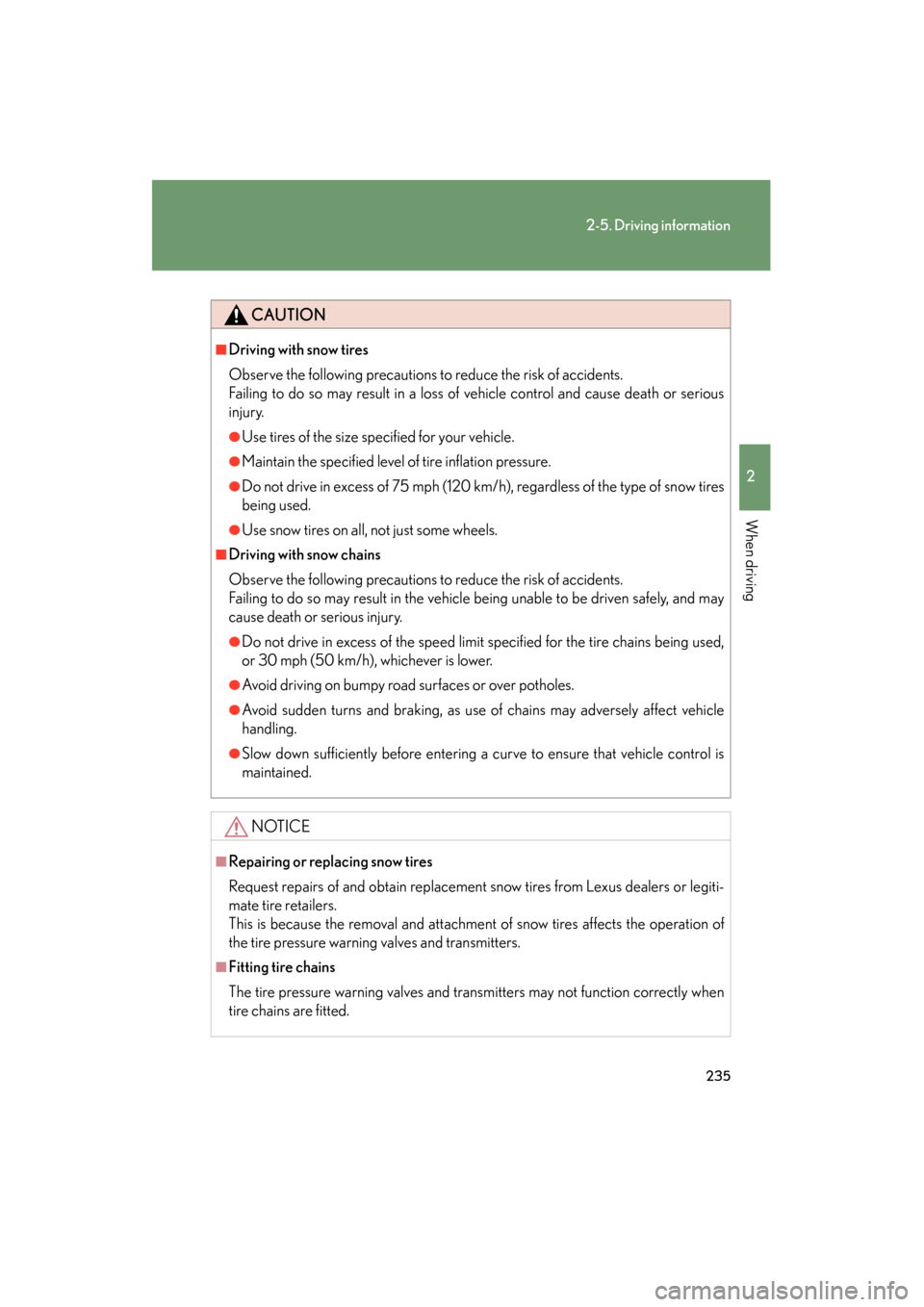

CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or serious
injury.
●Use tires of the size specified for your vehicle.
●Maintain the specified level of tire inflation pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of snow tires
being used.
●Use snow tires on all, not just some wheels.
■Driving with snow chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used,
or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden turns and braking, as use of chains may adversely affect vehicle
handling.
●Slow down sufficiently before entering a curve to ensure that vehicle control is
maintained.
NOTICE
■Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Lexus dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the operation of
the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly when
tire chains are fitted.
GS450h_HV_U.book Page 235 Monday, April 27, 2009 10:10 AM

Maintenance and care4
419
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 420
Cleaning and protecting the vehicle interior .............. 423 4-2. Maintenance
Maintenance requirements 426
General maintenance .......... 428
Emission inspection and maintenance (I/M)
programs ................................ 431
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ........................... 432
Hood .......................................... 435
Positioning a floor jack ......... 436
Engine compartment ........... 438
Tires............................................ 452
Tire inflation pressure........... 462
Wheels ....................................... 467
Air conditioning filter ........... 469
Electronic key battery.......... 472
Checking and replacing fuses ...................... 474
Headlight aim ......................... 489
Light bulbs................................ 492
GS450h_HV_U.book Page 419 Monday, April 27, 2009 10:10 AM

430
4-2. Maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

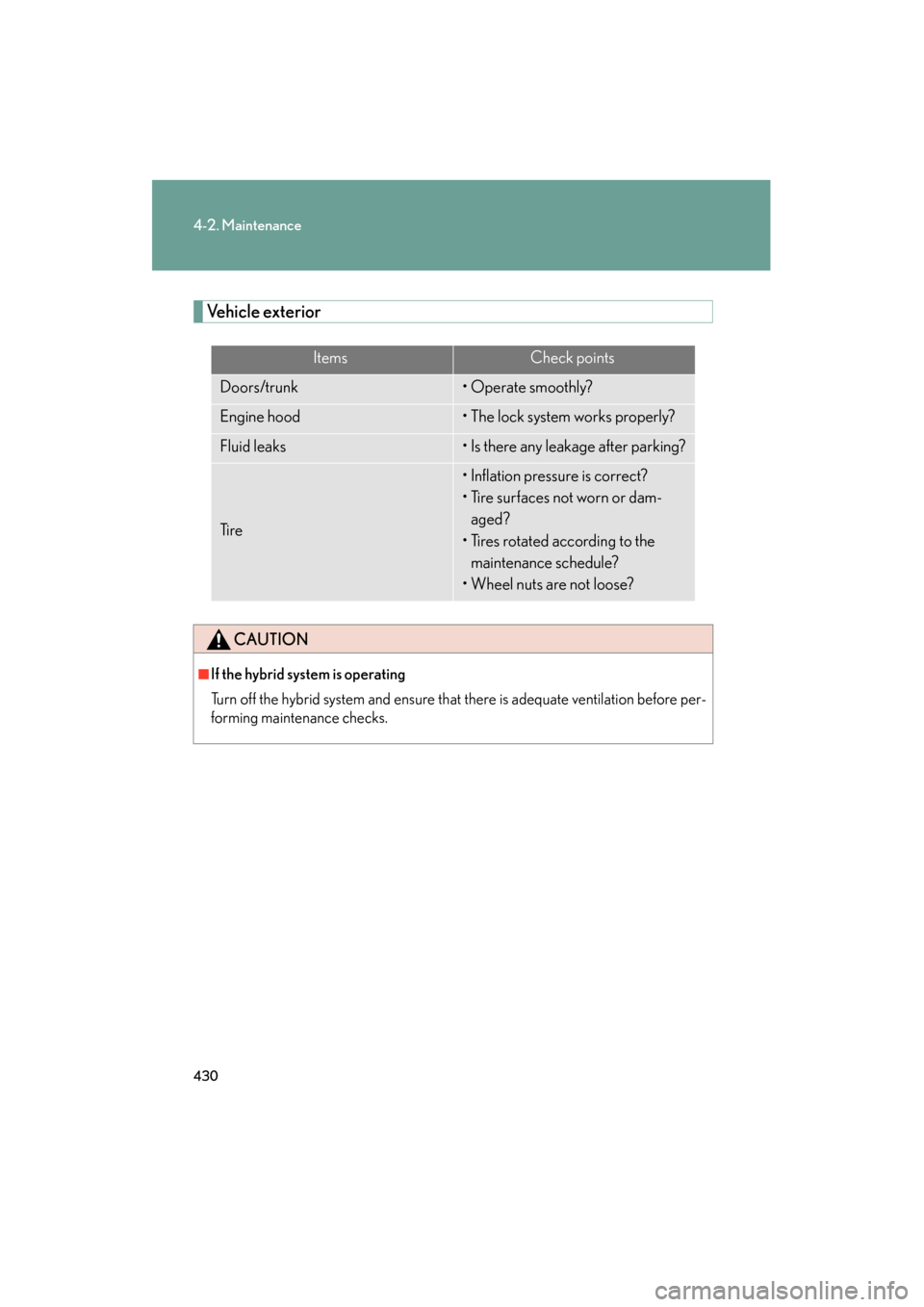

Vehicle exterior
ItemsCheck points
Doors/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Tires rotated according to the maintenance schedule?
• Wheel nuts are not loose?
CAUTION
■If the hybrid system is operating
Turn off the hybrid system and ensure that there is adequate ventilation before per-
forming maintenance checks.
GS450h_HV_U.book Page 430 Monday, April 27, 2009 10:10 AM

433
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

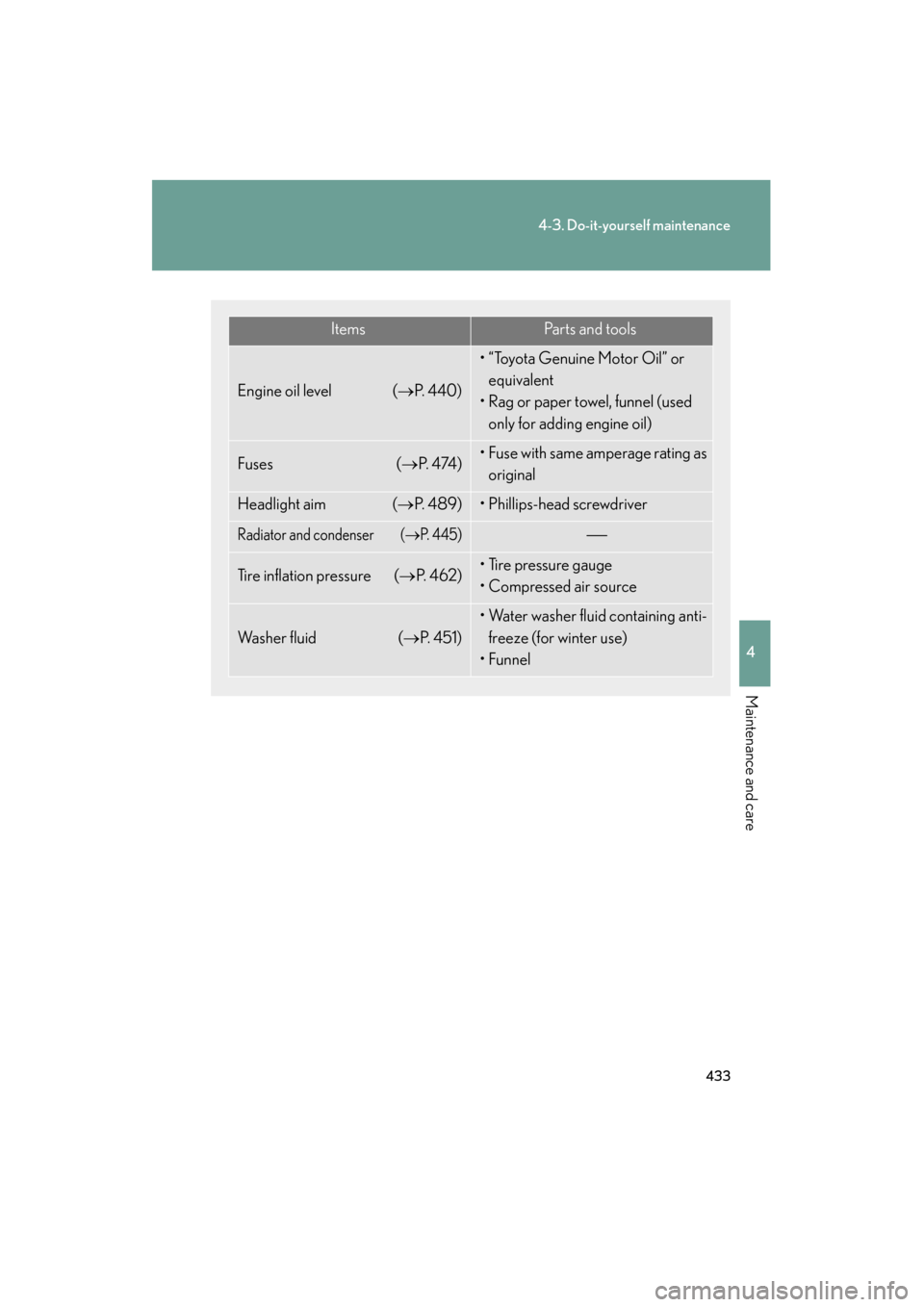

ItemsParts and tools
Engine oil level (→P. 4 4 0 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (→ P. 4 74 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 4 8 9 )• Phillips-head screwdriver
Radiator and condenser (→P. 4 4 5 )
Tire inflation pressure (→ P. 4 6 2 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d (→P. 4 5 1 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel
GS450h_HV_U.book Page 433 Monday, April 27, 2009 10:10 AM

452
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

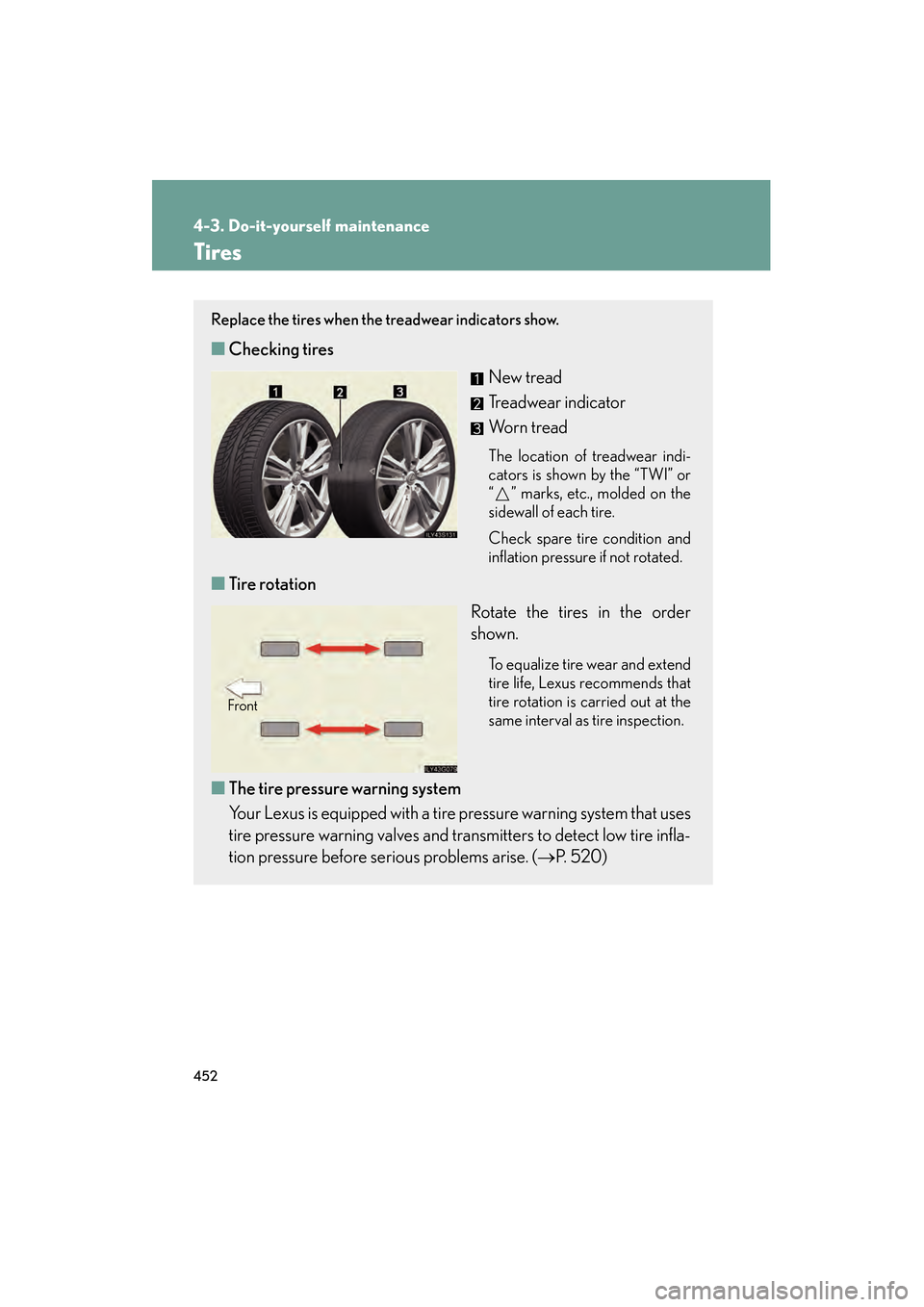

Tires
Replace the tires when the treadwear indicators show.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear indi-
cators is shown by the “TWI” or
“ ” marks, etc., molded on the
sidewall of each tire.
Check spare tire condition and
inflation pressure if not rotated.
■Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and extend
tire life, Lexus recommends that
tire rotation is carried out at the
same interval as tire inspection.
■The tire pressure warning system
Your Lexus is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise. ( →P. 5 2 0 )
Front
GS450h_HV_U.book Page 452 Monday, April 27, 2009 10:10 AM
