2-1. Driving proceduresDriving the vehicle ........................ 138
Power (ignition) switch ............... 148
Transmission ................................... 152
Turn signal lever ............................ 156
Parking brake ................................. 157
Horn.................................................... 158
2-2. Instrument cluster Gauges and meters ..................... 159
Indicators and warning lights............................... 163
Multi-information display ........... 166
2-3. Operating the lights and windshield wipers
Headlight switch ............................ 169
Fog light switch ............................... 172
Windshield wipers and washer............................................. 173
Headlight cleaner switch ........... 178 2-4. Using other driving systems
Cruise control ................................ 179
Dynamic radar cruise control............................................. 183
Intuitive parking assist ................. 195
Rear view monitor system ......... 210
AVS (Adaptive Variable Suspension System) .................. 213
Driving assist systems.................. 214
PCS (Pre-Collision System) ............ 221
2-5. Driving information Cargo and luggage ..................... 227
Vehicle load limits......................... 231
Winter driving tips ....................... 232
Trailer towing ................................. 236
Dinghy towing ............................... 237
2When driving
GS450h_HV_U.book Page 3 Monday, April 27, 2009 10:10 AM

94
1-6. Refueling
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

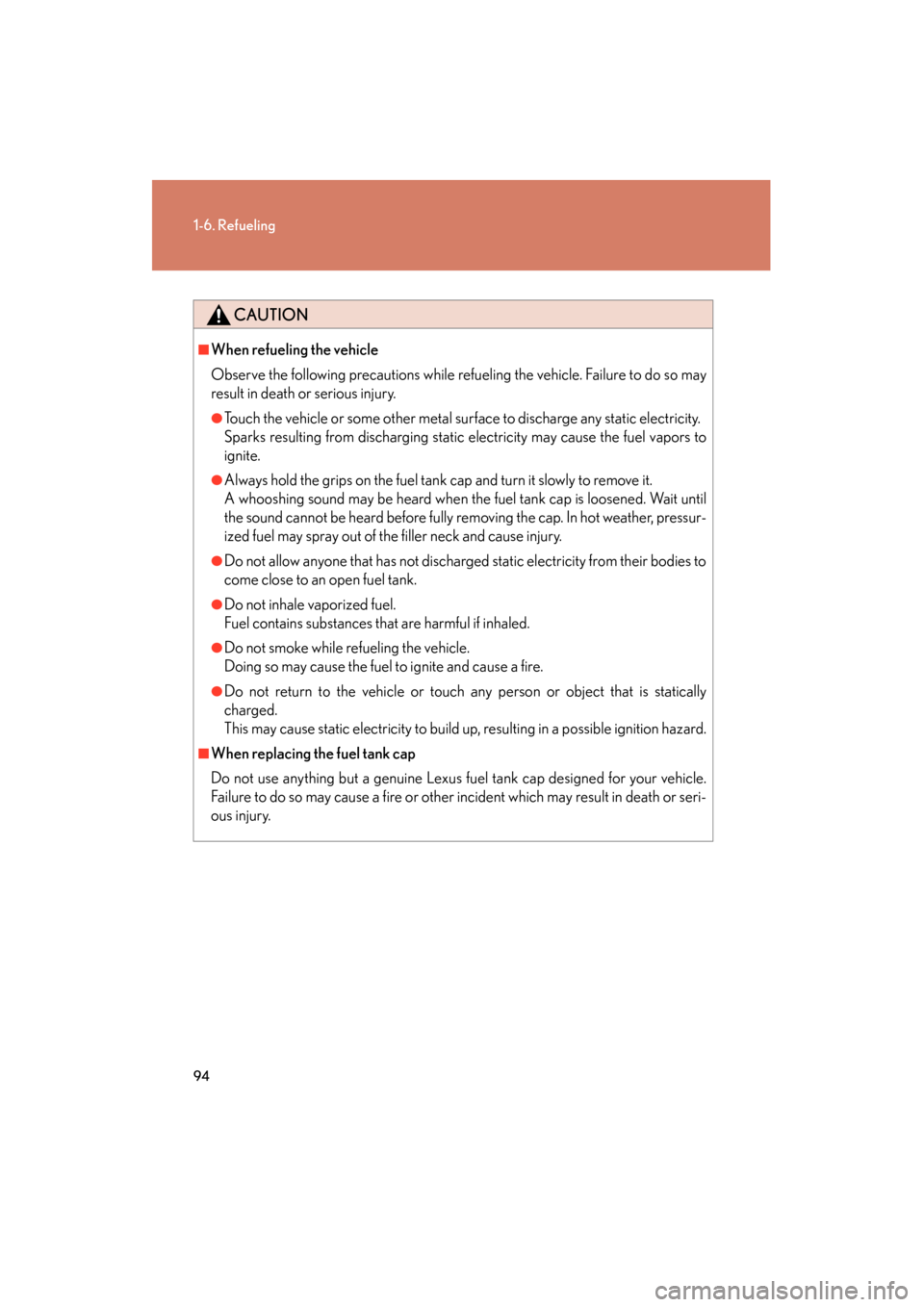

CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out of the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri-
ous injury.
GS450h_HV_U.book Page 94 Monday, April 27, 2009 10:10 AM

When driving2
137
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
2-1. Driving proceduresDriving the vehicle.................. 138
Power (ignition) switch .......... 148
Transmission.............................. 152
Turn signal lever ....................... 156
Parking brake ........................... 157
Horn ............................................ 158
2-2. Instrument cluster Gauges and meters ................ 159
Indicators and warning lights ........................ 163
Multi-information display ..... 166 2-3. Operating the lights and
windshield wipers
Headlight switch ...................... 169
Fog light switch ......................... 172
Windshield wipers and washer ..................................... 173
Headlight cleaner switch ..... 178
2-4. Using other driving systems
Cruise control........................... 179
Dynamic radar cruise control ..................................... 183
Intuitive parking assist ........... 195
Rear view monitor system .... 210
AVS (Adaptive Variable Suspension System) ............ 213
Driving assist systems ............ 214
PCS (Pre-Collision System) ...... 221
2-5. Driving information Cargo and luggage ............... 227
Vehicle load limits ................... 231
Winter driving tips ................. 232
Trailer towing .......................... 236
Dinghy towing......................... 237
GS450h_HV_U.book Page 137 Monday, April 27, 2009 10:10 AM

148
2-1. Driving procedures
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Power (ignition) switch
Performing the following operations when carrying the electronic key on
your person starts the hybrid syst em or changes “POWER” switch modes.
■Starting the hybrid system
Check that the parking brake is set.
Check that the shift lever is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
The “POWER” switch indicator turns green.
Press the “POWER” switch.
After a few seconds, the
“READY” light will flash and
come on with a beep sound.
The vehicle can move when the
“READY” light is on, even if the
engine is stopped.
The hybrid system can be
started from any mode.
STEP1
STEP2
STEP3
STEP4
GS450h_HV_U.book Page 148 Monday, April 27, 2009 10:10 AM

569
6-1. Specifications
6
Vehicle specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

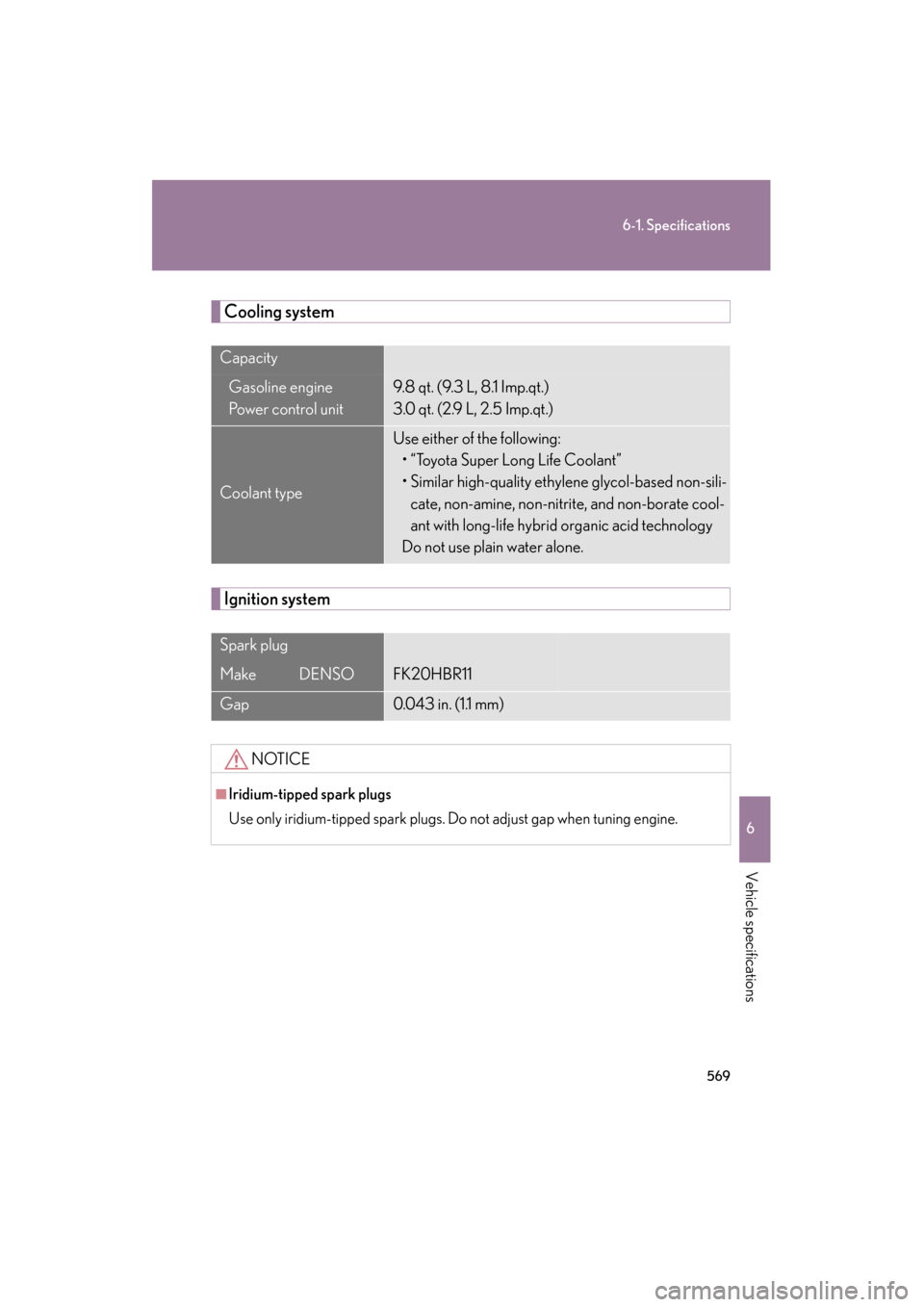

Cooling system
Ignition system
Capacity
Gasoline engine
Po w e r c o n t r o l u n i t9.8 qt. (9.3 L, 8.1 Imp.qt.)
3.0 qt. (2.9 L, 2.5 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSOFK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
GS450h_HV_U.book Page 569 Monday, April 27, 2009 10:10 AM

606
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
DoorsDoor lock.................................. 39, 51, 54
Rear door child protector ................ 55
Driver’s seat belt reminder light ...... 512
Driver’s seat position memory ........... 66
Driving
Correct posture .................................... 101
Procedures ............................................ 138
DVD player/changer..........................283
Electric power steering ....................... 214
Electronic key If the electronic key does not operate properly ................... 550
Replacing battery ...............................472
Emergency, in case of
If a warning light turns on ............... 510
If a warning message is displayed ............................................. 519
If the electronic key does
not operate properly ................... 550
If the hybrid system
will not start ....................................... 547
If the shift lever cannot be
shifted from “P”................................548
If the 12 volt battery is
discharged .......................................553
If you have a flat tire ............ 536, 546
If you lose your keys.........................549
If you think something is
wrong ................................................... 507
If your vehicle becomes stuck.... 560
If your vehicle needs to be towed .................................................... 501
If your vehicle overheats ................ 557
Energy monitor......................................... 29 Engine
ACCESSORY mode .....................149
Compartment ..................................... 438
Hood ....................................................... 435
How to start the hybrid system..................................... 148
If the hybrid system will not start ........................................547
Overheating ........................................ 557
Power (ignition) switch .................... 148
Engine compartment cover ............. 439
Engine coolant temperature gauge ...................................................... 159
Engine/power control unit coolant
Capacity ................................................ 569
Checking................................................444
Preparing and checking before winter..................................... 232
Engine oil Capacity ................................................ 567
Checking............................................... 440
Preparing and checking
before winter..................................... 232
Engine oil maintenance data ........... 442
Enhanced vehicle stability control .....................................................214
Event data recorder ............................508
First-aid kit storage belt ..................... 392
Floor mats ..................................................391
Fluid Brake ....................................................... 446
Washer..................................................... 451
Fog lights
Switch .........................................................172
Wattage ..................................................573
E
F
GS450h_HV_U.book Page 606 Monday, April 27, 2009 10:10 AM

607
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Foot light .................................................. 369
Front passenger occupant classification system ........................... 115
Front passenger’s seat belt
reminder light ....................................... 512
Front seats
Adjustment ...............................................64
Driver’s seat position memory ...... 66
Front turn signal lights Wattage ................................................. 573
Fuel Capacity.................................................566
Fuel gauge ..............................................159
Gas station information ................. 620
Information............................................ 574
Refueling ..................................................... 91
Messages ..............................................530
Fuel door....................................................... 91
Fuel filler door............................................. 91
Fuses........................................................... 474
Garage door opener.......................... 394
Gas station information ..................... 620
Gauges....................................................... 159
Glove box ................................................373
Hands-free system (for cellular phone).......................... 323
Head restraints..........................................70
Headlight aim ........................................ 489
Headlight cleaner .................................. 178 Headlights
Adaptive front lighting system...... 170
Discharge headlights precautions........................................ 497
Replacing light bulbs ........................ 492
Switch........................................................ 169
Wattage..................................................573
Heaters
Seat heaters ......................................... 386
Side mirror.............................................256
Hill-start assist control ......................... 214
Hood ..........................................................435
Hooks Cargo ...................................................... 392
Shopping bag ......................................392
Horn ............................................................ 158
Hybrid system ........................................... 24 Emergency shut off system.............. 29
Energy monitor/consumption screen...................................................... 29
High voltage components ............... 28
Power meter.......................................... 159
Power (ignition) switch .................... 148
Identification Engine..................................................... 565
Electric motor ..................................... 565
Vehicle ................................................... 565
Ignition switch Power switch......................................... 148
Illuminated entry system .................... 369
I/M test....................................................... 431
Immobilizer system ................................. 96
Indicator lights......................................... 163
Initialization Items to initialize ................................ 596
G
H
I
GS450h_HV_U.book Page 607 Monday, April 27, 2009 10:10 AM

608
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Inside rear view mirror ..........................82
Instrument panel light control........... 160
Interior lightsInterior lights......................................... 370
Wattage.................................................. 573
Intuitive parking assist .......................... 195
Jack
Positioning a floor jack.................... 436
Vehicle-equipped jack ...................536
Jack handle ..............................................536
Keyless entry............................................... 51
Keys If the electronic key does not operate properly ................... 550
If you lose your keys.........................549
Key number plate ................................. 35
Keys ............................................................. 35
Mechanical key...................................... 35
Power (ignition) switch.................... 148
Wireless remote control key ............ 51
Lexus Link System ................................404
Light bulbs Replacing ............................................... 492
Wattage.................................................. 573
Light sensitive optitron meter .............161
Lights Fog light switch..................................... 172
Headlights switch ................................169
Interior lights list.................................. 369
Replacing light bulbs........................ 492
Turn signal lever .................................. 156
Vanity lights ......................................... 380
Wattage.................................................. 573 Maintenance
Do-it-yourself ma intenance..........432
General maintenance..................... 428
Maintenance data ............................. 564
Maintenance requirements...........426
Meter
Instrument panel light control .......160
Meters....................................................... 159
Micro dust and pollen filter .............. 252
Mirrors Inside rear view mirror .......................82
Side mirror heater............................. 256
Side mirrors............................................. 83
Vanity mirrors .....................................380
Moon roof...................................................88
MP3 disc.................................................. 279
Multi-information display ....................166
Noise from under the vehicle...............18
Odometer ................................................ 159
Oil Engine oil............................................... 440
Opener
Fuel filler door .......................................... 91
Hood ....................................................... 435
Trunk........................................................... 59
Outer foot lights.................................... 369
Outside rear view mirrors Adjusting and folding ......................... 83
Mirror position memory ....................66
Outside temperature
display .................................................... 382
Overhead console ............................... 375
Overheating, Engine .......................... 557
J
K
L
M
N
O
GS450h_HV_U.book Page 608 Monday, April 27, 2009 10:10 AM

610
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Smart access system with push-button start
Antenna location..................................... 41
Entry function.......................................... 39
Starting the hybrid system .................................... 148
Spare tire Inflation pressure................................ 572
Storage location ................................. 537
Spark plug ................................................569
Specifications .........................................564
Speedometer........................................... 159
Steering wheel Adjustment.................................................81
Audio switches ................................... 320
Steering wheel position
memory.................................................. 66
Storage compartment ........................ 376
Storage feature...................................... 372
Stuck
If your vehicle becomes stuck.... 560
Sun visors ................................................. 379
Switch Fog light switch..................................... 172
Ignition switch....................................... 148
Light switches ........................................169
Mode select switch.............................153
Power door lock switch .................... 54
“POWER” switch ............................... 148
Power window switch ........................85
Tire pressure warning reset switch ....................................... 453
Tire pressure warning select switch ...................455
Window lock switch ...........................85
Wipers and washer switch ............. 173 Tail lights
Switch ........................................................ 169
Theft deterrent system Alarm.......................................................... 98
Immobilizer system ..............................96
Theft prevention labels........................ 100
Tire inflation pressure ......................... 572
Tire information
Glossary ................................................ 583
Size ...........................................................580
Tire identification number ............. 579
Uniform Tire Quality Grading .....581
Tires Chains......................................................233
Checking............................................... 452
Compact spare tire...........................537
If you have a flat tire .............536, 546
Inflation pressure ................................572
Information ............................................577
Replacing .............................................. 536
Rotating tires........................................ 452
Size ............................................................572
Snow tires.............................................. 235
Tire pressure warning system..... 452
Tools........................................................... 536
Total load capacity .................................231
Touch screen.......................................... 240
Towing Dinghy towing ..................................... 237
Emergency towing .............................501
Trailer towing .......................................236
Traction control.......................................214T
GS450h_HV_U.book Page 610 Monday, April 27, 2009 10:10 AM
