GS450h_HV_U.book Page 9 Monday, April 27, 2009 10:10 AM

82
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Inside rear view mirror
■To prevent sensor error
CAUTION
■While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.
In the auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
Turns auto mode on/off
The indicator comes on when
auto mode is turned on.
The mirror is automatically set to
auto whenever the “POWER”
switch is turned ON mode.
To ensure correct functioning of the sensors,
do not touch or cover the sensors.
GS450h_HV_U.book Page 82 Monday, April 27, 2009 10:10 AM

98
1-7. Theft deterrent system
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than by using the smart access system with push-button start,
wireless remote control or mechanical key. (The doors will lock
again automatically.)
● The hood is opened while the vehicle is locked.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk.
● Turn the “POWER” switch to the ACCESSORY or ON mode.
(The alarm will be deactivated or stopped after a few seconds.)
GS450h_HV_U.book Page 98 Monday, April 27, 2009 10:10 AM

99
1-7. Theft deterrent system
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

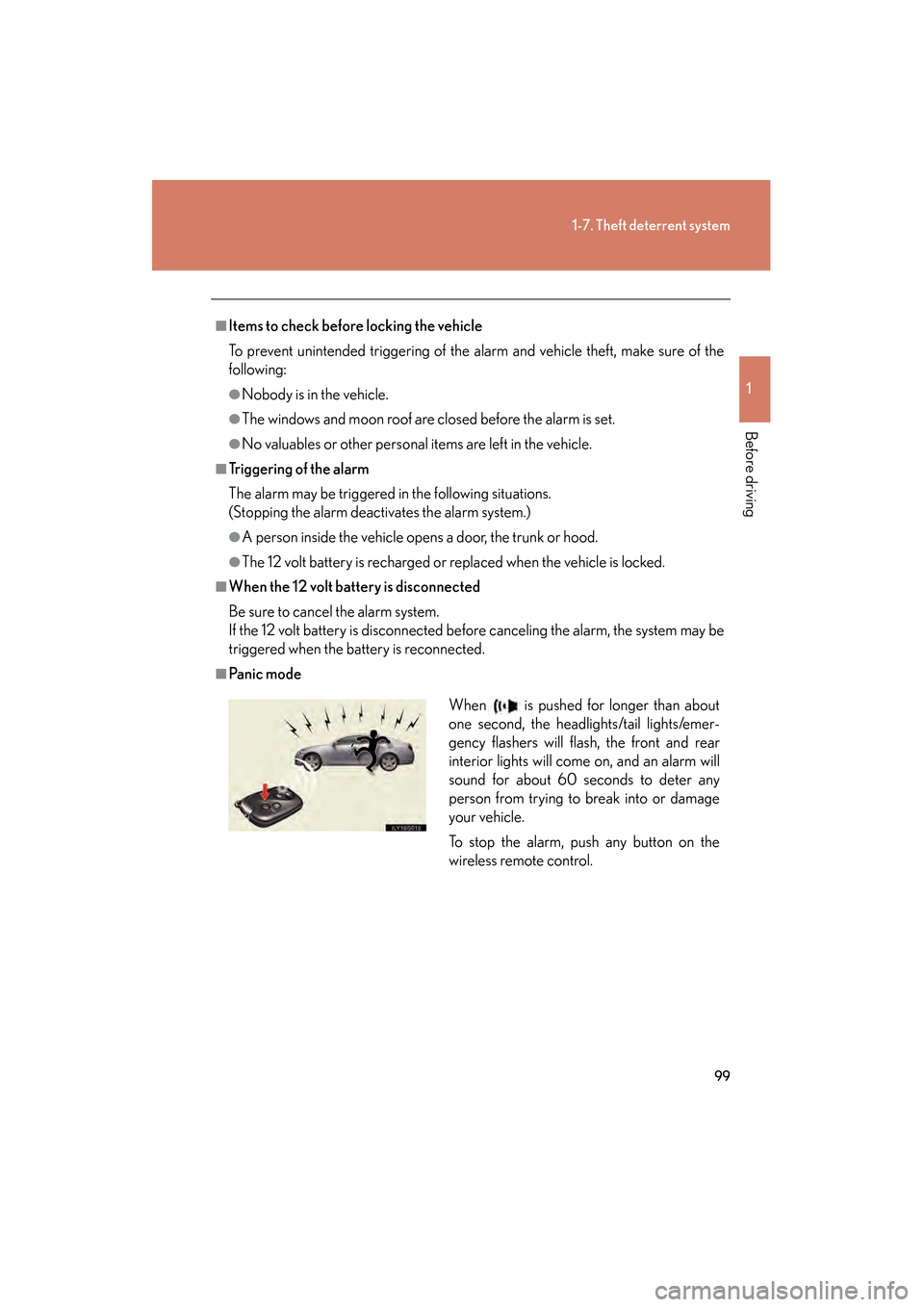

■Items to check before locking the vehicle
To prevent unintended triggering of the alarm and vehicle theft, make sure of the
following:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
●A person inside the vehicle opens a door, the trunk or hood.
●The 12 volt battery is recharged or replaced when the vehicle is locked.
■When the 12 volt battery is disconnected
Be sure to cancel the alarm system.
If the 12 volt battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
■Pa n i c m o d eWhen is pushed for longer than about
one second, the headlights/tail lights/emer-
gency flashers will flash, the front and rear
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, push any button on the
wireless remote control.
GS450h_HV_U.book Page 99 Monday, April 27, 2009 10:10 AM

104
1-8. Safety information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Airbag system components
Occupant detection system
(ECU and sensors)
Front passenger’s seat belt
buckle switch
Knee airbag
Front passenger airbag
Curtain shield airbag
Front side airbag
Side and curtain shield airbag
sensorCurtain shield and rear side
airbag sensor
SRS warning light
Rear side airbag (if equipped)
Driver airbag
Driver’s seat belt buckle switch
Driver’s seat position sensor
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Airbag sensor assembly
Front airbag sensor
Curtain shield airbag
Can help protect primarily the head of front occupants and rear out-
board occupants.
GS450h_HV_U.book Page 104 Monday, April 27, 2009 10:10 AM

116
1-8. Safety information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

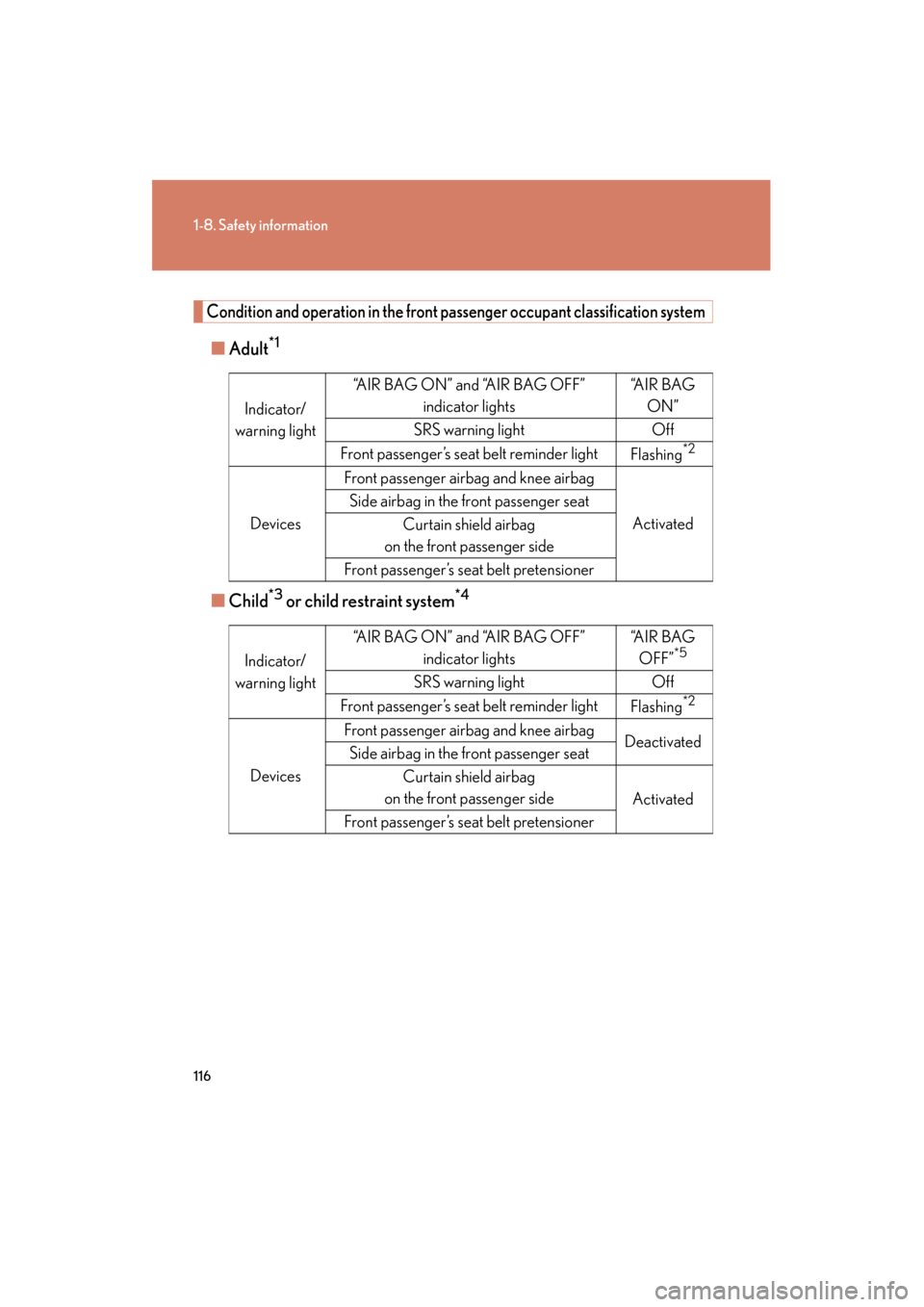

Condition and operation in the front passenger occupant classification system
■Adult*1
■Child*3 or child restraint system*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag and knee airbag
Activated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag and knee airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner
GS450h_HV_U.book Page 116 Monday, April 27, 2009 10:10 AM

117
1-8. Safety information
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

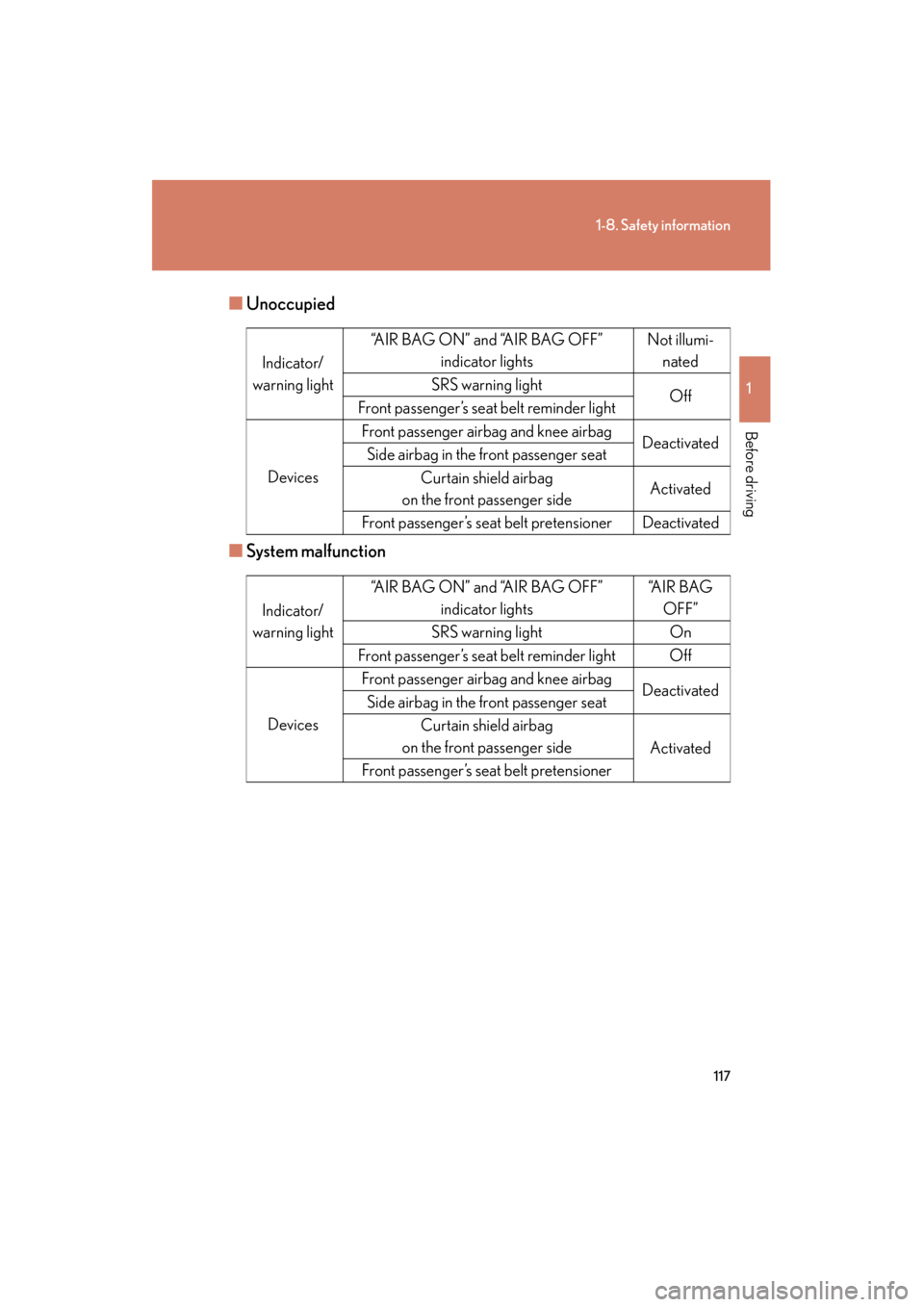

■Unoccupied
■ System malfunction
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illumi-
nated
SRS warning light Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag and knee airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner Deactivated
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag and knee airbag
Deactivated
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side Activated
Front passenger’s seat belt pretensioner
GS450h_HV_U.book Page 117 Monday, April 27, 2009 10:10 AM

When driving2
137
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
2-1. Driving proceduresDriving the vehicle.................. 138
Power (ignition) switch .......... 148
Transmission.............................. 152
Turn signal lever ....................... 156
Parking brake ........................... 157
Horn ............................................ 158
2-2. Instrument cluster Gauges and meters ................ 159
Indicators and warning lights ........................ 163
Multi-information display ..... 166 2-3. Operating the lights and
windshield wipers
Headlight switch ...................... 169
Fog light switch ......................... 172
Windshield wipers and washer ..................................... 173
Headlight cleaner switch ..... 178
2-4. Using other driving systems
Cruise control........................... 179
Dynamic radar cruise control ..................................... 183
Intuitive parking assist ........... 195
Rear view monitor system .... 210
AVS (Adaptive Variable Suspension System) ............ 213
Driving assist systems ............ 214
PCS (Pre-Collision System) ...... 221
2-5. Driving information Cargo and luggage ............... 227
Vehicle load limits ................... 231
Winter driving tips ................. 232
Trailer towing .......................... 236
Dinghy towing......................... 237
GS450h_HV_U.book Page 137 Monday, April 27, 2009 10:10 AM
