■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds, frequent
acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 Imp.qt./600 miles (1.0 L per 1000
km). If the vehicle consumes more than this amount, contact your Lexus dealer.
■Resetting the engine oil maintenance data (U.S.A. only)
Perform the following steps:Press the “DISP” switch ( →P. 167) to change the multi-information display
to blank.
Turn the “POWER” switch to OFF.
Turn the “POWER” switch to ON mode with the trip meter reset button
held down.
Keep pressing the button for longer than 7 seconds after the “POWER”
switch is in ON mode.
STEP1
STEP2
STEP3
STEP4
After the above operation, the message
shown in the left will appear on the display.
The master warning light and tone will turn
on. After 5 seconds, the system reset is com-
pleted.
GS450h_HV_U.book Page 442 Monday, April 27, 2009 10:10 AM

567

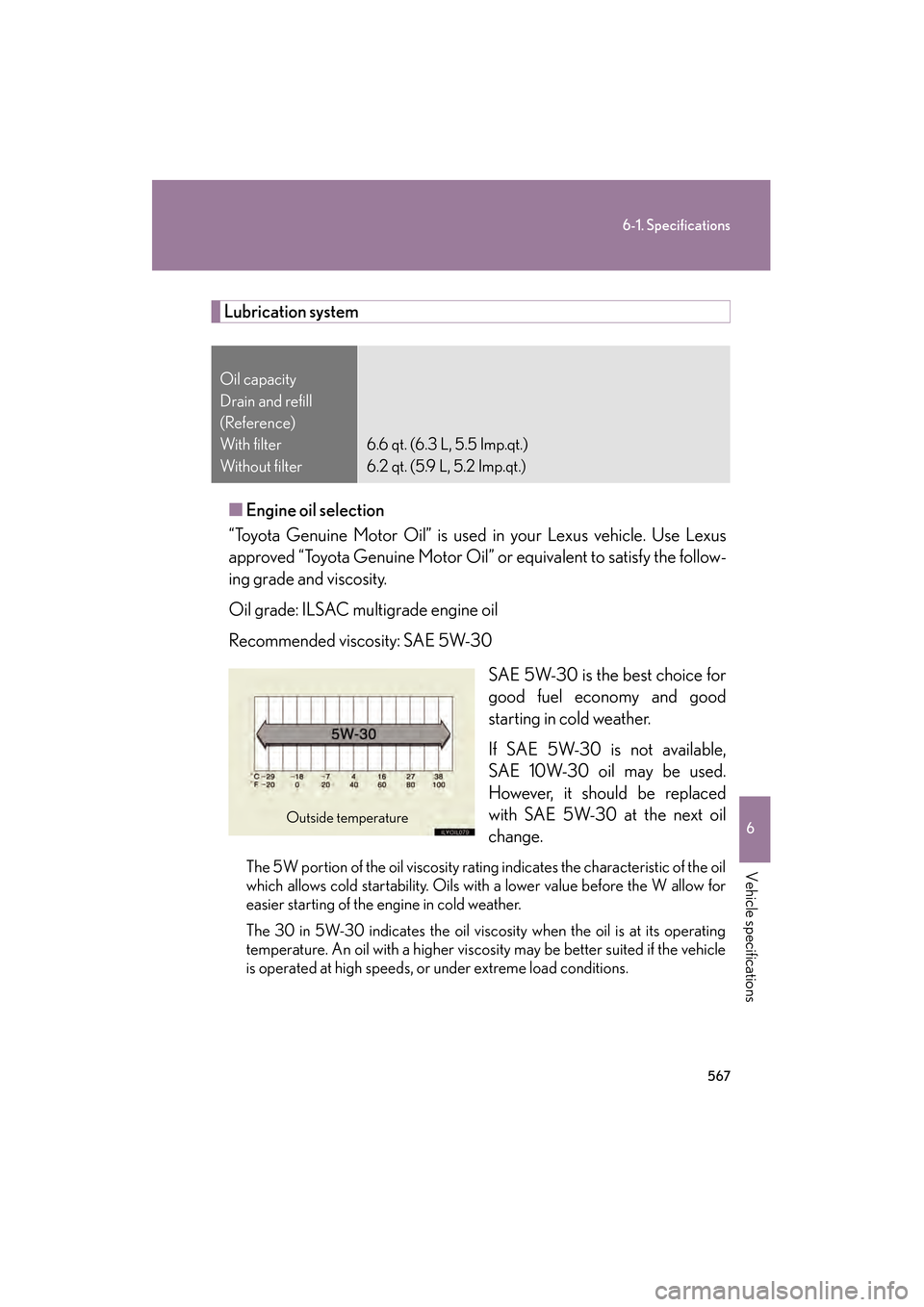

6-1. Specifications
6
Vehicle specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Lubrication system■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
The 5W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for
easier starting of the engine in cold weather.
The 30 in 5W-30 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehicle
is operated at high speeds, or under extreme load conditions.
Oil capacity
Drain and refill
(Reference)
With filter
Without filter
6.6 qt. (6.3 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)
Outside temperature
GS450h_HV_U.book Page 567 Monday, April 27, 2009 10:10 AM

570
6-1. Specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Electrical system
Differential
“Toyota Genuine Differential Gear Oil” is filled in your Lexus vehicle at fac-
tory fill. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification. Please con-
tact your Lexus dealer for further details.
12 volt battery
Open voltage at
68 °F (20 °C):12.6  12.8V Fully charged
12.2  12.4V Half charged
11.8  12.0V Discharged
(Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates5A max.
Oil capacity1.42 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and
viscosityToyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
