TABLE OF CONTENTSIndex
2
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
1-1. Hybrid systemHybrid system................................... 24
1-2. Key information Keys ...................................................... 35
1-3. Opening, closing and locking the doors and trunk
Smart access system with push-button start................. 39
Wireless remote control ............... 51
Doors.................................................... 54
Trunk..................................................... 59
1-4. Adjustable components (seats, mirrors, steering wheel)
Front seats .......................................... 64
Driving position memory system ............................................... 66
Head restraints................................. 70
Seat belts ............................................ 74
Steering wheel................................... 81
Inside rear view mirror.................. 82
Outside rear view mirrors .......... 83 1-5. Opening and closing
the windows and moon roof
Power windows............................... 85
Moon roof ......................................... 88
1-6. Refueling Opening the fuel tank cap............ 91
1-7. Theft deterrent system Immobilizer system ........................ 96
Alarm.................................................... 98
Theft prevention labels (U.S.A.) ........................................... 100
1-8. Safety information Correct driving posture .............. 101
SRS airbags ..................................... 103
Front passenger occupant classification system .................... 115
Child restraint systems ................. 121
Installing child restraints ............. 125
1Before driving
GS450h_HV_U.book Page 2 Monday, April 27, 2009 10:10 AM

TABLE OF CONTENTSIndex
4
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
3-1. Using the touch screenTouch screen ................................. 240
Setting the touch screen ........... 243
3-2. Using the air conditioning system and defogger
Automatic air conditioning system ........................................... 248
Rear window and outside rear view mirror defoggers ............ 256
Windshield wiper de-icer ......... 257
3-3. Using the audio system Audio system type ...................... 258
Using the radio ............................... 261
Using the cassette player.......... 270
Using the CD player ................... 274
Playing MP3 and WMA discs.................................. 279
Using the DVD player............... 283
Playing DVD video/audio ....... 286
Playing video CD (with DVD player).................... 298
CD/DVD player and DVD video disc information ............ 302
Optimal use of the audio/video system ................... 314
Using the AUX adapter ............. 319
Using the steering switches .... 320 3-4. Using the hands-free system
(for cellular phone)
Hands-free system (for cellular phone) ................... 323
Using the Bluetooth®
phone ............................................ 328
Setting the hands-free system ............................................ 343
3-5. Using the interior lights Interior lights list............................ 369
3-6. Using the storage features List of storage features............... 372
3-7. Other interior features Sun visors......................................... 379
Vanity mirrors............................... 380
Clock .................................................. 381
Outside temperature display ........................................... 382
Ashtrays .......................................... 383
Cigarette lighter .......................... 384
Power outlet .................................. 385
Seat heaters/ventilators ........... 386
Armrest ........................................... 388
Rear sunshade .............................. 389
Floor mats......................................... 391
Trunk features................................ 392
Garage door opener.................. 394
Compass......................................... 400
Lexus Link System ....................... 404
3Interior features
GS450h_HV_U.book Page 4 Monday, April 27, 2009 10:10 AM

8
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

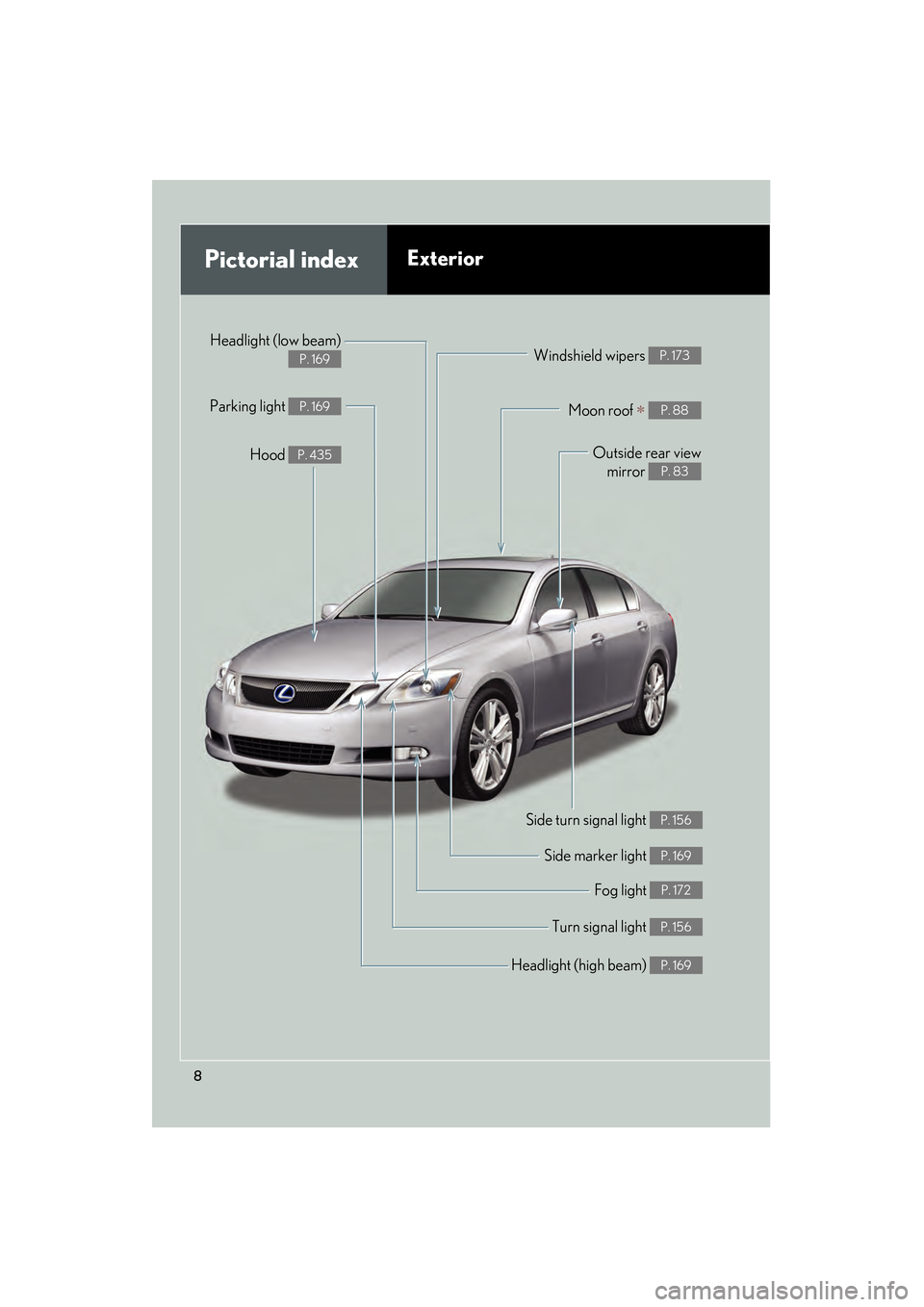

Headlight (high beam) P. 169
Pictorial indexExterior
Turn signal light P. 156
Fog light P. 172
Side marker light P. 169
Headlight (low beam)
P. 169
Hood P. 435
Parking light P. 169
Windshield wipers P. 173
Moon roof ∗ P. 88
Outside rear viewmirror
P. 83
Side turn signal light P. 156
GS450h_HV_U.book Page 8 Monday, April 27, 2009 10:10 AM

11
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

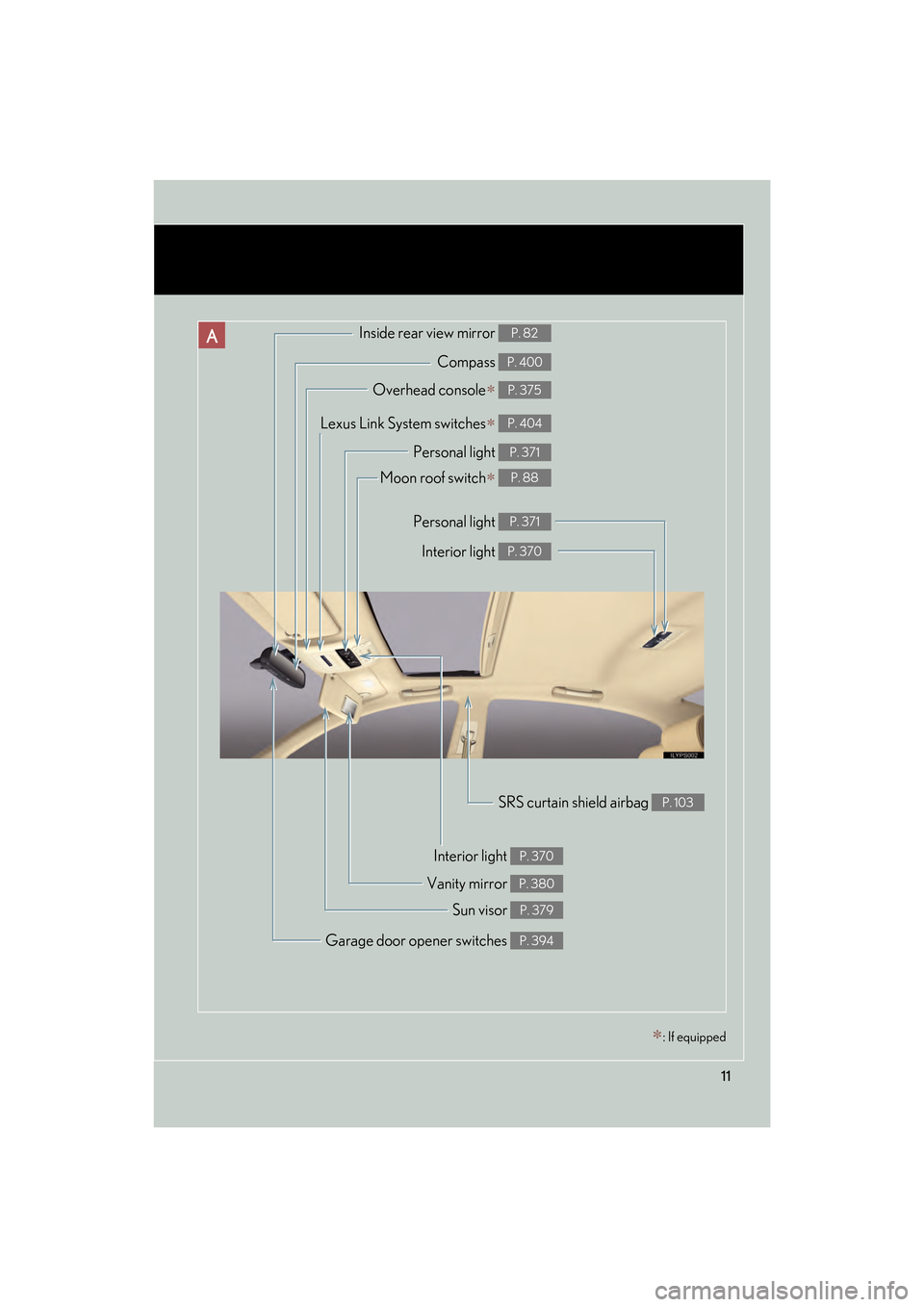

Compass P. 400
Garage door opener switches P. 394
Inside rear view mirror P. 82
Personal light P. 371
Moon roof switch∗ P. 88
Interior light P. 370
Vanity mirror P. 380
Personal light P. 371
Interior light P. 370
Sun visor P. 379
SRS curtain shield airbag P. 103
A
∗: If equipped
Lexus Link System switches∗ P. 404
Overhead console∗ P. 375
GS450h_HV_U.book Page 11 Monday, April 27, 2009 10:10 AM

16
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Pictorial indexInstrument panel
Rear window and outside
rear view mirror defoggers
P. 256
Emergency flashers P. 500
Air conditioning
system
P. 248
Audio system

P. 258
Navigation system*Touch screen

P. 240
Security indicator
P. 96, 98
Clock P. 381Outside temperature display
P. 382
B
GS450h_HV_U.book Page 16 Monday, April 27, 2009 10:10 AM

17
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
“AFS OFF” switch P. 170
Rear sunshade switch P. 389
Headlight cleaner switch∗ P. 178
Intuitive parking assist switch∗ P. 195
Odometer/trip meter and
trip meter reset buttons
P. 160
Instrument panel light control P. 160
Outside rear view mirror switches P. 83
∗: If equipped
*: Refer to “Navigation System Owner’s Manual”.
C
GS450h_HV_U.book Page 17 Monday, April 27, 2009 10:10 AM

Before driving1
23
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
1-1. Hybrid systemHybrid system ............................ 24
1-2. Key information Keys ............................................... 35
1-3. Opening, closing and locking the doors and trunk
Smart access system with push-button start ........... 39
Wireless remote control .......... 51
Doors ............................................ 54
Trunk ............................................. 59
1-4. Adjustable components (seats, mirrors,
steering wheel)
Front seats ................................... 64
Driving position memory system ........................................ 66
Head restraints .......................... 70
Seat belts ..................................... 74
Steering wheel ............................ 81
Inside rear view mirror ........... 82
Outside rear view mirrors ..... 83 1-5. Opening and closing
the windows and moon roof
Power windows .......................... 85
Moon roof ................................... 88
1-6. Refueling Opening the fuel tank cap ...... 91
1-7. Theft deterrent system Immobilizer system .................. 96
Alarm............................................ 98
Theft prevention labels (U.S.A.).................................... 100
1-8. Safety information Correct driving posture ........ 101
SRS airbags .............................. 103
Front passenger occupant classification system............. 115
Child restraint systems .......... 121
Installing child restraints....... 125
GS450h_HV_U.book Page 23 Monday, April 27, 2009 10:10 AM

66
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

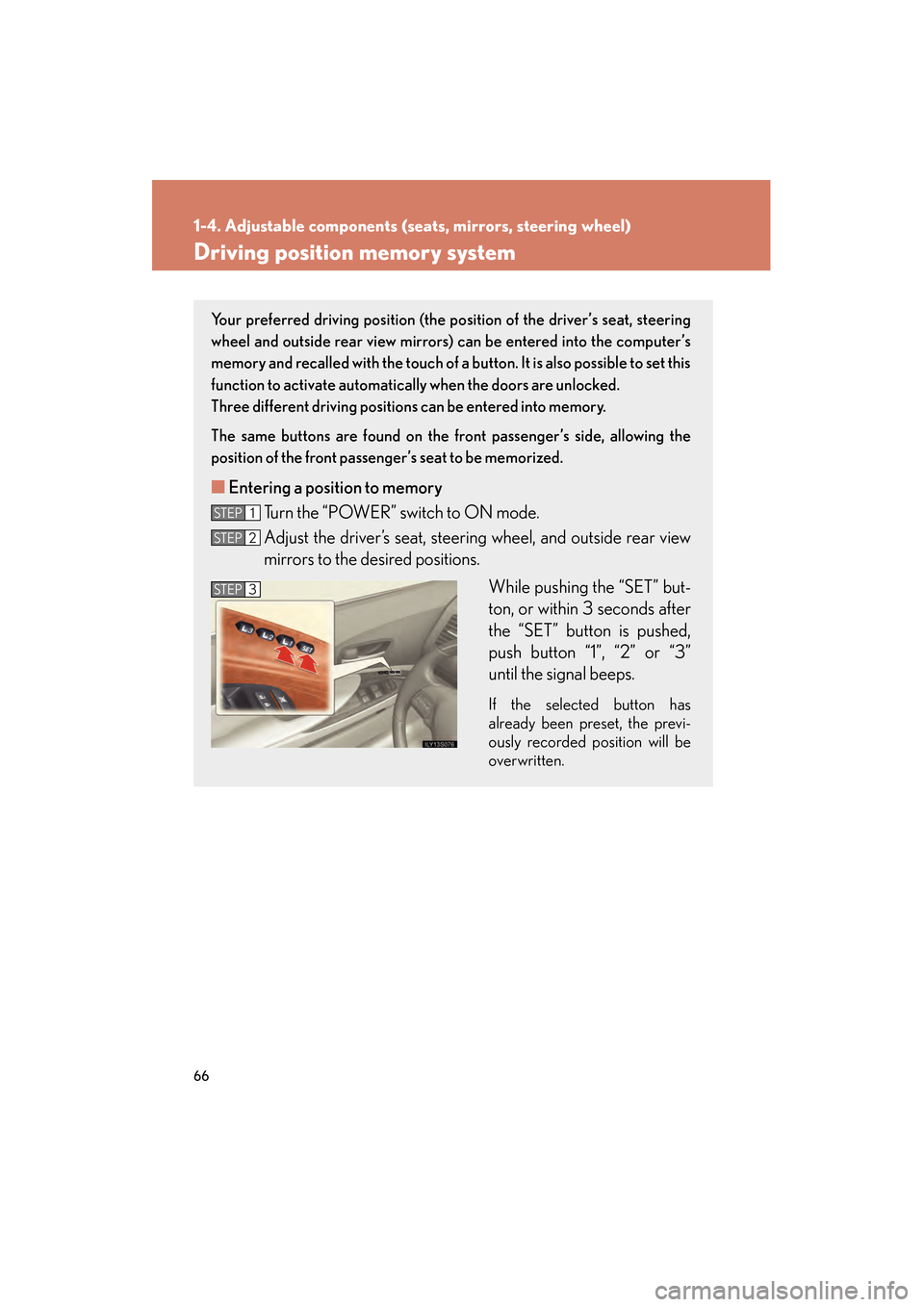

Driving position memory system
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be entered into the computer’s
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.
Three different driving positions can be entered into memory.
The same buttons are found on the front passenger’s side, allowing the
position of the front passen ger’s seat to be memorized.
■Entering a position to memory
Turn the “POWER” switch to ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pushing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pushed,
push button “1”, “2” or “3”
until the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3
GS450h_HV_U.book Page 66 Monday, April 27, 2009 10:10 AM

82
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Inside rear view mirror
■To prevent sensor error
CAUTION
■While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.
In the auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
Turns auto mode on/off
The indicator comes on when
auto mode is turned on.
The mirror is automatically set to
auto whenever the “POWER”
switch is turned ON mode.
To ensure correct functioning of the sensors,
do not touch or cover the sensors.
GS450h_HV_U.book Page 82 Monday, April 27, 2009 10:10 AM

83
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

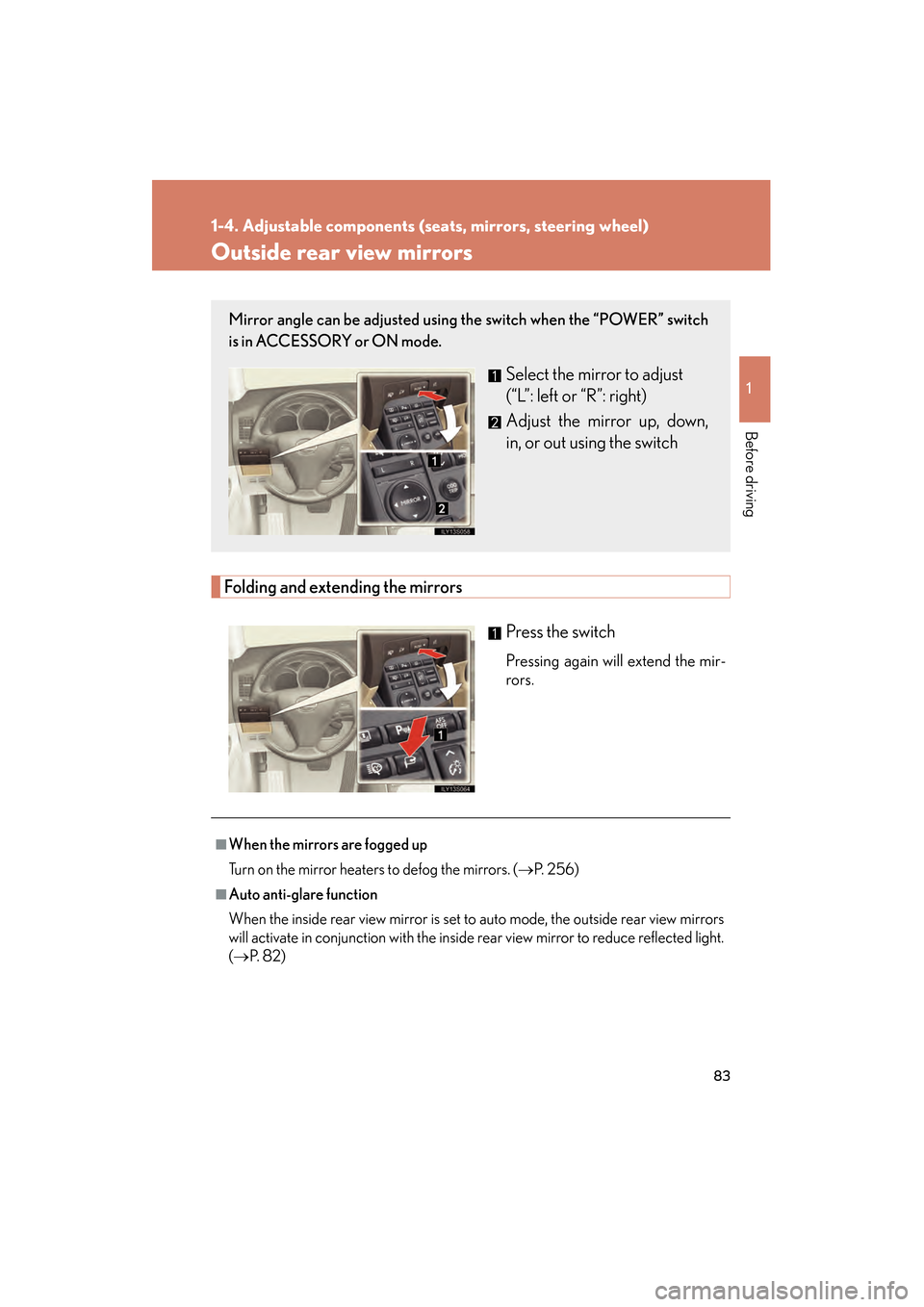

Outside rear view mirrors
Folding and extending the mirrorsPress the switch
Pressing again will extend the mir-
rors.
Mirror angle can be adjusted using the switch when the “POWER” switch
is in ACCESSORY or ON mode.
Select the mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. ( →P. 2 5 6 )
■Auto anti-glare function
When the inside rear view mirror is set to auto mode, the outside rear view mirrors
will activate in conjunction with the inside rear view mirror to reduce reflected light.
(→ P. 8 2 )
GS450h_HV_U.book Page 83 Monday, April 27, 2009 10:10 AM
