wiper fluid Lexus GS450h 2009 Owner's Manual

176
2-3. Operating the lights and windshield wipers
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

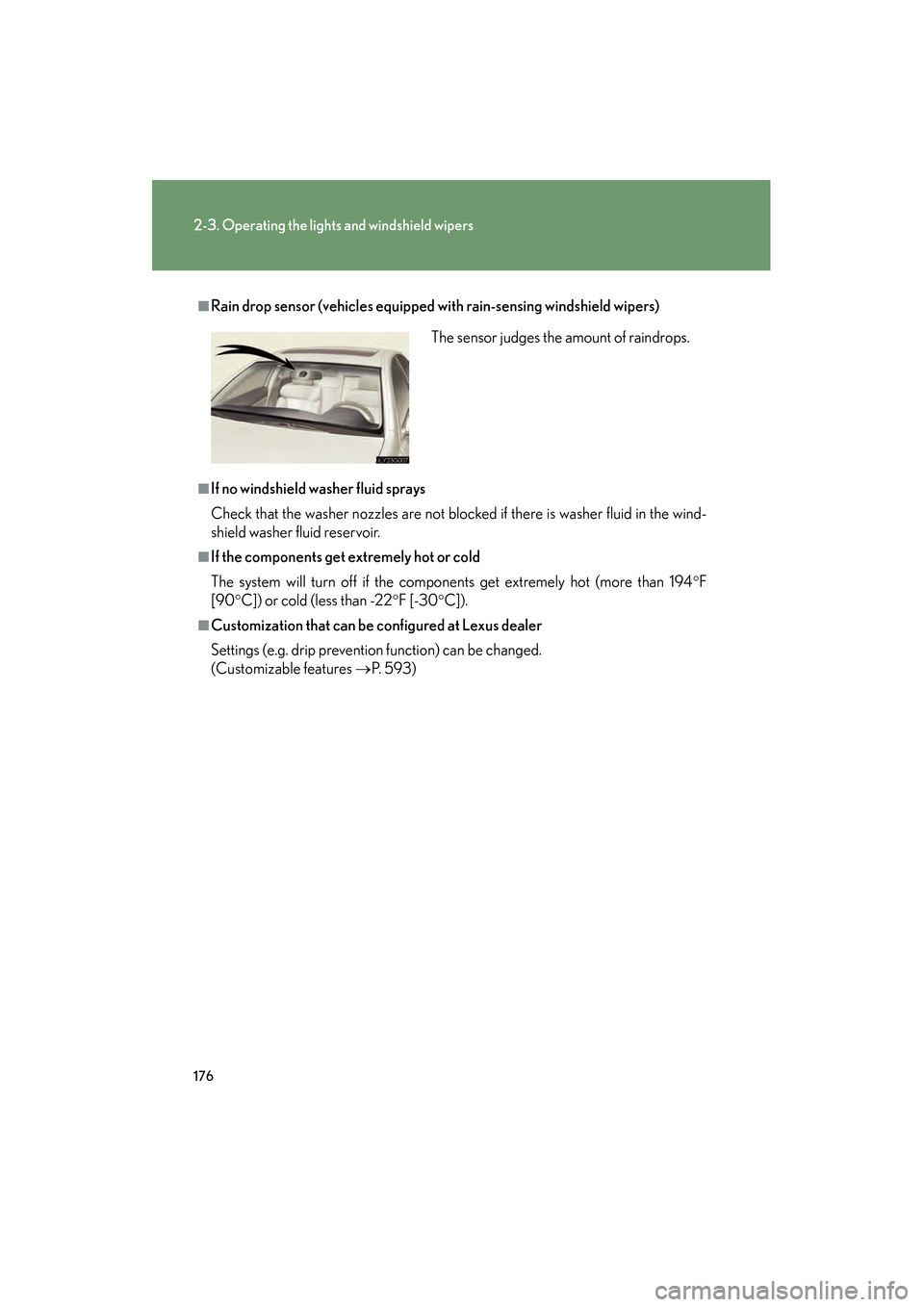

■Rain drop sensor (vehicles equipped with rain-sensing windshield wipers)
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
■If the components get extremely hot or cold
The system will turn off if the components get extremely hot (more than 194°F
[90 °C]) or cold (less than -22 °F [-30 °C]).
■Customization that can be configured at Lexus dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features →P. 5 9 3 ) The sensor judges the amount of raindrops.
GS450h_HV_U.book Page 176 Monday, April 27, 2009 10:10 AM

177
2-3. Operating the lights and windshield wipers
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

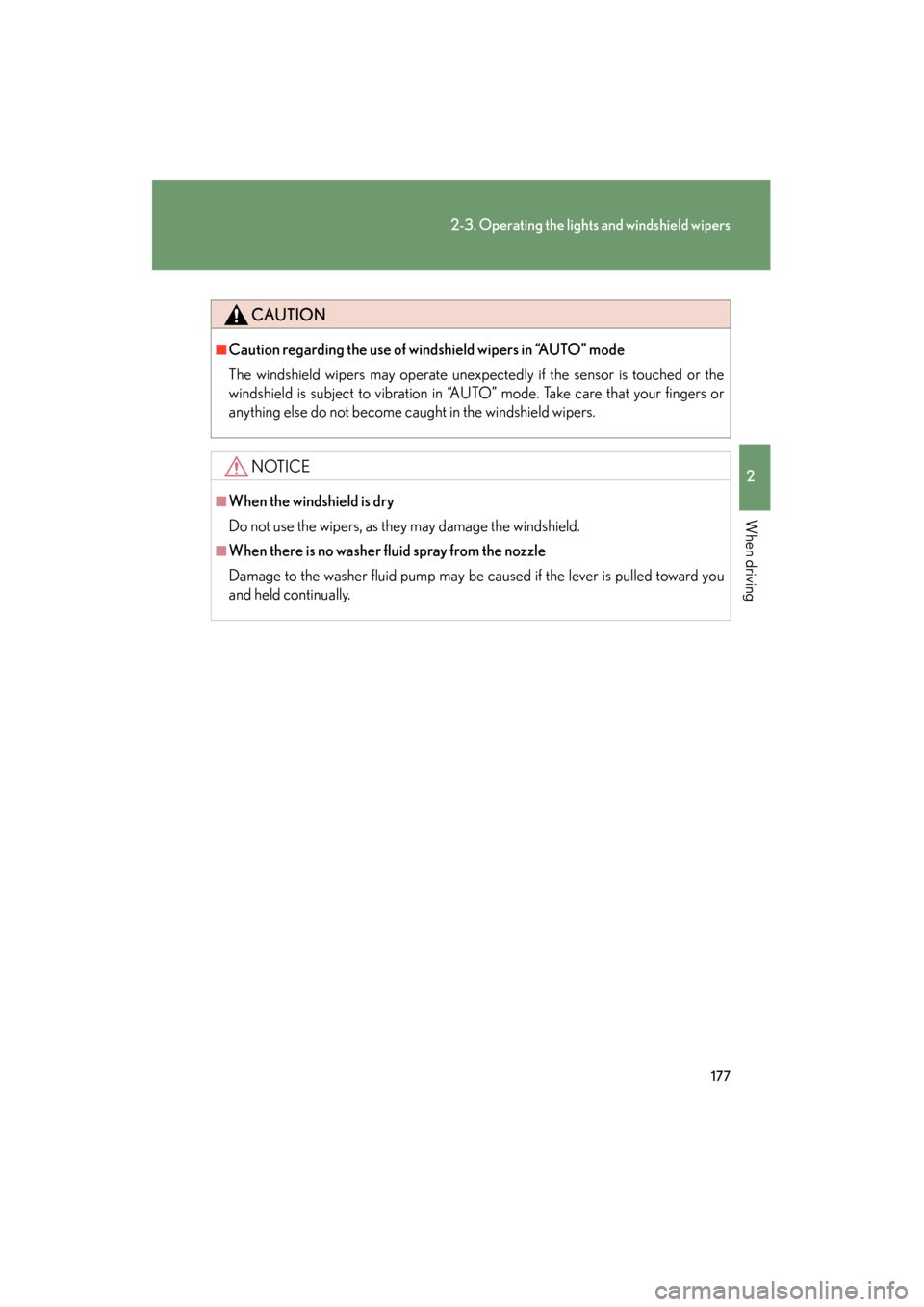

CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
GS450h_HV_U.book Page 177 Monday, April 27, 2009 10:10 AM

178
2-3. Operating the lights and windshield wipers
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

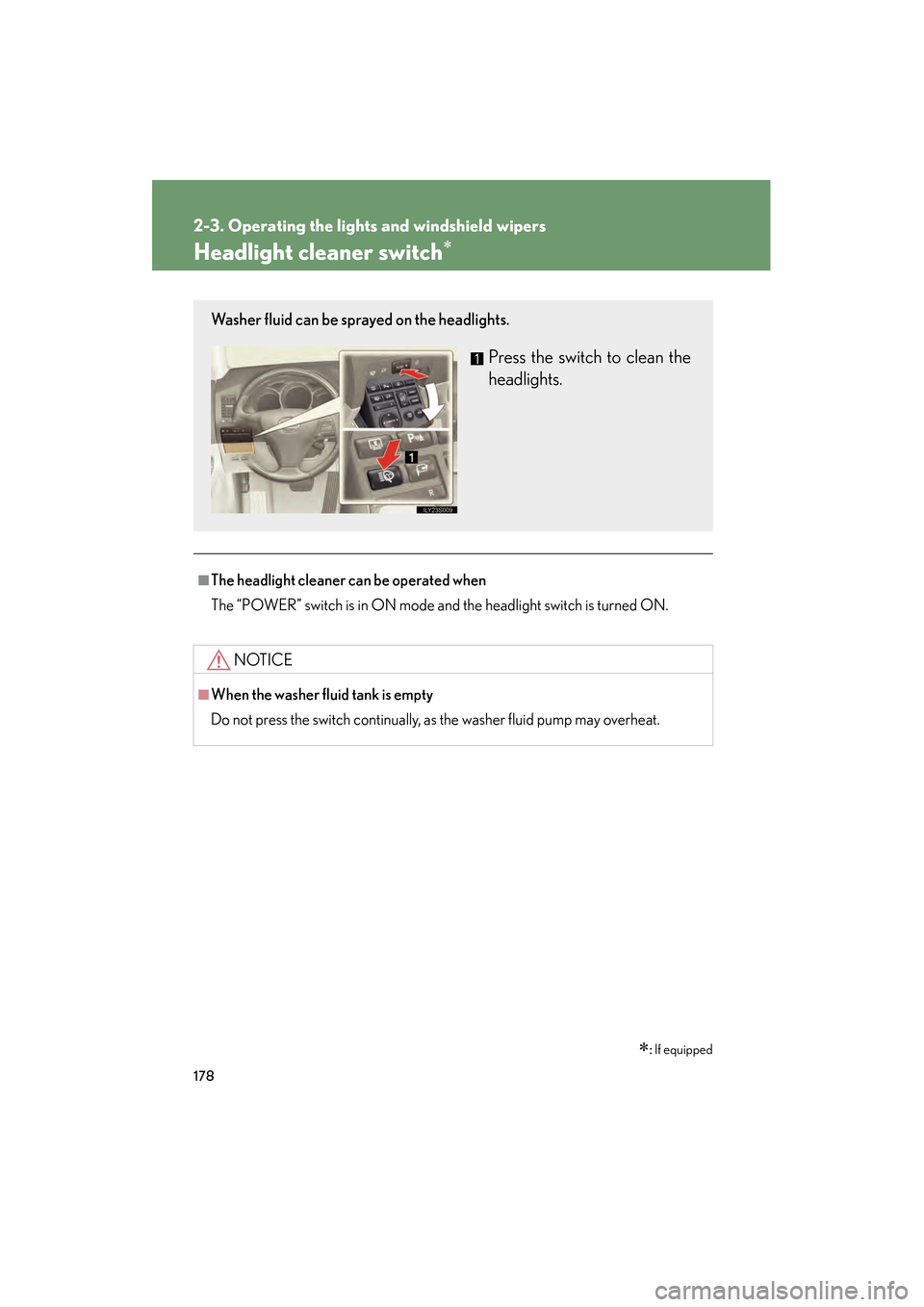

Headlight cleaner switch∗
■The headlight cleaner can be operated when
The “POWER” switch is in ON mode and the headlight switch is turned ON.
NOTICE
■When the washer fluid tank is empty
Do not press the switch continually, as the washer fluid pump may overheat.
∗: If equipped
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
GS450h_HV_U.book Page 178 Monday, April 27, 2009 10:10 AM

232
2-5. Driving information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■ Before driving the vehicle
Perform the following according to the driving conditions.
●Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.
GS450h_HV_U.book Page 232 Monday, April 27, 2009 10:10 AM

612
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Rear lights system.............................. 520
Smart access system with push-button start ............................ 532
Steering lock ...................511, 520, 534
Trunk ........................................................ 525
VGRS...................................................... 523
Washer fluid ......................................... 525
Washer
Checking .................................................451
Preparing and checking before winter .................................... 232
Switch ........................................................ 173
Washing and waxing ...........................420
Weight Cargo capacity....................................227
Load limits ............................................... 231
Weight .................................................... 564
Wheels ...................................................... 467
Window glasses ......................................85
Window lock switch ............................... 54
Windows Power windows..................................... 85
Rear window defogger .................. 256
Washer ..................................................... 173
Windshield wipers Position ................................................... 234
Windshield wipers .............................. 173
Windshield wiper de-icer.................. 257
Winter driving tips ................................ 232
Wireless remote control key
Locking/Unlocking ............................... 51
Replacing the battery .......................472
WMA disc ............................................... 279
GS450h_HV_U.book Page 612 Monday, April 27, 2009 10:10 AM
