sensor Lexus GS450h 2013 Workshop Manual

378
GS450h_U (OM30D01U)
5-2. Using the air conditioning system and defogger
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter into and
accumulate in the air conditioning system. This may then cause odor to be emitted
from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air modeprior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immedi-
ately after the air conditioning system is started in automatic mode.
■Air conditioning filter
→ P. 666
■Customization
Settings (e.g. exhaust gas sensor sensitivity) can be changed.
(Customizable features →P. 807)
CAUTION
■To prevent the windshield from fogging up
Do not use
during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the hybrid
system is off.
■Humidity sensor
Follow these points to avoid damaging the sensor:
●Do not disassemble the sensor
●Do not spray the glass cleaner on the sensor or subject it to strong impacts
●Do not stick anything on the sensor
GS450h_U.book Page 378 Monday, January 23, 2012 10:20 AM

618
GS450h_U (OM30D01U)
6-1. Maintenance and care
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause
the electrical components etc. to catch fire.
■When cleaning the windshield
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding the exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have cooled
sufficiently, as touching hot exhaust pipes can cause burns.
Set the wipers to the intermittent windshield
wipers. ( →P. 221)
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught
or other serious injuries and cause damage
to the wiper blades.
GS450h_U.book Page 618 Monday, January 23, 2012 10:20 AM

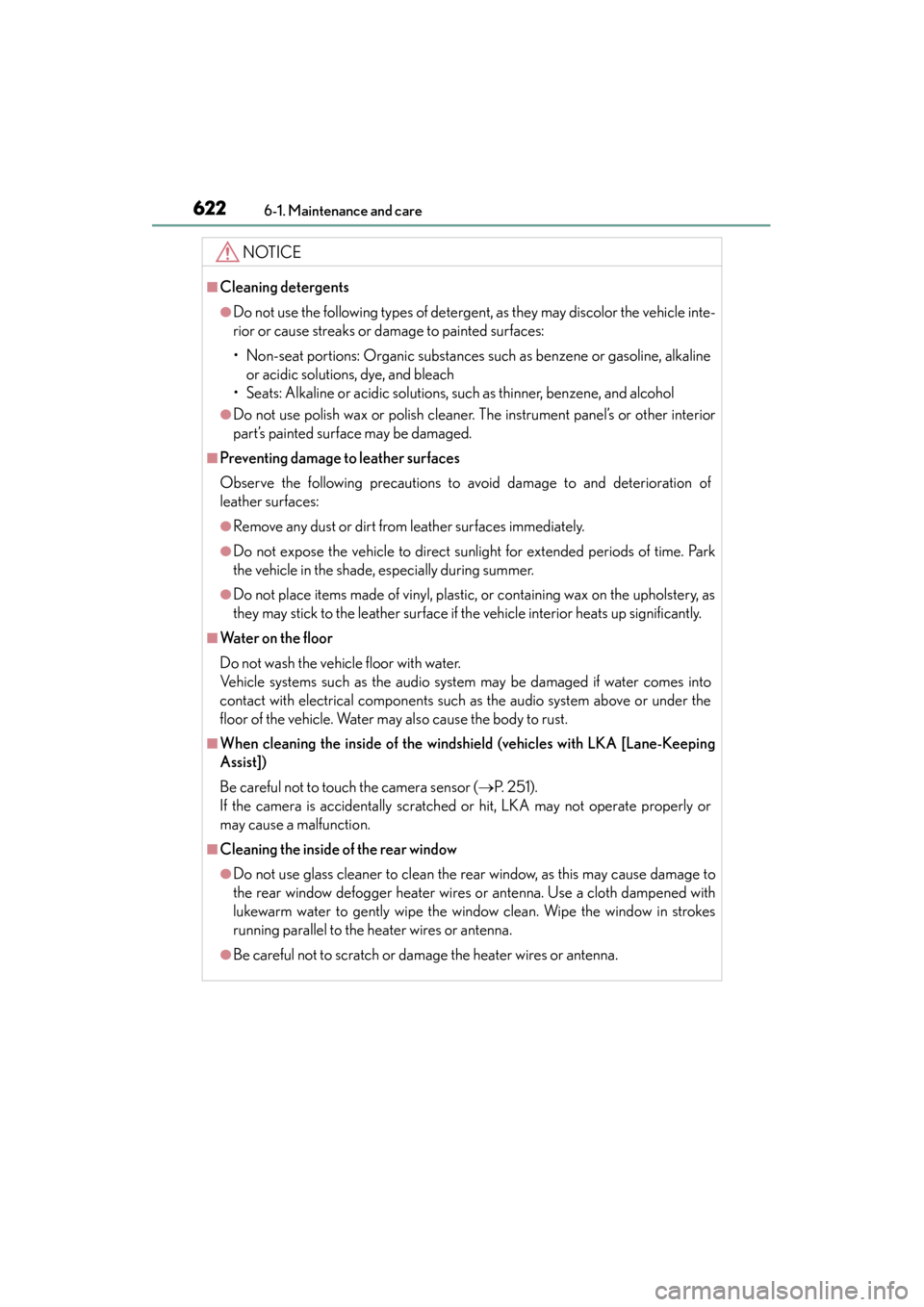

622
GS450h_U (OM30D01U)
6-1. Maintenance and care
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkalineor acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with LKA [Lane-Keeping
Assist])
Be careful not to touch the camera sensor ( →P. 2 5 1 ) .
If the camera is accidentally scratched or hit, LKA may not operate properly or
may cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.
GS450h_U.book Page 622 Monday, January 23, 2012 10:20 AM

674
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
■Engine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1IGN10Starting system
2INJ10Multiport fuel injection system/sequential
multiport fuel injection system
3EFI NO.210Air intake system, exhaust system
4IG2 MAIN20IGN, GAUGE, INJ, AIR BAG, IG2 NO.1,
LH-IG2
5EFI MAIN25Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.2
6A/F15Air flow sensor
7EDU20Multiport fuel injection system/sequential
multiport fuel injection system
8F/ P M P25Multiport fuel injection system/sequential
multiport fuel injection system
9H-LP RH-LO20Right-hand headlight (low beam)*
10H-LP LH-LO20Left-hand headlight (low beam)*
GS450h_U.book Page 674 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
6756-3. Do-it-yourself maintenance
6
Maintenance and care
11ABS MAIN 210Brake system
12ABS MAIN 110Brake system
13IGCT NO.130IGCT NO.2, IGCT NO.3, IGCT NO.4,
IGCT NO.5
14ECU-B7. 5Smart access system with push-button start
15INV W/P10Hybrid system
16ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
17EPS-B10Electric power steering system
18D/C CUT30DOME, MPX-B
19HORN10Horn
20ODS5Occupant classification system
21TV7. 5Remote Touch screen
22P/ I - B N O. 280IG2 MAIN, EFI MAIN, EDU, F/PMP, A/F
23ABS NO.230ECB
24P/ I - B N O.150H-LP HI RH, H-LP HI LH, DRL
25H-LP LO30H-LP LO RH, H-LP LO LH
26LH J/B-B40Left-hand junction block
27RH J/B-B40Right-hand junction block
28VGRS40No circuit
29OIL PMP60Oil pump
30IGCT NO.57. 5Power management system, shift position
sensor
31WIP-S7. 5Windshield wipers, driver support system
32WA S H - S5Windshield washer, driver support system
33COMB SW5Windshield wipers
FuseAmpereCircuit
GS450h_U.book Page 675 Monday, January 23, 2012 10:20 AM

676
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
34DOME7. 5
Personal lights, ornament lights, trunk light,
footwell lights, door courtesy lights, vanity
lights, rear door inside handle illuminations,
power trunk opener and closer
35MPX-B10
Body ECU, smart access system with push-
button start, electric tilt and telescopic steer-
ing column, power seats, head-up display,
front door ECU, gauges and meters, steer-
ing sensor, yaw rate and G sensor, overhead
module, RR CTRL SW, power trunk opener
and closer, clock, CAN gateway ECU
36IGCT NO.410Power control unit
37IGCT NO.37. 5Hybrid battery (traction battery), DC/DC
converter
38IGCT NO.25Hybrid system
39IG2 NO.15DCM, CAN gateway ECU
40GAUGE5Gauges and meters
41DC/DC150RH-J/B DC/DC, P/I DC/DC
42P/ I D C / D C100RR S/SHADE, DEFOG, FOG, TAIL,
PA N E L
43RH J/B DC/DC80Right-hand junction block
44LH J/B DC/DC50Left-hand junction block
45H-LP CLN30Headlight cleaner
46FA N N O. 240Electric cooling fans
47LUG J/B DC/DC80Luggage compartment junction block
48FA N N O.180Electric cooling fans
49PTC NO.150PTC heater
50PTC NO.250PTC heater
51HTR50Air conditioning system
FuseAmpereCircuit
GS450h_U.book Page 676 Monday, January 23, 2012 10:20 AM

678
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1STOP7. 5Stop lights, high mounted stoplight
2P/ W- B5Power window master switch
3P/ S E AT 1 F/ L30Po w e r s e a t s
4D/L NO.125Po w e r d o o r l o c k s y s t e m
5NV-IR10Lexus night view
6FL S/HTR10Seat heaters/ventilators
7WIPER30Windshield wipers
8WIPER-IG5Windshield wipers
9LH-IG10
Seat belts, body ECU, AFS, overhead mod-
ule, raindrop sensor, inside rear view mirror,
lane camera sensor (LKA), head-up display,
shift lock system, intuitive parking assist, front
left-hand door ECU, driver monitor system,
Remote Touch screen, electric tilt and tele-
scopic steering column, power seats, moon
roof, windshield wiper de-icer, intuitive park-
ing assist switch, PTC heater, headlight
cleaner
10LH ECU-IG10
VDIM, ECB, D-SW MODULE (Blind Spot
Monitor, heated steering wheel), driver sup-
port system, AFS, EPB, air conditioning sys-
tem
GS450h_U.book Page 678 Monday, January 23, 2012 10:20 AM

680
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1P/ S E AT 1 F/ R30Po w e r s e a t s
2FR P/OUTLET15Po w e r o u t l e t ( f r o n t )
3RR P/OUTLET15Po w e r o u t l e t ( r e a r )
4P/ S E AT 2 F/ R25Po w e r s e a t s
5AV S20AV S
6STRG HTR15Heated steering wheel
7WA S H20Windshield washer
8RH ECU-IG10
Navigation system, pre-collision seat belts,
air conditioning system, ECB, Lexus night
view, yaw rate and G sensor
9RH-IG10
Tension reducer, seat heater/ventilator
switches, front right-hand door ECU, CAN
gateway ECU, tire pressure warning system,
power seats
10DOOR FR30
Front right-hand door control system (out-
side rear view mirror defoggers, power win-
dow)
11DOOR RR30Power window (rear right-hand)
12RAD NO.230Audio system
13AM27. 5Po w e r m a n a g e m e n t s y s t e m
GS450h_U.book Page 680 Monday, January 23, 2012 10:20 AM

682
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
■Tr u n k
FuseAmpereCircuit
1PSB30Pre-collision seat belts
2PTL25Power trunk opener and closer
3RR J/B-B10Smart access system with push-button start
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10No circuit
7DC/DC-S (HV)7. 5DC/DC converter
8BATT FAN (HV)20Hybrid battery (traction battery) cooling fan
system
9SECURITY7. 5SECURITY
10ECU-B NO.37. 5Pa r k i n g b r a ke
11TRK OPN7. 5Power trunk opener and closer
12DCM (HV)7. 5DCM
13AC INV (HV)20Po w e r o u t l e t ( 1 2 0 V AC )
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk opener and closer, parking
brake, tension reducer (rear left-hand), RR
CTRL SW, tire pressure warning system
16EPS-IG5Electric power steering system
17BACK UP7. 5Back-up lights
GS450h_U.book Page 682 Monday, January 23, 2012 10:20 AM

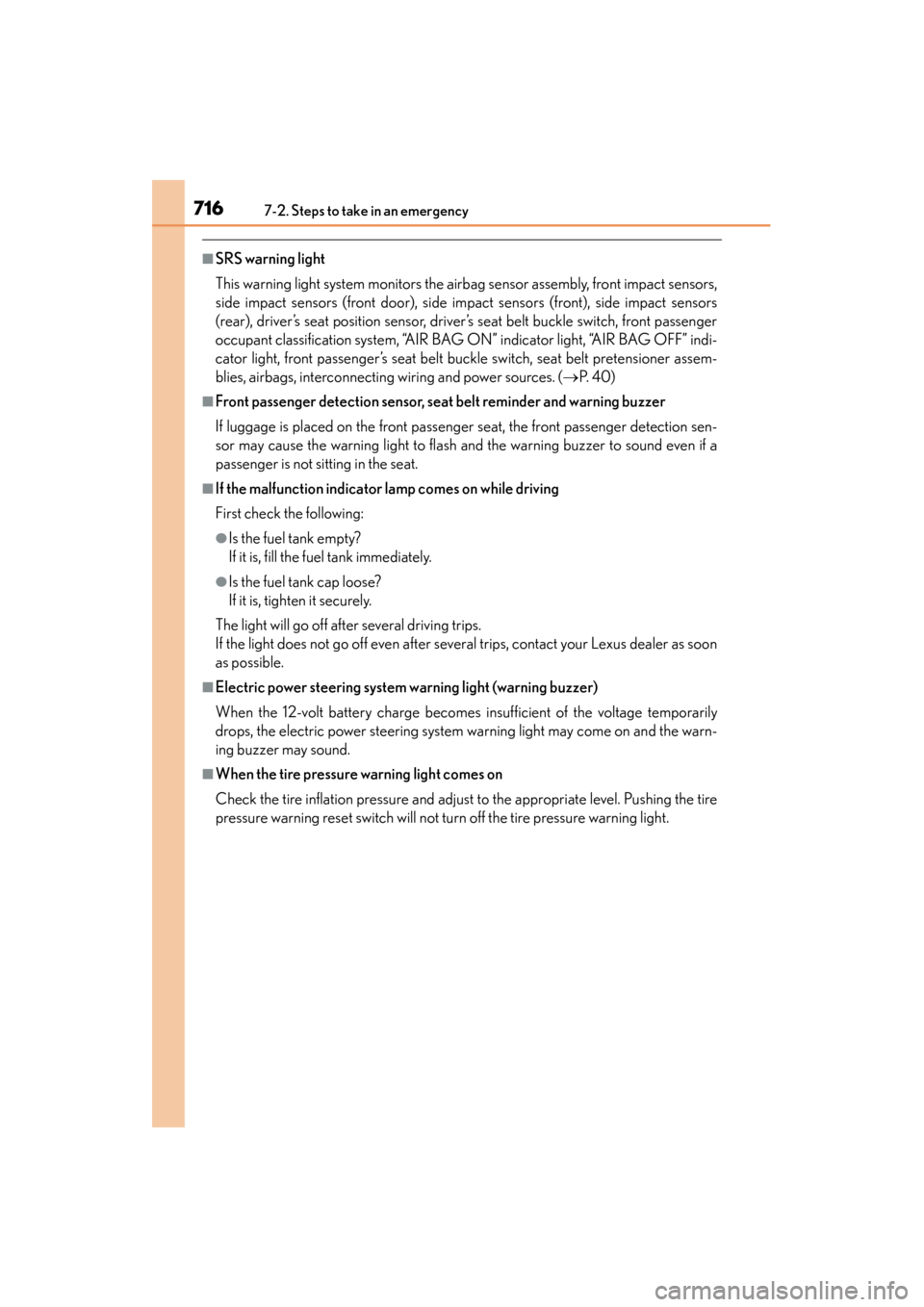

7167-2. Steps to take in an emergency
GS450h_U (OM30D01U)
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors,
side impact sensors (front door), side impact sensors (front), side impact sensors
(rear), driver’s seat position sensor, driver’s seat belt buckle switch, front passenger
occupant classification system, “AIR BAG ON” indicator light, “AIR BAG OFF” indi-
cator light, front passenger’s seat belt buckle switch, seat belt pretensioner assem-
blies, airbags, interconnecting wiring and power sources. (→P. 4 0 )
■Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detection sen-
sor may cause the warning light to flash and the warning buzzer to sound even if a
passenger is not sitting in the seat.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient of the voltage temporarily
drops, the electric power steering system warning light may come on and the warn-
ing buzzer may sound.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.
GS450h_U.book Page 716 Monday, January 23, 2012 10:20 AM
