6-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1P/ S E AT 1 F/ R30Po w e r s e a t s
2FR P/OUTLET15Po w e r o u t l e t ( f r o n t )
3RR P/OUTLET15Po w e r o u t l e t ( r e a r )
4P/ S E AT 2 F/ R25Po w e r s e a t s
5AV S20AV S
6STRG HTR15Heated steering wheel
7WA S H20Windshield washer
8RH ECU-IG10
Navigation system, pre-collision seat belts,
air conditioning system, ECB, Lexus night
view, yaw rate and G sensor
9RH-IG10
Tension reducer, seat heater/ventilator
switches, front right-hand door ECU, CAN
gateway ECU, tire pressure warning system,
power seats
10DOOR FR30
Front right-hand door control system (out-
side rear view mirror defoggers, power win-
dow)
11DOOR RR30Power window (rear right-hand)
12RAD NO.230Audio system
13AM27. 5Po w e r m a n a g e m e n t s y s t e m
GS450h_U.book Page 680 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
6816-3. Do-it-yourself maintenance
6
Maintenance and care

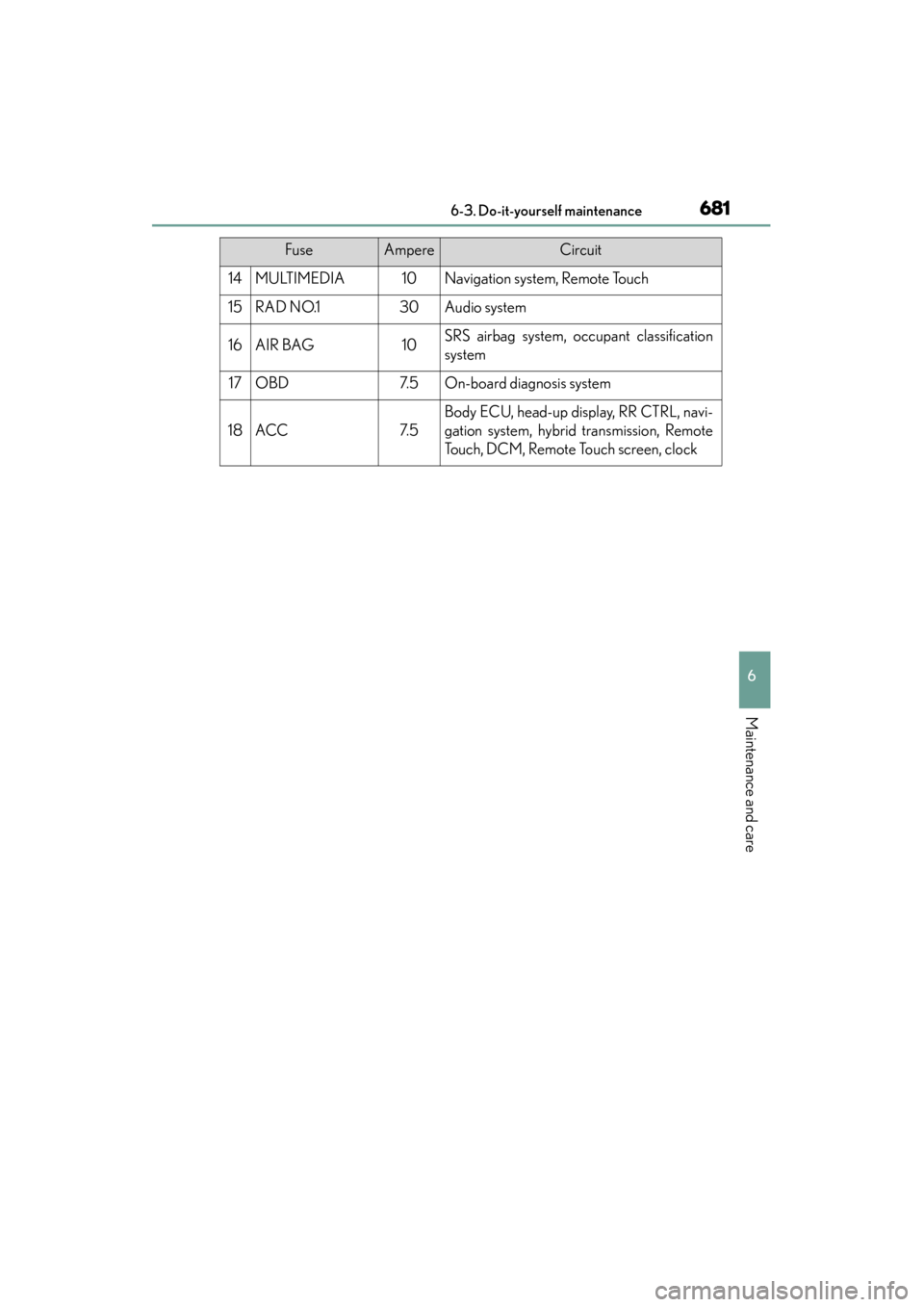

14MULTIMEDIA10Navigation system, Remote Touch
15RAD NO.130Audio system
16AIR BAG10SRS airbag system, occupant classification
system
17OBD7. 5On-board diagnosis system
18ACC7. 5
Body ECU, head-up display, RR CTRL, navi-
gation system, hybrid transmission, Remote
Touch, DCM, Remote Touch screen, clock
FuseAmpereCircuit
GS450h_U.book Page 681 Monday, January 23, 2012 10:20 AM

682
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
■Tr u n k
FuseAmpereCircuit
1PSB30Pre-collision seat belts
2PTL25Power trunk opener and closer
3RR J/B-B10Smart access system with push-button start
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10No circuit
7DC/DC-S (HV)7. 5DC/DC converter
8BATT FAN (HV)20Hybrid battery (traction battery) cooling fan
system
9SECURITY7. 5SECURITY
10ECU-B NO.37. 5Pa r k i n g b r a ke
11TRK OPN7. 5Power trunk opener and closer
12DCM (HV)7. 5DCM
13AC INV (HV)20Po w e r o u t l e t ( 1 2 0 V AC )
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk opener and closer, parking
brake, tension reducer (rear left-hand), RR
CTRL SW, tire pressure warning system
16EPS-IG5Electric power steering system
17BACK UP7. 5Back-up lights
GS450h_U.book Page 682 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
6836-3. Do-it-yourself maintenance
6
Maintenance and care

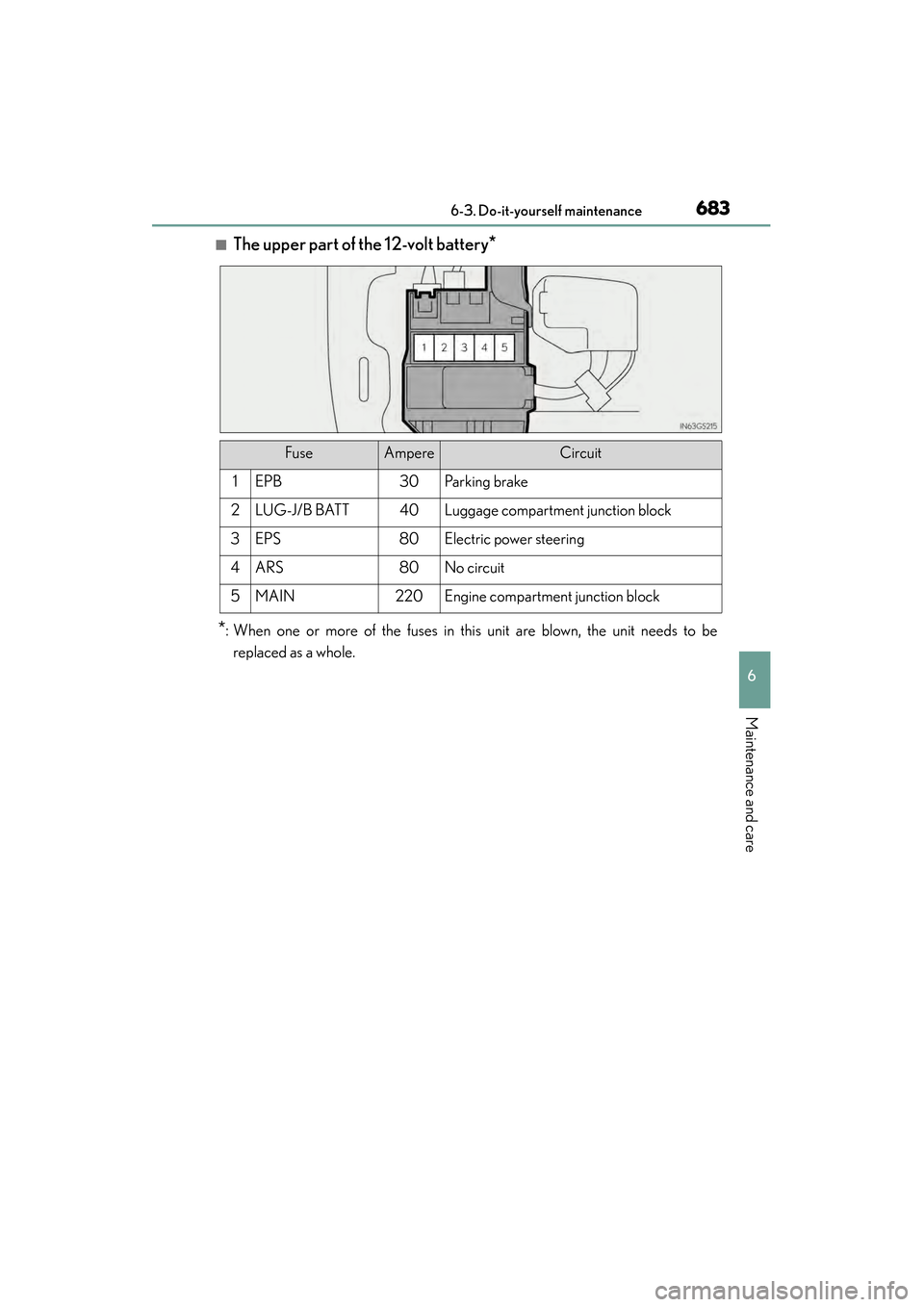

■The upper part of the 12-volt battery*
*
: When one or more of the fuses in this unit are blown, the unit needs to be replaced as a whole.
FuseAmpereCircuit
1EPB30Pa r k i n g b r a ke
2LUG-J/B BATT40Luggage compartment junction block
3EPS80Electric power steering
4ARS80No circuit
5MAIN220Engine compartment junction block
GS450h_U.book Page 683 Monday, January 23, 2012 10:20 AM

684
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 6 8 7 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.
GS450h_U.book Page 684 Monday, January 23, 2012 10:20 AM

685
GS450h_U (OM30D01U)6-3. Do-it-yourself maintenance
6
Maintenance and care

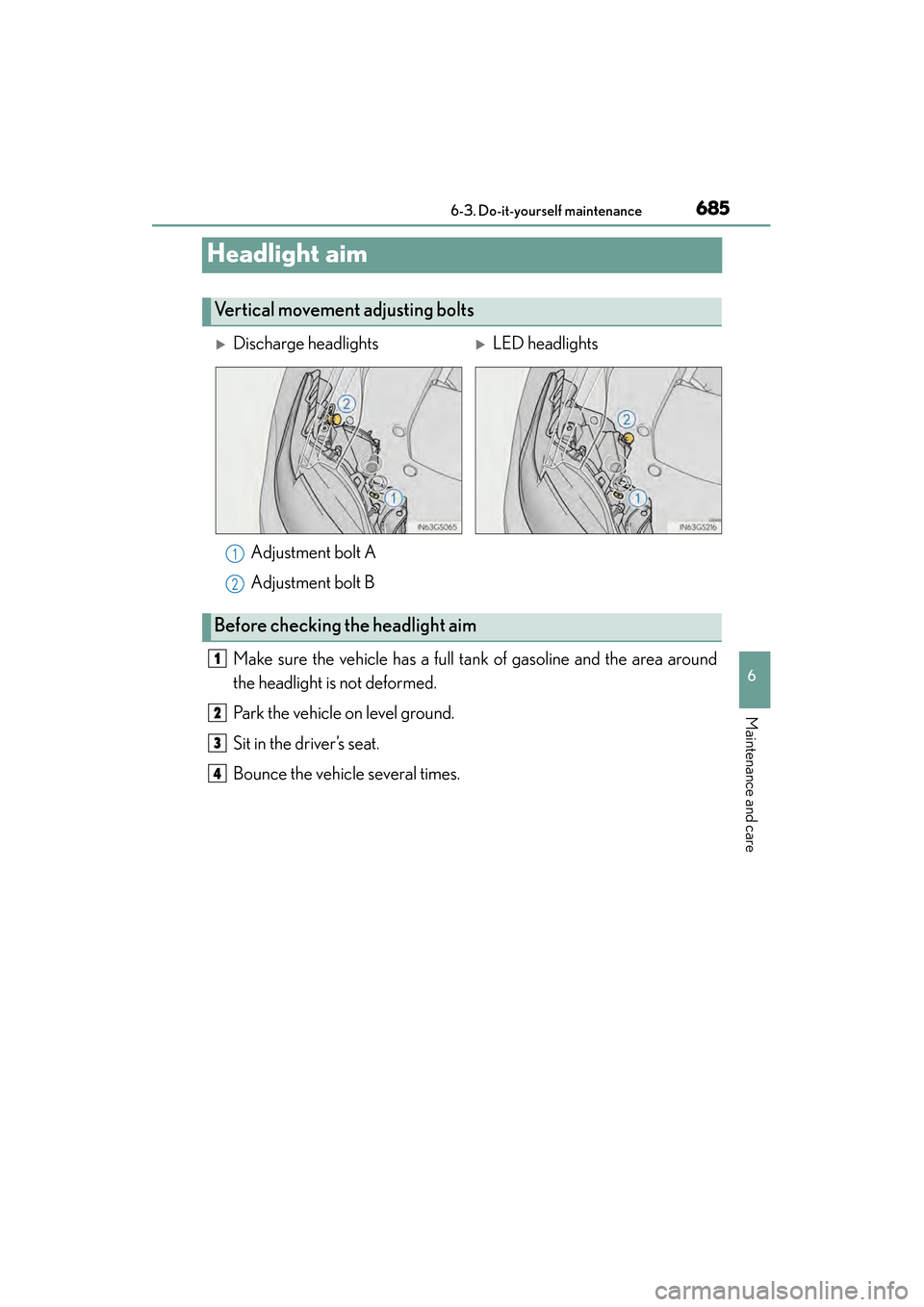

Headlight aim
Make sure the vehicle has a full tank of gasoline and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
XDischarge headlightsXLED headlights
Adjustment bolt A
Adjustment bolt B
Before checking the headlight aim
1
2
1
2
3
4
GS450h_U.book Page 685 Monday, January 23, 2012 10:20 AM

686
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
Using a Phillips-head screwdriver, turn bolt A in either direction.
Remember the turning direction and the number of turns.
Turn bolt B the same number of turns and in the same direction as step.
If the headlight cannot be adjusted using this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.

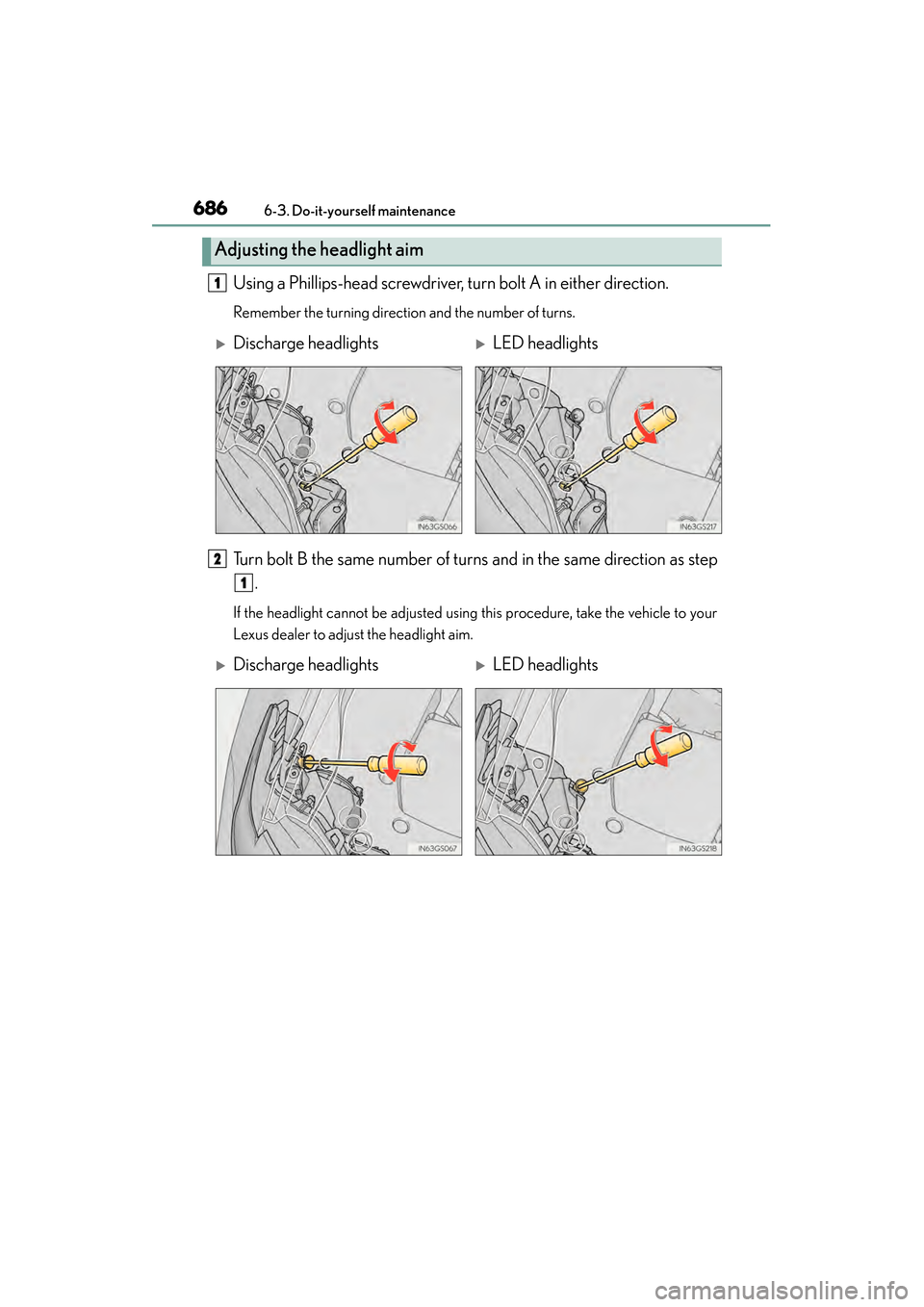

Adjusting the headlight aim
1
XDischarge headlightsXLED headlights
2
1
XDischarge headlightsXLED headlights
GS450h_U.book Page 686 Monday, January 23, 2012 10:20 AM

687
GS450h_U (OM30D01U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. ( →P. 7 9 1 )
→ P. 6 3 8
■Front
XVehicles with discharge headlights
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perfor m, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Removing the engine compartment covers
Bulb locations
Front turn signal light
Fog light (if equipped)1
2
GS450h_U.book Page 687 Monday, January 23, 2012 10:20 AM

688
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
XVehicles with LED headlights
■Rear
Fog light (if equipped)
Front turn signal light1
2
Back-up light
Rear turn signal light1
2
GS450h_U.book Page 688 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
6896-3. Do-it-yourself maintenance
6
Maintenance and care

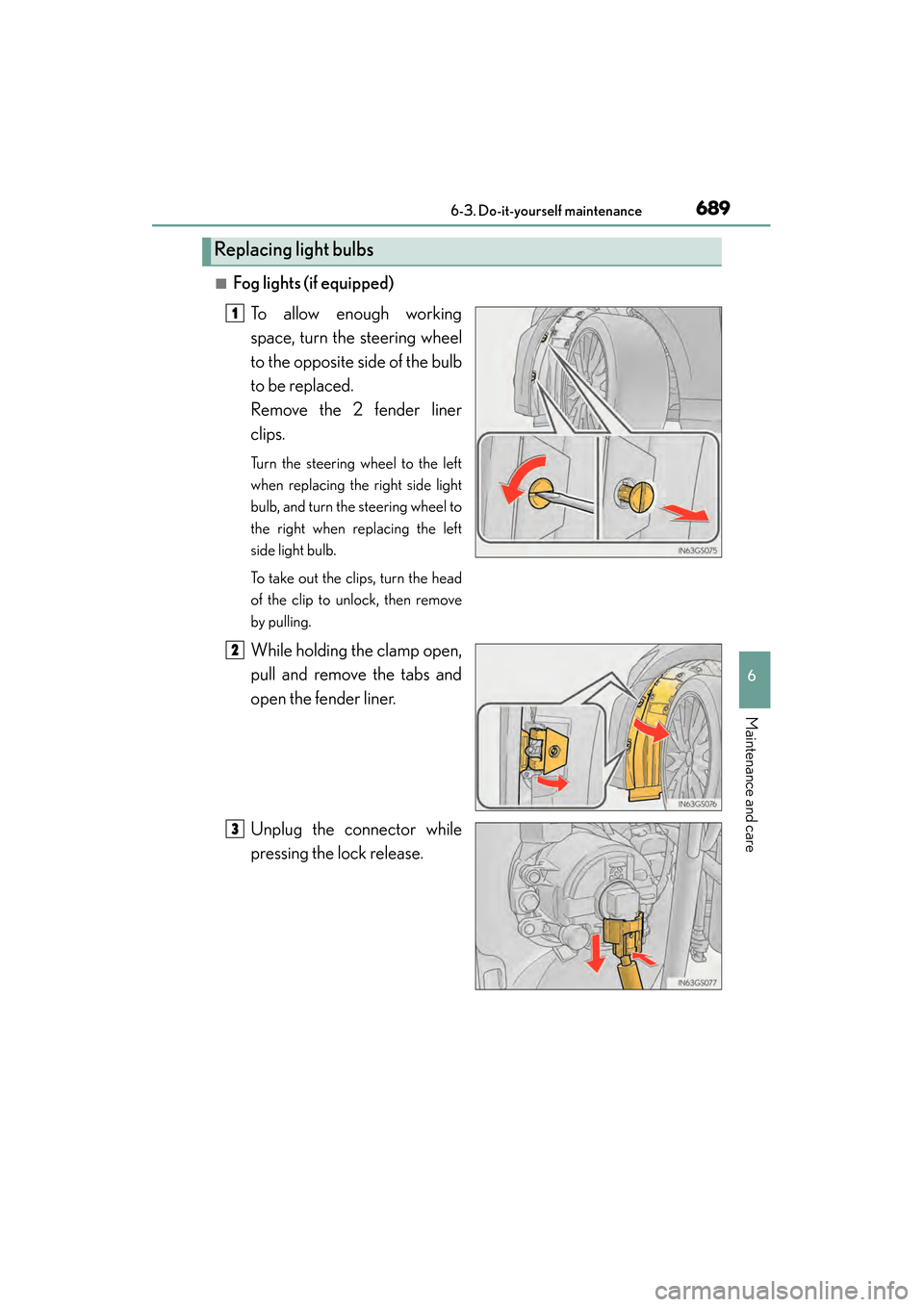

■Fog lights (if equipped)To allow enough working
space, turn the steering wheel
to the opposite side of the bulb
to be replaced.
Remove the 2 fender liner
clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left
side light bulb.
To take out the clips, turn the head
of the clip to unlock, then remove
by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
