Page 638 of 862
637
GS450h_U (OM30D01U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Engine compartment
■12-volt battery
→ P. 6 4 7
Engine oil level dipstick
(→P. 639)
Engine coolant reservoir (→P. 6 4 2 )
Engine oil filler cap (→P. 6 4 0 )
Power control unit coolant res-
ervoir ( →P. 6 4 2 ) Brake fluid reservoir
(→P. 645)
Fuse box ( →P. 6 7 0 )
Washer fluid tank ( →P. 6 4 6 )
Electric cooling fans
Condenser ( →P. 6 4 4 )
Radiator ( →P. 6 4 4 )1
2
3
4
5
6
7
8
9
10
GS450h_U.book Page 637 Monday, January 23, 2012 10:20 AM

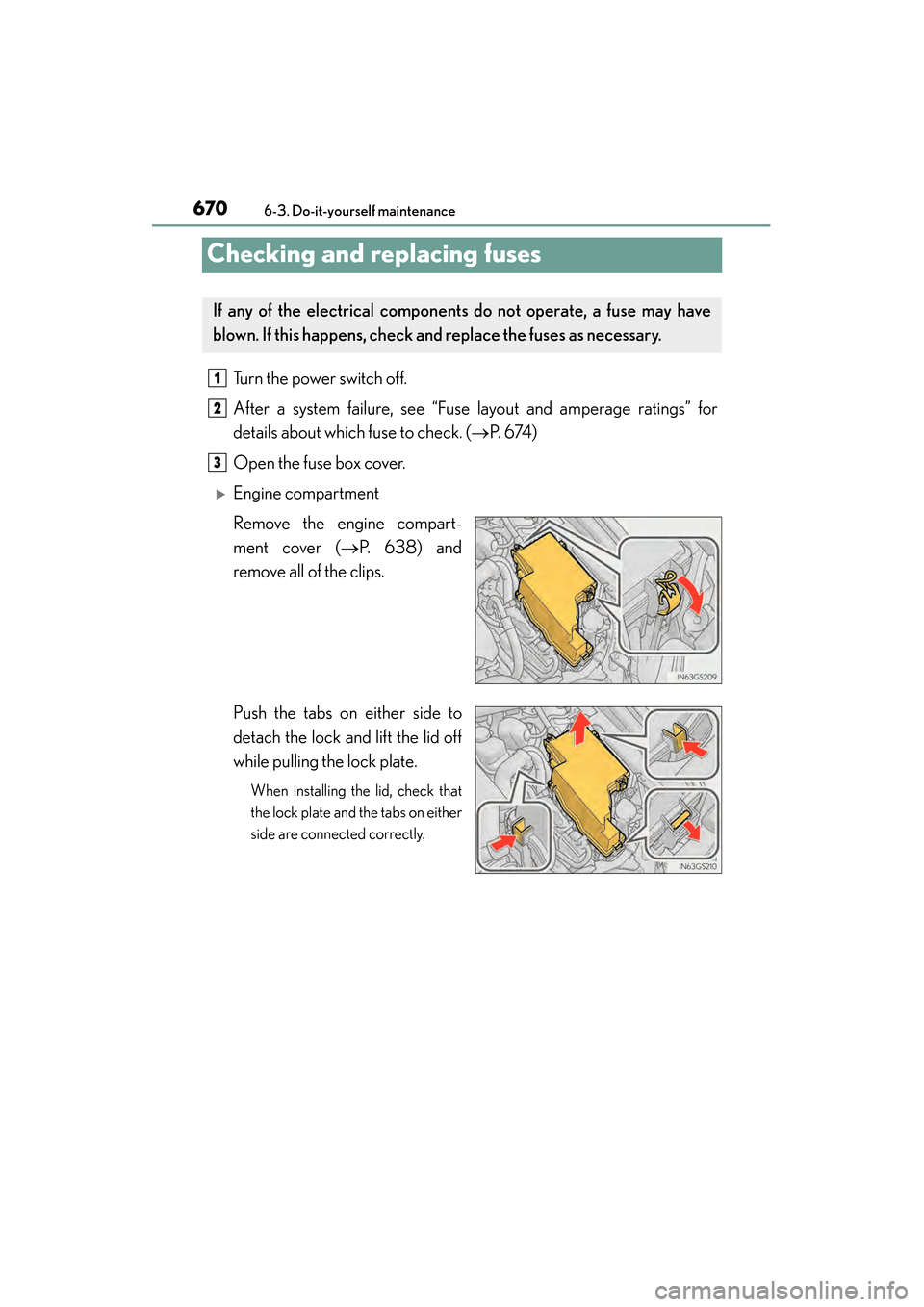

Page 671 of 862
670
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
Checking and replacing fuses
Turn the power switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. (→P. 6 74 )
Open the fuse box cover.
XEngine compartment
Remove the engine compart-
ment cover ( →P. 6 3 8 ) a n d
remove all of the clips.
Push the tabs on either side to
detach the lock and lift the lid off
while pulling the lock plate.
When installing the lid, check that
the lock plate and the tabs on either
side are connected correctly.
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
1
2
3
GS450h_U.book Page 670 Monday, January 23, 2012 10:20 AM

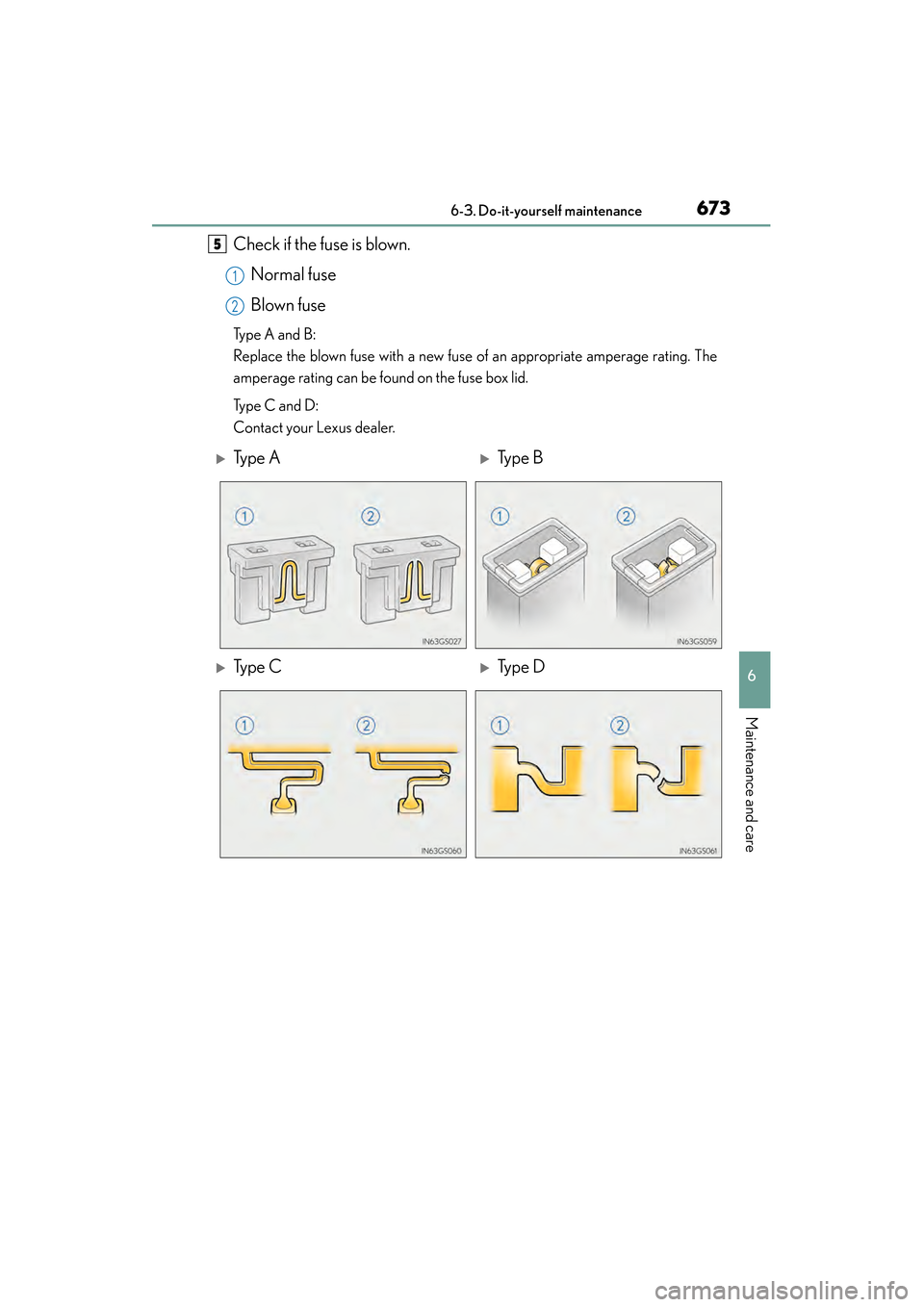

Page 674 of 862
GS450h_U (OM30D01U)
6736-3. Do-it-yourself maintenance
6
Maintenance and care
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact your Lexus dealer.
5
1
2
XTy p e A XType B
XTy p e C XType D
GS450h_U.book Page 673 Monday, January 23, 2012 10:20 AM

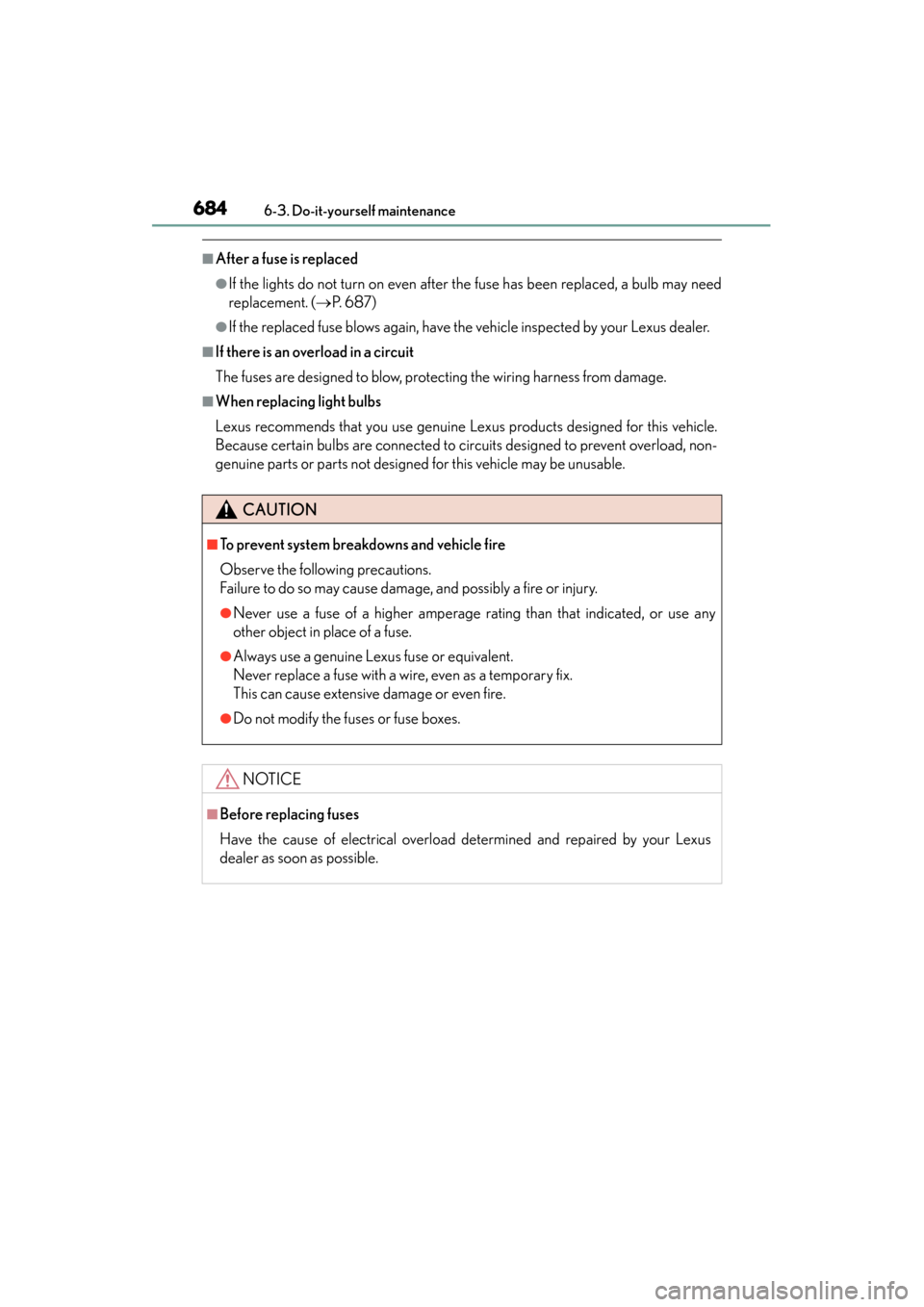

Page 685 of 862
684
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 6 8 7 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.
GS450h_U.book Page 684 Monday, January 23, 2012 10:20 AM

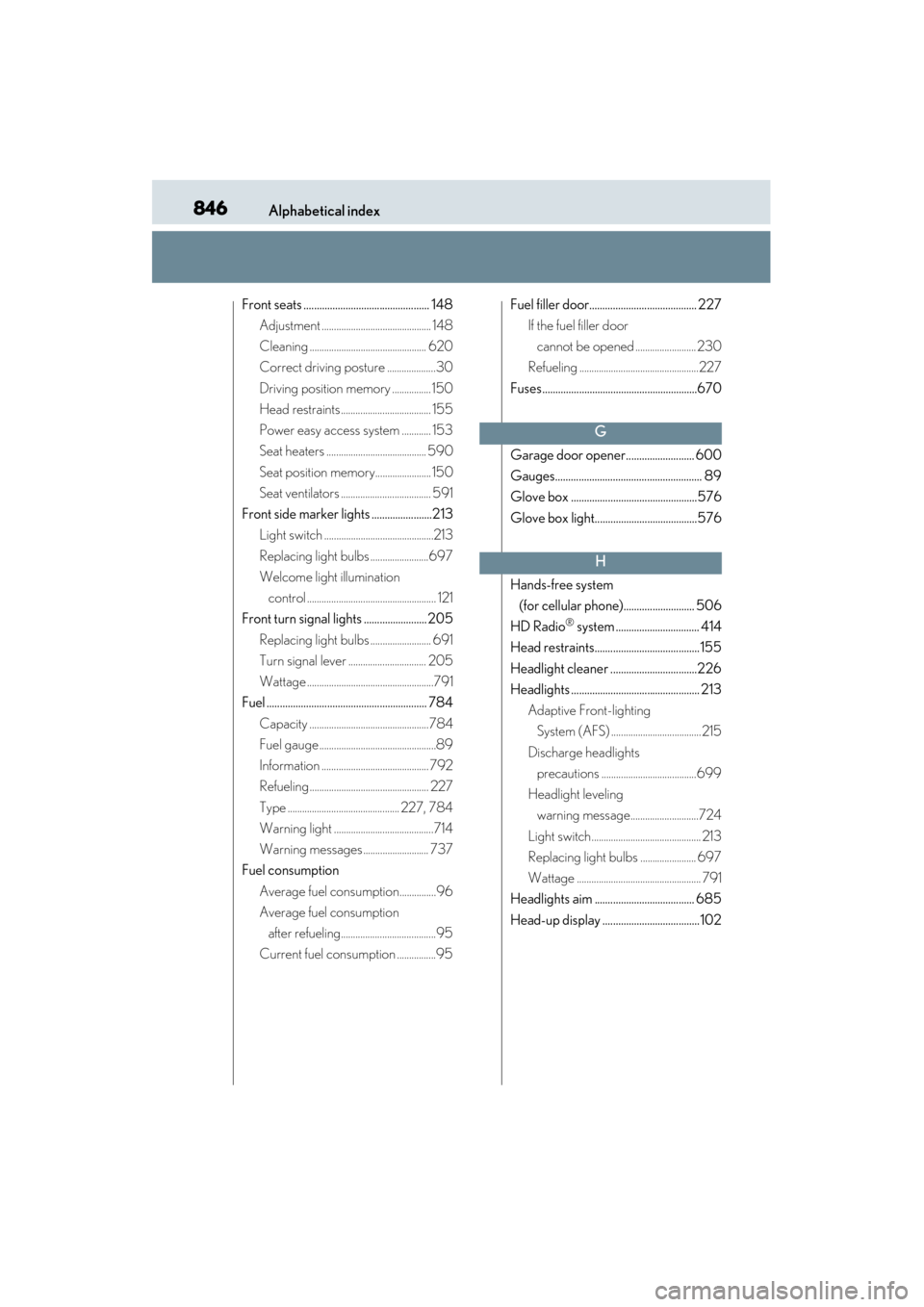

Page 847 of 862
846Alphabetical index
GS450h_U (OM30D01U)
Front seats ................................................ 148Adjustment ............................................. 148
Cleaning ................................................ 620
Correct driving posture ....................30
Driving position memory ................ 150
Head restraints..................................... 155
Power easy access system ............ 153
Seat heaters ......................................... 590
Seat position memory....................... 150
Seat ventilators ..................................... 591
Front side marker lights .......................213 Light switch .............................................213
Replacing light bulbs ........................697
Welcome light illumination
control ..................................................... 121
Front turn signal lights ........................ 205
Replacing light bulbs ......................... 691
Turn signal lever ................................ 205
Wattage ....................................................791
Fuel ............................................................. 784
Capacity .................................................784
Fuel gauge ................................................89
Information ............................................ 792
Refueling................................................. 227
Type .............................................. 227, 784
Warning light .........................................714
Warning messages ........................... 737
Fuel consumption
Average fuel consumption...............96
Average fuel consumption after refueling.......................................95
Current fuel consumption ................95 Fuel filler door......................................... 227
If the fuel filler door
cannot be opened ......................... 230
Refueling .................................................227
Fuses...........................................................670
Garage door opener.......................... 600
Gauges........................................................ 89
Glove box ................................................576
Glove box light.......................................576
Hands-free system (for cellular phone)........................... 506
HD Radio
® system ................................ 414
Head restraints........................................155
Headlight cleaner .................................226
Headlights ................................................. 213
Adaptive Front-lighting System (AFS) ..................................... 215
Discharge headlights precautions .......................................699
Headlight leveling warning message............................724
Light switch............................................. 213
Replacing light bulbs ....................... 697
Wattage ................................................... 791
Headlights aim ...................................... 685
Head-up display .....................................102
G
H
GS450h_U.book Page 846 Monday, January 23, 2012 10:20 AM
