2094-2. Driving procedures
4
Driving

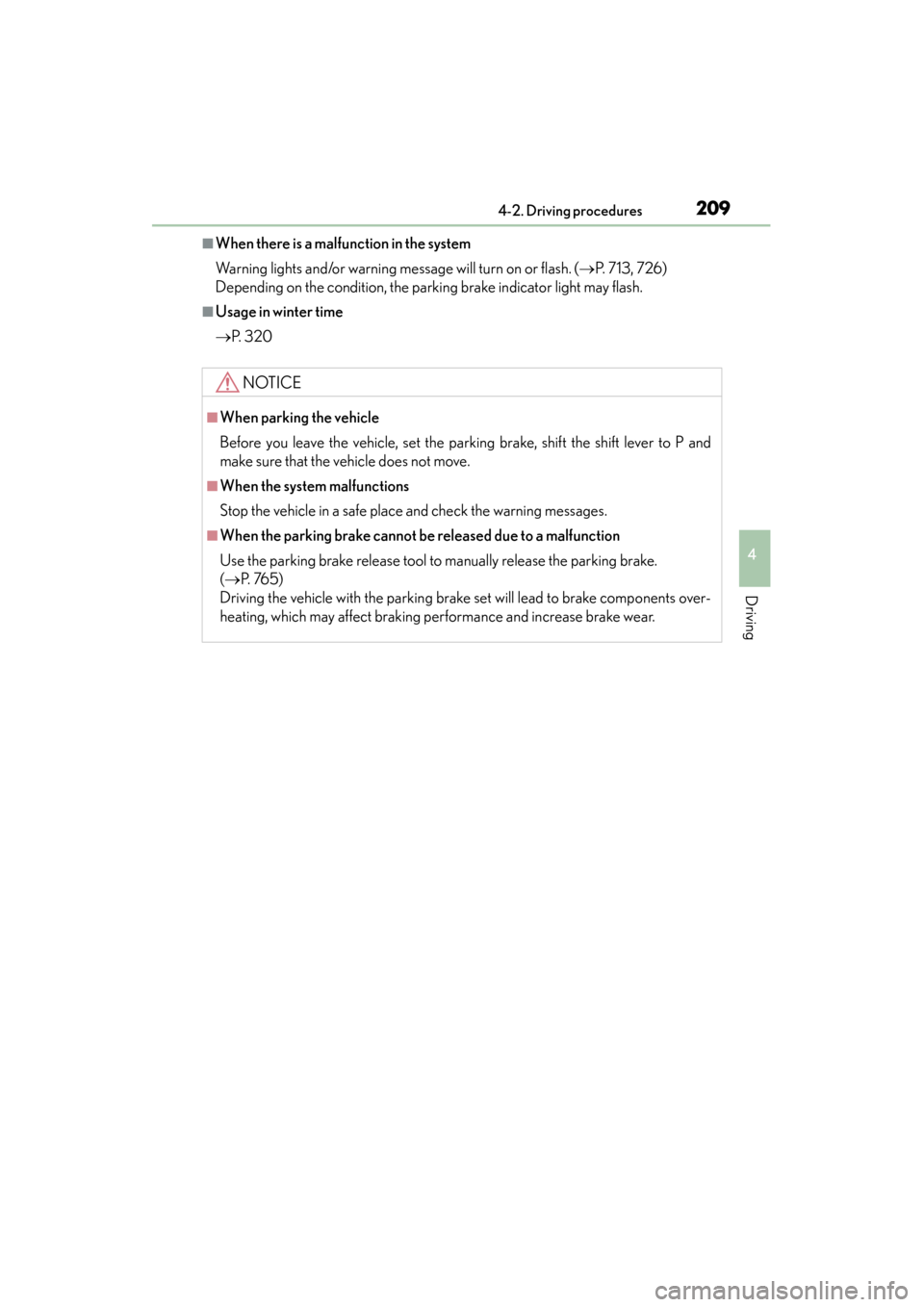

■When there is a malfunction in the system
Warning lights and/or warning message will turn on or flash. (→P. 7 1 3 , 7 2 6 )
Depending on the condition, the parking brake indicator light may flash.
■Usage in winter time
→ P. 3 2 0
NOTICE
■When parking the vehicle
Before you leave the vehicle, set the parking brake, shift the shift lever to P and
make sure that the vehicle does not move.
■When the system malfunctions
Stop the vehicle in a safe place and check the warning messages.
■When the parking brake cannot be released due to a malfunction
Use the parking brake release tool to manually release the parking brake.
(→ P. 76 5 )
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
GS450h_U.book Page 209 Monday, January 23, 2012 10:20 AM

406
GS450h_U (OM30D01U)
5-3. Using the audio system

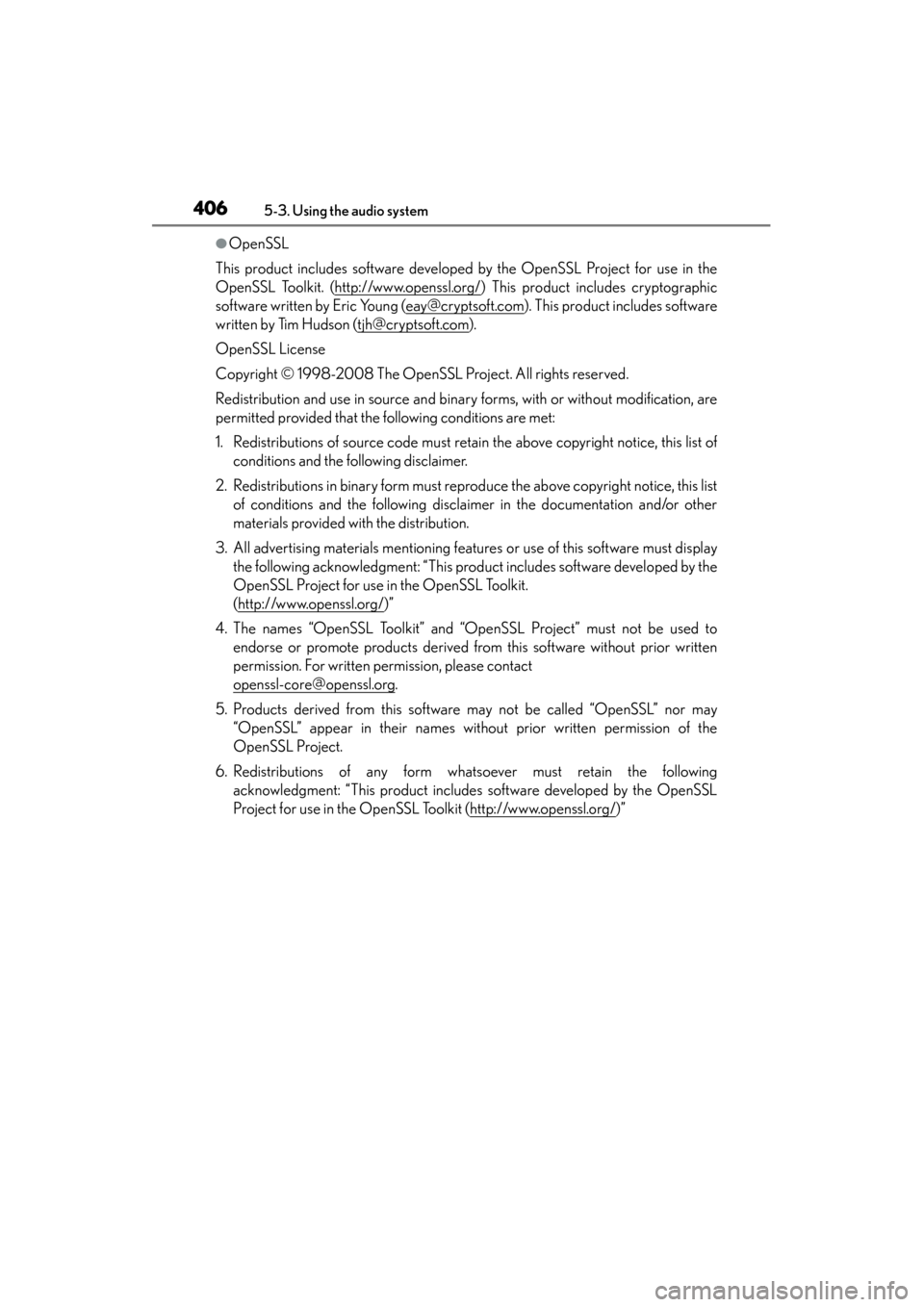

●OpenSSL
This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (http://www.openssl.org/
) This product includes cryptographic
software written by Eric Young ([email protected]
). This product includes software
written by Tim Hudson ([email protected]
).
OpenSSL License
Copyright © 1998-2008 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other
materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: “This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit.
(http://www.openssl.org/
)”
4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior written
permission. For written permission, please contact
[email protected]
.
5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the
OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: “This product includes software developed by the OpenSSL
Project for use in the OpenSSL Toolkit (http://www.openssl.org/
)”
GS450h_U.book Page 406 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)

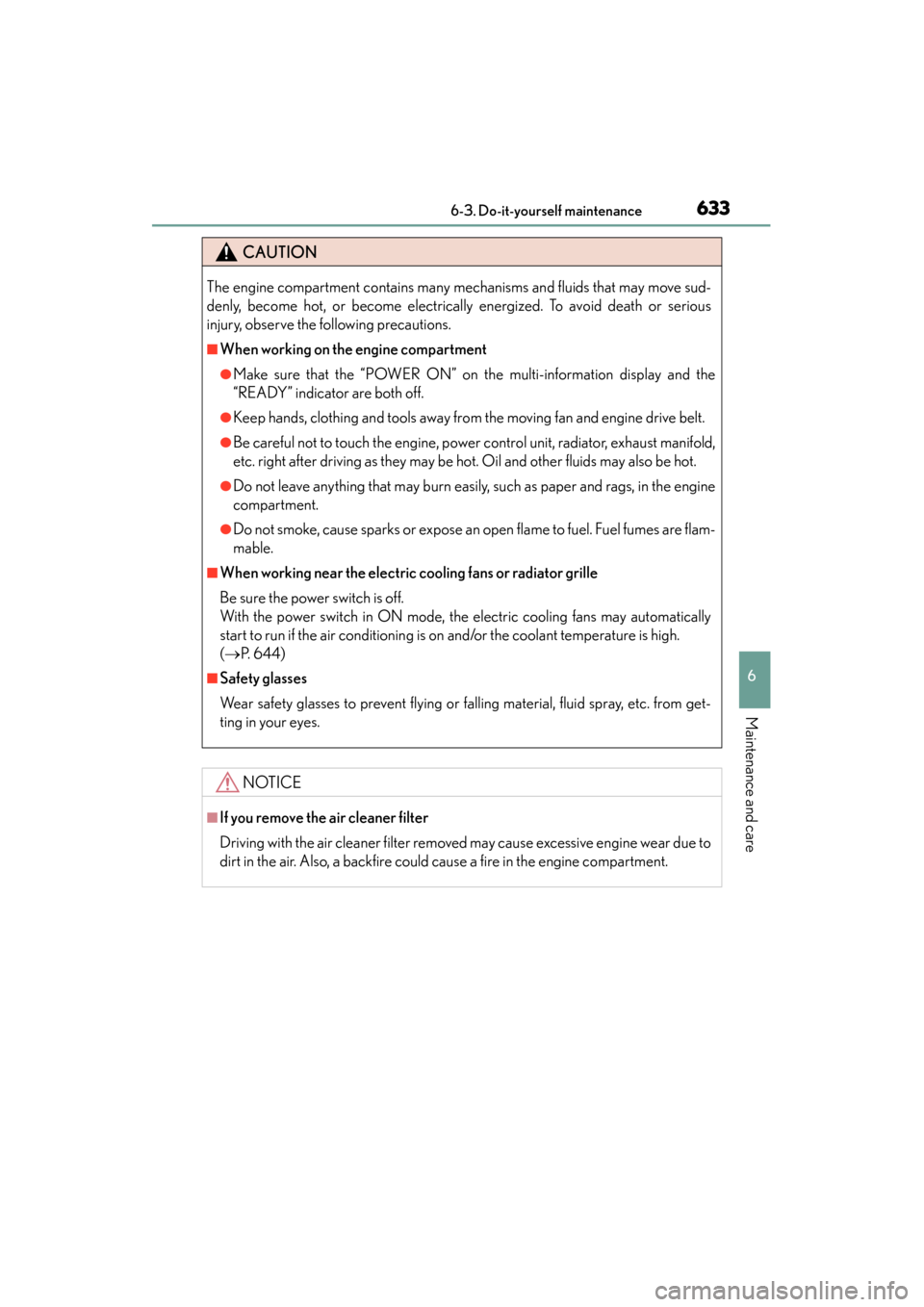

6336-3. Do-it-yourself maintenance
6
Maintenance and care
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Make sure that the “POWER ON” on the multi-information display and the
“READY” indicator are both off.
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, power control unit, radiator, exhaust manifold,
etc. right after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flam-
mable.
■When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automatically
start to run if the air conditioning is on and/or the coolant temperature is high.
(→ P. 6 4 4 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also, a backfire could cause a fire in the engine compartment.
GS450h_U.book Page 633 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)

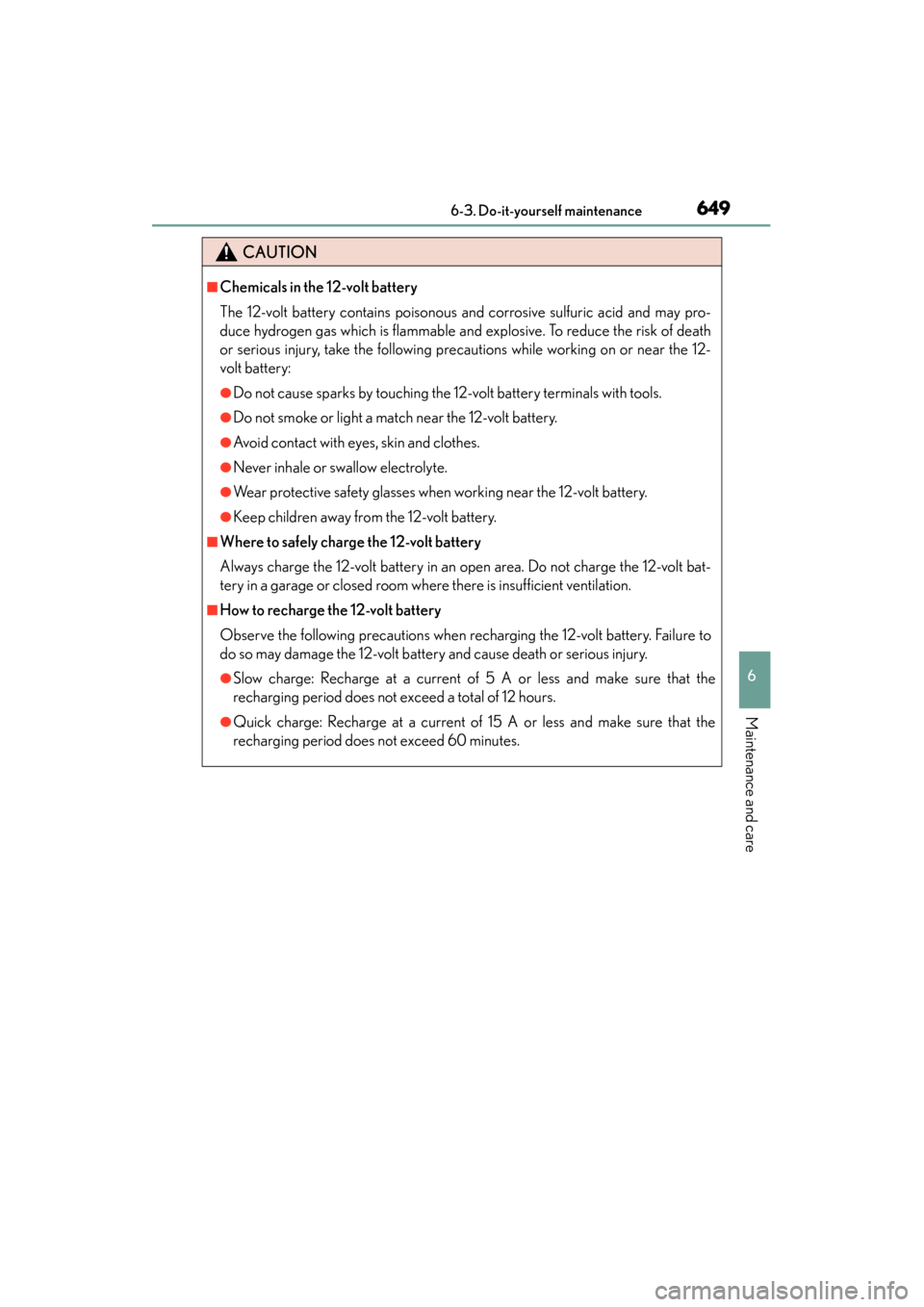

6496-3. Do-it-yourself maintenance
6
Maintenance and care
CAUTION
■Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may pro-
duce hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the 12-
volt battery:
●Do not cause sparks by touching the 12-volt battery terminals with tools.
●Do not smoke or light a match near the 12-volt battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the 12-volt battery.
●Keep children away from the 12-volt battery.
■Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-volt bat-
tery in a garage or closed room where there is insufficient ventilation.
■How to recharge the 12-volt battery
Observe the following precautions when recharging the 12-volt battery. Failure to
do so may damage the 12-volt battery and cause death or serious injury.
●Slow charge: Recharge at a current of 5 A or less and make sure that the
recharging period does not exceed a total of 12 hours.
●Quick charge: Recharge at a current of 15 A or less and make sure that the
recharging period does not exceed 60 minutes.
GS450h_U.book Page 649 Monday, January 23, 2012 10:20 AM

672
GS450h_U (OM30D01U)
6-3. Do-it-yourself maintenance

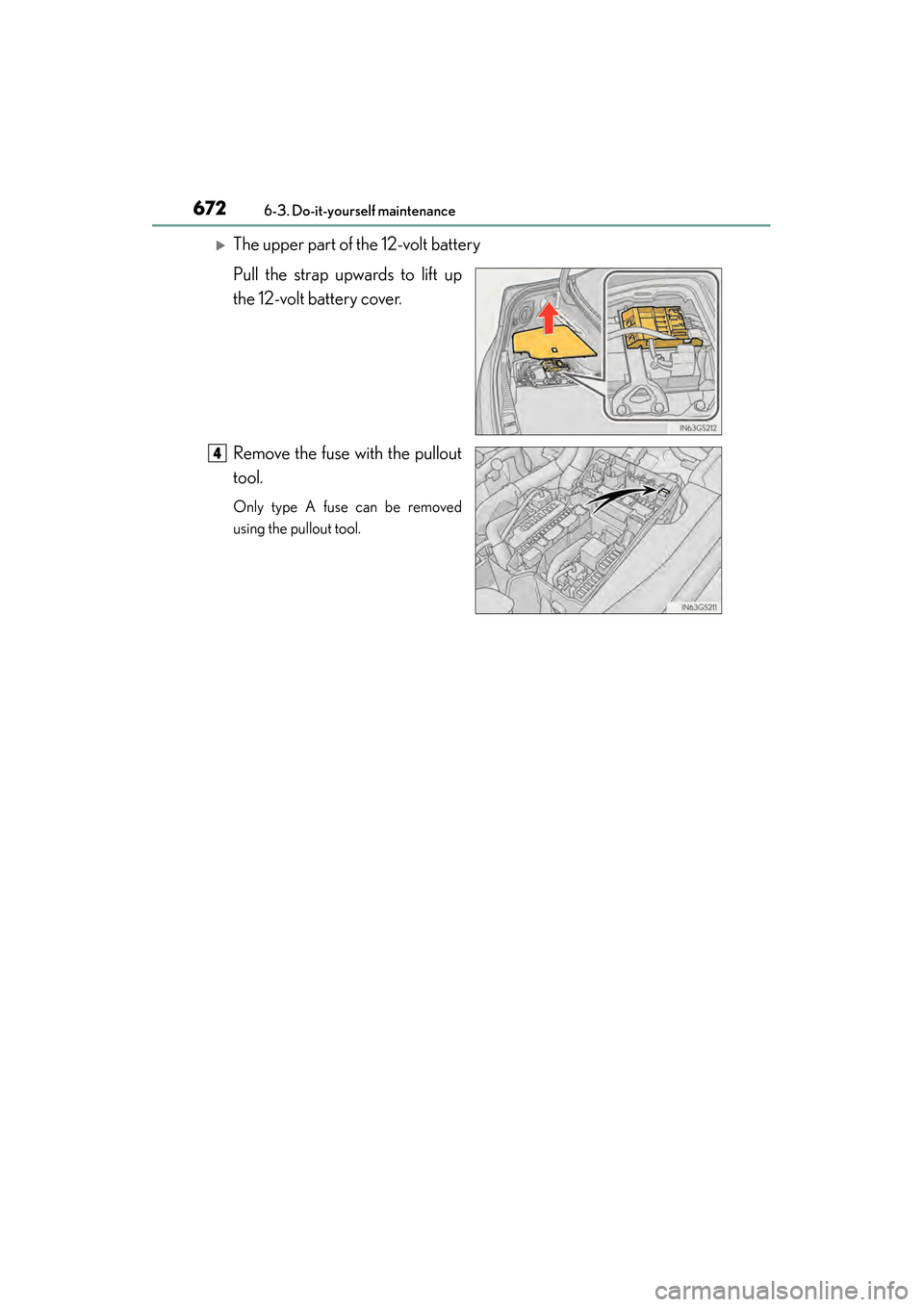

XThe upper part of the 12-volt battery
Pull the strap upwards to lift up
the 12-volt battery cover.
Remove the fuse with the pullout
tool.
Only type A fuse can be removed
using the pullout tool.
4
GS450h_U.book Page 672 Monday, January 23, 2012 10:20 AM

7507-2. Steps to take in an emergency
GS450h_U (OM30D01U)

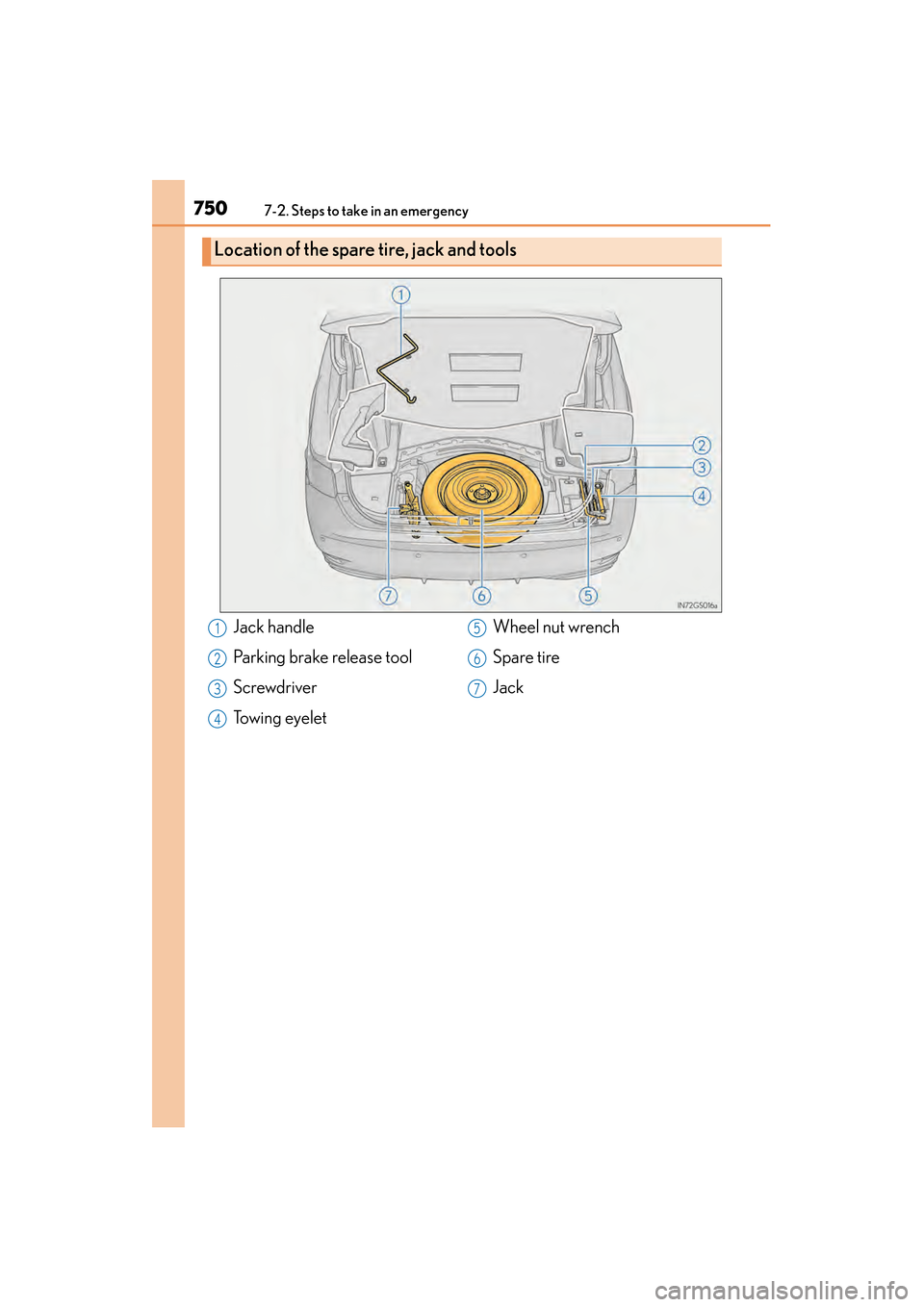

Location of the spare tire, jack and tools
Jack handle
Parking brake release tool
Screwdriver
Towing eyeletWheel nut wrench
Spare tire
Jack1
2
3
4
5
6
7
GS450h_U.book Page 750 Monday, January 23, 2012 10:20 AM

7587-2. Steps to take in an emergency

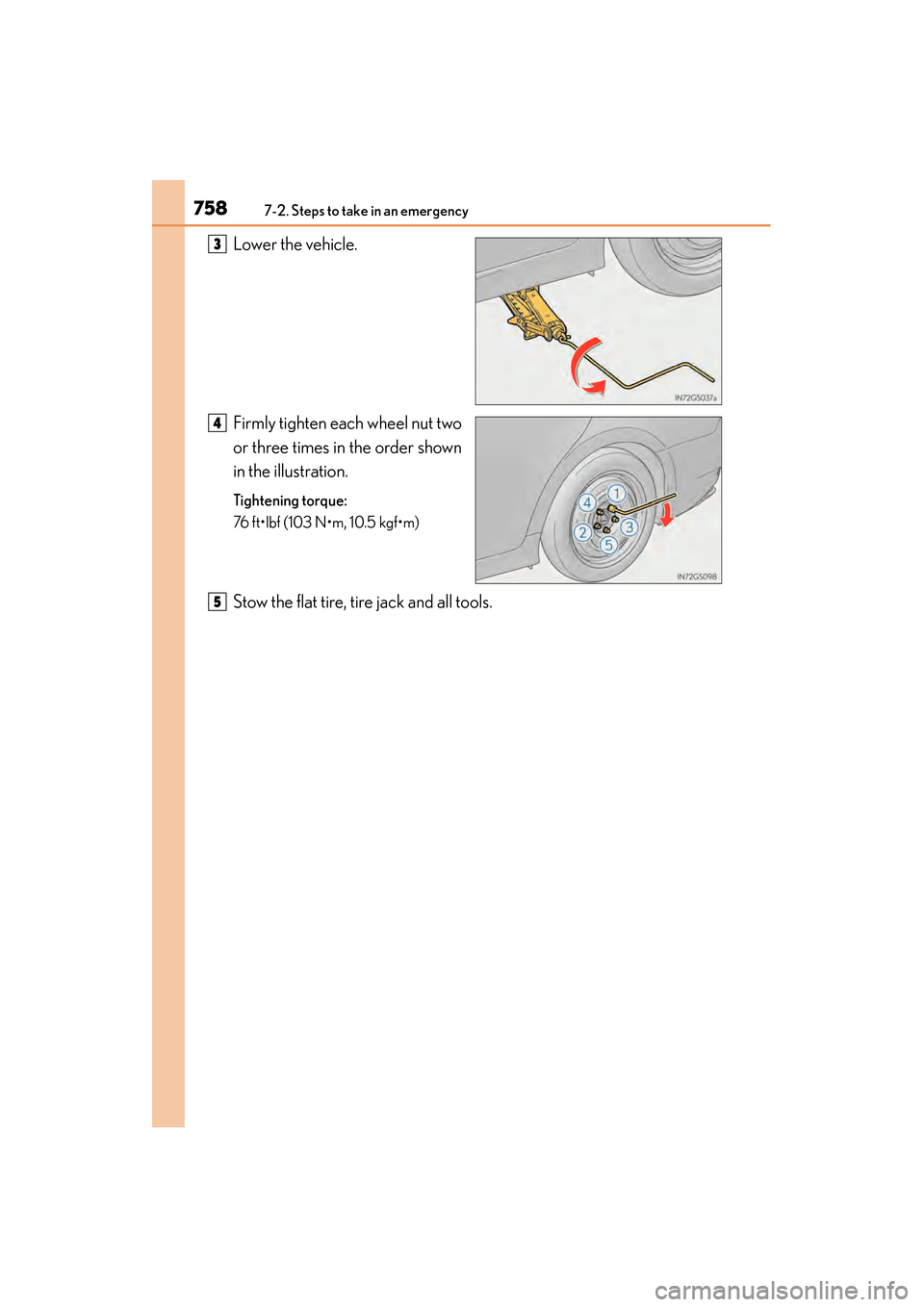

GS450h_U (OM30D01U)Lower the vehicle.
Firmly tighten each wheel nut two
or three times in the order shown
in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
3
4
5
GS450h_U.book Page 758 Monday, January 23, 2012 10:20 AM

7617-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
CAUTION

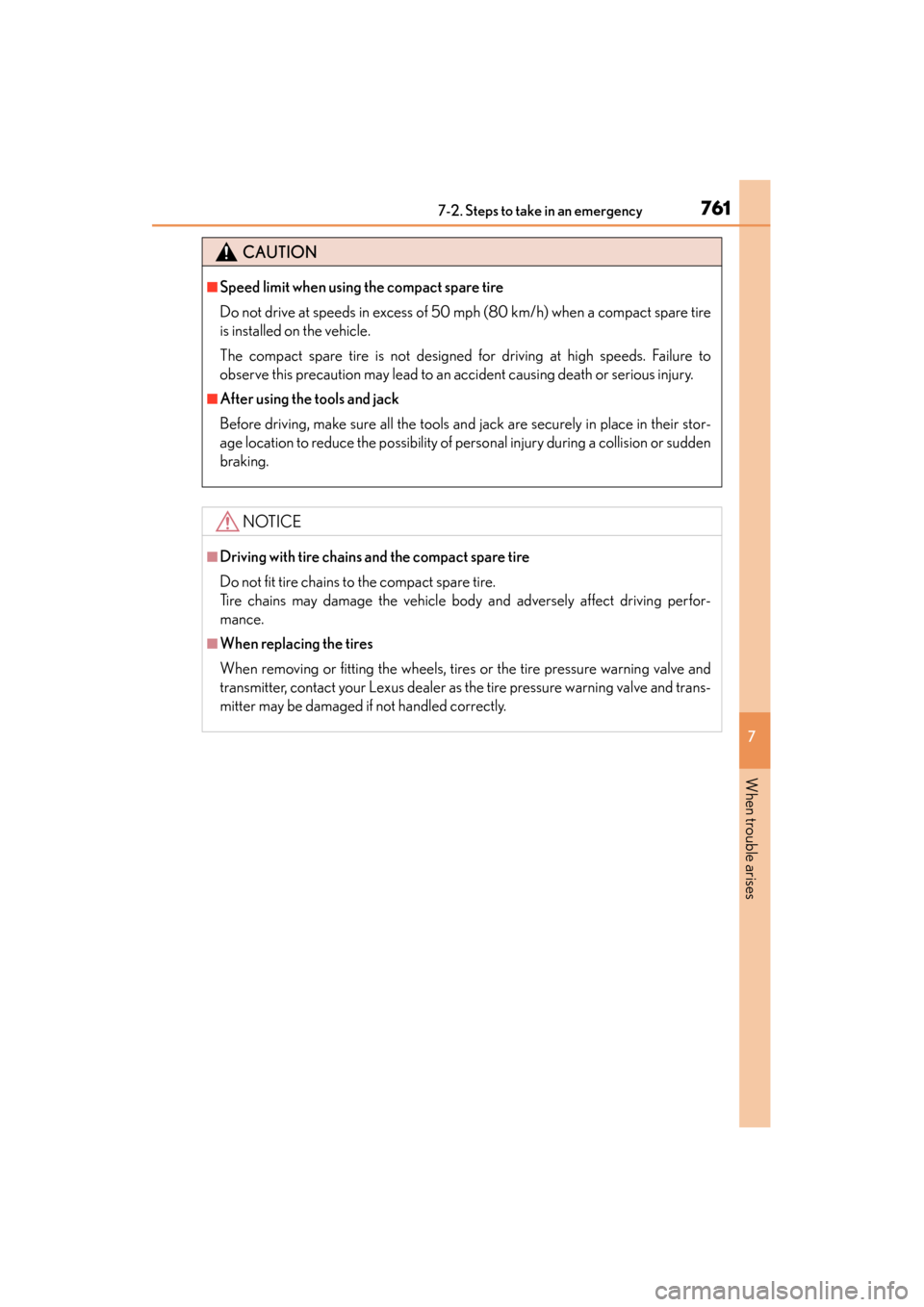

■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire
is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their stor-
age location to reduce the possibility of personal injury during a collision or sudden
braking.
NOTICE
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving perfor-
mance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
GS450h_U.book Page 761 Monday, January 23, 2012 10:20 AM

764
GS450h_U (OM30D01U)
7-2. Steps to take in an emergency

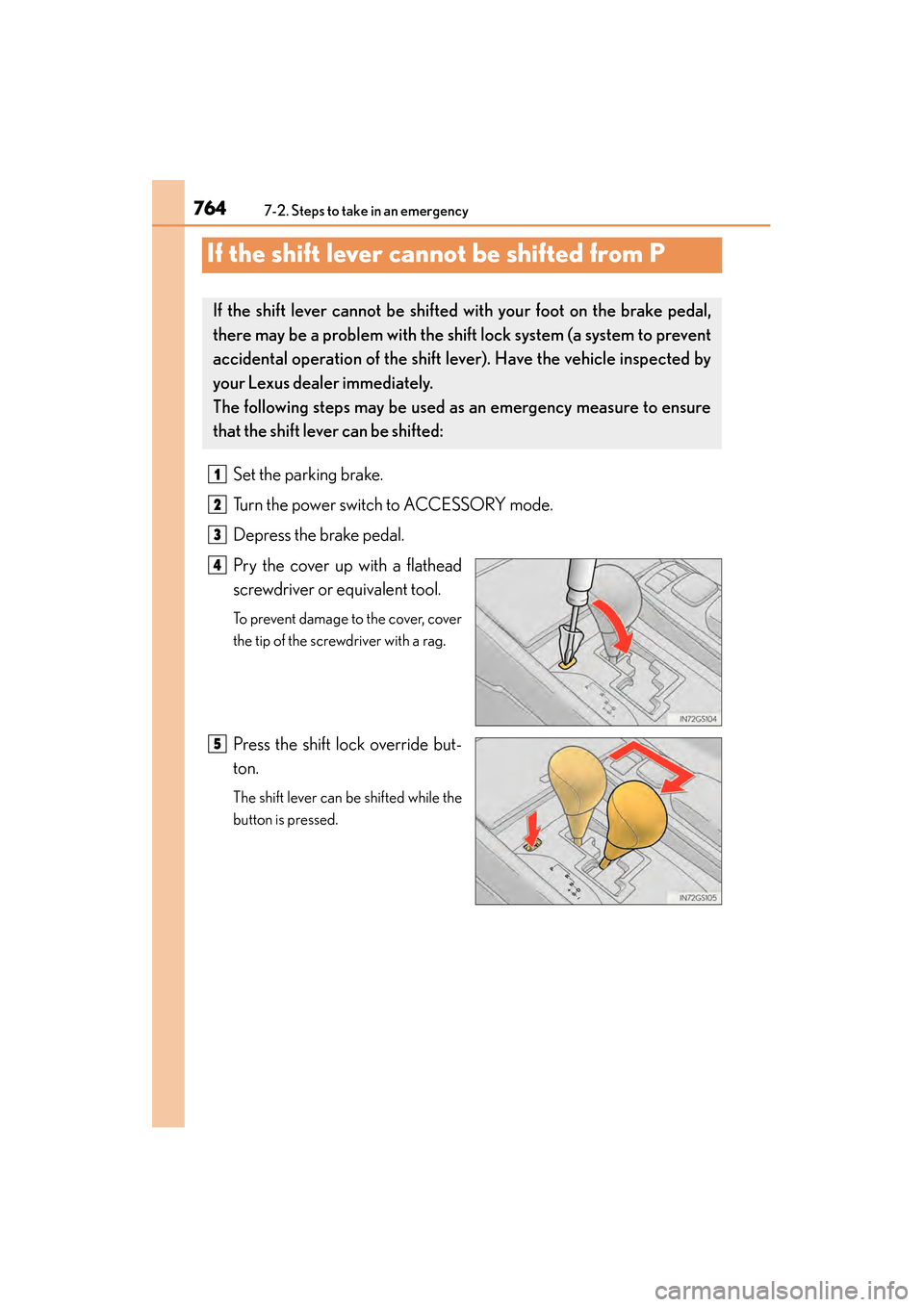

If the shift lever cannot be shifted from P
Set the parking brake.
Turn the power switch to ACCESSORY mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override but-
ton.
The shift lever can be shifted while the
button is pressed.
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Lexus dealer immediately.
The following steps may be used as an emergency measure to ensure
that the shift lever can be shifted:
1
2
3
4
5
GS450h_U.book Page 764 Monday, January 23, 2012 10:20 AM

765
GS450h_U (OM30D01U)
7
When trouble arises
7-2. Steps to take in an emergency

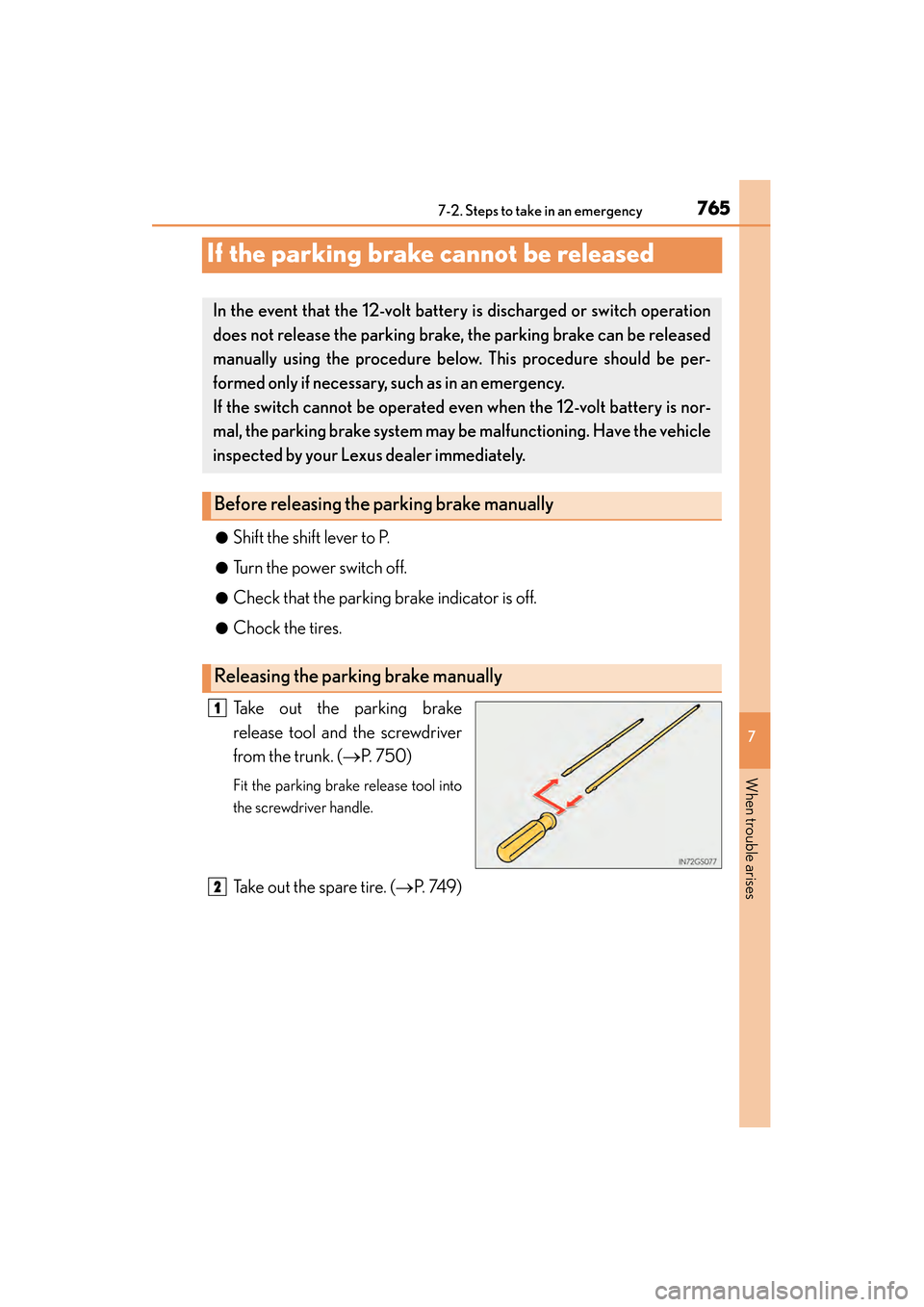

If the parking brake cannot be released
