3
1
8 7
6
5
4
3
2
GS450h_U (OM30D01U)
3-5. Opening, closing the windows and moon roof
Power windows.............................164
Moon roof ....................................... 167
4-1. Before driving Driving the vehicle ...................... 172
Cargo and luggage.................... 183
Vehicle load limits ....................... 186
Trailer towing ................................. 187
Dinghy towing .............................. 188
4-2. Driving procedures Power (ignition) switch ............. 189
EV drive mode ..............................196
Hybrid transmission................... 199
Turn signal lever .......................... 205
Parking brake .............................. 207
Brake Hold .................................... 210
Horn ..................................................212
4-3. Operating the lights and wipers
Headlight switch ..........................213
Fog light switch ............................ 218
Windshield wipers and washer ..................................219
Headlight cleaner switch ........ 226 4-4. Refueling
Opening the fuel tank cap ......227
4-5. Using the driving support systems
Cruise control ............................. 232
Dynamic radar cruise control............................ 236
LKA (Lane-Keeping Assist) ............251
Intuitive parking assist ................ 261
Rear view monitor system ....... 274
Driving mode select switch ... 286
Driving assist systems .............. 289
PCS (Pre-Collision System) ......... 296
BSM (Blind Spot Monitor) .............305
Lexus night view ............................ 311
4-6. Driving tips Hybrid vehicle driving tips ....... 317
Winter driving tips .......................319
4Driving
GS450h_U.book Page 3 Monday, January 23, 2012 10:20 AM

17Pictorial index
GS450h_U (OM30D01U)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 319
To prevent freezing (windshield wiper de-icer)
* . . . . . . . . . . . . . . . . . . . .P. 385
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 618
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 2 7
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 784
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 651
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 790
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 319
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . .P. 651
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 749
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 638
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 8 5
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 774
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 728
Headlights/parking lights/daytime running lights . . . . . . . . . . . . . . . . . . P. 213
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Stop lights
Brake Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 210
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 687, Watts: P. 791)
*: If equipped
8
9
10
11
12
13
14
15
GS450h_U.book Page 17 Monday, January 23, 2012 10:20 AM

171
GS450h_U (OM30D01U)
4Driving
4-1. Before driving Driving the vehicle .......................172
Cargo and luggage .................... 183
Vehicle load limits ....................... 186
Trailer towing ................................. 187
Dinghy towing...............................188
4-2. Driving procedures Power (ignition) switch.............. 189
EV drive mode ............................. 196
Hybrid transmission ................... 199
Turn signal lever ......................... 205
Parking brake ............................... 207
Brake Hold ..................................... 210
Horn.................................................. 212
4-3. Operating the lights and wipers
Headlight switch .......................... 213
Fog light switch............................. 218
Windshield wipers and washer.................................. 219
Headlight cleaner switch ........ 226 4-4. Refueling
Opening the fuel tank cap ..... 227
4-5. Using the driving support systems
Cruise control ............................. 232
Dynamic radar cruise control ............................ 236
LKA (Lane-Keeping Assist) ........... 251
Intuitive parking assist ................ 261
Rear view monitor system ....... 274
Driving mode select switch ... 286
Driving assist systems............... 289
PCS (Pre-Collision System).......... 296
BSM (Blind Spot Monitor)..............305
Lexus night view ............................ 311
4-6. Driving tips Hybrid vehicle driving tips........317
Winter driving tips ...................... 319
GS450h_U.book Page 171 Monday, January 23, 2012 10:20 AM

219
GS450h_U (OM30D01U)4-3. Operating the lights and wipers
4
Driving
Windshield wipers and washer
Operate the lever as follows to operate the wipers. The lever will return to
its original position immediately after operation.
(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level

(U.S.A.) or (Canada)
Move the lever down 1 level

(U.S.A.) or (Canada)
Move the lever down 2 lev-
els
AUTO mode on/off switch
With AUTO mode selected, the wip-
ers will operate automatically when
the sensor detects falling rain. The sys-
tem automatically adjusts wiper timing
in accordance with rain volume and
vehicle speed.
AUTO mode indicator will turn on
when AUTO mode is selected.
Operating the wiper lever
AUTO mode
indicator
1
2
3
4
5
GS450h_U.book Page 219 Monday, January 23, 2012 10:20 AM

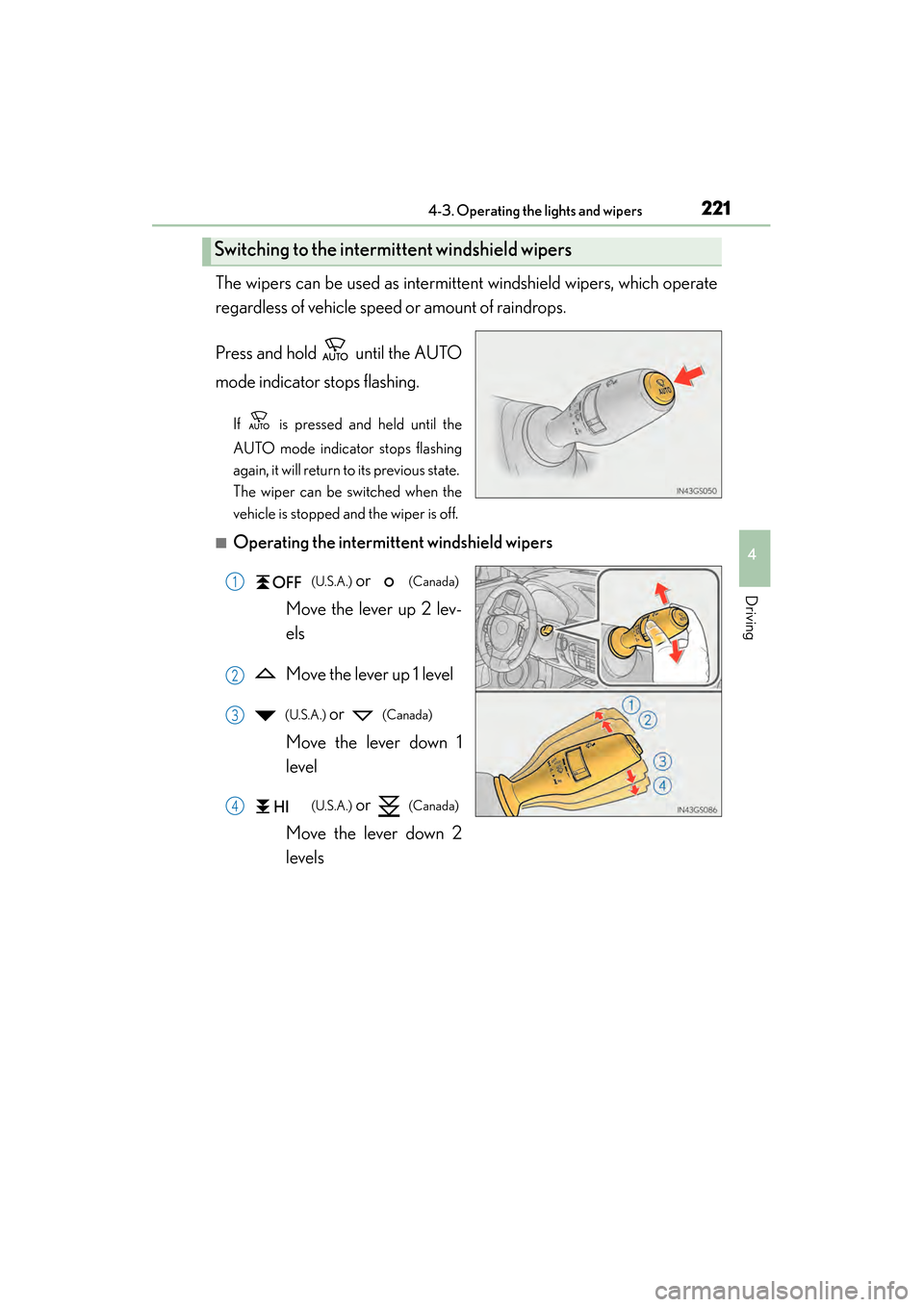

GS450h_U (OM30D01U)
2214-3. Operating the lights and wipers
4
Driving
The wipers can be used as intermittent windshield wipers, which operate
regardless of vehicle speed or amount of raindrops.
Press and hold until the AUTO
mode indicator stops flashing.
If is pressed and held until the
AUTO mode indicator stops flashing
again, it will return to its previous state.
The wiper can be switched when the
vehicle is stopped and the wiper is off.
■Operating the intermittent windshield wipers
(U.S.A.) or (Canada)
Move the lever up 2 lev-
els
Move the lever up 1 level

(U.S.A.) or (Canada)
Move the lever down 1
level

(U.S.A.) or (Canada)
Move the lever down 2
levels
Switching to the intermittent windshield wipers
1
2
3
4
GS450h_U.book Page 221 Monday, January 23, 2012 10:20 AM

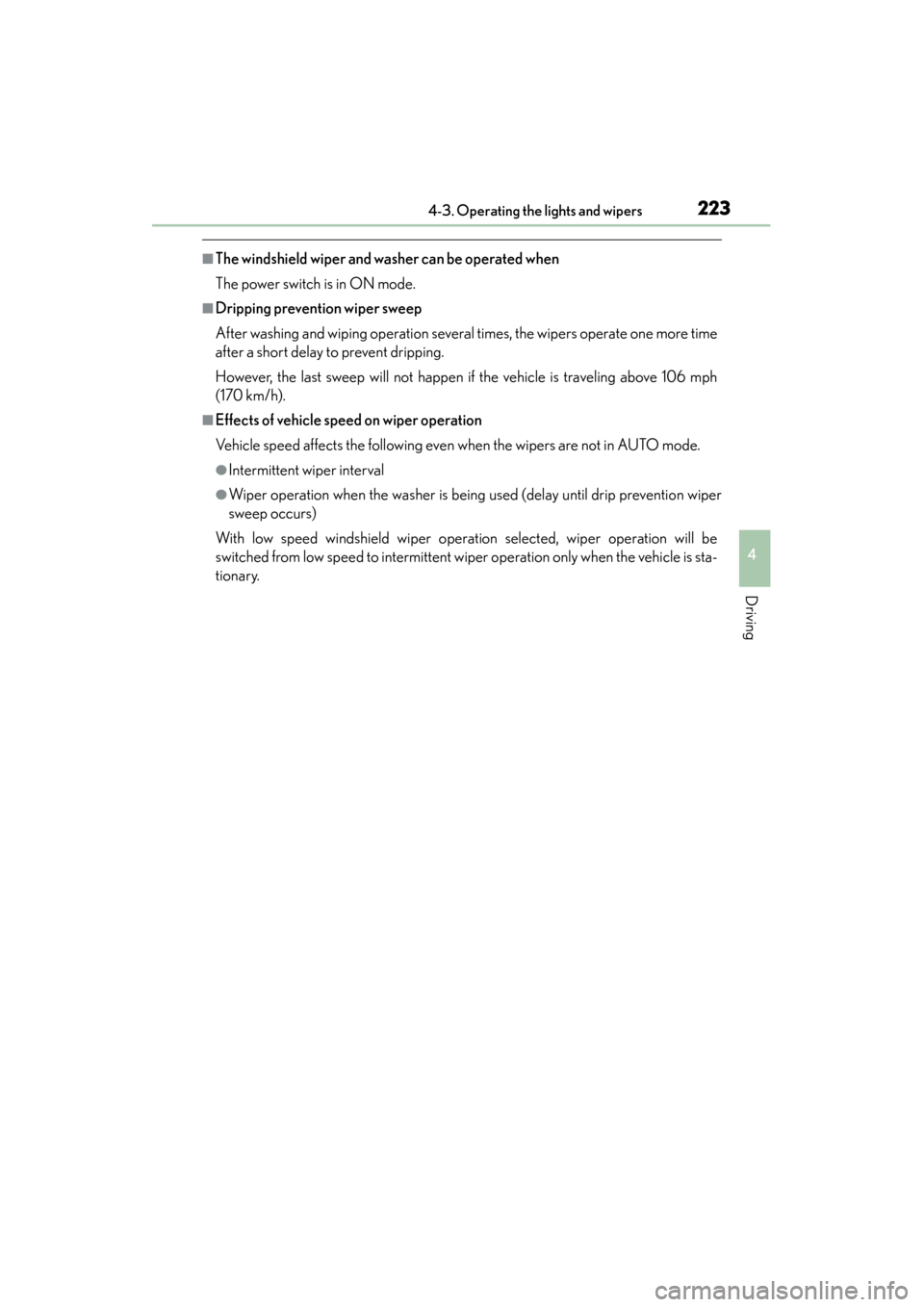

GS450h_U (OM30D01U)
2234-3. Operating the lights and wipers
4
Driving
■The windshield wiper and washer can be operated when
The power switch is in ON mode.
■Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more time
after a short delay to prevent dripping.
However, the last sweep will not happen if the vehicle is traveling above 106 mph
(170 km/h).
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not in AUTO mode.
●Intermittent wiper interval
●Wiper operation when the washer is being used (delay until drip prevention wiper
sweep occurs)
With low speed windshield wiper operation selected, wiper operation will be
switched from low speed to intermittent wiper operation only when the vehicle is sta-
tionary.
GS450h_U.book Page 223 Monday, January 23, 2012 10:20 AM

224
GS450h_U (OM30D01U)
4-3. Operating the lights and wipers
■Raindrop sensor
●If the wiper is turned to AUTO mode while the power switch is in ON mode, the
wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 185°F (85°C) or higher, or -22°F
(-30°C) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than AUTO mode.
■When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm.
The fluid may freeze on the windshield and cause low visibility. This may lead to an
accident, resulting in death or serious injury.
GS450h_U.book Page 224 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
2254-3. Operating the lights and wipers
4
Driving
M
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
■When a nozzle becomes blocked
In this case, contact your Lexus dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■When standing the windshield wipers up
Raise the wipers in line with the windshield. (→P. 3 2 2 )
Failure to do so may result in damage to the wipers and/or the hood.
GS450h_U.book Page 225 Monday, January 23, 2012 10:20 AM

226
GS450h_U (OM30D01U)
4-3. Operating the lights and wipers
Headlight cleaner switch∗
Press the switch to clean the head-
lights.
■The headlight cleaners can be operated when
The power switch is in ON mode and the headlight switch is turned on.
■Windshield washer linked operation
When the windshield washer is operated with the power switch in ON mode and the
headlights on, the headlight cleaners will operate once. (→P. 2 1 9 )
∗: If equipped
Washer fluid can be sprayed on the headlights.
NOTICE
■When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.
GS450h_U.book Page 226 Monday, January 23, 2012 10:20 AM

244
GS450h_U (OM30D01U)
4-5. Using the driving support systems
■Dynamic radar cruise control can be set when
●The shift lever is in D or range 4 or higher of S has been selected.
●Range 4 or higher of D has been selected by using the paddle shift.
●Vehicle speed is above approximately 30 mph (50 km/h).
■Accelerating after setting the vehicle speed
The vehicle can accelerate normally. After acceleration, the set speed resumes.
However, during vehicle-to-vehicle distance control mode, the vehicle speed may
decrease below the set speed in order to maintain the distance to the vehicle ahead.
■Automatic cancelation of vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the following
situations:
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●VSC is activated.
●TRAC is activated for a period of time.
●When the VSC or TRAC system is turned off by pressing the VSC OFF switch.
●The sensor cannot operate correctly because it is covered in some way.
●The windshield wipers are operating at high speed (when the wipers are in AUTO
mode or the high speed wiper operation).
●When snow mode is set.
If vehicle-to-vehicle distance control driving is automatically canceled for any other
reason, there may be a malfunction in the system. Contact your Lexus dealer.
GS450h_U.book Page 244 Monday, January 23, 2012 10:20 AM
