■Use a CR2032 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops
or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range will be reduced.
CAUTION
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child, they
can cause choking. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

701
GS450h_U (OM30D01U)
7When trouble arises
7-1. Essential information Emergency flashers................... 702
If your vehicle has to be stopped in an emergency .... 703 7-2. Steps to take in an emergency
If your vehicle needs to be towed ................................ 704
If you think something is wrong ................. 710
If a warning light turns on or a warning buzzer sounds ........ 711
If a warning message is displayed .................................. 721
If you have a flat tire.................... 749
If the hybrid system will not start................................. 762
If the shift lever cannot be shifted from P ......................764
If the parking brake cannot be released .................................765
If the electronic key does not operate properly ...................... 767
If the 12-volt battery is discharged ............................. 770
If your vehicle overheats .......... 774
If the vehicle becomes stuck ............................................. 778

7427-2. Steps to take in an emergency
GS450h_U (OM30D01U)After taking the specified steps to correct the suspected
problem, check
that the warning message and light go off.
Have the malfunction repaired immediately.
Interior buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt is
made to start the
hybrid system.Start the
hybrid sys-
tem with the
electronic
key present.
Once3
times
The electronic key
was carried out-
side the vehicle and
a door other than
the driver’s door
was opened and
closed while the
power switch was in
a mode other than
off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was in
P and the power
switch was not
turned off.Tu r n t h e
power
switch off or
bring the
electronic
key back
into the
vehicle.
(Flashes)
(Flashes)

7437-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
OnceCon-
tinuous
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors with-
out first turning the
power switch off
when the shift lever
was in P.
Tu r n t h e
power
switch off
and lock the
doors again.
9
times
An attempt was
made to drive when
the regular key was
not inside the vehi-
cle.Confirm
that the
electronic
key is inside
the vehicle.
Con-
tinuous
The driver’s door
was opened when
the shift lever was
not in P and the
power switch was
not turned off.
Shift the
shift lever to
P.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

7447-2. Steps to take in an emergency
GS450h_U (OM30D01U)
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Con-
tinuousCon-
tinuous
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
power switch was
not turned off.• Shift the shift lever
to P.
•Bring the elec-
tronic key
back into
the vehi-
cle.
Con-
tinuous
An attempt was
made to lock the
doors using the
smart access sys-
tem with push-but-
ton start while the
electronic key was
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
OnceCon-
tinuous
An attempt was
made to lock either
front door by open-
ing a door and put-
ting the inside lock
button into the lock
position, then clos-
ing the door with
the electronic key
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

7457-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
•When the doors were unlocked
with the mechan-
ical key and then
the power switch
was pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic key could not be
detected in the
vehicle even after
the power switch
was pressed two
consecutive
times.
To u c h t h e
electronic
key to the
power
switch while
depressing
the brake
pedal.
Once
An attempt was
made to start the
hybrid system with
the shift lever in an
incorrect position.Shift the
shift lever to
P and start
the hybrid
system.
(Flashes)
(Flashes)

7467-2. Steps to take in an emergency
GS450h_U (OM30D01U)
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure

Power was turned
off due to the auto-
matic power off
function.
Next time
when start-
ing the
hybrid sys-
tem,
increase the
engine
speed
slightly and
maintain
that level for
approxi-
mately 5
minutes to
recharge
the 12-volt
battery.
OnceThe electronic key
has a low battery.
Replace the
electronic
key batter y.
(  P. 668)

7477-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
The driver’s door
was opened and
closed with the
power switch
turned off and then
the power switch
was put in ACCES-
SORY mode twice
without the hybrid
system being
started.
Press the
power
switch while
depressing
the brake
pedal.
During an hybrid
system starting pro-
cedure in the event
that the electronic
key was not func-
tioning properly
(  P. 76 8 ) , t h e
power switch was
touched with the
electronic key.
Press the
power
switch
within 10
seconds of
the buzzer
sounding.
Once
The steering lock
could not be
released within 3
seconds of the
power switch being
pressed.
Press the
power
switch while
depressing
the brake
pedal and
moving the
steering
wheel left
and right.
Once
The power switch
has been turned off
with the shift lever
in a position other
than P or N.
Shift the
shift lever to
P.
(Flashes)
(Flashes)
(Flashes)

762
GS450h_U (OM30D01U)
7-2. Steps to take in an emergency

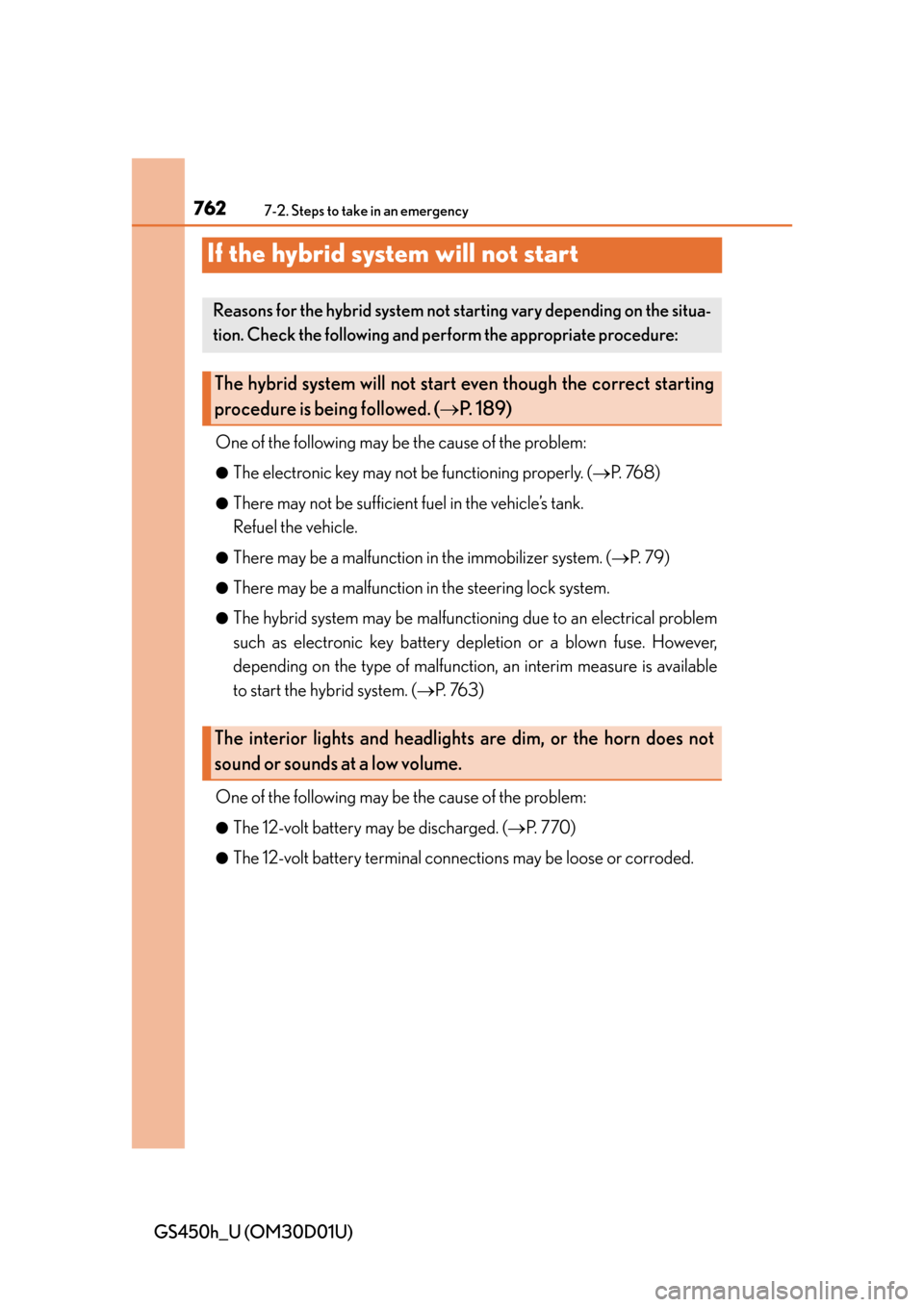

If the hybrid system will not start
One of the following may be the cause of the problem:
●The electronic key may not be functioning properly. (P. 76 8 )
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●There may be a malfunction in the immobilizer system. ( P. 7 9 )
●There may be a malfunction in the steering lock system.
●The hybrid system may be malfunctio ning due to an electrical problem
such as electronic key battery de pletion or a blown fuse. However,
depending on the type of malfuncti on, an interim measure is available
to start the hybrid system. ( P. 763)
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( P. 770)
●The 12-volt battery terminal connecti ons may be loose or corroded.
Reasons for the hybrid system not st arting vary depending on the situa-
tion. Check the following and perf orm the appropriate procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. ( P. 1 8 9 )
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.

767
GS450h_U (OM30D01U)
7
When trouble arises
7-2. Steps to take in an emergency
If the electronic key does not operate properly
■Doors
Use the mechanical key
( P. 118) in order to perform the
following operations:
Locks all the doors
Closes the windows and moon
roof
* (turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.
Opens the windows and moon
roof
* (turn and hold)
*: This setting must be customized at your Lexus dealer.
If communication between the ele ctronic key and vehicle is inter-
rupted ( P. 128) or the electronic key ca nnot be used because the
battery is depleted, the smart access system with push-button start and
wireless remote control cannot be us ed. In such cases, the doors and
trunk can be opened and the hybrid system can be started by following
the procedure below.
Locking and unlocking the doors, unlocking the trunk and key
linked functions
1
2
3
4
