Lexus GS450h 2014 Owner's Manual

210
GS450h_OM_OM30D52U_(U)
4-2. Driving procedures

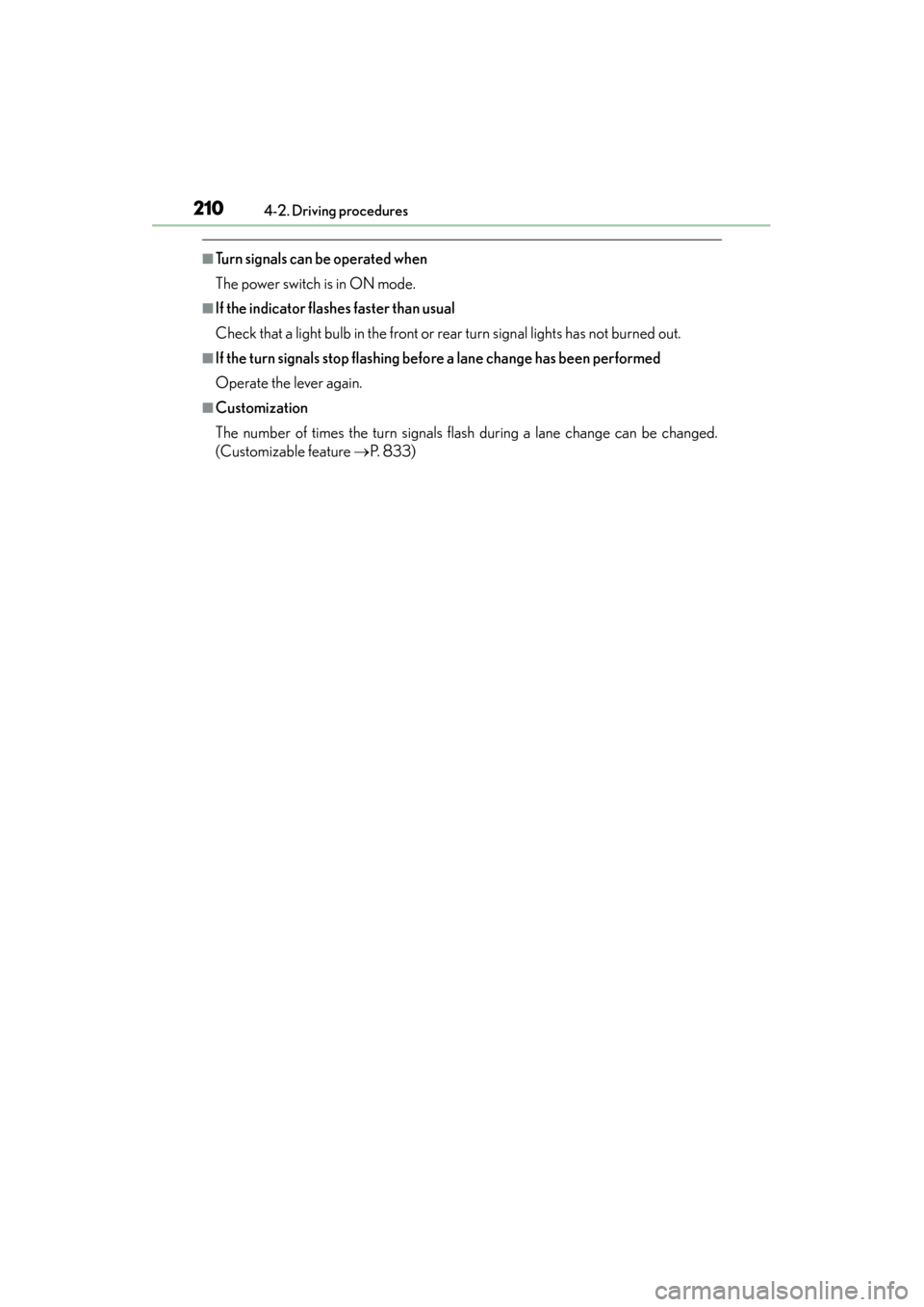

■Turn signals can be operated when
The power switch is in ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■Customization
The number of times the turn signals flash during a lane change can be changed.
(Customizable feature →P. 8 3 3 )
GS450h_OM_OM30D52U_(U).book Page 210 Monday, July 29, 2013 12:07 PM

211
GS450h_OM_OM30D52U_(U)4-2. Driving procedures
4
Driving

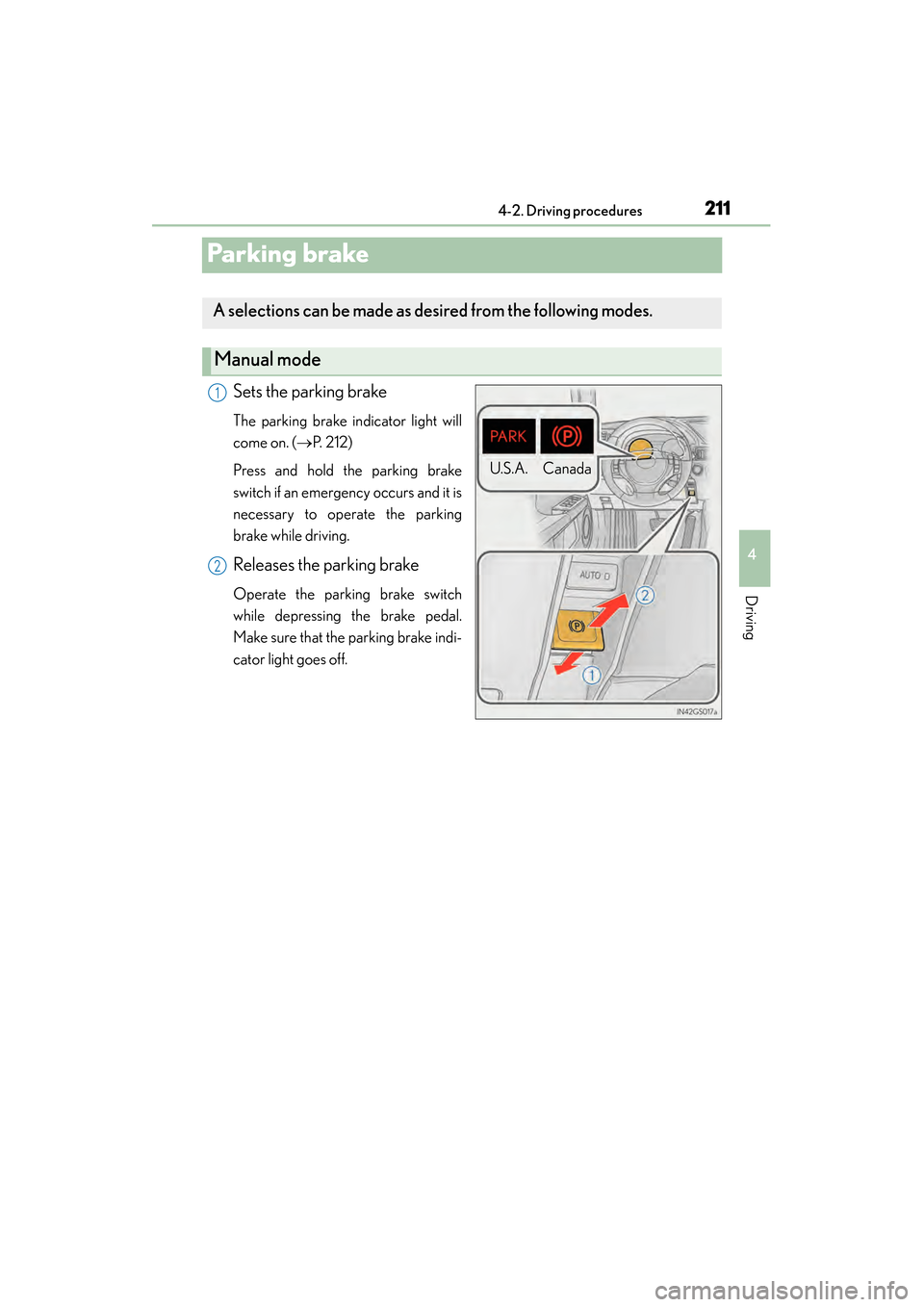

Pa rk in g b ra ke
Sets the parking brake
The parking brake indicator light will
come on. ( →P. 212)
Press and hold the parking brake
switch if an emergency occurs and it is
necessary to operate the parking
brake while driving.
Releases the parking brake
Operate the parking brake switch
while depressing the brake pedal.
Make sure that the parking brake indi-
cator light goes off.
A selections can be made as desired from the following modes.
Manual mode
U.S.A. Canada
1
2
GS450h_OM_OM30D52U_(U).book Page 211 Monday, July 29, 2013 12:07 PM

212
GS450h_OM_OM30D52U_(U)
4-2. Driving procedures

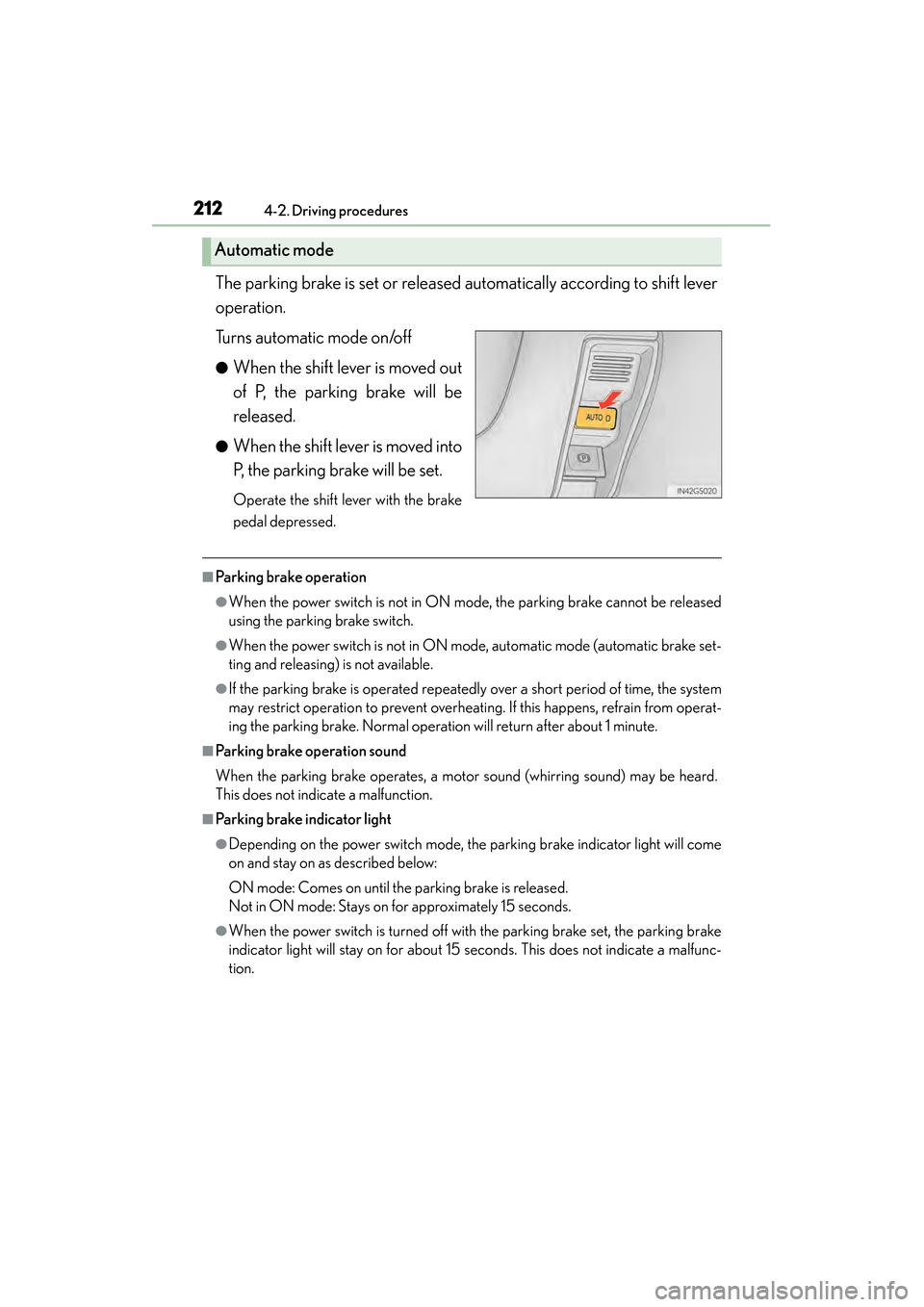

The parking brake is set or released automatically according to shift lever
operation.
Turns automatic mode on/off
●When the shift lever is moved out
of P, the parking brake will be
released.
●When the shift lever is moved into
P, the parking brake will be set.
Operate the shift lever with the brake
pedal depressed.
■Parking brake operation
●When the power switch is not in ON mode, the parking brake cannot be released
using the parking brake switch.
●When the power switch is not in ON mode, automatic mode (automatic brake set-
ting and releasing) is not available.
●If the parking brake is operated repeatedly over a short period of time, the system
may restrict operation to prevent overheating. If this happens, refrain from operat-
ing the parking brake. Normal operation will return after about 1 minute.
■Parking brake operation sound
When the parking brake operates, a motor sound (whirring sound) may be heard.
This does not indicate a malfunction.
■Parking brake indicator light
●Depending on the power switch mode, the parking brake indicator light will come
on and stay on as described below:
ON mode: Comes on until the parking brake is released.
Not in ON mode: Stays on for approximately 15 seconds.
●When the power switch is turned off with the parking brake set, the parking brake
indicator light will stay on for about 15 seconds. This does not indicate a malfunc-
tion.
Automatic mode
GS450h_OM_OM30D52U_(U).book Page 212 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
2134-2. Driving procedures
4
Driving

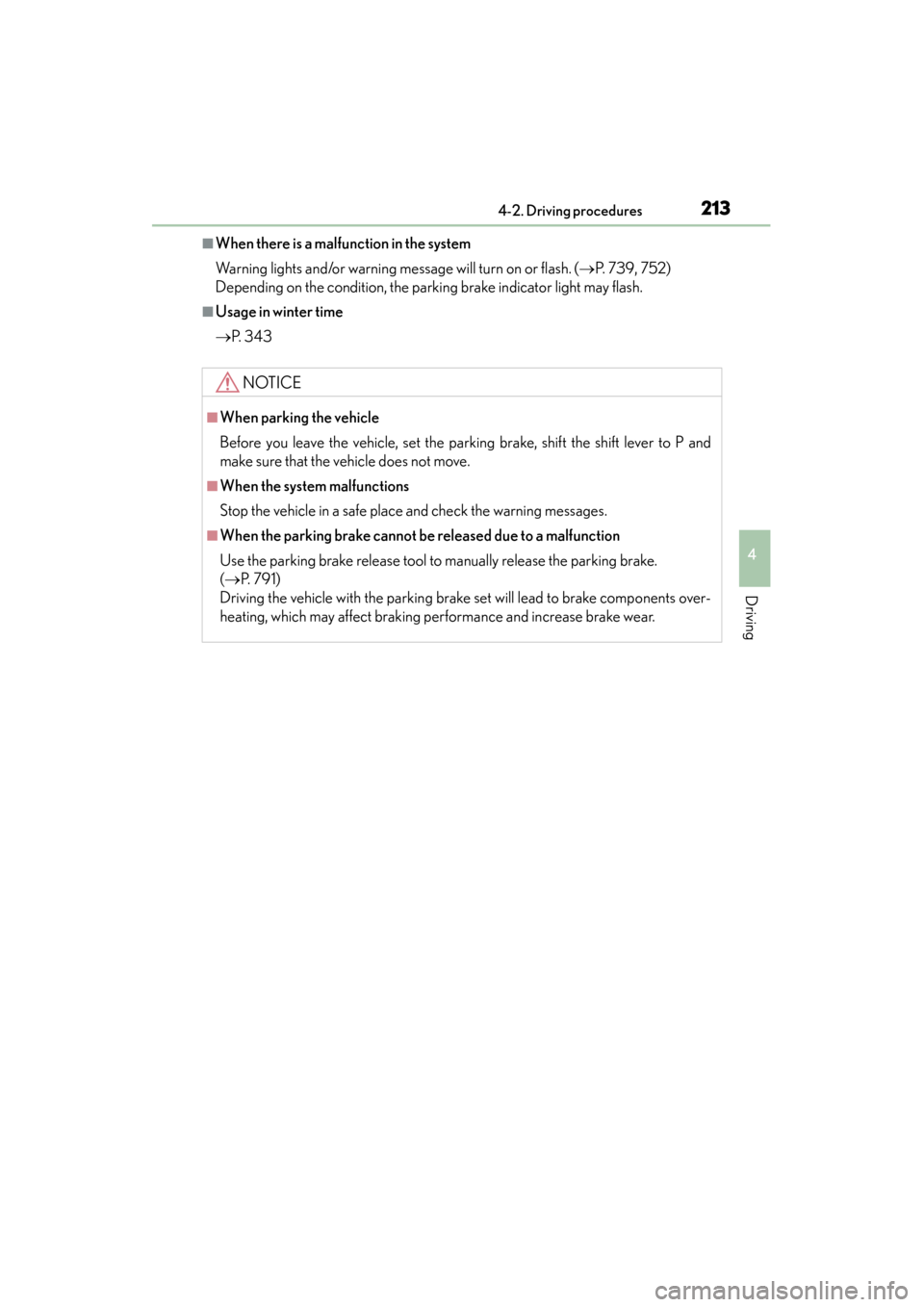

■When there is a malfunction in the system
Warning lights and/or warning message will turn on or flash. (→P. 739, 752)
Depending on the condition, the parking brake indicator light may flash.
■Usage in winter time
→ P. 3 4 3
NOTICE
■When parking the vehicle
Before you leave the vehicle, set the parking brake, shift the shift lever to P and
make sure that the vehicle does not move.
■When the system malfunctions
Stop the vehicle in a safe place and check the warning messages.
■When the parking brake cannot be released due to a malfunction
Use the parking brake release tool to manually release the parking brake.
(→ P. 7 9 1 )
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
GS450h_OM_OM30D52U_(U).book Page 213 Monday, July 29, 2013 12:07 PM

214
GS450h_OM_OM30D52U_(U)
4-2. Driving procedures

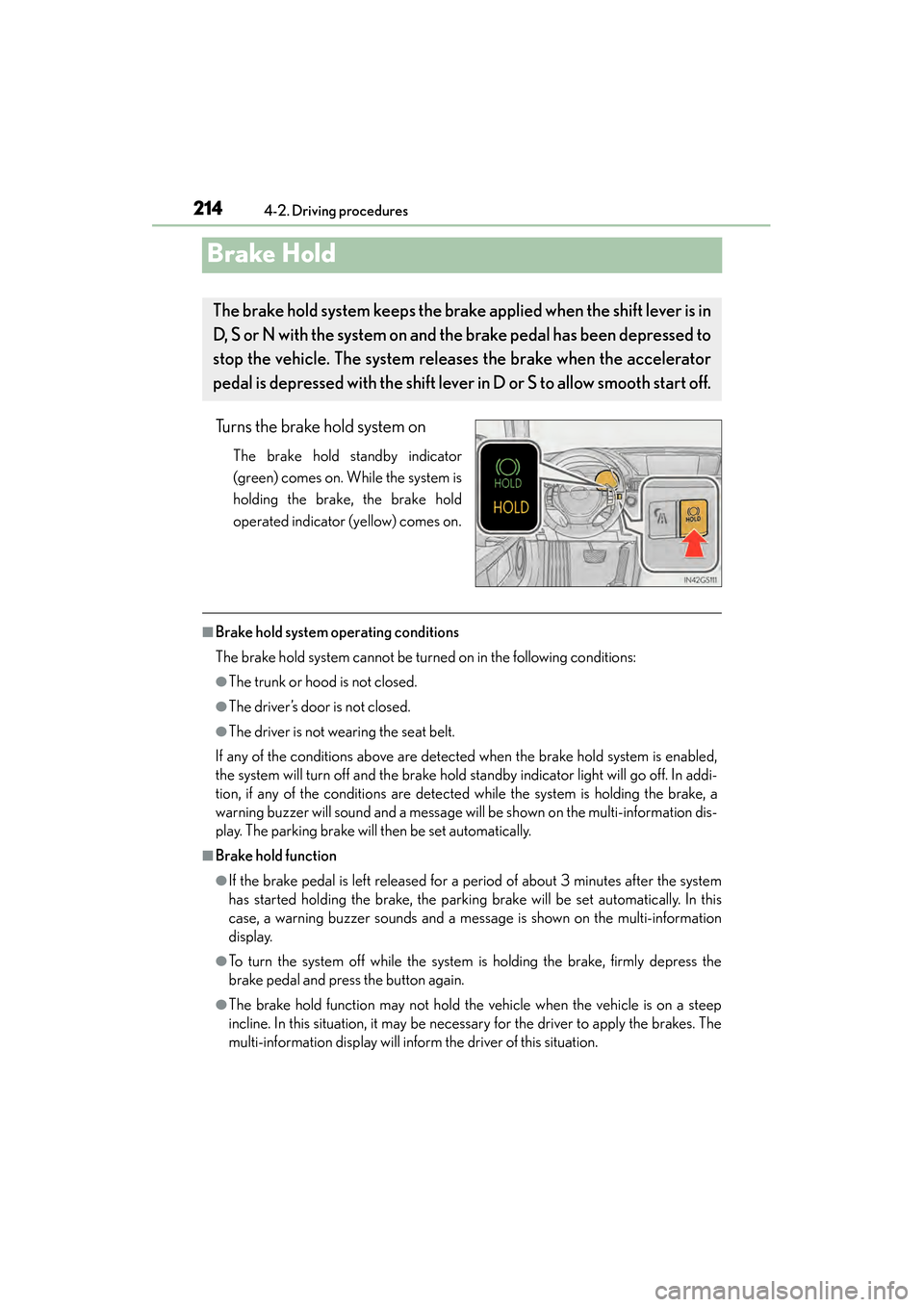

Brake Hold
Turns the brake hold system on
The brake hold standby indicator
(green) comes on. While the system is
holding the brake, the brake hold
operated indicator (yellow) comes on.
■Brake hold system operating conditions
The brake hold system cannot be turned on in the following conditions:
●The trunk or hood is not closed.
●The driver’s door is not closed.
●The driver is not wearing the seat belt.
If any of the conditions above are detected when the brake hold system is enabled,
the system will turn off and the brake hold standby indicator light will go off. In addi-
tion, if any of the conditions are detected while the system is holding the brake, a
warning buzzer will sound and a message will be shown on the multi-information dis-
play. The parking brake will then be set automatically.
■Brake hold function
●If the brake pedal is left released for a period of about 3 minutes after the system
has started holding the brake, the parking brake will be set automatically. In this
case, a warning buzzer sounds and a message is shown on the multi-information
display.
●To turn the system off while the system is holding the brake, firmly depress the
brake pedal and press the button again.
●The brake hold function may not hold the vehicle when the vehicle is on a steep
incline. In this situation, it may be necessary for the driver to apply the brakes. The
multi-information display will inform the driver of this situation.
The brake hold system keeps the brak e applied when the shift lever is in
D, S or N with the system on and the brake pedal has been depressed to
stop the vehicle. The system releases the brake when the accelerator
pedal is depressed with the shift lever in D or S to allow smooth start off.
GS450h_OM_OM30D52U_(U).book Page 214 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
2154-2. Driving procedures
4
Driving

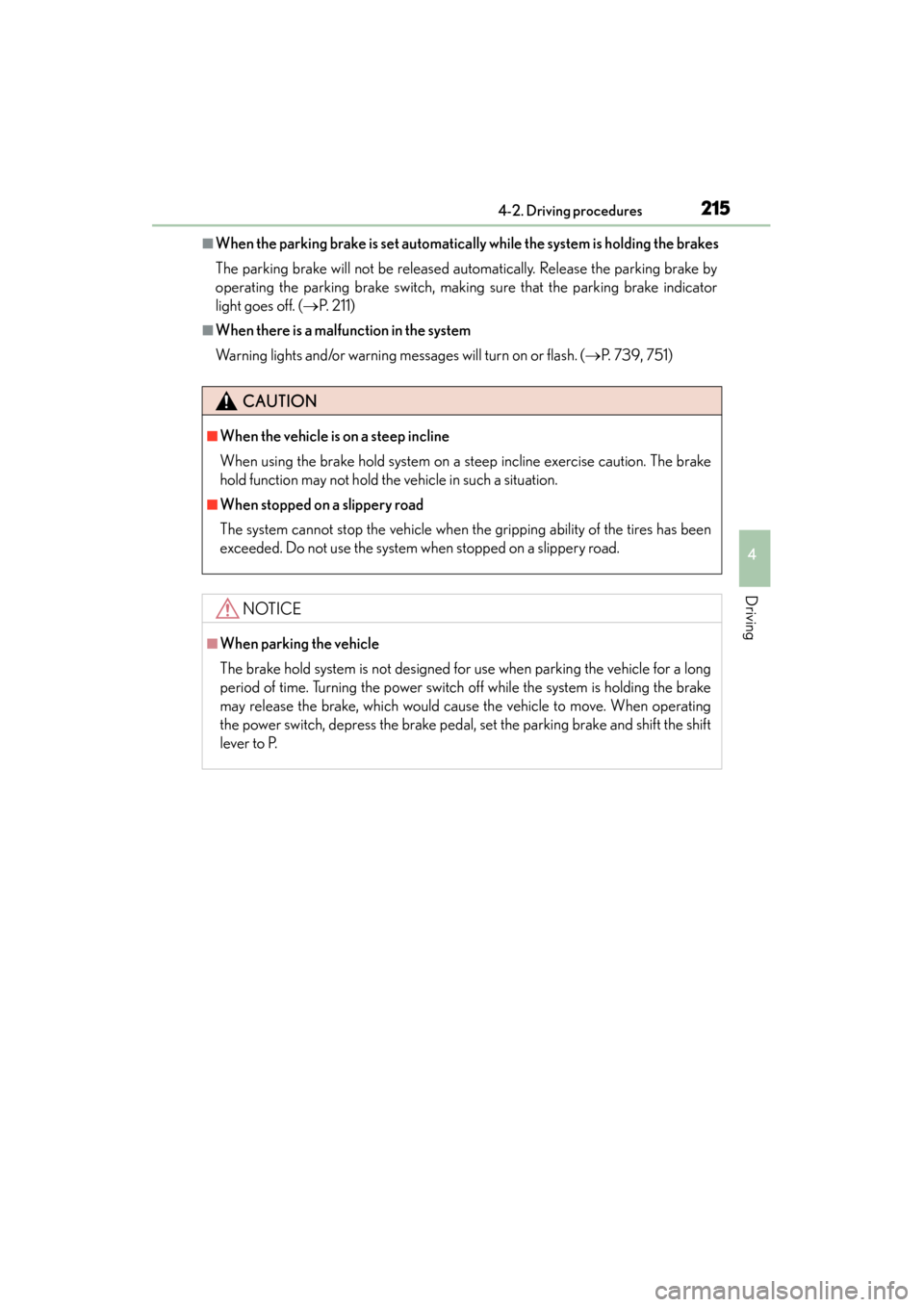

■When the parking brake is set automatically while the system is holding the brakes
The parking brake will not be released automatically. Release the parking brake by
operating the parking brake switch, making sure that the parking brake indicator
light goes off. (→P. 2 1 1 )
■When there is a malfunction in the system
Warning lights and/or warning messages will turn on or flash. ( →P. 7 3 9 , 7 5 1 )
CAUTION
■When the vehicle is on a steep incline
When using the brake hold system on a steep incline exercise caution. The brake
hold function may not hold the vehicle in such a situation.
■When stopped on a slippery road
The system cannot stop the vehicle when the gripping ability of the tires has been
exceeded. Do not use the system when stopped on a slippery road.
NOTICE
■When parking the vehicle
The brake hold system is not designed for use when parking the vehicle for a long
period of time. Turning the power switch off while the system is holding the brake
may release the brake, which would cause the vehicle to move. When operating
the power switch, depress the brake pedal, set the parking brake and shift the shift
lever to P.
GS450h_OM_OM30D52U_(U).book Page 215 Monday, July 29, 2013 12:07 PM

216
GS450h_OM_OM30D52U_(U)
4-2. Driving procedures

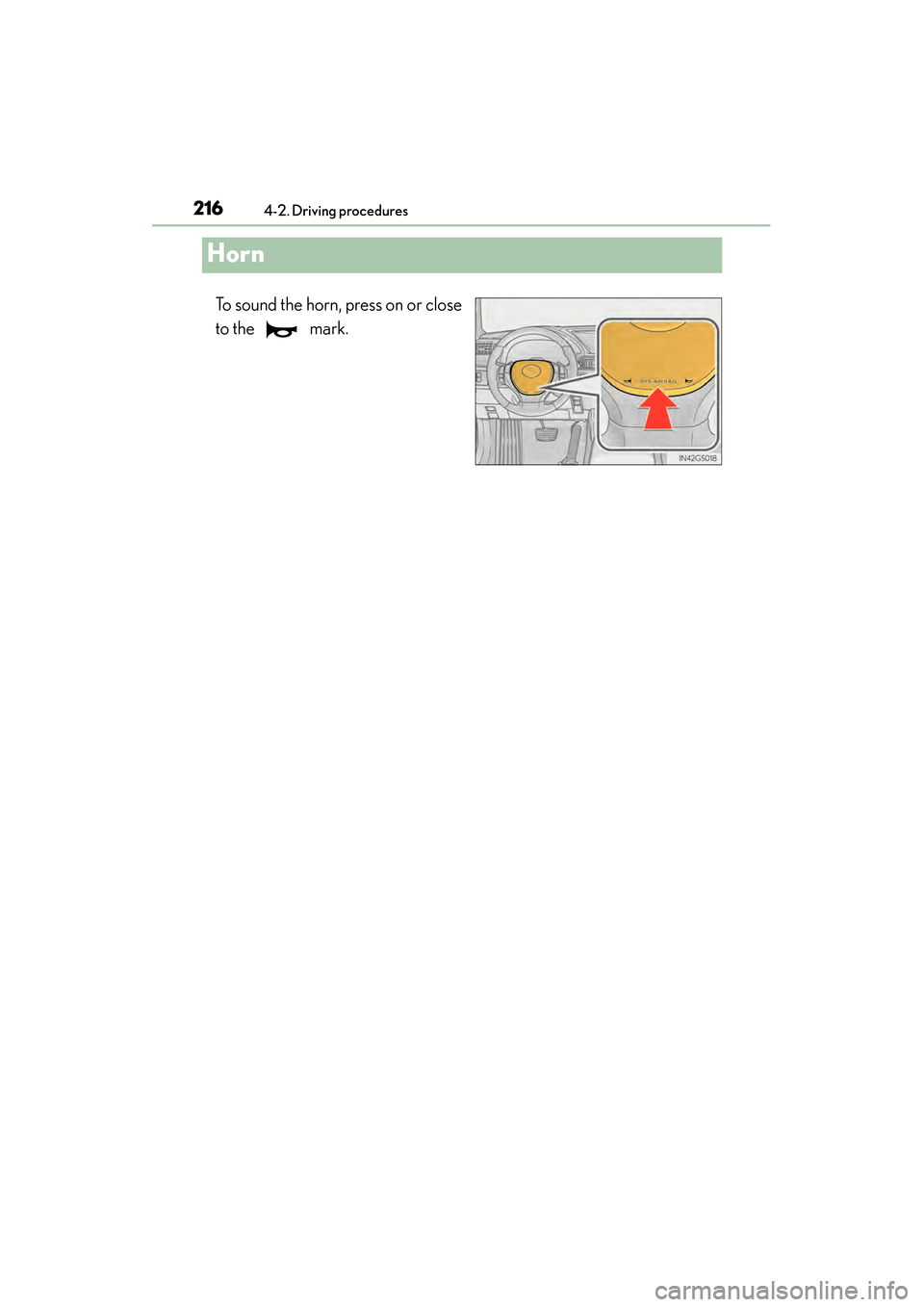

Horn
To sound the horn, press on or close
to the mark.
GS450h_OM_OM30D52U_(U).book Page 216 Monday, July 29, 2013 12:07 PM

217
GS450h_OM_OM30D52U_(U)4-3. Operating the lights and wipers
4
Driving

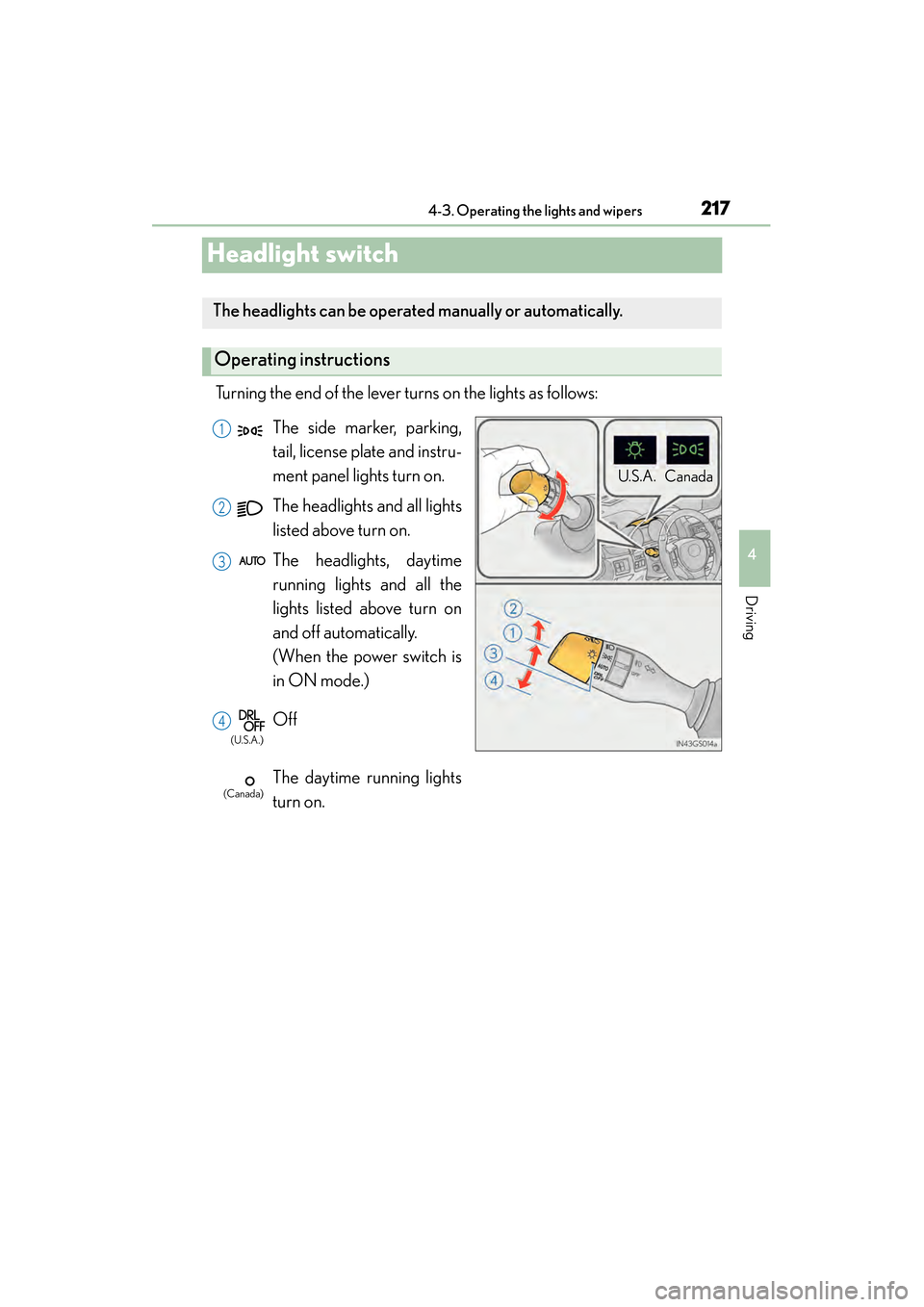

Headlight switch
Turning the end of the lever turns on the lights as follows:
The headlights can be operated manually or automatically.
Operating instructions
U. S .A . Can ad a
The side marker, parking,
tail, license plate and instru-
ment panel lights turn on.
The headlights and all lights
listed above turn on.
The headlights, daytime
running lights and all the
lights listed above turn on
and off automatically.
(When the power switch is
in ON mode.)
Off
The daytime running lights
turn on.1
2
3
4
(U.S.A.)
(Canada)
GS450h_OM_OM30D52U_(U).book Page 217 Monday, July 29, 2013 12:07 PM

218
GS450h_OM_OM30D52U_(U)
4-3. Operating the lights and wipers

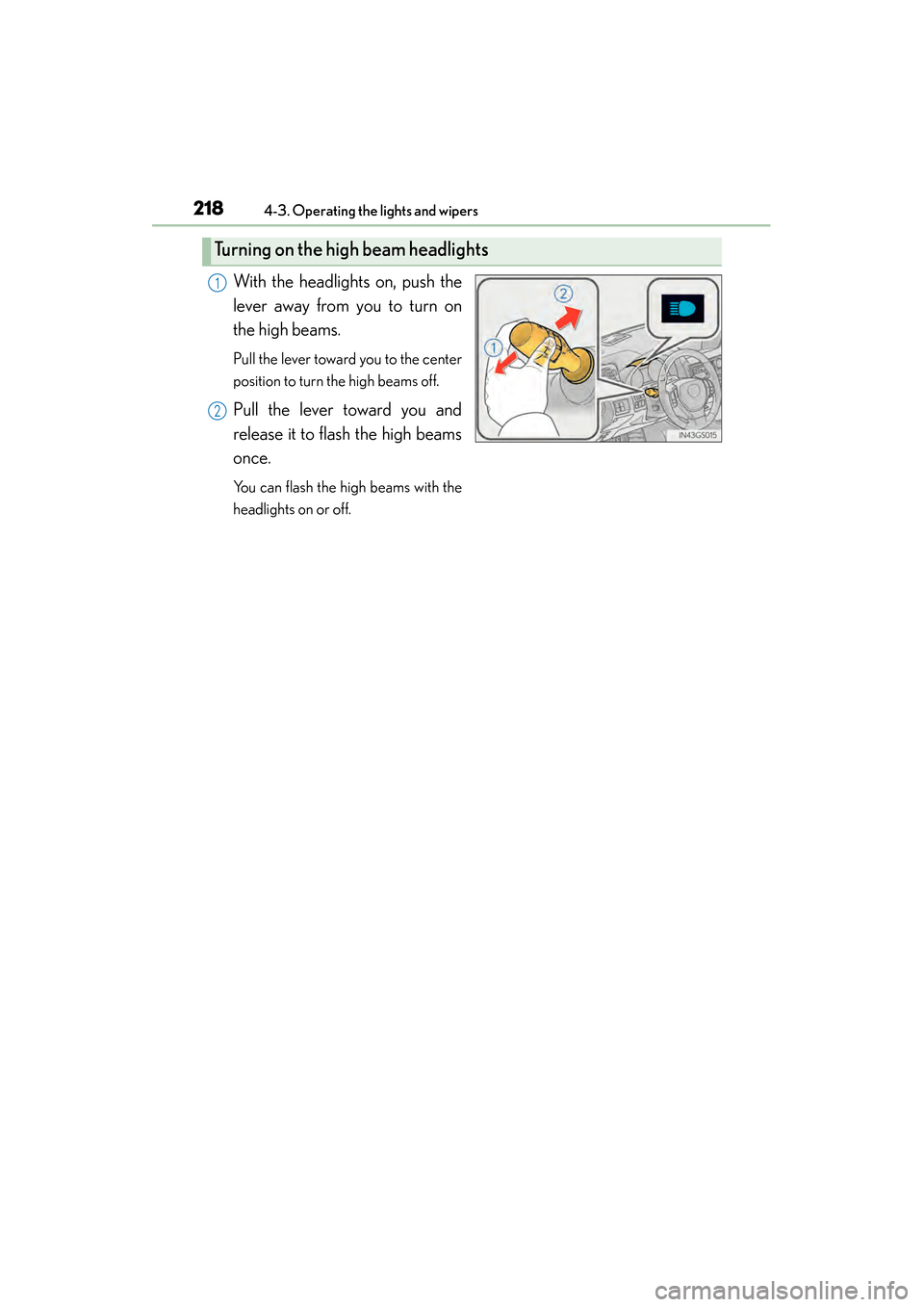

With the headlights on, push the
lever away from you to turn on
the high beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and
release it to flash the high beams
once.
You can flash the high beams with the
headlights on or off.
Turning on the high beam headlights
1
2
GS450h_OM_OM30D52U_(U).book Page 218 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
2194-3. Operating the lights and wipers
4
Driving

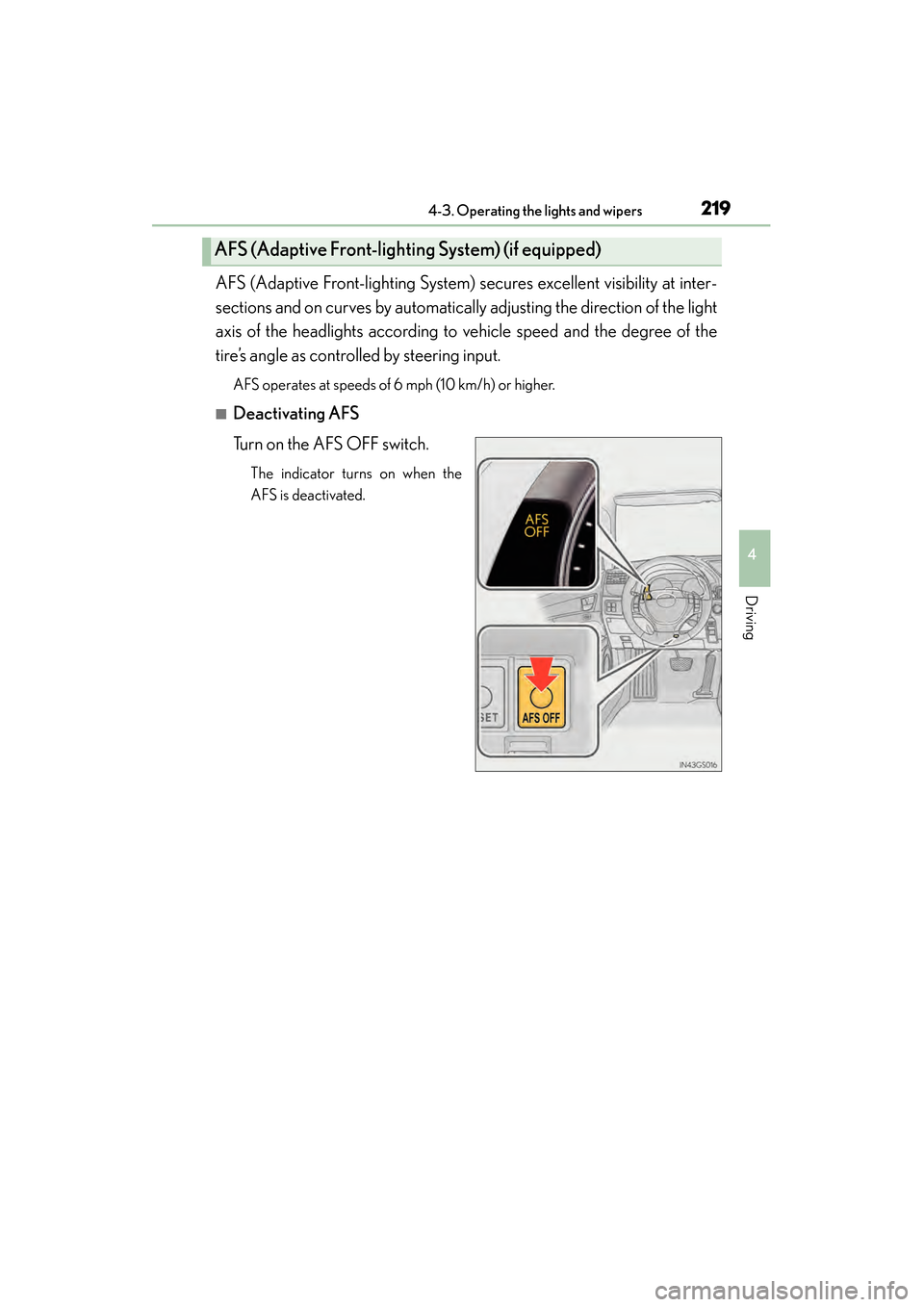

AFS (Adaptive Front-lighting System) secures excellent visibility at inter-
sections and on curves by automatically adjusting the direction of the light
axis of the headlights according to vehicle speed and the degree of the
tire’s angle as controlled by steering input.
AFS operates at speeds of 6 mph (10 km/h) or higher.
■Deactivating AFS
Turn on the AFS OFF switch.
The indicator turns on when the
AFS is deactivated.
AFS (Adaptive Front-lighting System) (if equipped)
GS450h_OM_OM30D52U_(U).book Page 219 Monday, July 29, 2013 12:07 PM
