3315-1. Remote Touch screen
5
Interior features
The 12.3-inch display has a display area which is 1.5 times wider than that
of the 8-inch display.
■Full screen display
The initial screen and “Menu” screen fill the entirety of the display area.
12.3-inch display operation

3325-1. Remote Touch screen
GS450h_OM_OM30F70U_(U)
■Split-screen display
Different information can be displayed on the left and right of the
screen. For example, air conditio ning system or audio screens can be
displayed and operated while the fuel consumption information screen
is being displayed. The large screen on the left of the display is called
the main display, and the small screen to the right is ca lled the side dis-
play.

GS450h_OM_OM30F70U_(U)
3335-1. Remote Touch screen
5
Interior features
For details of the functions and operation of the main display, refer to the
respective section.
■Selecting the operation screen
When selecting the side display, move the Remote Touch knob to the
right until is displayed at the boundary between the main display
and the side display, and then move it further to the right. When select-
ing the main display, move the Remote Touch knob to the left until is
displayed at the boundary between the main display and the side dis-
play, and then move it further to the left.
12.3-inch display function

3345-1. Remote Touch screen
GS450h_OM_OM30F70U_(U)
■Display the side display
Basic screens
The following functions can be displayed and operated on the side dis-
play.
Audio
*
Air conditioning system
(P. 340)
Vehicle information
( P. 116)
Interruption screens
Each of the following screens is di splayed automatically in accordance
with conditions.
•
Intuitive parking assist* (if equipped)
•Phone
*
• Destination Assist*
• Driving mode ( P. 280)
• Lexus night view (if equipped) ( P. 312)
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
■To display on the main display
Detailed information that is not shown on the side display can be set to
display on the main display.
Select , or .
1
2
3

335
GS450h_OM_OM30F70U_(U)5-2. Using the air conditio ning system and defogger
5
Interior features

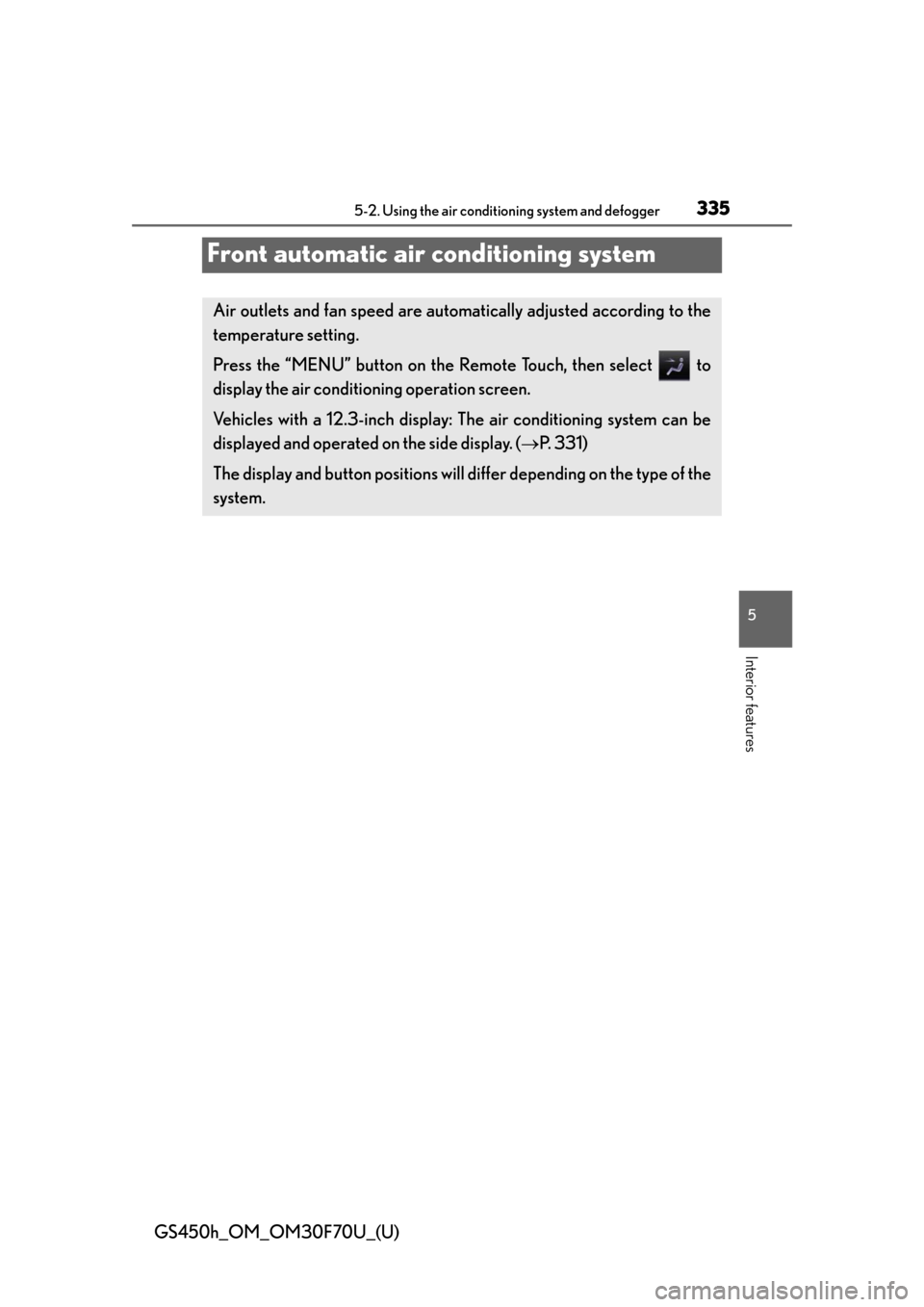

Front automatic air conditioning system
Air outlets and fan speed are automatica lly adjusted according to the
temperature setting.
Press the “MENU” button on the Remote Touch, then select to
display the air conditioning operation screen.
Vehicles with a 12.3-inch display: The air conditioning system can be
displayed and operated on the side display. ( P. 3 3 1 )
The display and button positions will di ffer depending on the type of the
system.

336
GS450h_OM_OM30F70U_(U)
5-2. Using the air conditioning system and defogger

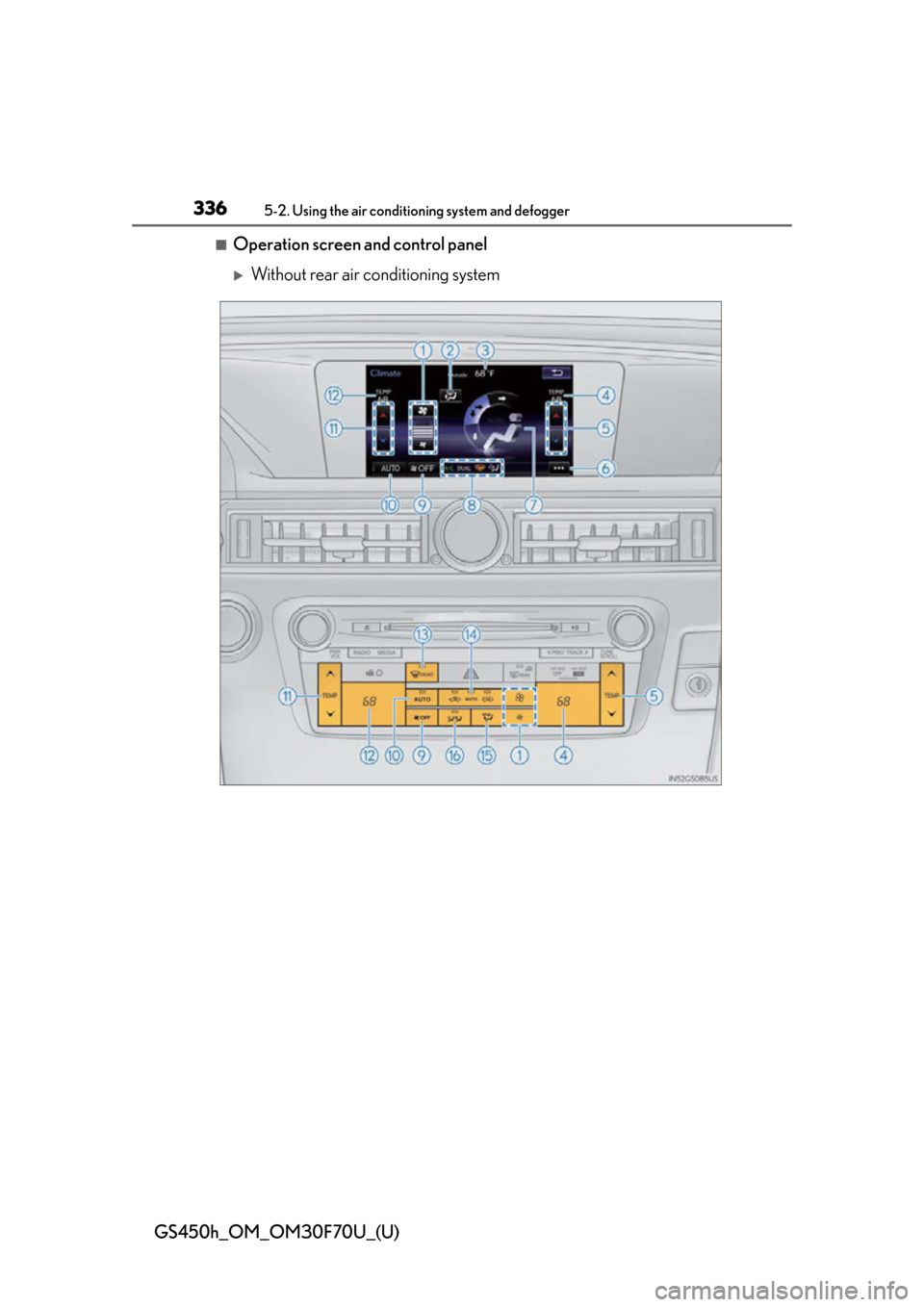

■Operation screen and control panel
Without rear air conditioning system

GS450h_OM_OM30F70U_(U)
3375-2. Using the air conditioning system and defogger
5
Interior features

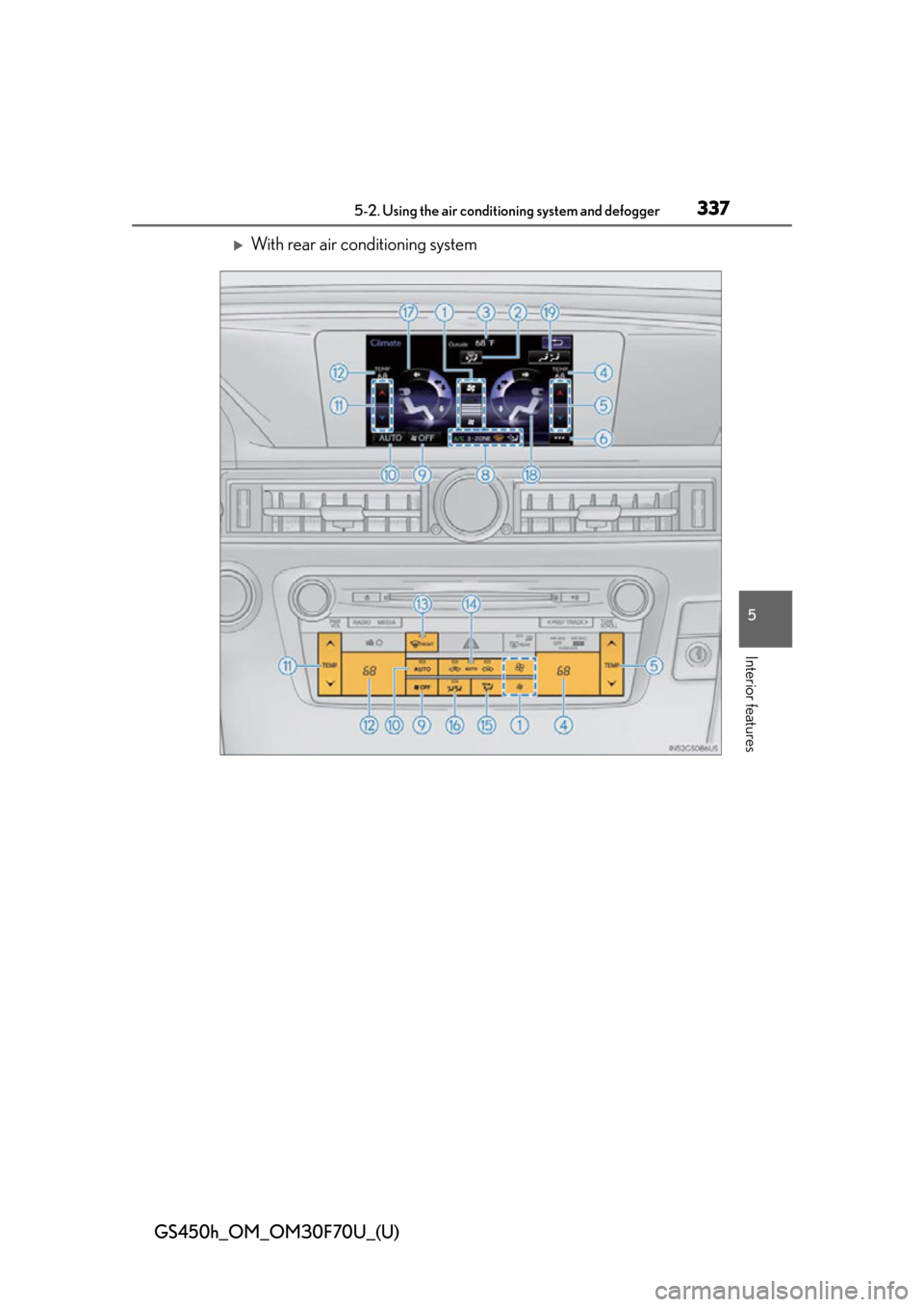

With rear air conditioning system

338
GS450h_OM_OM30F70U_(U)
5-2. Using the air conditioning system and defogger
Fan speed control
Air flows to the feet and the
windshield defogger operates.
Outside temperature
Right-hand front seat side tem-
perature display
Right-hand front seat side tem-
perature control
Option control screen
Front seat air outlet selector
Option function on/off indica-
tors
Off
Automatic mode Left-hand front seat side tem-
perature control
Left-hand front seat side tem-
perature display
Windshield defogger
Outside air or recirculated
mode
Air outlet selector
S-FLOW mode
Left-hand front seat side air out-
let selector
Right-hand front seat side air
outlet selector
Rear air conditioning operation
screen1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

GS450h_OM_OM30F70U_(U)
3395-2. Using the air conditioning system and defogger
5
Interior features
■Option control screen
Select on the operation screen to display the option control
screen. The functions can be switched on and off.
Select to set cooling and de humidification function on/off
Vehicles without rear air conditioning system:
The temperature for the driver’s an d front passenger’s seats can be
adjusted separately (DUAL mode) ( P. 3 4 1 )
Vehicles with rear air conditioning system:
The temperature for the driver’s, fr ont passenger’s and rear seats
( P. 355) can be adjusted separately (3-ZONE mode) ( P. 3 4 1 )
Prevent ice from building up on the windshield and wiper blades
(if equipped) ( P. 361)
Remove pollen from the air (Micro dust and pollen filter) ( P. 3 4 9 )
Without rear air conditioning sys-
temWith rear air conditioning sys-
tem
1
2
3
4

340
GS450h_OM_OM30F70U_(U)
5-2. Using the air conditioning system and defogger
■Side display (if equipped)
Front seat air outlet selector
Fan speed control
Fan speed display
Left-hand front seat side temperature control
Left-hand front seat side temperature display
Right-hand front seat side temperature display
Right-hand front seat side temperature control
Cooling and dehumidification function on/off
Automatic mode
DUAL mode
Left-hand front seat side air outlet selector
Right-hand front seat side air outlet selector
3-ZONE mode
Without rear air conditioning sys-
temWith rear air conditioning sys-
tem
1
2
3
4
5
6
7
8
9
10
11
12
13
