111
GS450h_OM_OM30E26U_(U)2. Instrument cluster
2
Instrument cluster
Energy monitor/consumption screen
Multi-information display
Remote Touch screen
Remote Touch knob
“MENU” button
You can view the status of your hybrid system on the multi-information
display and the Remote Touch screen.
Vehicles with a 12.3-inch display: The energy monitor or consumption
screen can be displayed on the side display.
1
2
3
4

112
GS450h_OM_OM30E26U_(U)
2. Instrument cluster
■Remote Touch screen
Press the “MENU” button on the Remote Touch, then select on
the “Menu” screen, and then select “Fuel Consumption”.
If the “Trip Information” or “Past Record” screen is displayed, select “Energy”.
■Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor display.
Energy monitor

GS450h_OM_OM30E26U_(U)
1132. Instrument cluster
2
Instrument cluster
These images are examples only, and may vary slightly from actual conditions.

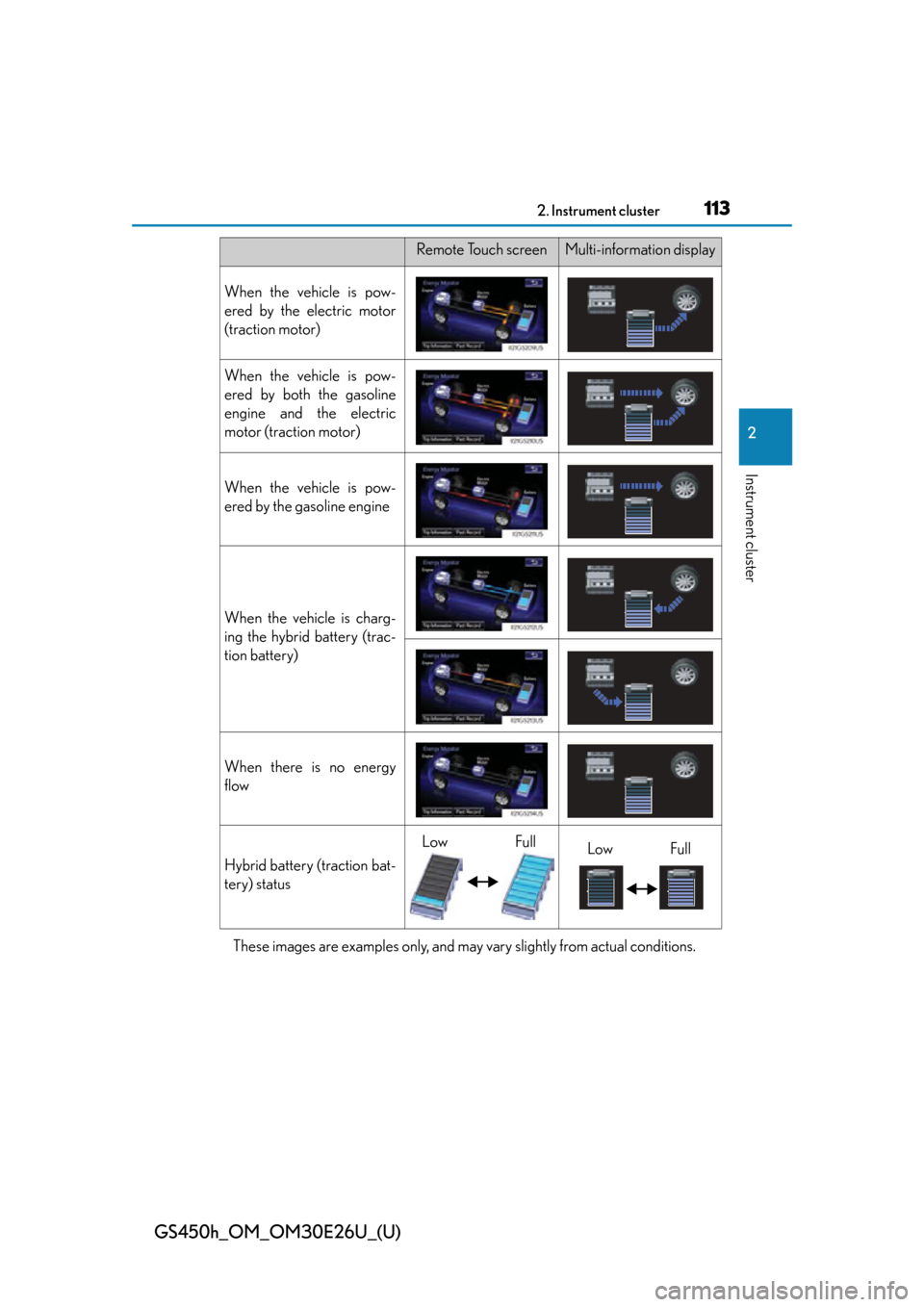

Remote Touch screenMulti-information display
When the vehicle is pow-
ered by the electric motor
(traction motor)
When the vehicle is pow-
ered by both the gasoline
engine and the electric
motor (traction motor)
When the vehicle is pow-
ered by the gasoline engine
When the vehicle is charg-
ing the hybrid battery (trac-
tion battery)
When there is no energy
flow
Hybrid battery (traction bat-
tery) status
LowFullLowFull

114
GS450h_OM_OM30E26U_(U)
2. Instrument cluster
Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen, and then select “Fuel Consumption”.
■Trip information
If the “Energy Monitor” or “Past Re cord” screen is displayed, select
“Trip Information”.
Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes
One symbol indicates 50 Wh. Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( P. 1 1 5 )
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
Consumption
1
2
3
4
5
6
7

GS450h_OM_OM30E26U_(U)
1152. Instrument cluster
2
Instrument cluster
■Past record
If the “Energy Monitor” or “Trip Information” screen is displayed, select
“Past Record”.
Resetting the past record data
Best recorded fuel consump-
tion
Average fuel consumption
Previous fuel consumption
record
Updating the average fuel
consumption data
The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last updated. Use the displayed
average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
■Updating the past record data
Update the average fuel cons umption by selecting “Update” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5

116
GS450h_OM_OM30E26U_(U)
2. Instrument cluster
Vehicle information can be displayed on the side display (P. 333), then
select or to select the desired screen.
Fuel consumption
Displays the average fuel consump-
tion and regenerated energy for the
past 10 minutes in 1 minute intervals,
as well as the cruising range.
Past record
Displays the average fuel consump-
tion and highest fuel consumption.
Trip information
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the hybrid sys-
tem was started.
Using the side display (if equipped)

GS450h_OM_OM30E26U_(U)
1172. Instrument cluster
2
Instrument cluster
Energy monitor
Displays the hybrid system opera-
tion and energy recovery states.
The image is an example only, and may vary slightly from actual conditions.

118
GS450h_OM_OM30E26U_(U)
2. Instrument cluster

119
GS450h_OM_OM30E26U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................................. 120
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start ............ 123
Wireless remote control .......... 136
Doors ............................................... 139
Trunk ................................................. 143
3-3. Adjusting the seats Front seats ...................................... 150
Driving position memory ..........152
Head restraints ............................ 158
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................... 161
Inside rear view mirror...............162
Outside rear view mirrors ....... 164
3-5. Opening, closing the windows and moon roof
Power windows ............................. 167
Moon roof ........................................ 171

120
GS450h_OM_OM30E26U_(U)
3-1. Key information
Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart access systemwith push-button start ( P. 1 2 3 )
• Operating the wireless remote control function ( P. 1 3 6 )
Mechanical keys
Key number plate
To take out the mechanical key, push
the release button and take the key
out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cylin-
der, turn it over and re-attempt to
insert it.
After using the mechanical key, store
it in the electronic key. Carry the
mechanical key together with the
electronic key. If the electronic key
battery is depleted or the entry func-
tion does not operate properly, you
will need the mechanical key.
(  P. 559)
The keys
1
2
3
Using the mechanical key
